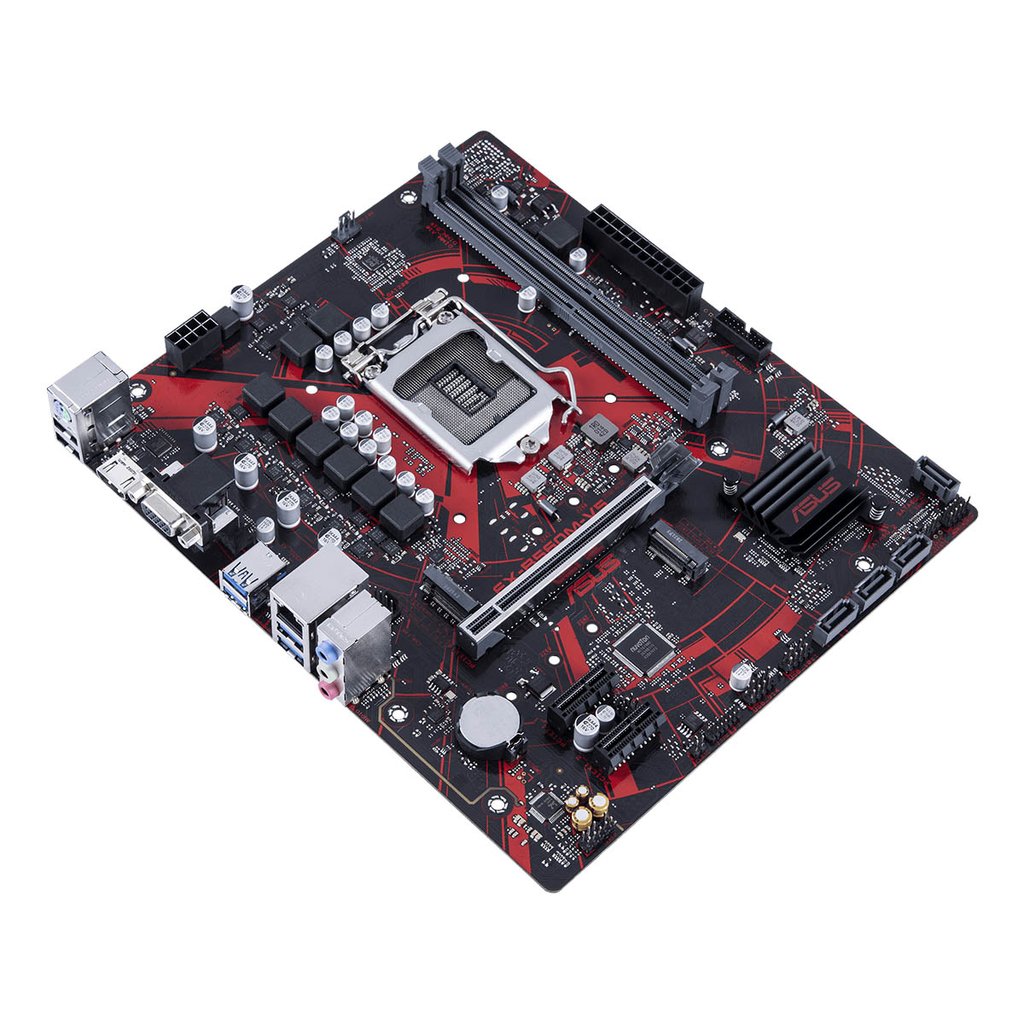

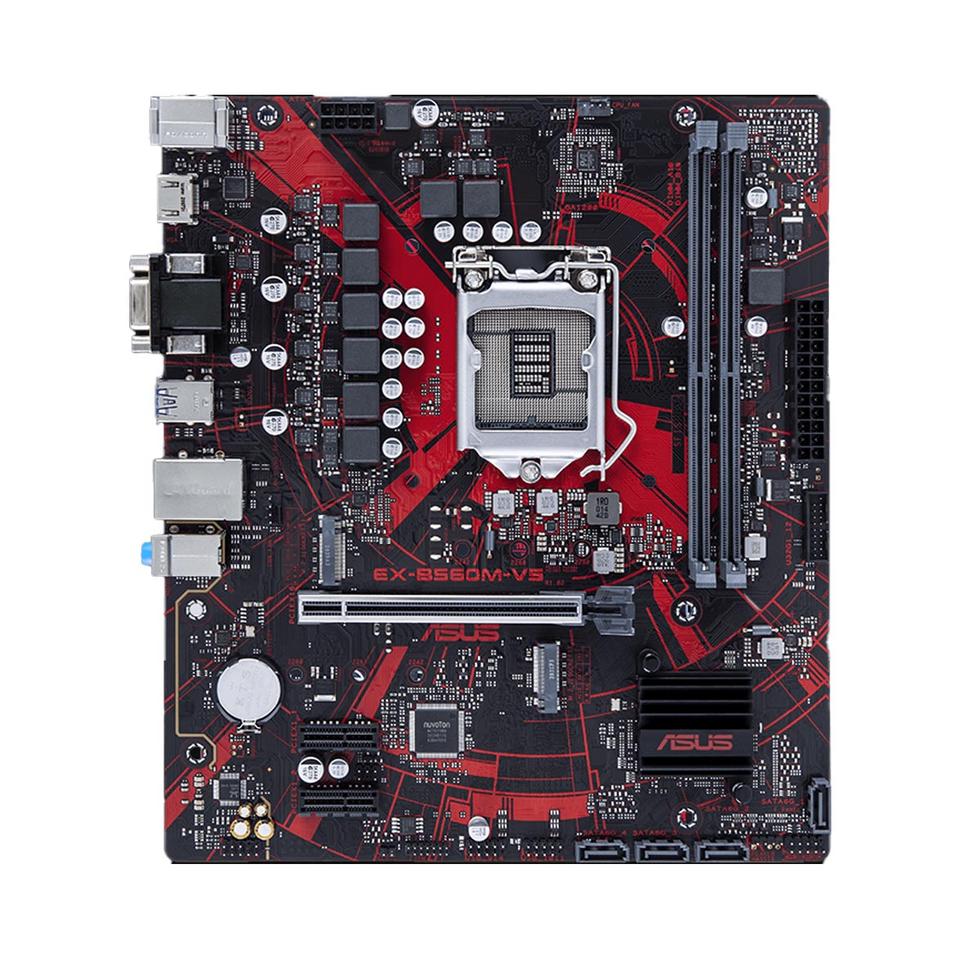

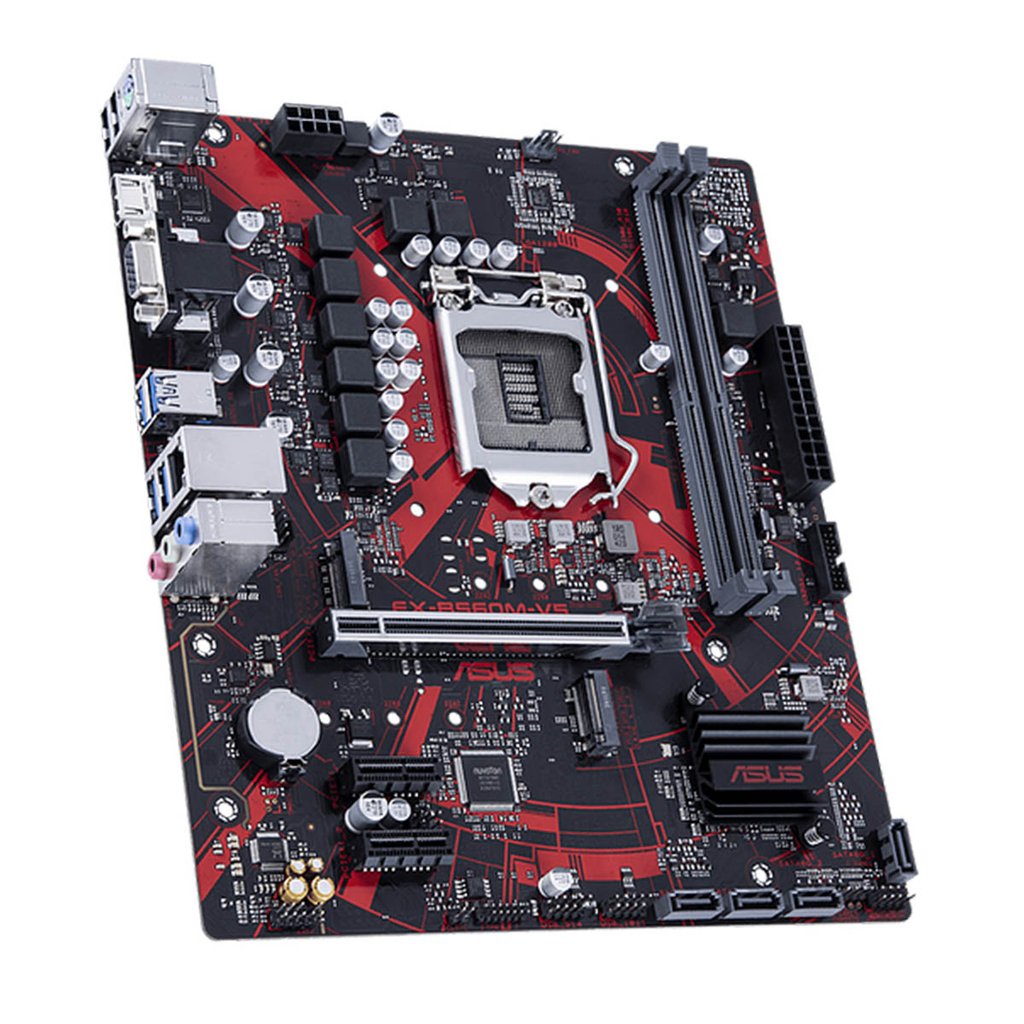

Asus EX-B560M-V5 Micro-ATX Gaming Motherboard for Intel 10th/ 11th Gen Processors – LGA1200 Socket
Original price was: ₹12,200.00.₹9,399.00Current price is: ₹9,399.00.
Out of stock
Additional Information
Cash on Delivery
Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.
10 Days Return
You can return the product & get a new replacement if the product is received in defective/ damaged condition.
Free Fast Delivery
We are glad to provide free shipping throughout India.
100% Secure Payment
We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.
Genuine Manufacturer Warranty
All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.
Excellent Customer Support
We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in
Reviews
Product Description
Intel B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8 power stages, Realtek 1 Gb Ethernet, HDMI, D-Sub, rear USB 3.2 Gen 1, TPM header, luminous anti-moisture coating, SafeSlot Core+, USBGuard, LANGuard, DDR4 5000(OC)MHz, and 8-pin power connector
- Non-stop action: The best choice for iCaf?, configure-to-order gaming systems and quality-driven businesses
- Non-stop durability: Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
- Non-stop gaming: ASUS Beyond VR ready and Epic audio
- Non-stop challenger: ASUS iCaf? LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
ASUS Expedition: Ready for non-stop battle
ASUS Expedition motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages for immense longevity. We even test them to the limits, with 144 hour of diskless-system tests and extensive checks for compatibility with top games and over 100 gaming peripherals. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance ??and the best stability, reliability, and value for you!
SPECIFICATIONS:
| Brand | Asus |
| Model | EX-B560M-V5 |
| CPU |
Intel? Socket LGA1200 for 11th Gen Intel? Core??Processors & 10th Gen Intel? Core?? Pentium? Gold and Celeron? Processors Supports Intel? 14 nm CPU Supports Intel ? Turbo Boost Technology 2.0 and Intel? Turbo Boost Max Technology 3.0** *Refer to www.asus.com for CPU support list. **Intel? Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | B560 |
| Memory |
DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory* Dual Channel Memory Architecture Supports Intel? Extreme Memory Profile (XMP) *10th Gen Intel? Core??i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel? processors support 2933/2800/2666/2400/2133 natively * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics |
1 x D-Sub 1 x HDMI 2.0** ** Only Intel? 11th Gen processors support HDMI??2.0 with max. resolution of 4K@60Hz, others will only support HDMI??1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
| Expansion Slots |
Intel? 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot – Intel? 11th Gen processors support PCIe 4.0 x16 – Intel? 10th Gen processors support PCIe 3.0 x16 Intel? B560 Chipset 2 x PCIe 3.0 x1 slots |
| Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel?11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Only Intel? 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel? B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| USB | Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Premium Japanese audio capacitors – Audio Shielding – Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. |
| Back Panel I/O Ports |
4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMITM port 3 x Audio jacks 1 x Realtek 1Gb Ethernet port 1 x PS/2 Keyboard/Mouse combo port |
| Intrernal I/O Connectors |
Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slot (Key M) |
| Special Features |
ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot Non-stop Challenger – ASUS iCafe labs certified Non-stop Durability – Luminous anti-moisture coating – USBGuard |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 ANCHOR Installation Media 1 x Support DVD Documentation 1 x User manual |
| Form Factor | ATX 24.4cm x 21.1cm |
| Warranty | 3 Years Manufacturer’s Warranty |
| Country Of Origin | China |
| Manufacturer | ASUS GLOBAL PTE LTD. 15A Changi Business Park Central 1, #05-01, Eightrium, Singapore 486035 |
| Importer | Rashi Peripherals Pvt.Ltd. Rashi Complex,”A” Building, Survey 186, Dongaripada, PomanVillage, Vasai Bhiwandi Road, Dist. Thane, Maharashtra – 401208 India |
| Net Quantity | 1 |
| Product Package Dimensions (LxWxH) | 26.5 x 27.5 x 5 Centimeters |
| Weight | 800g |
| Note | *** Features, Price, Specifications are subject to change without notice. |
