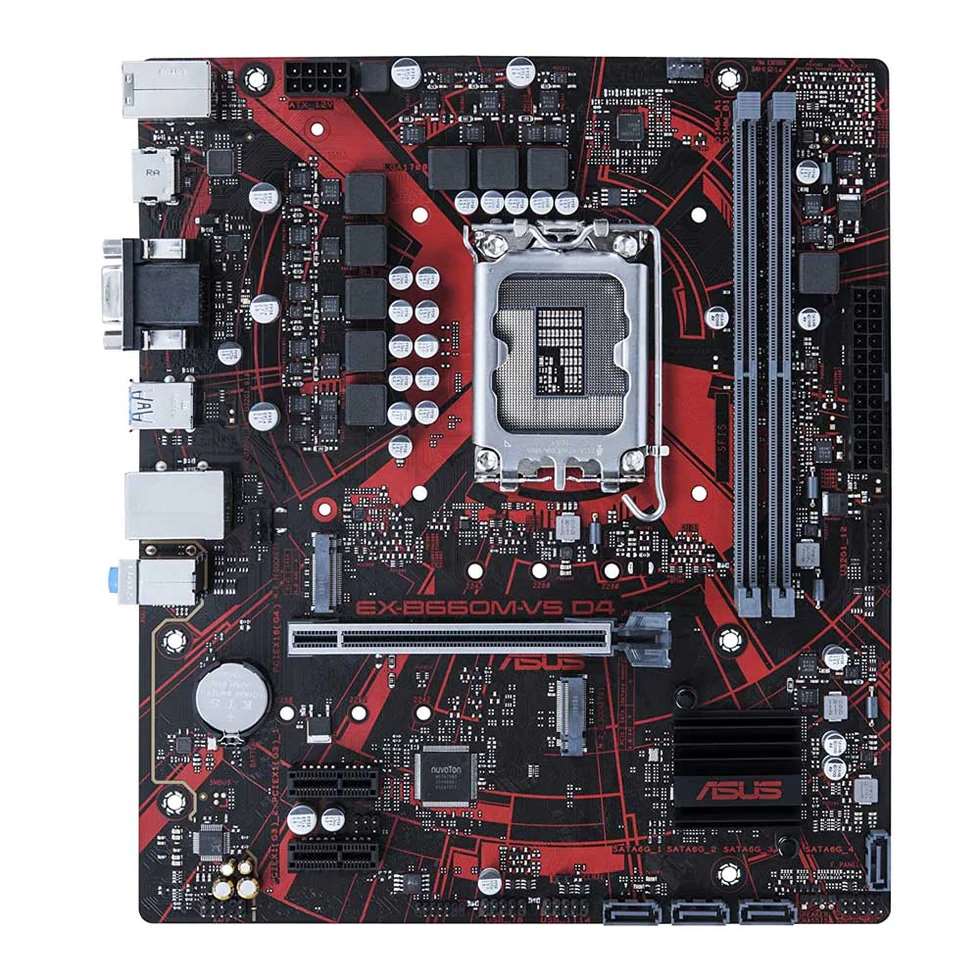

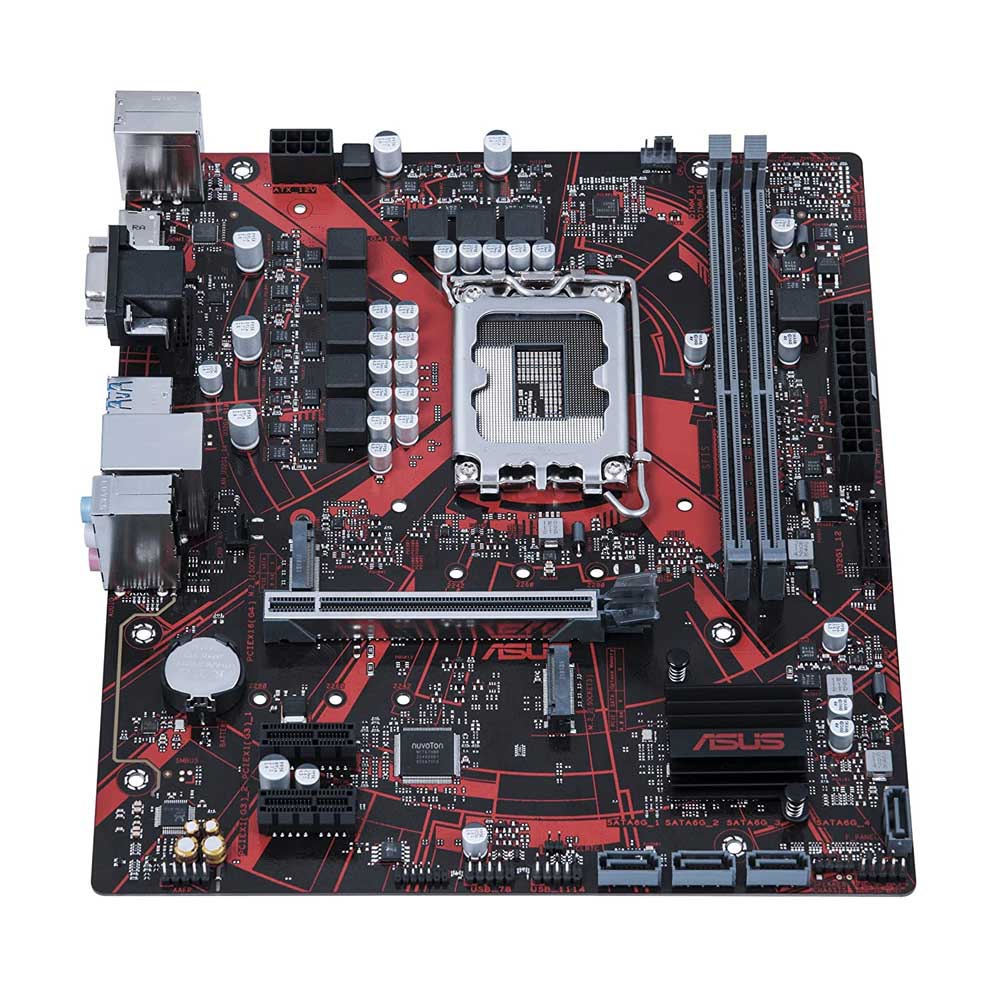

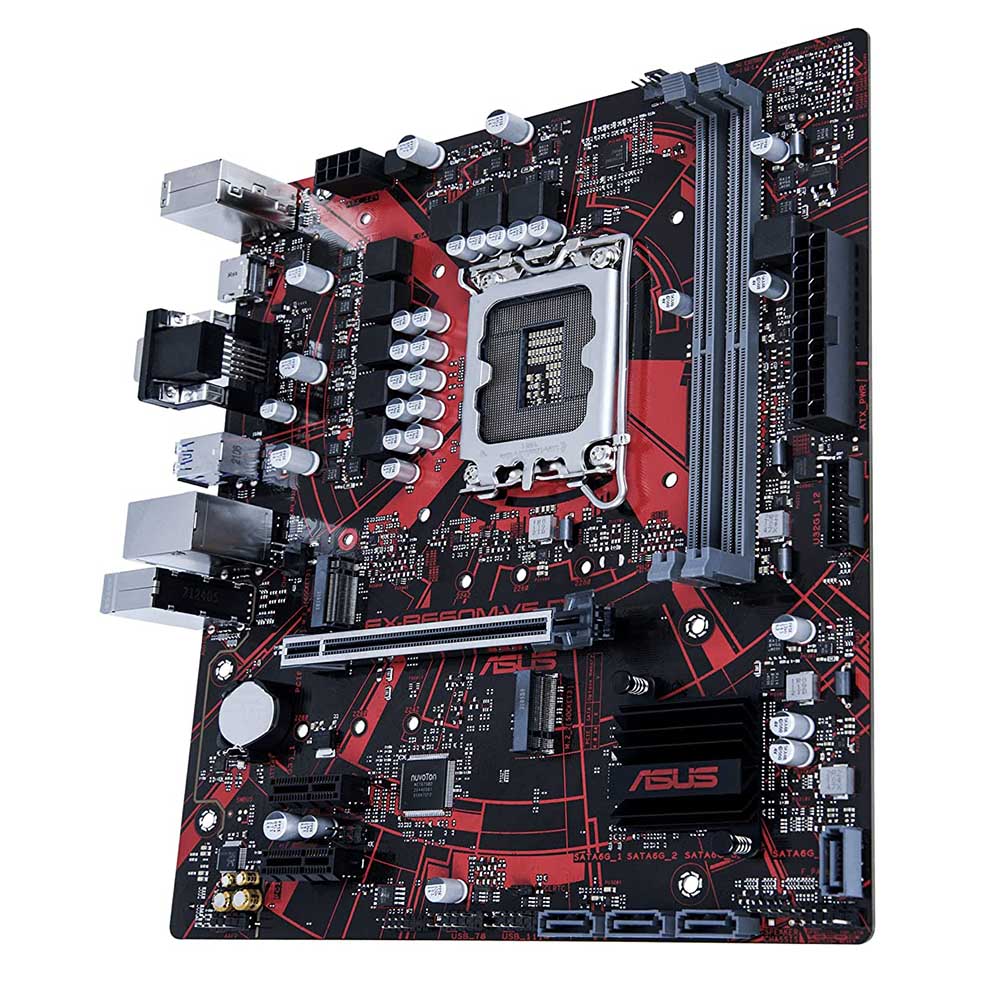

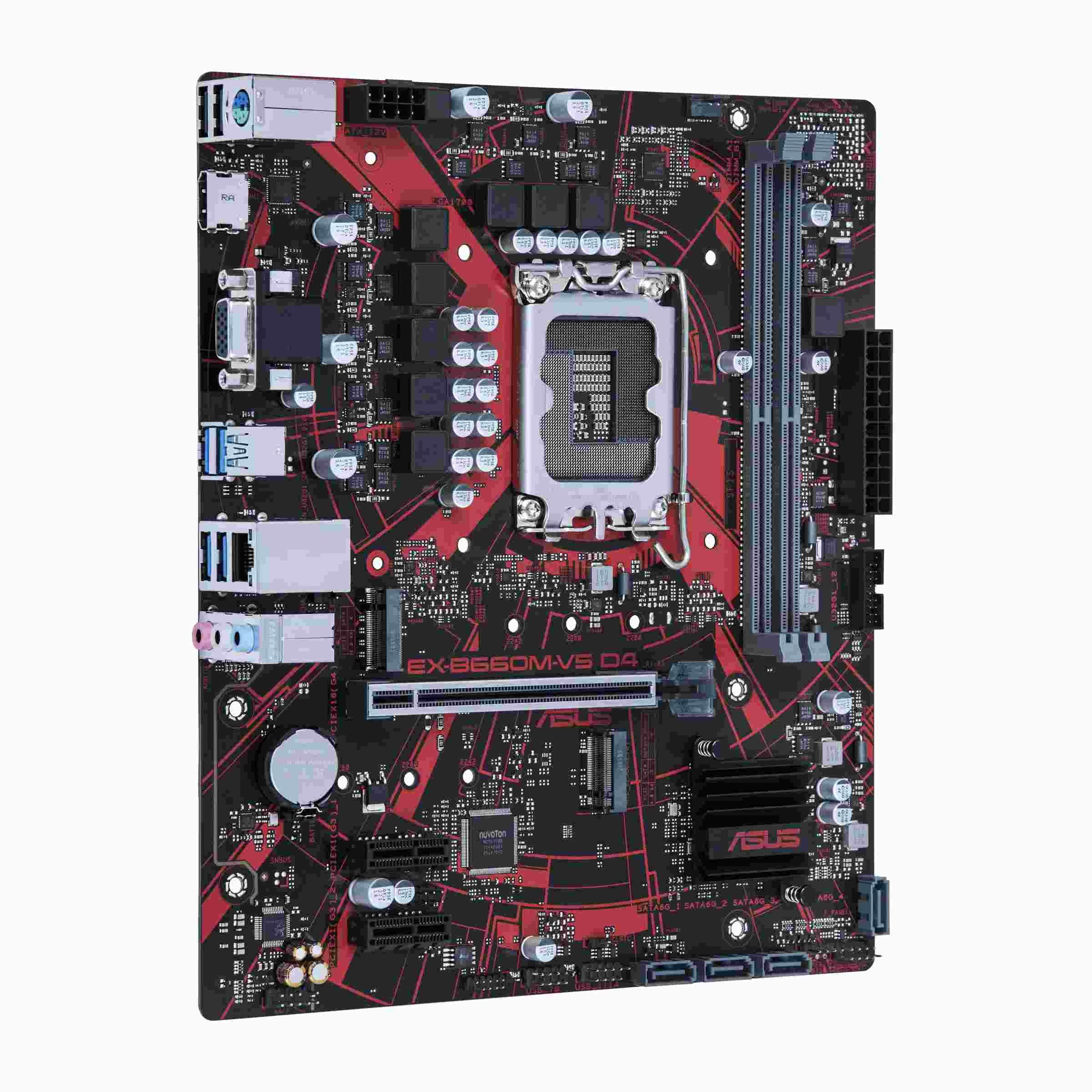

Asus EX-B660M-V5 D4 Motherboard for Intel 12th Gen Processors – LGA1700 Socket

Intel? Socket LGA1700 for 12th Gen Intel? Core?? Pentium? Gold and Celeron? Processors*

Supports Intel ? Turbo Boost Technology 2.0 and Intel? Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel? Turbo Boost Max Technology 3.0 support depends on the CPU types.

2 x DIMM, Max. 64GB, DDR4

5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)
/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933
/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel? Extreme Memory Profile (XMP)

*Actual memory data rate depends on the CPU types and DRAM modules,
for more information refer to www.asus.com for memory support list.

1 x D-Sub port

1 x HDMI? port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.

Intel? 12th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel? B660 Chipset

2 x PCIe 3.0 x1 slots

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel? 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

– Intel? 12th Gen processors support PCIe 4.0 x4 mode.

Intel? B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel? Rapid Storage Technology supports SATA RAID 0/1/5/10.

** Intel? Rapid Storage Technology supports Intel? Optane Memory H Series on PCH attached M.2 slots.

Rear USB (Total 6 ports)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

Audio Features

– Premium audio capacitors

– Audio Shielding

– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

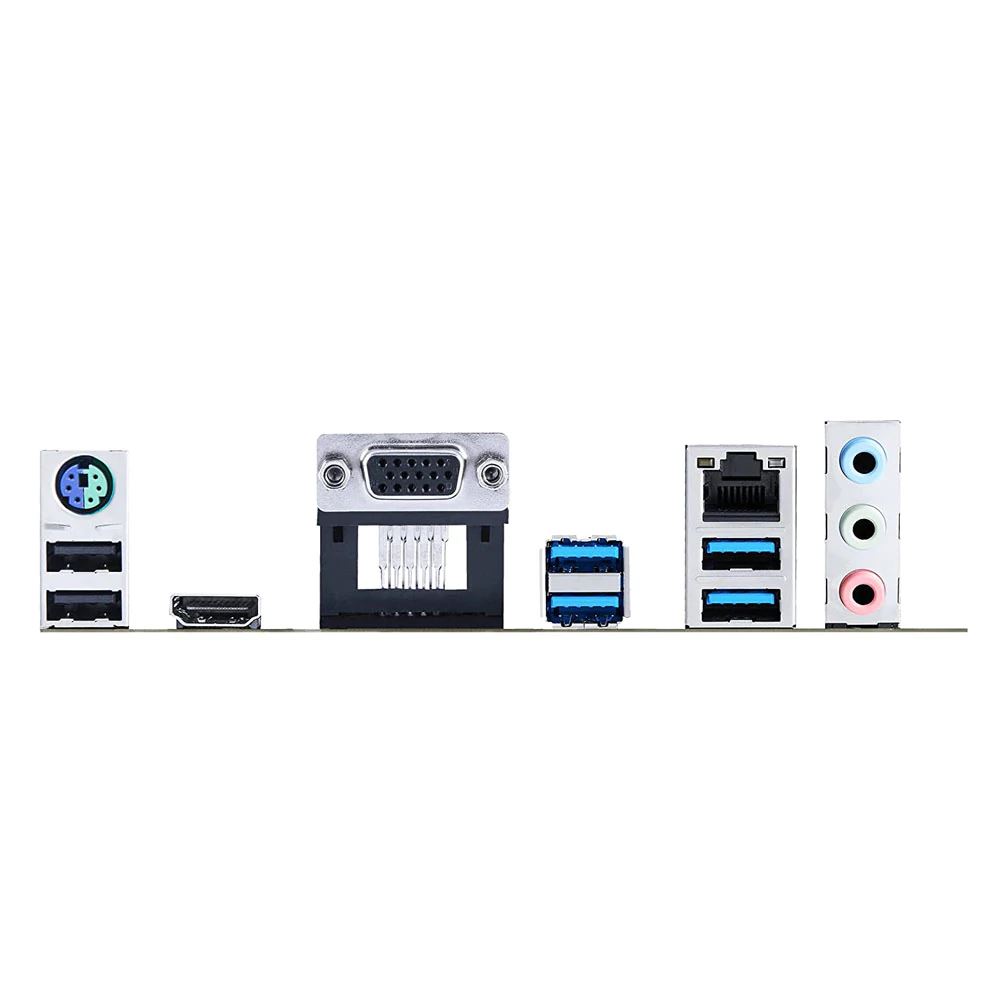

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMI? port

3 x Audio jacks

1 x Realtek 1Gb Ethernet port

1 x PS/2 Keyboard/Mouse combo port

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x 10-1 pin System Panel header

ASUS 5X PROTECTION III

– DIGI+ VRM

– LANGuard

– Overvoltage Protection

– SafeSlot Core+

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-Slot

ASUS EZ DIY

– ProCool

Non-stop Action

– Lightning Boot

Non-stop Challenger

– ASUS iCafe labs certified

Non-stop Durability

– Luminous anti-moisture coating

– USBGuard

ASUS 5X PROTECTION III

– DIGI+ VRM

– LANGuard

– Overvoltage Protection

– SafeSlot Core+

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-Slot

ASUS EZ DIY

– ProCool

Non-stop Action

– Lightning Boot

Non-stop Challenger

– ASUS iCafe labs certified

Non-stop Durability

– Luminous anti-moisture coating

– USBGuard

Windows? 11 64-bit, Windows? 10 64-bit

mATX Form Factor

9.6 inch x 8.3 inch(24.4cm x 21.1cm)
