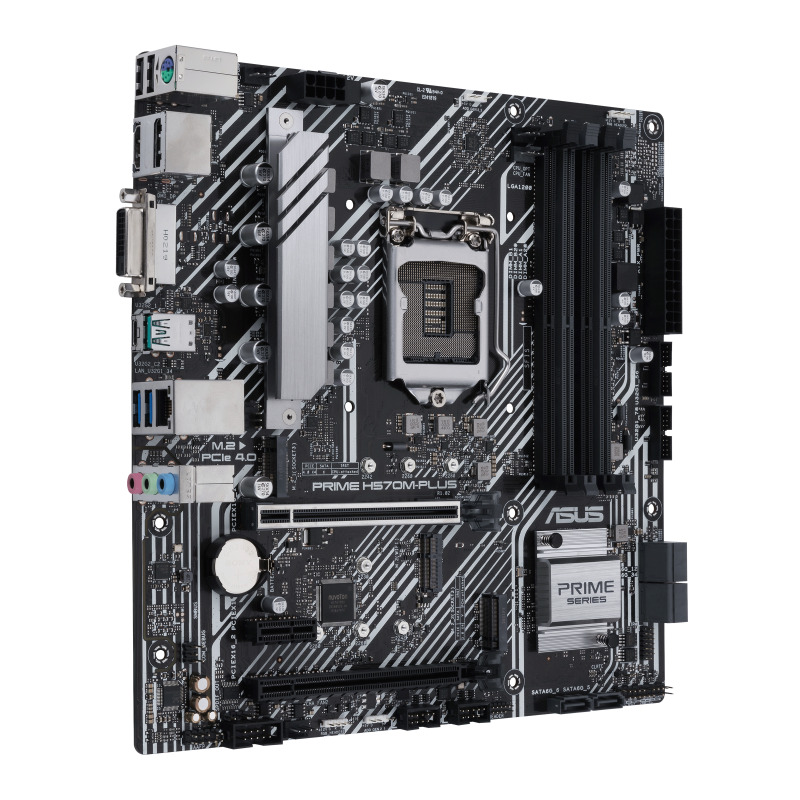

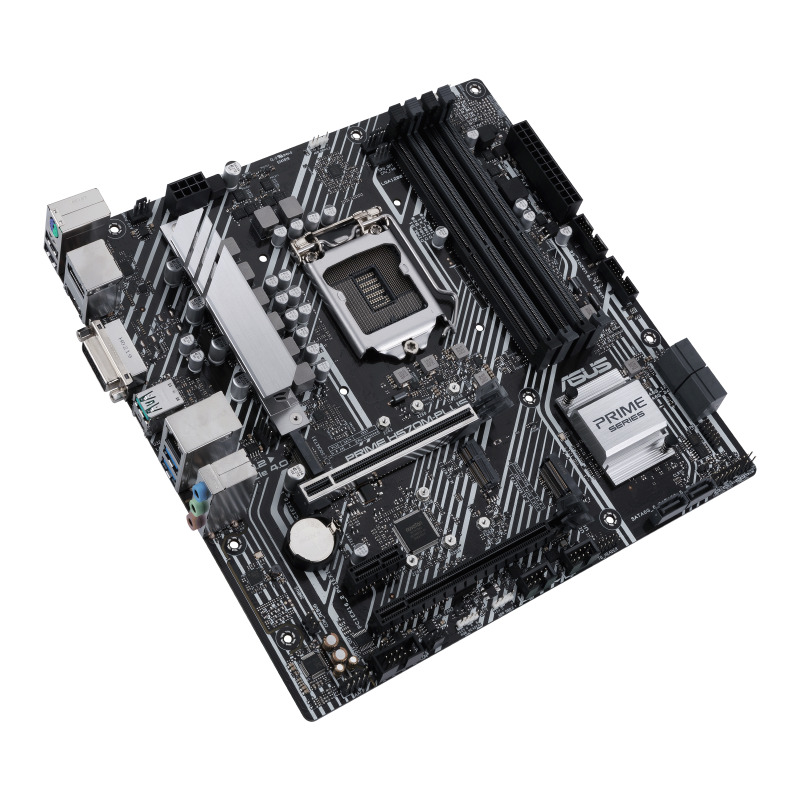

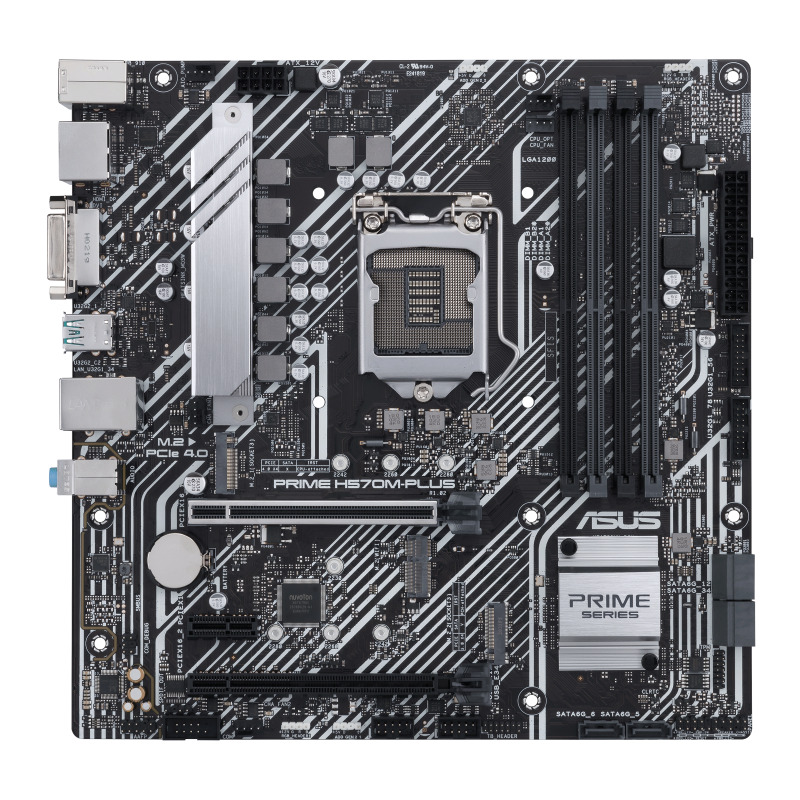

Asus PRIME H570M-PLUS Motherboard for Intel 10th/ 11th Gen Processors – LGA1200 Socket

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

DDR4 4600(OC)/4400(OC)/4266(OC)/
4000(OC)/3733(OC)/
3600(OC)/3466(OC)/3333(OC)/
3200(OC)/2933/2800/
2666/2400/2133 MHz Non-ECC,
Un-buffered memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem

* 10th Gen Intel Core i7/i9 processorssupport 2933/2800/
2666/2400/2133 natively,
others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
4 x DIMM, Max. 128GB, 4600(OC)/4400(OC)/4266(OC)/
4000(OC)/3733(OC)/3600(OC)/
3466(OC)/3333(OC)/3200(OC)/
2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem

* 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

1 x DisplayPort 1.4
1 x DVI-D
1 x HDMI 1.4 / 2.0***
* Graphics specifications may vary between CPU types.

** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.

*** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.

Intel 11^th & 10^th Gen Processors*

1 x PCIe 4.0/3.0 x16 slot

– Intel 11^th Gen processors support PCIe 4.0 x16 mode

– Intel10^th Gen processors support PCIe 3.0 x16 mode

Intel H570 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot

Intel 11^th & 10^th Gen Processors*

1 x PCIe 4.0/3.0 x16 slot

– Intel 11^th Gen processors support PCIe 4.0 x16 mode

– Intel10^th Gen processors support PCIe 3.0 x16 mode

Intel H570 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot

Intel11^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

– Only Intel 11^th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel H570 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

6 x SATA 6Gb/s ports

Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

* When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.

Intel11^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

– Only Intel 11^th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel H570 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

6 x SATA 6Gb/s ports

Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

* When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used

1 x Intel I219-V 1Gb Ethernet

ASUS LANGuard

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 8 ports

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

Audio Features

– Audio Shielding

– Premium Japanese audio capacitors

– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

Audio Features

– Audio Shielding

– Premium Japanese audio capacitors

– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

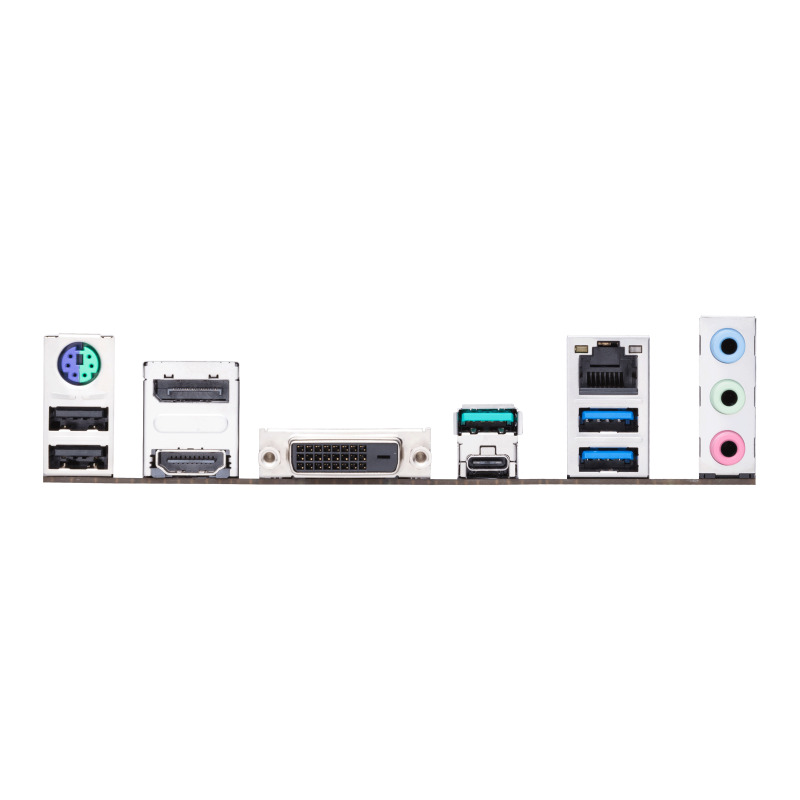

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x DVI-D port

1 x HDMITM port

1 x Intel I219V 1Gb Ethernet

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x DVI-D port

1 x HDMI port

1 x Intel I219V 1Gb Ethernet

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt header

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt header

ASUS 5X PROTECTION III

– DIGI+ VRM (- Digital power design with DrMOS)

– LANGuard

– Overvoltage Protection

– SafeSlot Core+

– Stainless-Steel Back I/O

ASUS Q-Design

– ASUS Q-DIMM

– ASUS Q-Slot

ASUS Thermal Solution

– VRM heatsink design

AURA Sync

– AURA RGB headers

– Addressable Gen 2 RGB headers

ASUS 5X PROTECTION III

– DIGI+ VRM (- Digital power design with DrMOS)

– LANGuard

– Overvoltage Protection

– SafeSlot Core+

– Stainless-Steel Back I/O

ASUS Q-Design

– ASUS Q-DIMM

– ASUS Q-Slot

ASUS Thermal Solution

– VRM heatsink design

AURA Sync

– AURA RGB headers

– Addressable Gen 2 RGB heade

ASUS Exclusive Software

Armoury Crate

– AURA Sync

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

FAN Xpert 2+

– EZ update

ASUS CPU-Z

AI Charger

Norton Anti-virus software (Free Trial version)

DAEMON Tools

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

ASUS Exclusive Software

Armoury Crate

– AURA Sync

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

FAN Xpert 2+

– EZ update

ASUS CPU-Z

AI Charger

Norton Anti-virus software (Free Trial version)

DAEMON Tools

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Support DVD

Documentation

1 x User manual

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Support DVD

Documentation

1 x User manual
