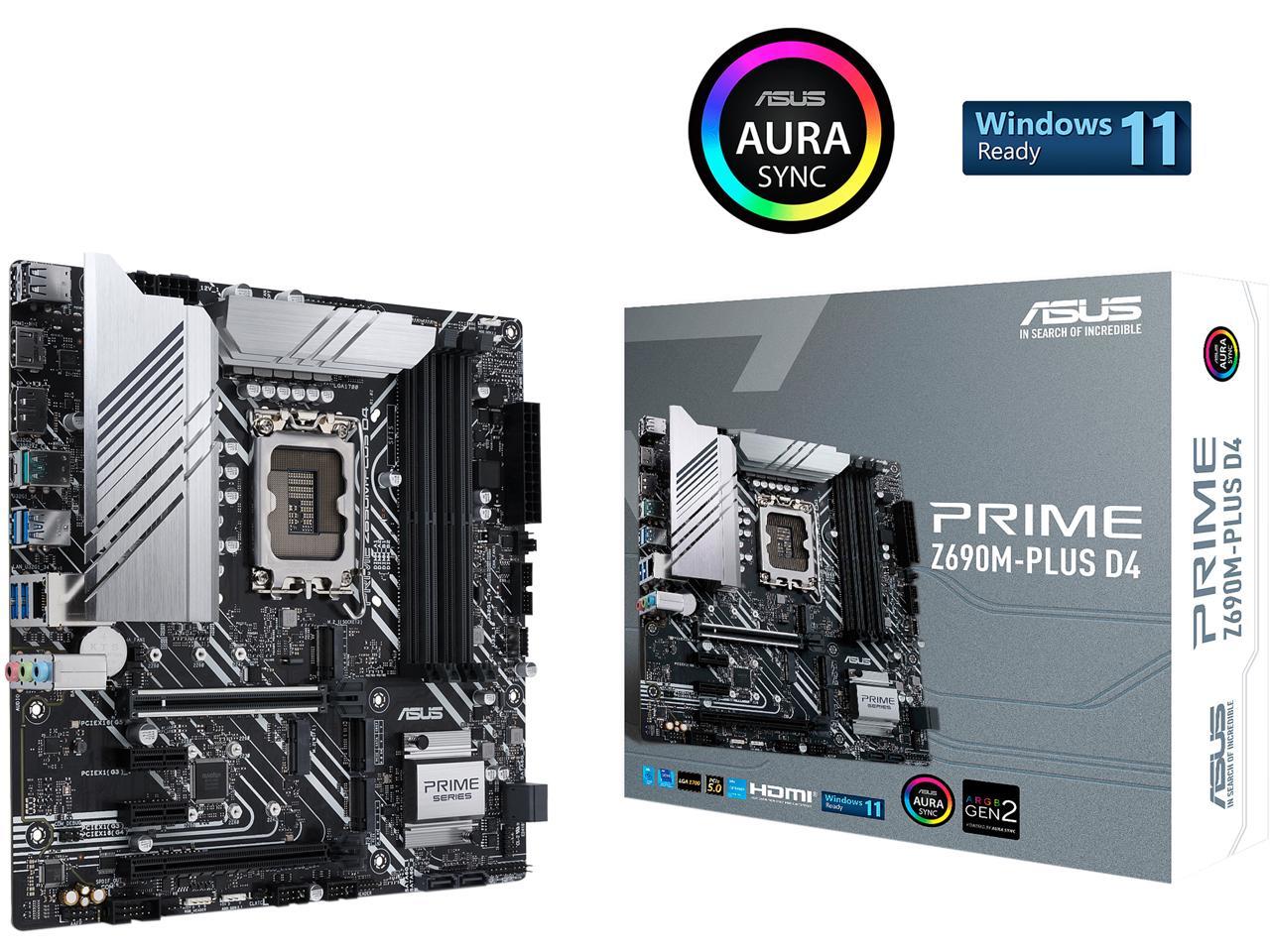

Asus PRIME Z690M-PLUS D4 Motherboard for Intel 12th Gen Processors – LGA1700 Socket
Original price was: ₹22,000.00.₹19,300.00Current price is: ₹19,300.00.
Out of stock
Additional Information
Cash on Delivery
Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.
10 Days Return
You can return the product & get a new replacement if the product is received in defective/ damaged condition.
Free Fast Delivery
We are glad to provide free shipping throughout India.
100% Secure Payment
We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.
Genuine Manufacturer Warranty
All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.
Excellent Customer Support
We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in
Reviews
Product Description
Intel? Z690 (LGA 1700) mATX motherboard with PCIe? 5.0, three M.2 slots, 10+1 DrMOS, DDR4, HDMI?, DisplayPort?? Intel? 1 Gb Ethernet, USB 3.2 Gen 2×2 Type-C?, front USB 3.2 Gen 1 Type-C?, Thunderbolt??4 header and Aura Sync RGB lighting
- Intel? LGA 1700 socket: Ready for 12th gen Intel? processors

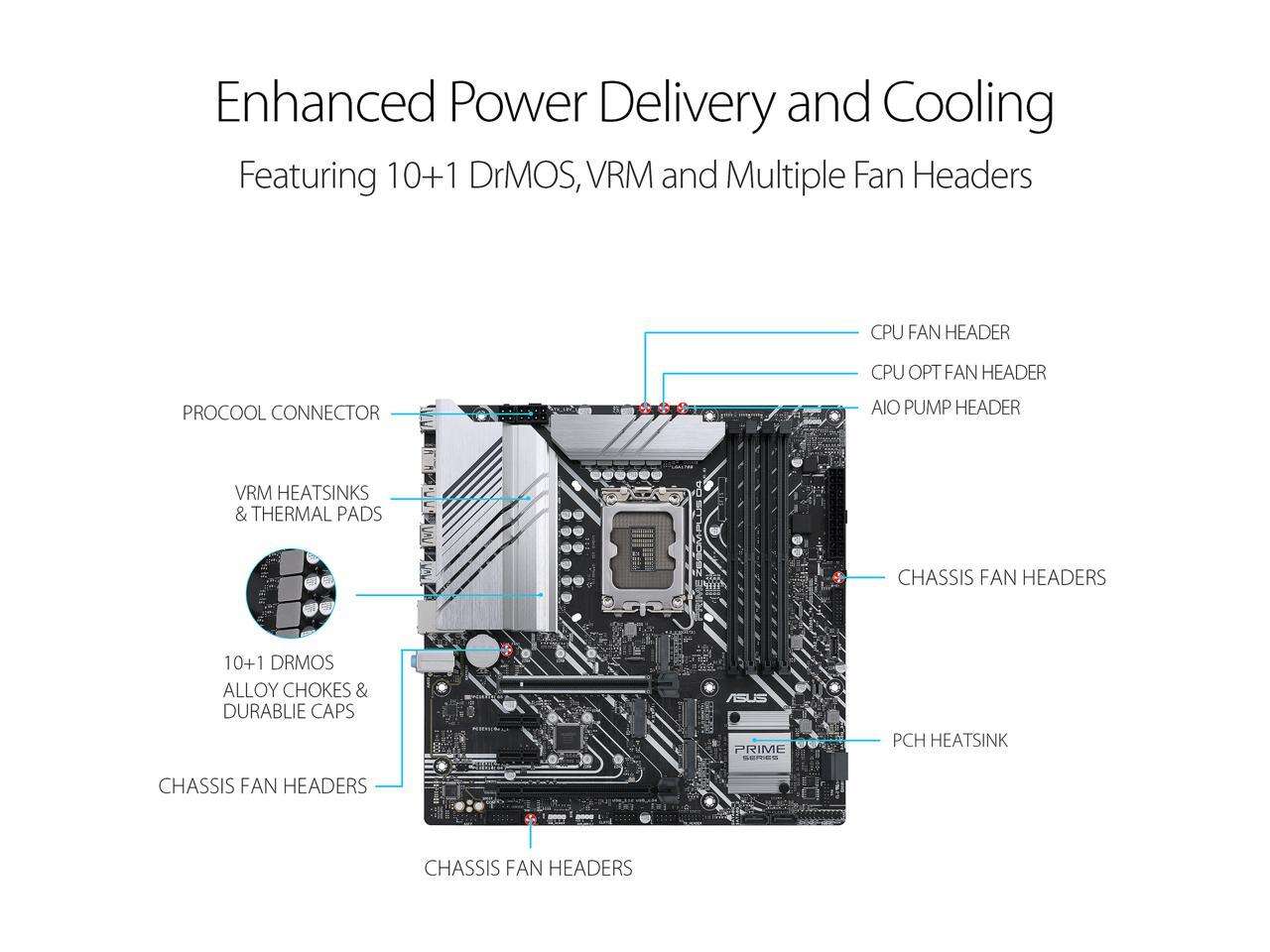

- Enhanced power solution: 10+1 DrMOS, 4-pin+8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: DDR4, PCIe? 5.0, Intel? 1 Gb Ethernet, USB 3.2 Gen 2×2 Type-C?, front panel USB 3.2 Gen 1 Type-C?, Thunderbolt??4 header
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel? processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690M-Plus D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
SPECIFICATIONS:
| Brand | Asus |
| Model | PRIME Z690M-PLUS D4 |
| CPU |
Intel? Socket LGA1700 for 12th Gen Intel? Core?? Pentium? Gold and Celeron? Processors Supports Intel? Turbo Boost Technology 2.0 and Intel? Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel? Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Z690 |
| Memory |

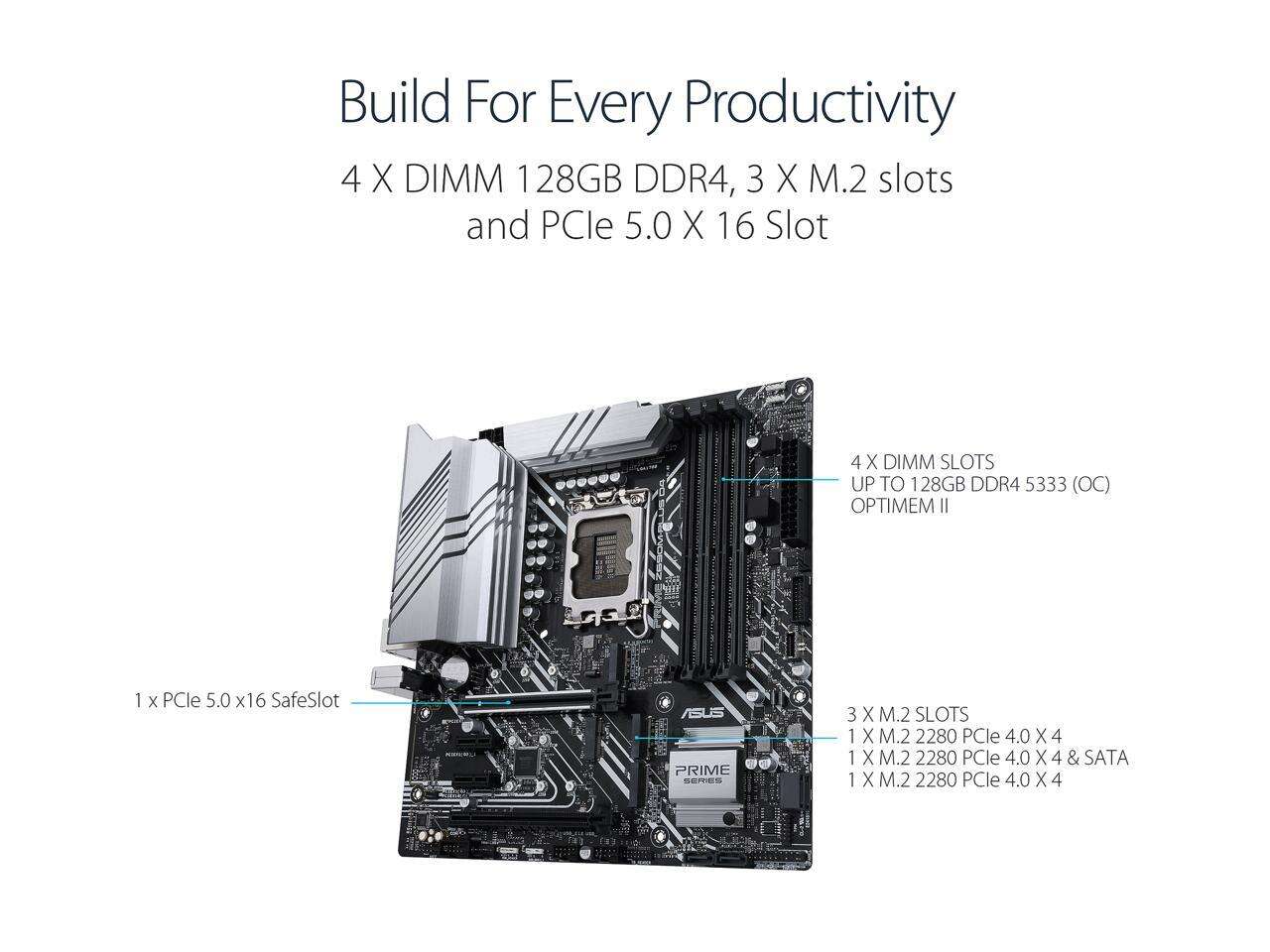

4 x DIMM, Max. 128GB, DDR4 Dual Channel Memory Architecture Supports Intel? Extreme Memory Profile (XMP) OptiMem II *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Graphics |
1 x DisplayPort** 1 x HDMI? port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Support 4K@60Hz as specified in DisplayPort 1.4. ***Support 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots |
Intel? 12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot Intel? Z690 Chipset** 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in support site. ** Supports Intel? Optane Memory H Series on PCH-attached PCIe slot |
| Storage |
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel? 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel? 12th Gen processors support PCIe 4.0 x4 mode. Intel? Z690 Chipset** M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel? Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel? Rapid Storage Technology supports Intel? Optane Memory H Series on PCH attached M.2 slots. |
| Ethernet | 1 x Intel? 1Gb Ethernet |
| Wireless & Bluetooth |
M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
| USB |
Rear USB:Total 8 ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C?) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C?) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
| Audio |
Realtek 7.1 Surround Sound High – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports |

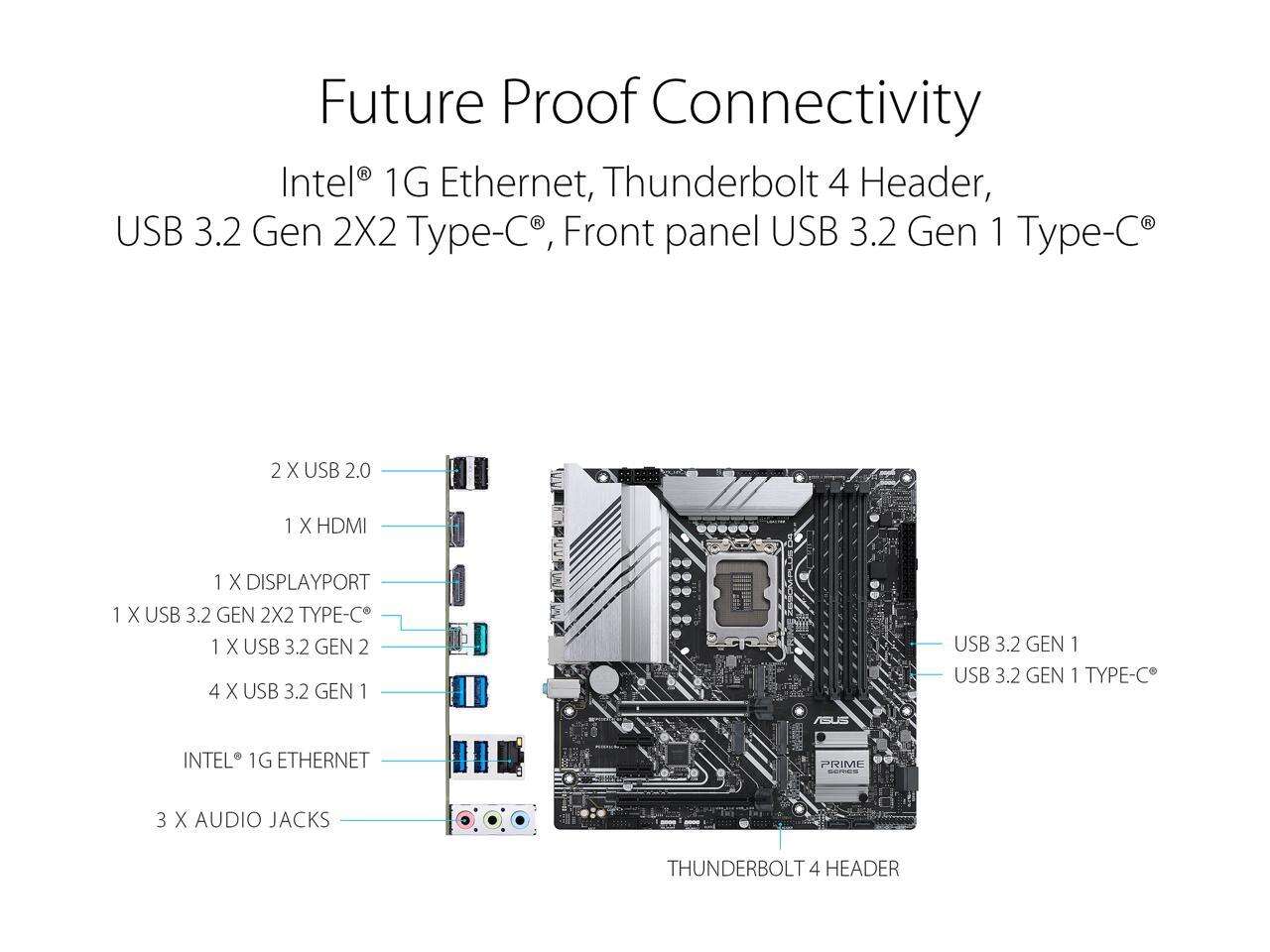

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C?) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI? port 1 x Intel? 1Gb Ethernet port 3 x Audio jacks |
| Intrernal I/O Connectors |
Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C?) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt??header |
| Special Features |

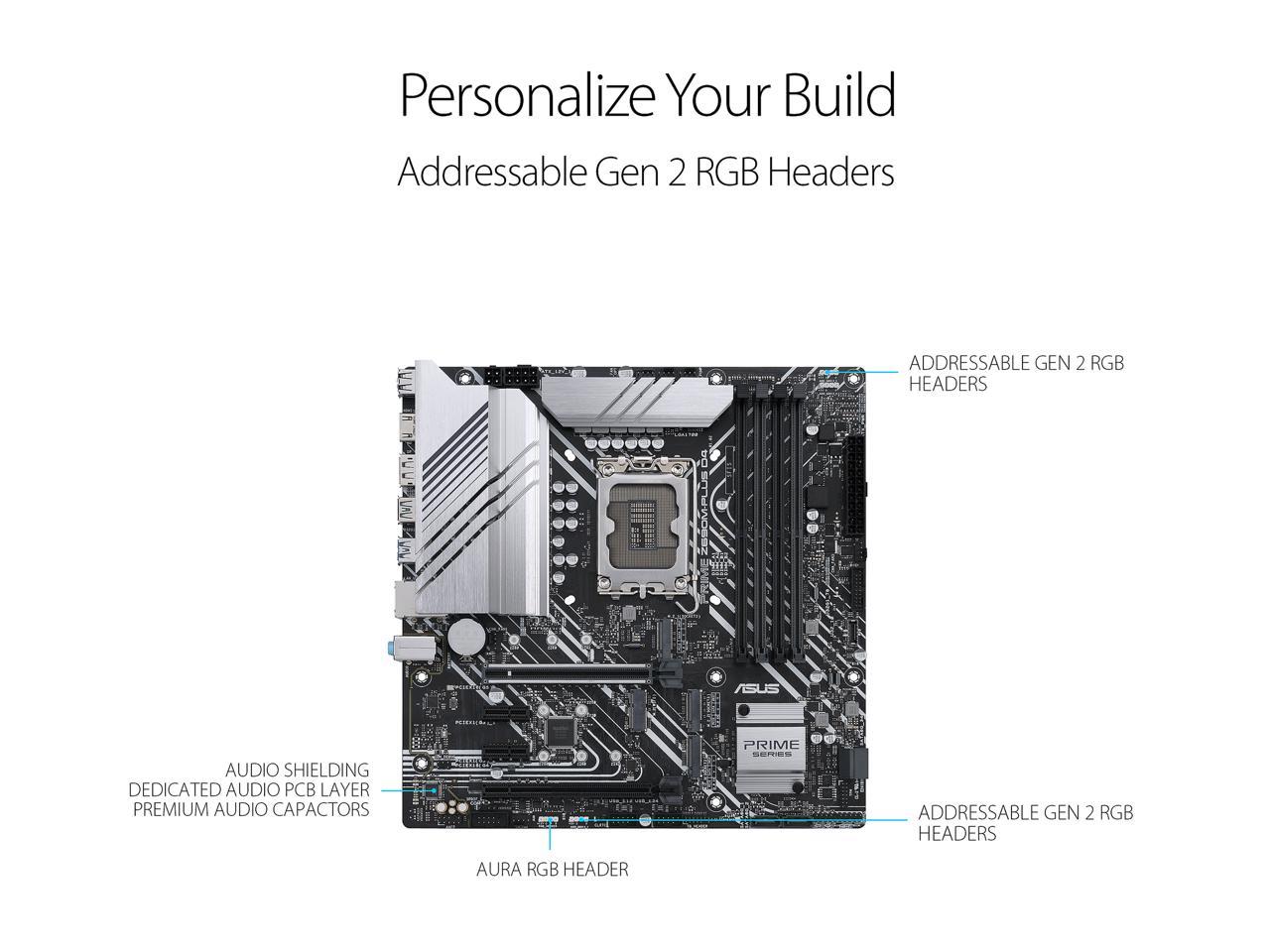

ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – VRM heatsink design ASUS EZ DIY – ProCool AURA Sync – AURA RGB header – Addressable Gen 2 headers |
| Software Features |
ASUS Exclusive Software Armoury Crate – AURA Sync – Fan Xpert 4 AI Suite 3 -Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User guide |
| Operating System | Windows? 11 64-bit, Windows? 10 64-bit |
| Form Factor | microATX 24.4cm x 24.4cm |
| Warranty | 3 Years Manufacturer’s Warranty |
| Country Of Origin | China |
| Manufacturer | ASUS GLOBAL PTE LTD. 15A Changi Business Park Central 1, #05-01, Eightrium, Singapore 486035 |
| Importer | Rashi Peripherals Pvt.Ltd. Rashi Complex,”A” Building, Survey 186, Dongaripada, PomanVillage, Vasai Bhiwandi Road, Dist. Thane, Maharashtra – 401208 India |
| Net Quantity | 1 |
| Product Package Dimensions (LxWxH) | 26.5x 27.5 x 5 Centimeters |
| Weight | 800g |
| Note | *** Features, Price, Specifications are subject to change without notice. |
