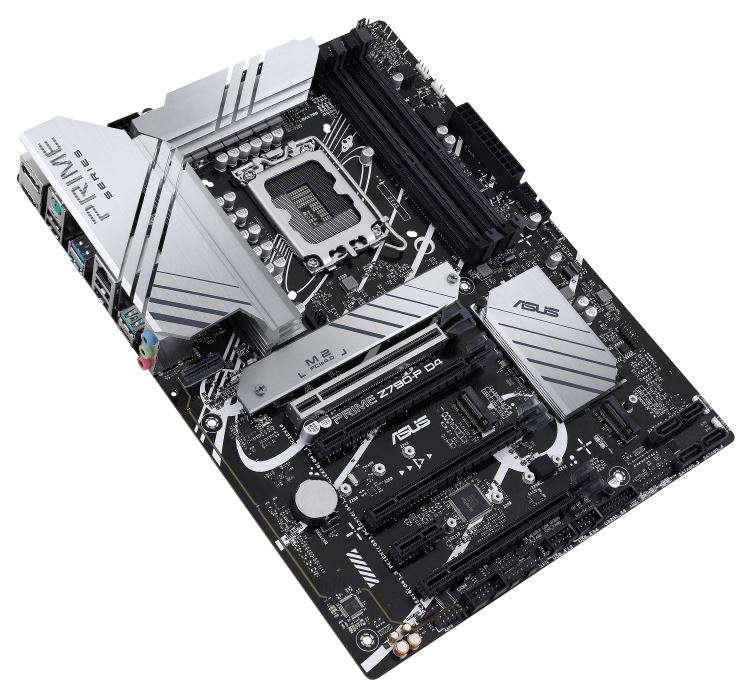

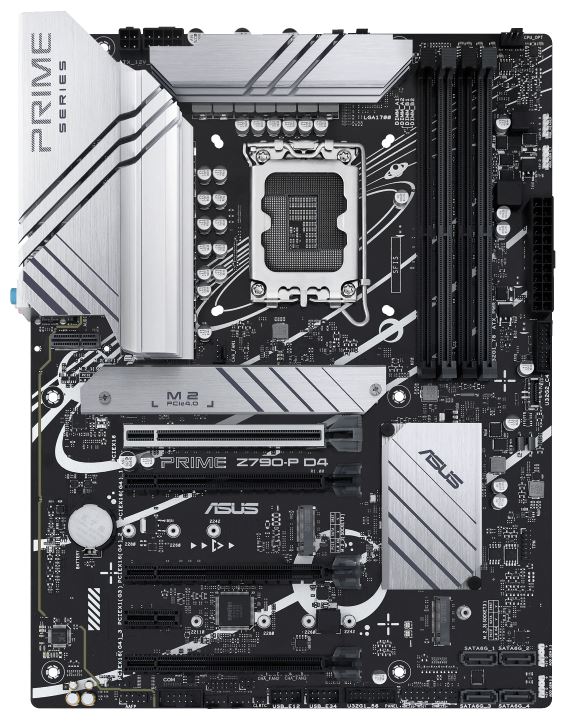

Asus PRIME Z790-P D4-CSM Motherboard for Intel 13th and 12th Gen Processors - LGA1700 Socket

Asus PRIME Z790-P D4-CSM Motherboard for Intel 13th and 12th Gen Processors - LGA1700 Socket - Image 2

Asus PRIME Z790-P D4-CSM Motherboard for Intel 13th and 12th Gen Processors - LGA1700 Socket - Image 3

Asus PRIME Z790-P D4-CSM Motherboard for Intel 13th and 12th Gen Processors – LGA1700 Socket

Name: Asus PRIME Z790-P D4-CSM Motherboard for Intel 13th and 12th Gen Processors - LGA1700 Socket
Brand: Asus
SKU: Asus PRIME Z790-P D4-CSM Motherboard
Availability: OutOfStock

Original price was: ₹27,000.00.Current price is: ₹22,290.00.

Out of stock

Add to Compare

SKU: Asus PRIME Z790-P D4-CSM Motherboard Category: Motherboards Tags: 13th gen motherboard, 13th generation motherboard, asus prime z790-p d4-csm, asus z790, lga 1700, lga1700, prime z790-p d4-csm, z790, z790-p d4 Brand: Asus

Additional Information



Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.



10 Days Return

You can return the product & get a new replacement if the product is received in defective/ damaged condition.



Free Fast Delivery

We are glad to provide free shipping throughout India.



100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.



Genuine Manufacturer Warranty

All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.



Excellent Customer Support

We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in

Reviews

Product Description

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel? Core??Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P D4-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.

SPECIFICATIONS:

Brand	Asus
Model	PRIME Z790-P D4-CSM
CPU	Intel? Socket LGA1700 for 13th Gen Intel? Core??Processors & 12th  Gen Intel? Core?? Pentium? Gold and Celeron? Processors* Supports Intel? Turbo Boost Technology 2.0 and Intel? Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel? Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel? Z790 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC) /4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/ 3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel? Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics	1 x DisplayPort 1 x HDMI? port*   Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel? 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel? Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel? 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel? Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel? Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
USB	Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C?) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C?) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C?) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI? port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C?) 2 x USB 3.2 Gen 1 headers support  4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt??(USB4?) Header
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design AURA Sync – AURA RGB headers – Addressable Gen 2 RGB headers
Software Features	ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync AI Suite 3 – Performance And Power Saving Utility   TurboV EVO   EPU   DIGI+ VRM   Fan Xpert 2+ – EZ update ASUS CPU-Z AI Charger DAEMON Tools MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot – Q-LED Core ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool Aura Sync – Aura RGB header – Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide
Operating System	Windows? 11, Windows? 10 64-bit
Form Factor	ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Warranty	3 Years Manufacturer’s Warranty
Country Of Origin	China
Manufacturer	ASUS GLOBAL PTE LTD. 15A Changi Business Park Central 1, #05-01, Eightrium, Singapore 486035
Importer	Rashi Peripherals Pvt.Ltd. Rashi Complex,”A” Building, Survey 186, Dongaripada, PomanVillage, Vasai Bhiwandi Road, Dist. Thane, Maharashtra – 401208 India
Net Quantity	1
Note	***Features, Price and Specifications are subject to change without notice.
