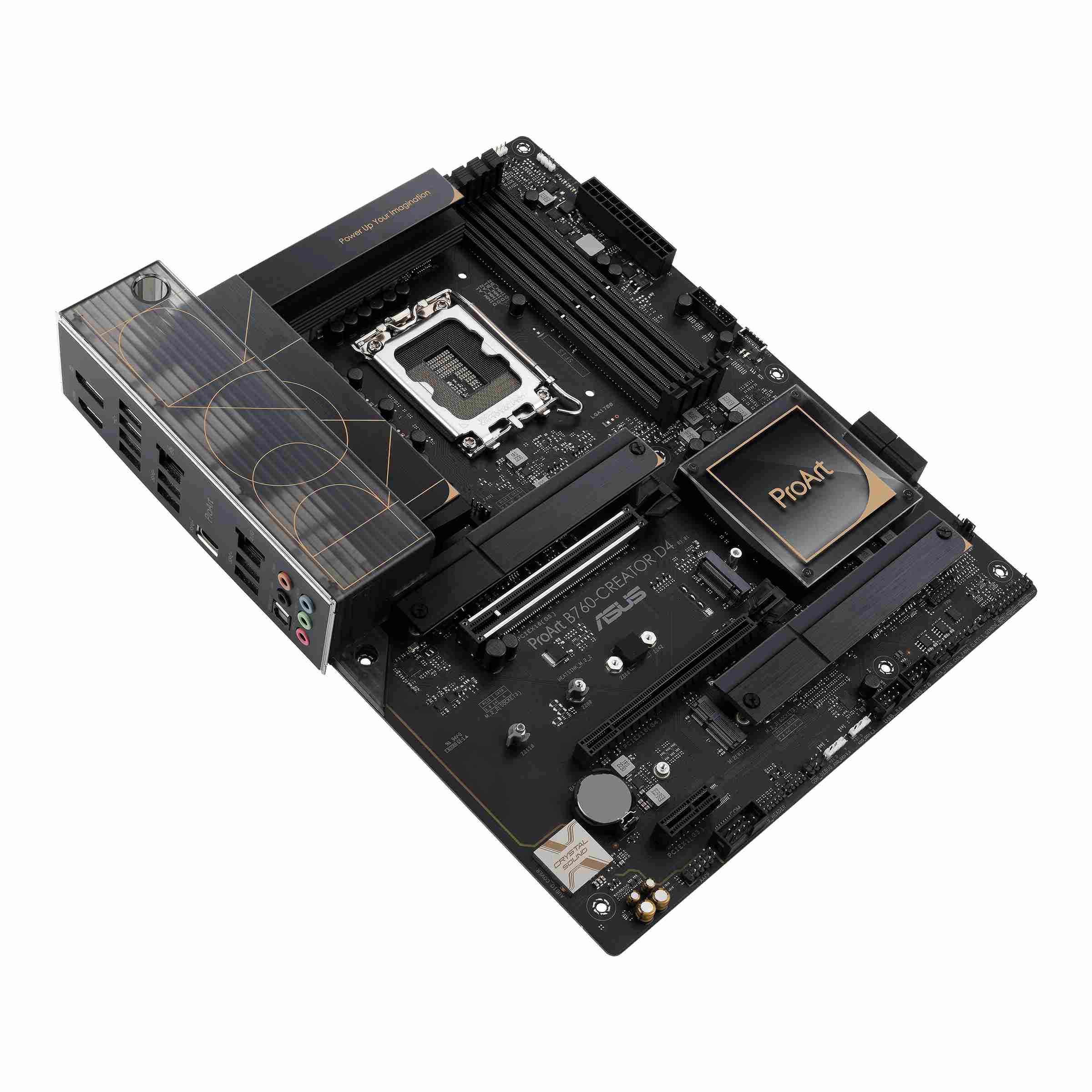

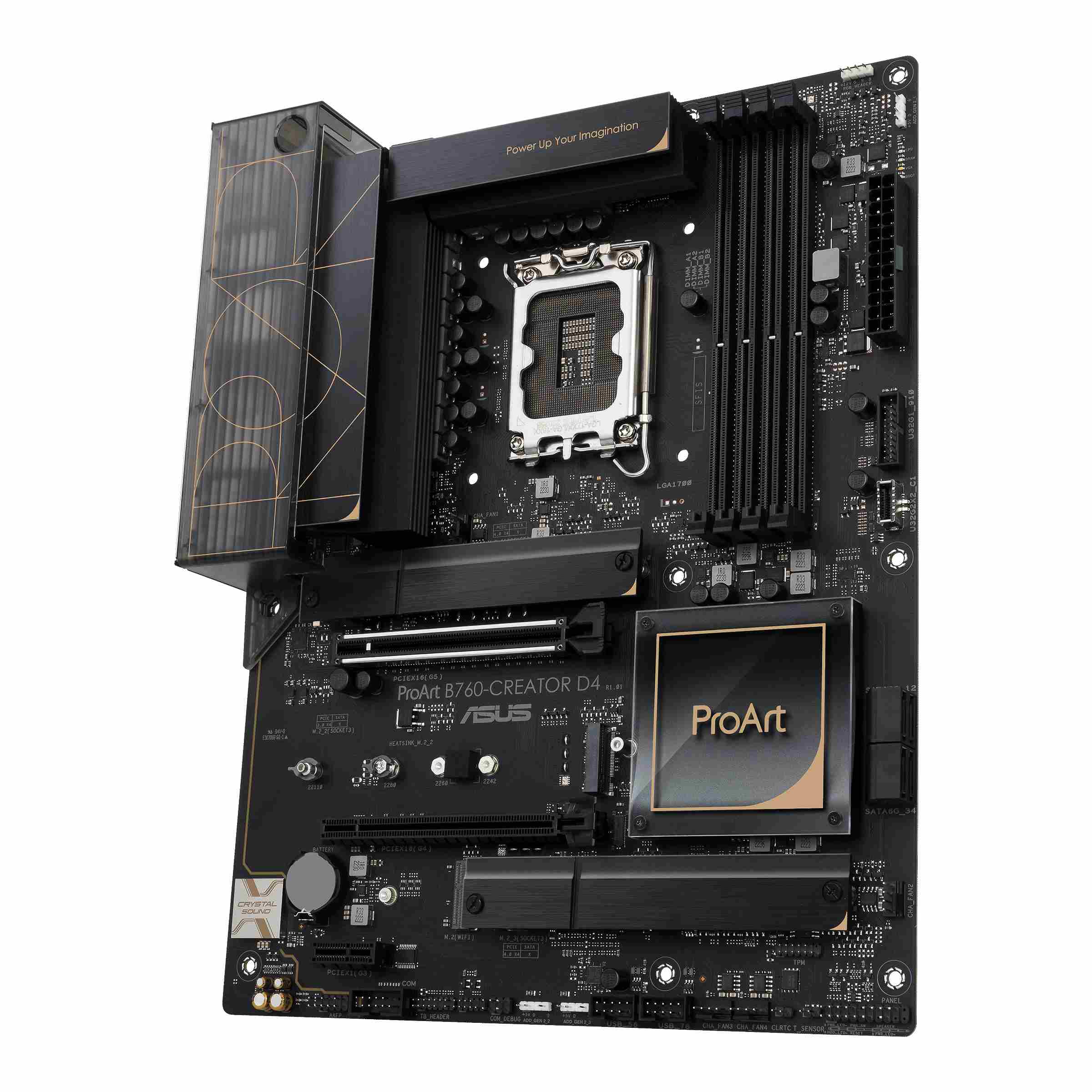

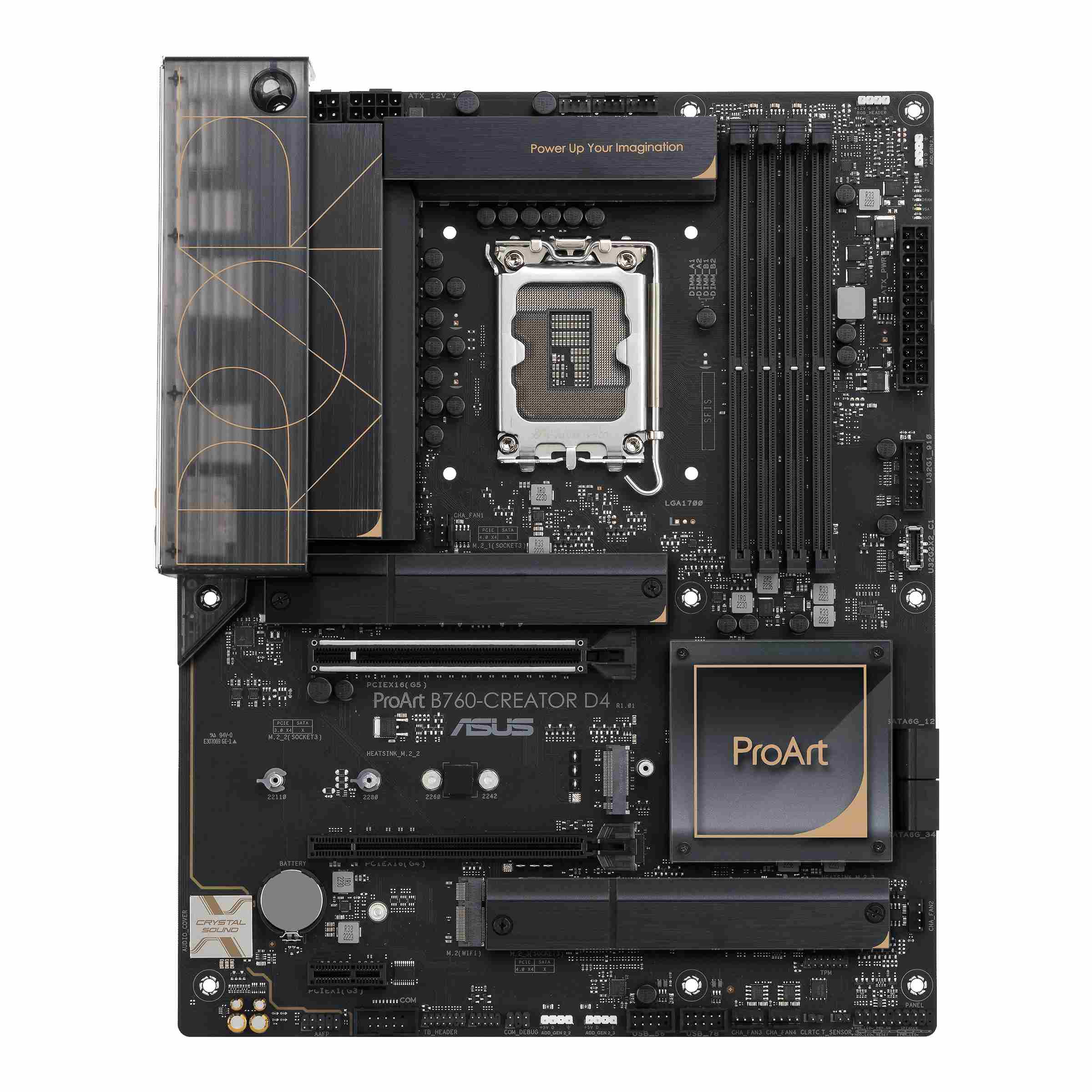

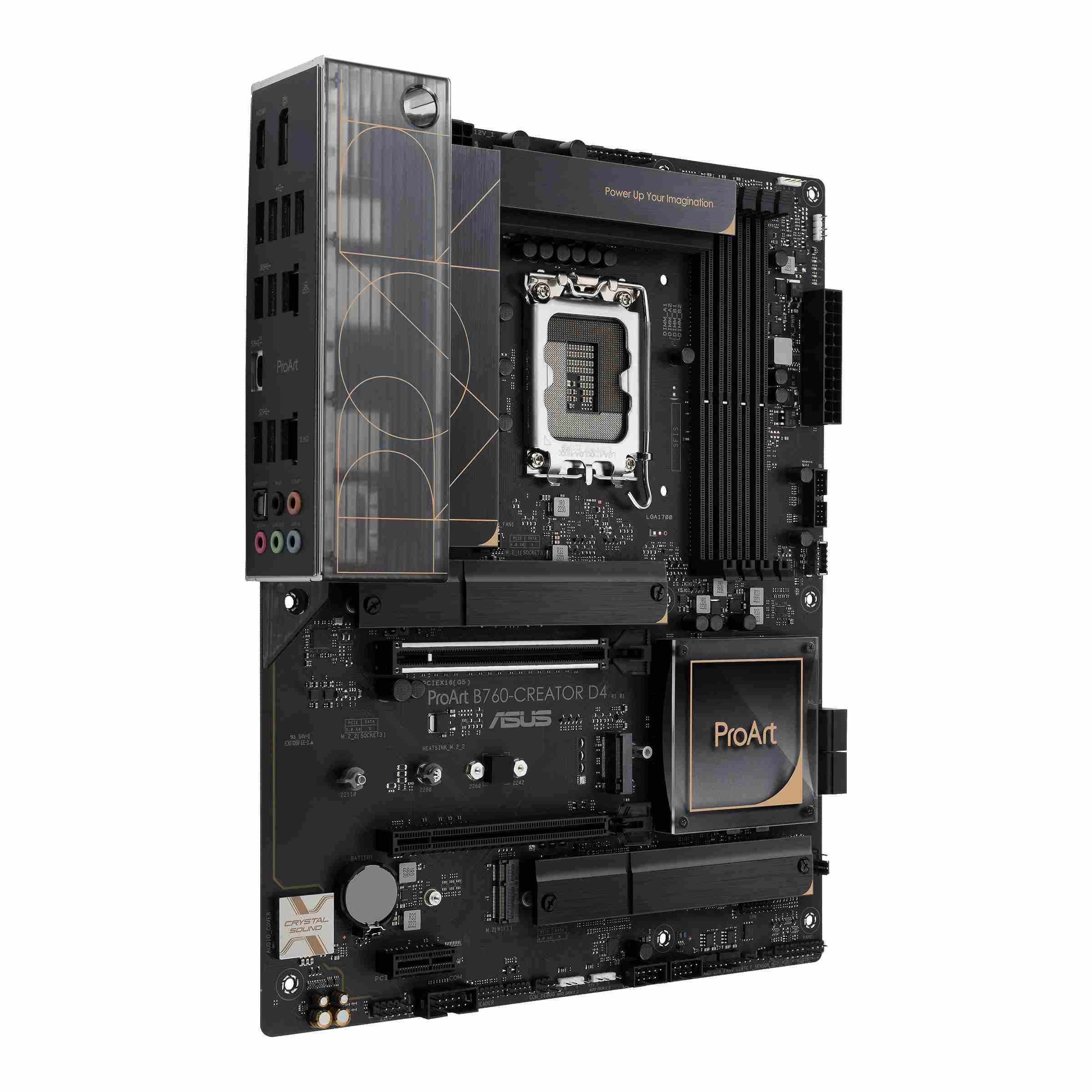

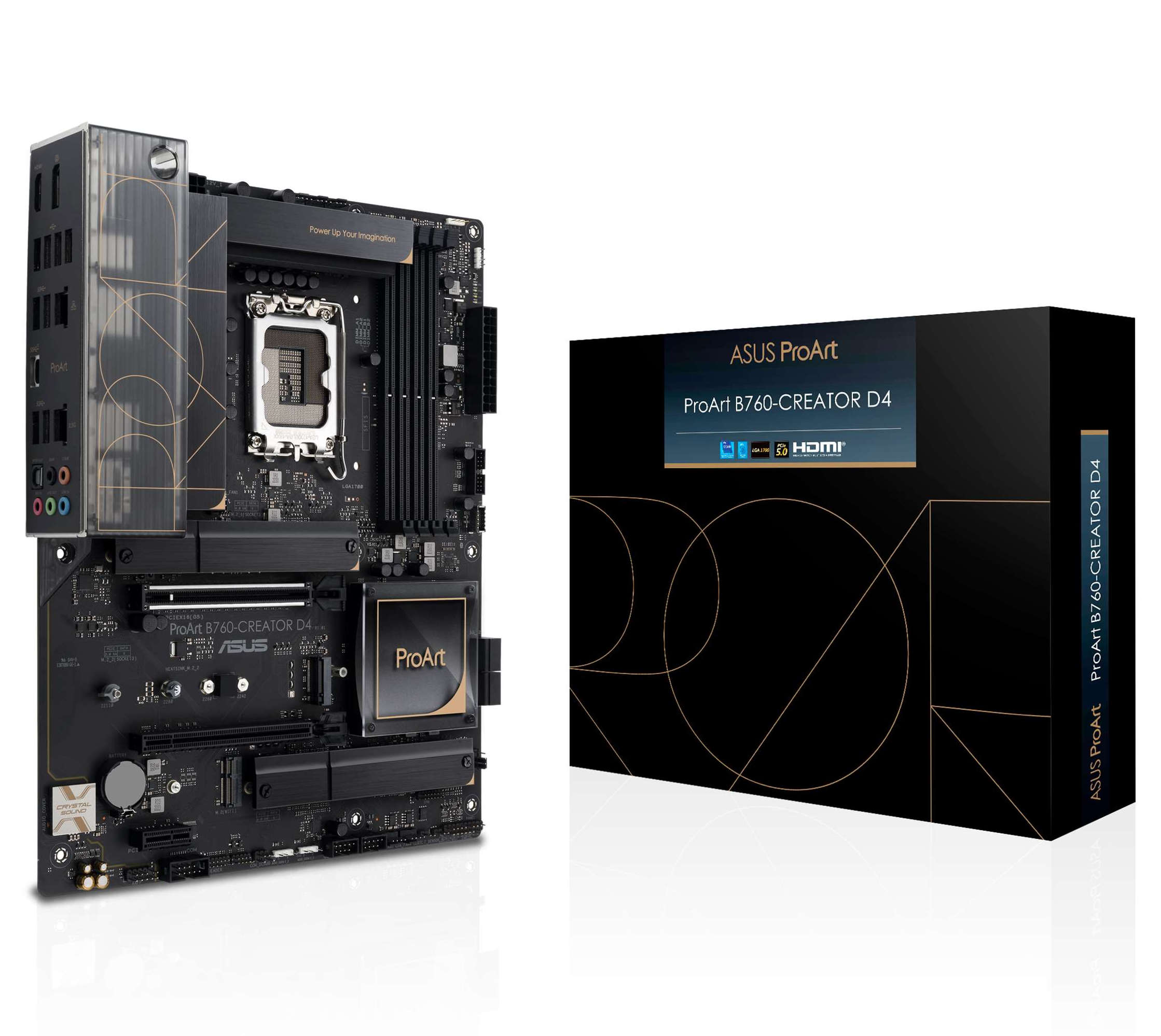

Asus ProArt B760-CREATOR D4 Motherboard for Intel 13th and 12th Gen Processors – LGA1700 Socket
Original price was: ₹37,000.00.₹25,399.00Current price is: ₹25,399.00.
Out of stock
Additional Information
Cash on Delivery
Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.
10 Days Return
You can return the product & get a new replacement if the product is received in defective/ damaged condition.
Free Fast Delivery
We are glad to provide free shipping throughout India.
100% Secure Payment
We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.
Genuine Manufacturer Warranty
All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.
Excellent Customer Support
We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in
Reviews
Product Description
ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel? Core??processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2×2 Type-C? front-panel connector and a ThunderboltTM 4 header.
SPECIFICATIONS:
| Brand | Asus |
| Model | ProArt B760-CREATOR D4 |
| CPU | Intel? Socket LGA1700 for 13th Gen Intel? Core??Processors & 12th Gen Intel? Core?? Pentium? Gold and Celeron? Processors Supports Intel? 10 nm CPU Supports Intel? Turbo Boost Technology 2.0 and Intel? Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel? Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel? B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel? Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary devpending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/. |
| Graphics | 1 x HDMI? port** 1 x DisplayPort port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. |
| Expansion Slots | Intel? 13th & 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel? B760 Chipset* 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot** ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. |
| Storage | Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports* Intel? 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel? 13th & 12th Gen processors support PCIe 4.0 x4 mode. Intel? B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports*** * Intel? Rapid Storage Technology supports SATA RAID 0/1/5/10. *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet 1 x Intel? 1Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth |
M.2 slot only (Key E, PCIe)* |
| USB | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2 Type-C? port 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C?) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2 port (1 x USB Type-C?) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI? port 1 x Realtek 2.5Gb Ethernet port 1 x Intel? 1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C?) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt?? header |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool – Pre-mounted I/O shield AURA Sync – AURA RGB header – Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 4 – Power Saving – Two-Way AI Noise Cancelation AI Suite 3 – Performance And Power Saving Utility DIGI+ VRM Turbo app ASUS CPU-Z IT Management software supported – ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x M.2 Rubber packages 1 x Screw package for M.2 Key E 1 x ProArt ruler 1 x Q-connector Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows? 11 64-bit, Windows? 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years Manufacturer’s Warranty |
| Country Of Origin | China |
| Manufacturer | ASUS GLOBAL PTE LTD. 15A Changi Business Park Central 1, #05-01, Eightrium, Singapore 486035 |
| Importer | Rashi Peripherals Pvt.Ltd. Rashi Complex,”A” Building, Survey 186, Dongaripada, PomanVillage, Vasai Bhiwandi Road, Dist. Thane, Maharashtra – 401208 India |
| Net Quantity | 1 |
| Note | ***Features, Price and Specifications are subject to change without notice. |
