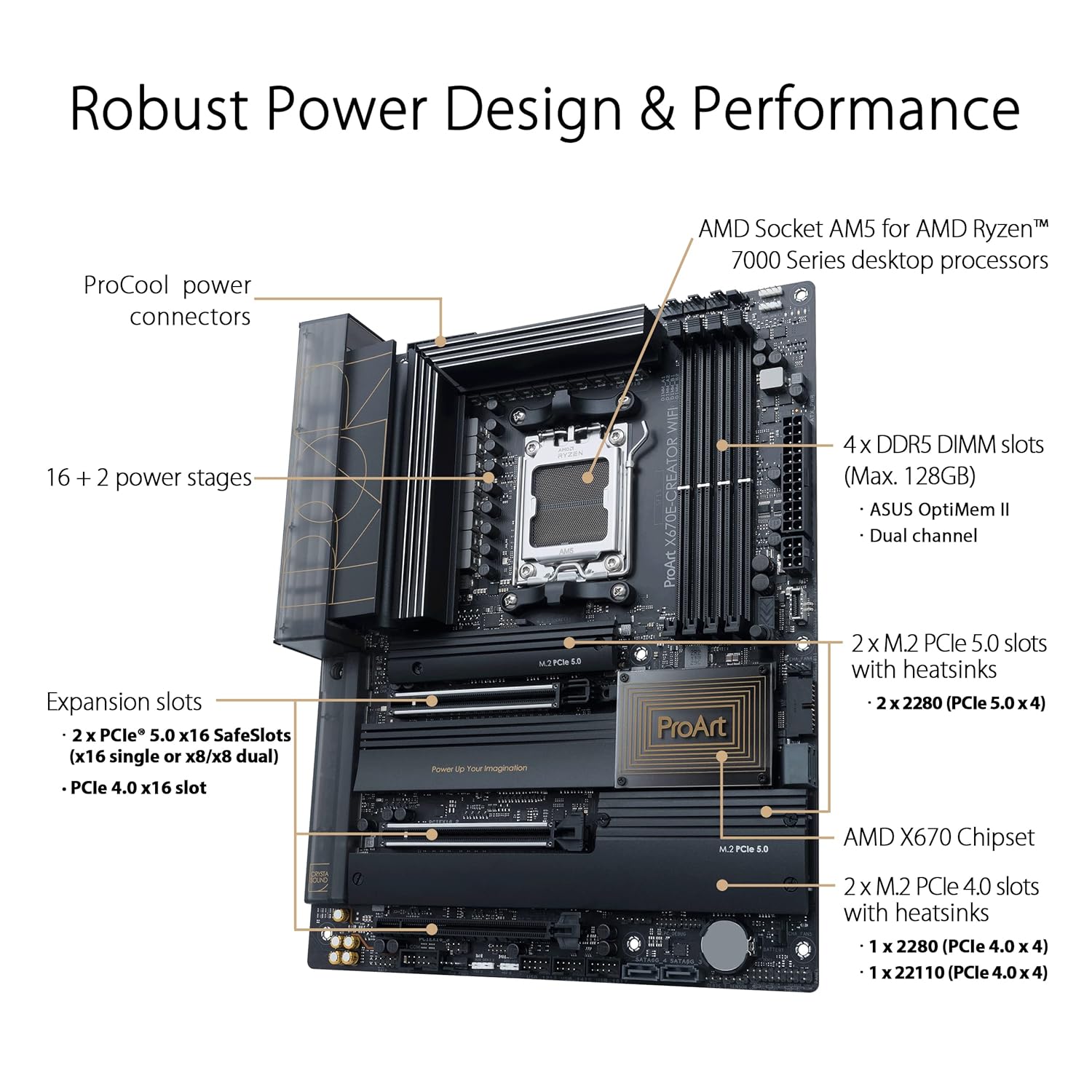

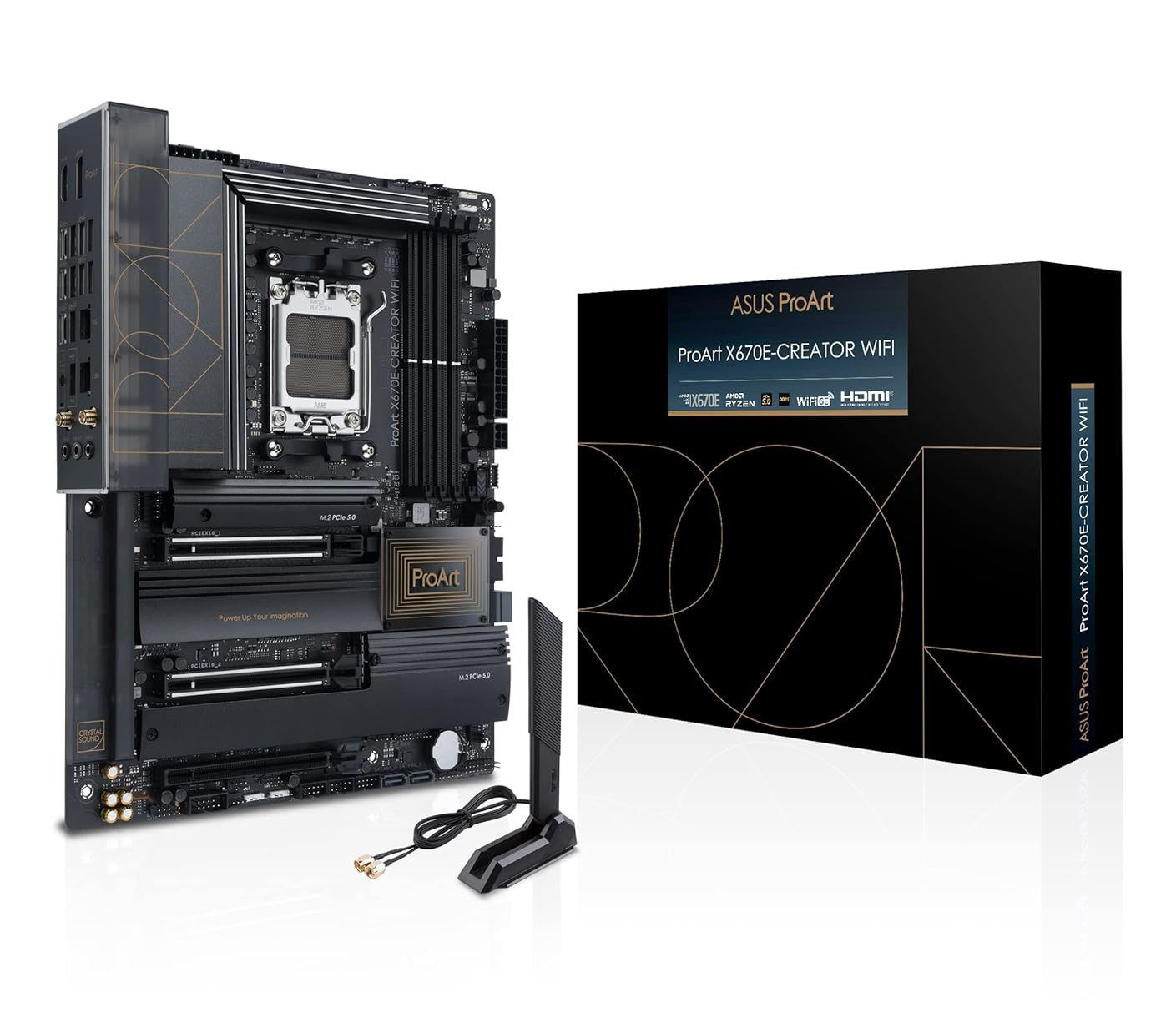

Asus ProArt X670E-CREATOR WiFi Motherboard for AMD Ryzen 9000 & 8000 & 7000 Series Processors – AM5 Socket (AMD X670/ ATX/ 16+2 Power Stages/ PCIe 5.0 Ready/ DDR5 Support/ USB4 10 Gb/ 2.5 Gb LAN/ WiFi 6E/ Four M.2 Slots

1 x HDMI? port**
2 x USB4? ports support USB Type-C? display outputs***
* Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C? to DisplayPort adapter cable. VGA resolution support depends on processors’ or graphic cards’ resolution.

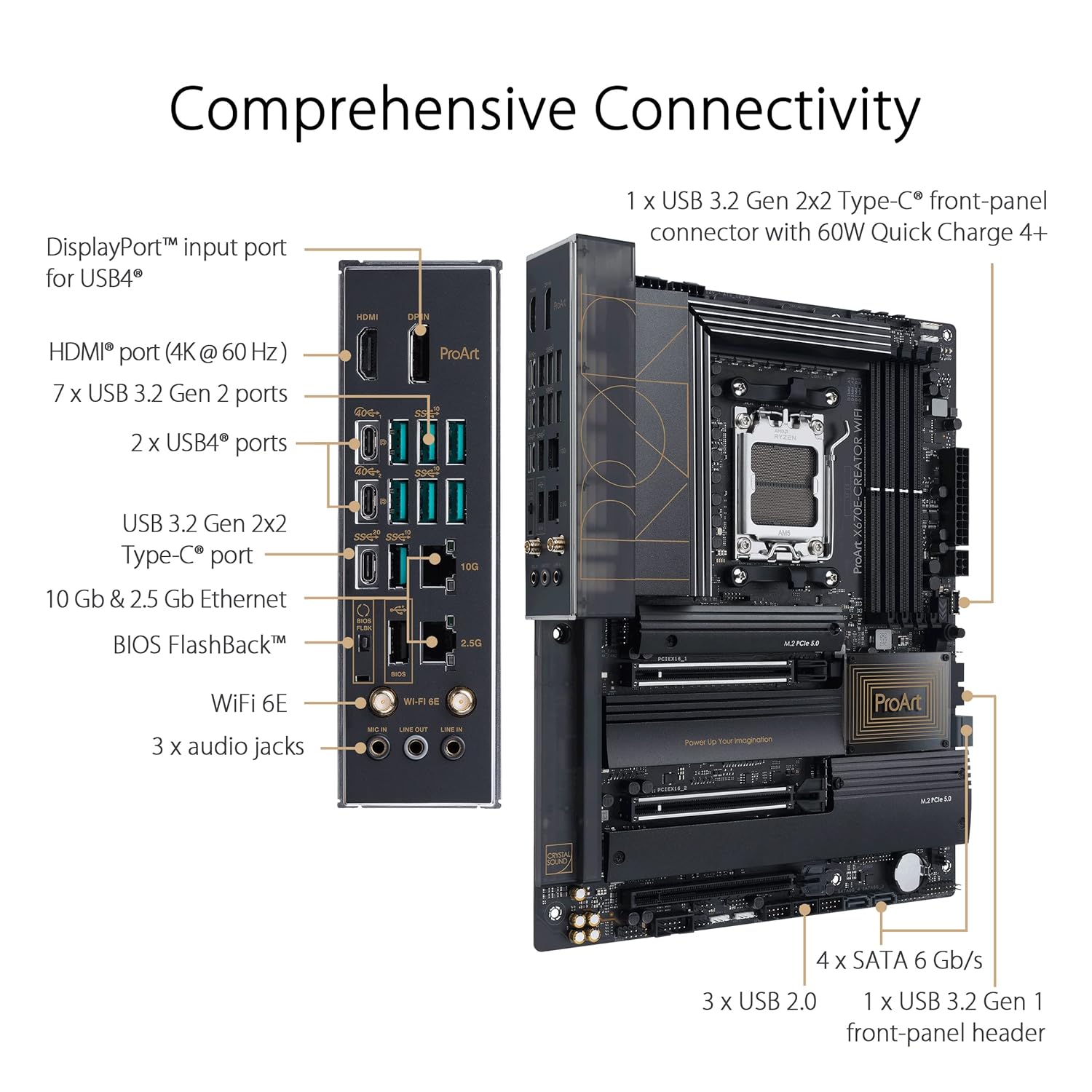

2 x USB4? with Intel? JHL8540 USB4? controller ports (2 x USB Type-C?)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C?)
7 x USB 3.2 Gen 2 ports (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI? port
1 x Wi-Fi Module
1 x Marvell? AQtion 10Gb Ethernet
1 x Intel? 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack? button

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
1 x 6-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C?)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header

ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O

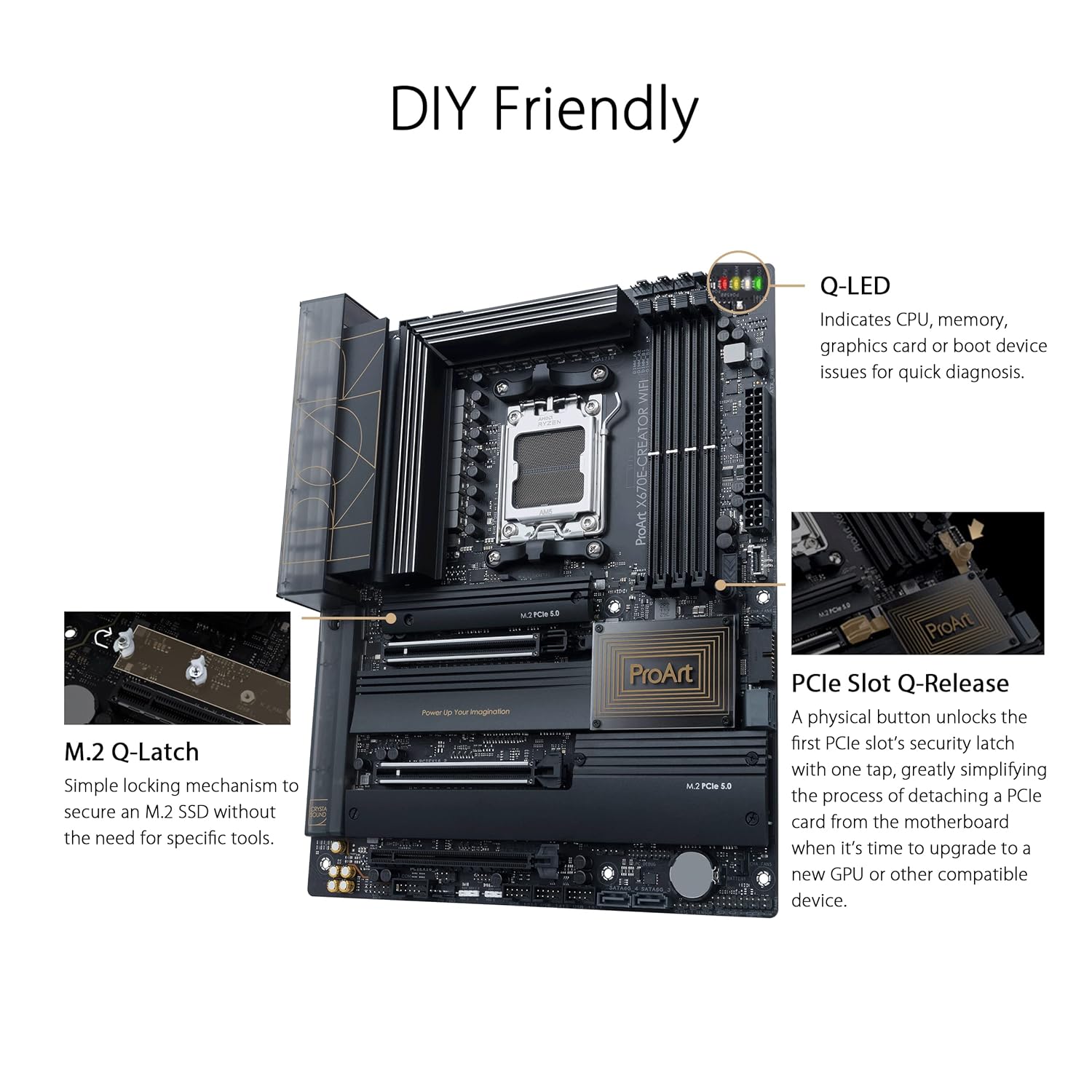

ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot

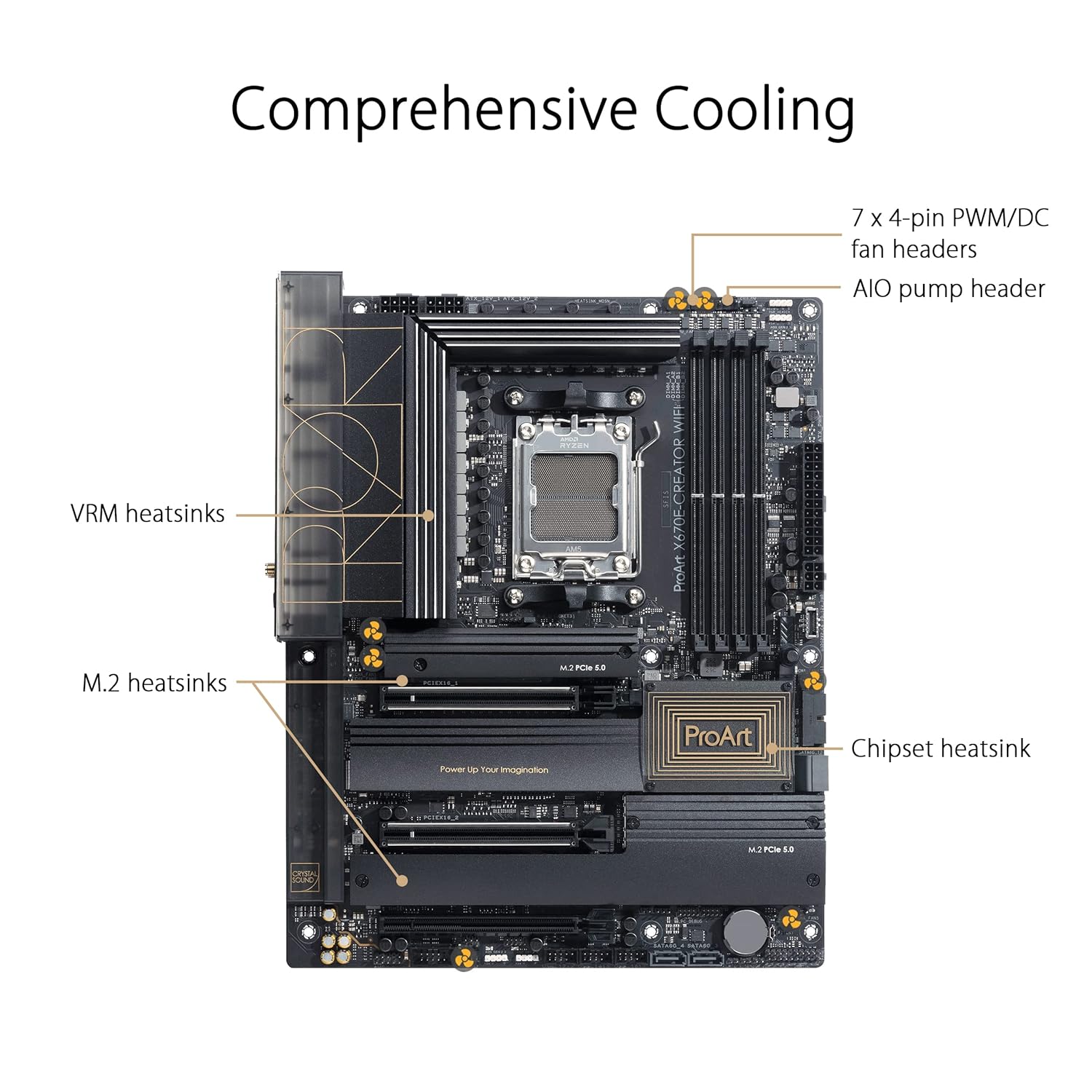

ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsinks
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack? button
– BIOS FlashBack? LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– Aura RGB header
– Addressable Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
– 24/7 Reliability
– Overcurrent Protection
Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
– Support: up to 60W charging*
– Output: 5/9/15/20V max. 3A, PPS:3.3?21V max. 3A
– Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 with AI Cooling II
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
 TPU
 DIGI+ VRM
 Turbo app
ASUS CPU-Z
IT Management software supported
– ASUS Control Center Express(ACCE)
CreationFirst
MyAsus
Norton Anti-virus software (Free Trial version)
ProArt Creator Hub
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
