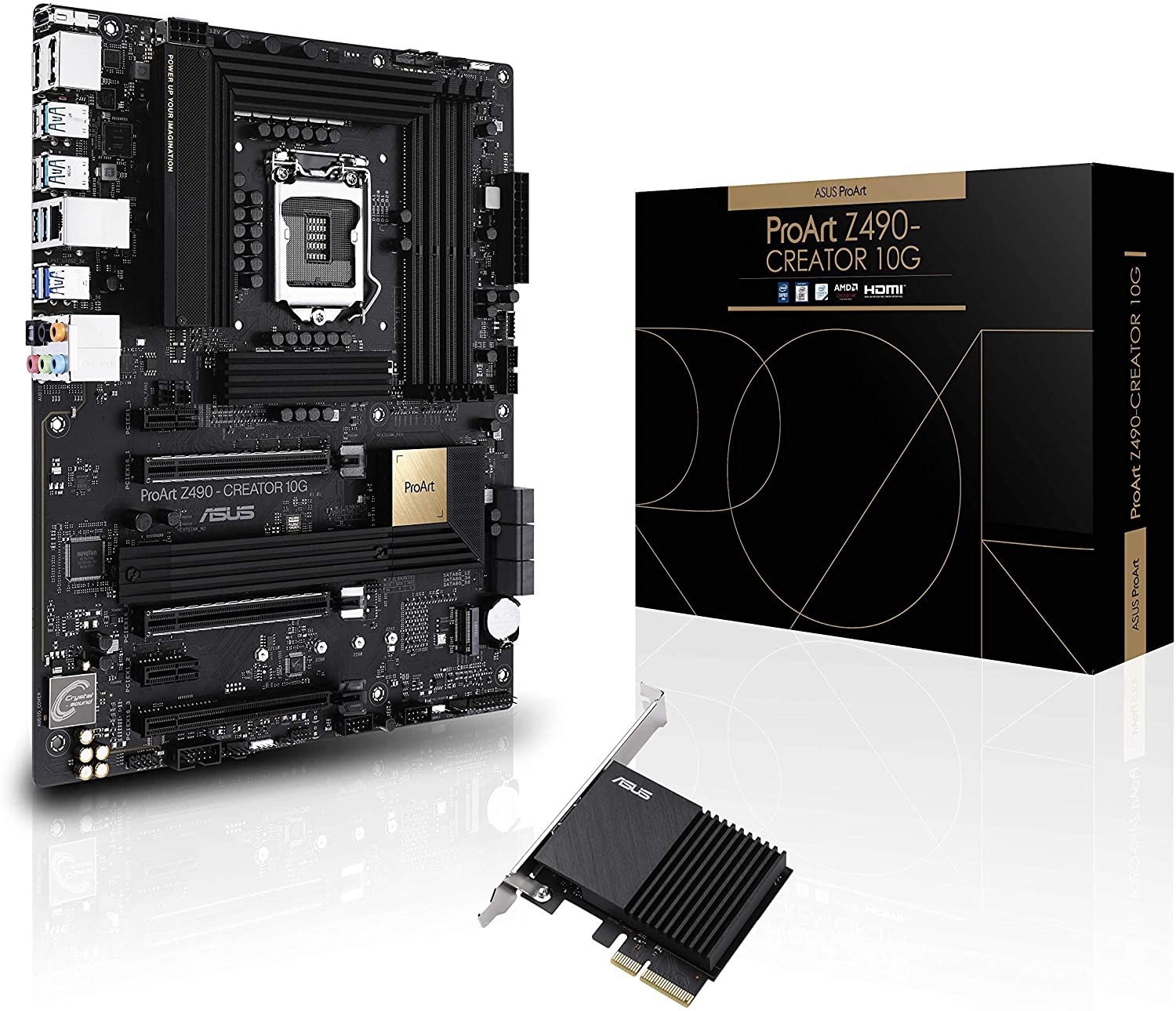

Asus ProArt Z490-CREATOR 10G Thunderbolt 3 Motherboard for Intel 10th Gen Processors – LGA1200 Socket (Dual Type-C/ Dual M.2/ USB 3.2 Gen 2/ SATA 6 Gbps/ MAX 128GB DDR4 4600Mhz)
Original price was: ₹35,000.00.₹30,273.00Current price is: ₹30,273.00.
Out of stock
Additional Information
Cash on Delivery
Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.
10 Days Return
You can return the product & get a new replacement if the product is received in defective/ damaged condition.
Free Fast Delivery
We are glad to provide free shipping throughout India.
100% Secure Payment
We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.
Genuine Manufacturer Warranty
All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.
Excellent Customer Support
We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in
Reviews
Product Description
Intel Z490 LGA 1200 ATX motherboard for content creators features a 10G LAN card, onboard 2.5G Intel LAN, dual Thunderbolt 3 Type-C ports, dual M.2, USB 3.2 Gen 2 ports, SATA 6 Gbps
- Intel? LGA 1200 socket: Ready for 10th Gen Intel? Core??processors
- Ultrafast connectivity: Two Thunderbolt??3 Type-C ports, two M.2, HYPER 10G LAN card and onboard 2.5G Intel? LAN provide power and speed
- Intelligent optimization: AI Overclocking, AI Cooling and CreationFirst automatically optimize CPU frequencies, fan speeds and network traffic for enhanced system performance and work efficiency
- Powerful performance: 12+2 DrMOS power stages, multi-GPU support and improved memory frequency and stability empower creativity
- Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for durability
- ProArt Creator Hub: Centralized software for one-stop monitoring and management of ASUS ProArt series products enables efficient content creation workflows
ProArt – Power UP Your Imagination
ELITE PERFORMANCE FOR CONTENT CREATION
Every aspect of ASUS ProArt motherboards is built to remove barriers and deliver optimal performance to content creators who work in 3D modeling and rendering, animation or media production. The series empowers you to concentrate on your creativity and expand what is possible.

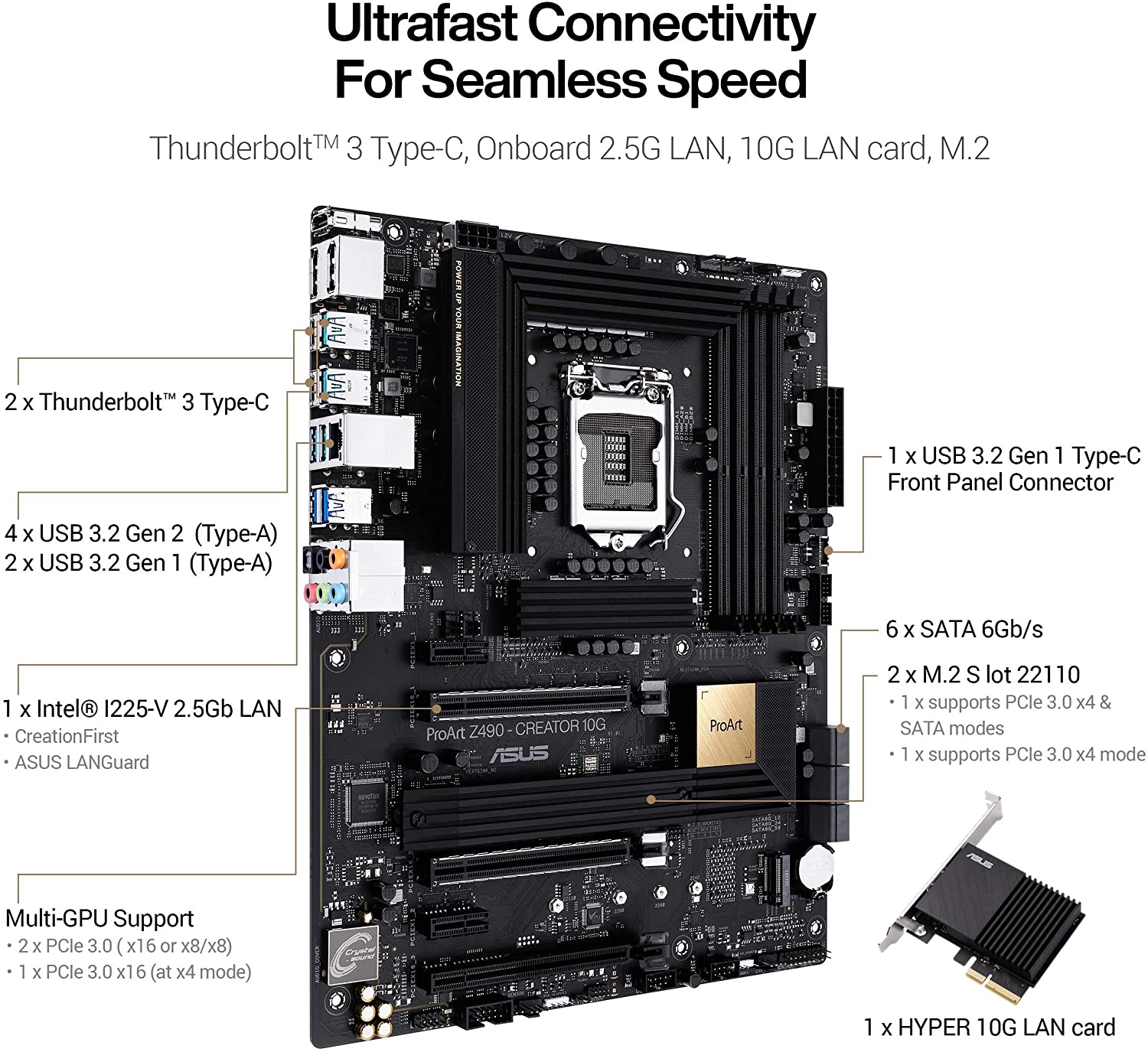

ULTRAFAST CONNECTIVITY FOR SEAMLESS SPEED
Onboard 2.5G Intel? Ethernet and optional 10G Ethernet card are both provided to boost cloud- and internet-based communication for accelerated workflow. A comprehensive set of high-performance I/O ports ??including two Thunderbolt??3 Type-C ports ??enable quick data transfer speeds and extensive storage options with flexible, hassle-free connectivity.
Dual Thunderbolt??3 Type-C Ports
Each Thunderbolt 3 port supports DisplayPort 1.4 output and can daisy-chain to up to six devices, with 15 watts of power to fast-charge devices. ProArt Z490-CREATOR 10G features two Thunderbolt 3 ports, offering a total of up to 40 Gbps of aggregate interface bandwidth, which allows numerous devices to be connected to the motherboard at once with ultrafast data transfer speeds.
HYPER 10G LAN Card
A HYPER 10G LAN card enables speeds that are up to 10 times faster than standard Gigabit Ethernet ??so it’s ideal for content creators who frequently work with large files. Upload 4K video or transfer other large files quickly and with ease.
The HYPER 10G LAN card can be installed for additional connectivity options. Installation is easy, and simply requires inserting the card into a PCIe? 3.0 slot and connecting your existing copper network cables to the RJ45 Ethernet port. No software installation or setup is necessary.
Onboard 2.5G Intel? Ethernet
Onboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, high-res video streaming and smoother lag-free gaming.
SECURE DEVICE MANAGEMENT FOR DESIGN/CREATIVE STUDIOS
The ProArt Z490-CREATOR 10G motherboard features ASUS Control Center Express to help manage USB ports, as well as blacklist software and block registry keys to prevent unauthorized access and data leaks. Its intuitive graphical UI enables easy client device management with real-time hardware and software monitoring in your studio.

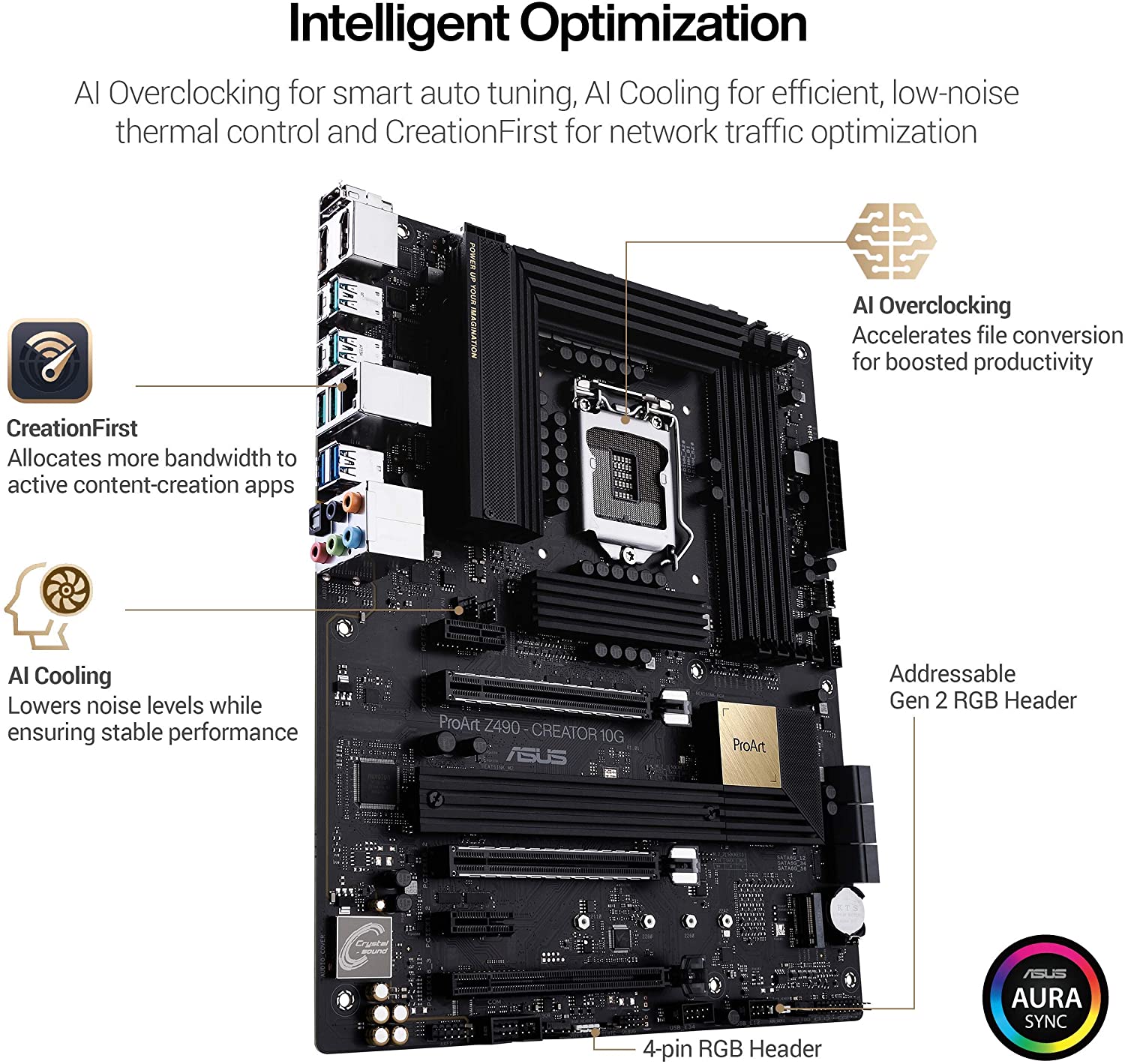

INTELLIGENT OPTIMIZATION
ASUS ProArt Z490-CREATOR 10G offers simple and flexible tools that enhance almost every aspect of your content-creation system, giving you the fast, intuitive control needed for efficient workflow. It features dynamic automated tuning with AI overclocking and AI cooling, in addition to CreationFirst software, which prioritizes and optimizes your network traffic for faster, lag-free online work.
AI Overclocking
ASUS AI Overclocking automatically tunes your system with onboard intelligence that monitors system vitals ??such as temperatures, fan speeds and power draw ??to estimate cooling and overclocking headroom and deliver optimal performance for content-creation workflows.
AI Cooling
With one click, AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.
CreationFirst
CreationFirst network-optimization software allows you to prioritize applications in order to allocate more bandwidth to speed up essential apps and tasks.
ProArt Creator Hub
A user-friendly interface provides applications designed to enhance workflow through central control of all connected ProArt series products, including motherboards and displays.

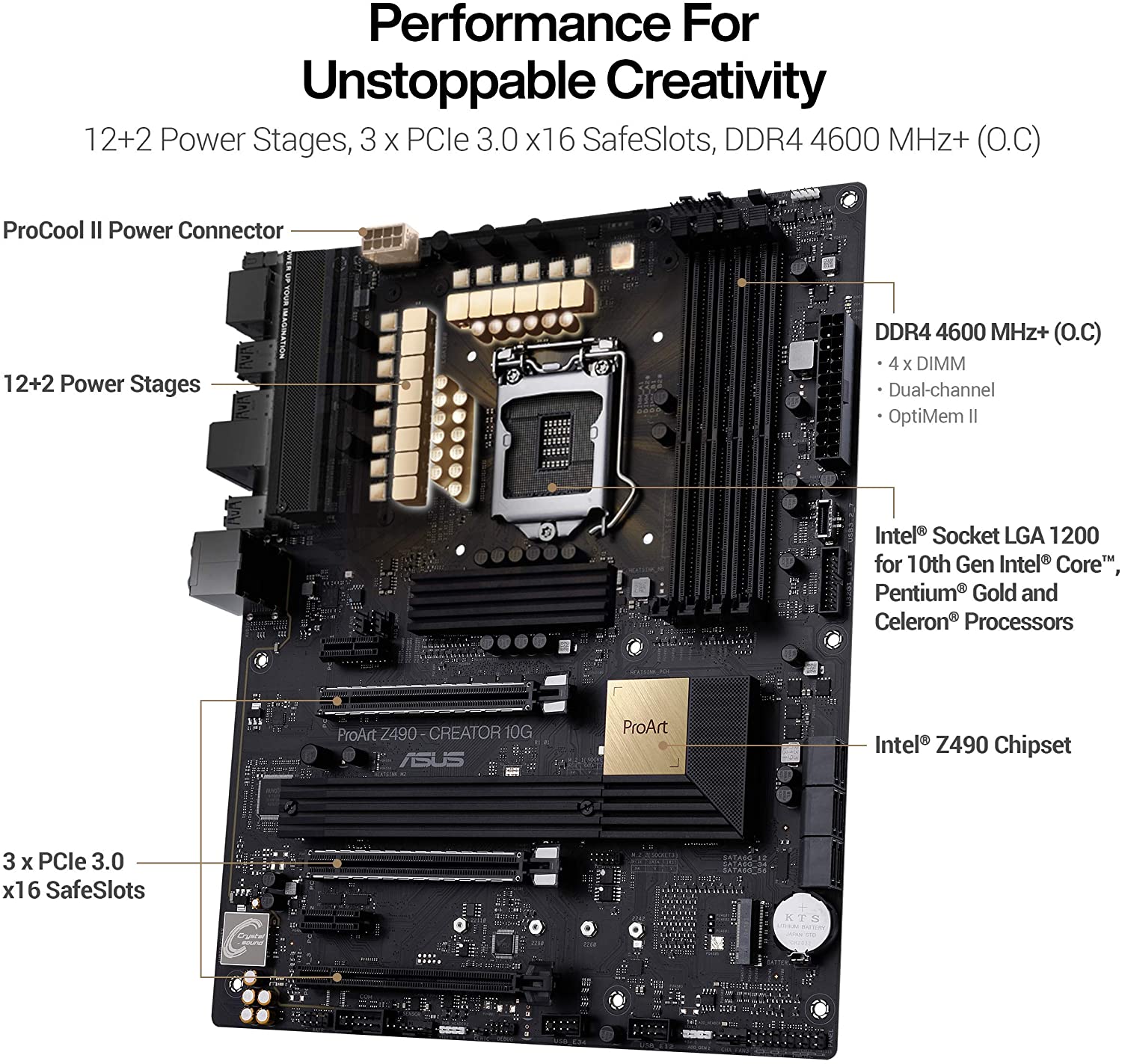

POWERFUL PERFORMANCE FOR UNSTOPPABLE CREATIVITY
Creativity demands performance. An ASUS ProArt Z490-CREATOR 10G delivers excellent performance ??no matter the task ??to empower you to be productive and bring your ideas to life.
Multi-GPU Support
ASUS ProArt Z490-CREATOR 10G features three PCIe? 3.0 x16 slots for high-powered graphics cards such as NVIDIA? Quadro?, enabling enhanced performance in professional design, modeling and simulation and rendering applications.
Memory That Goes Faster
ASUS OptiMem II memory trace layout improves memory stability and compatibility, allows lower memory latencies at equivalent voltages and increases memory frequency margin.
Robust Power Design
Digital power control and an array of DrMOS power stages ensure that ASUS ProArt Z490-CREATOR 10G has the strength to handle powerful Intel CPUs.

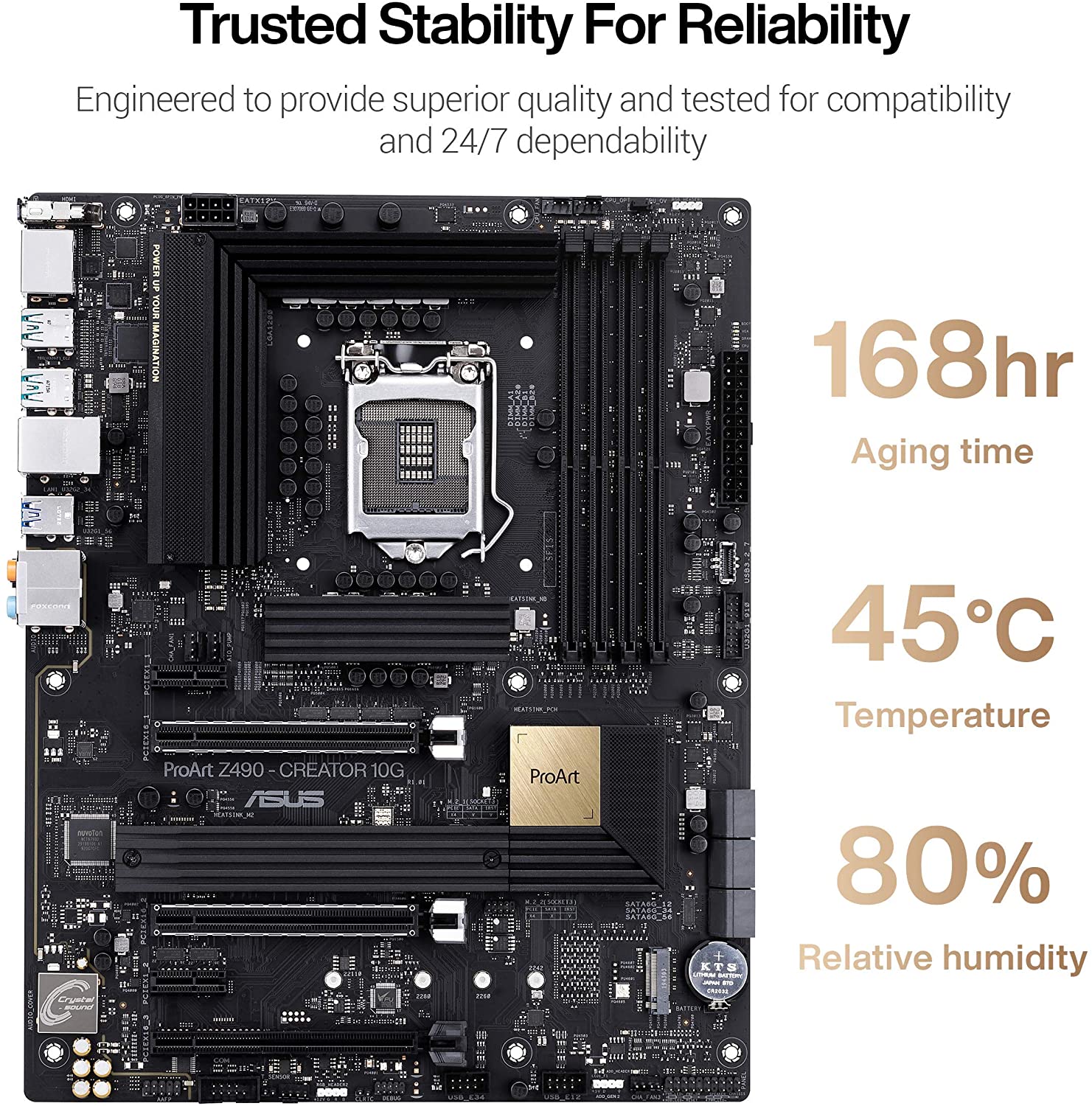

TRUSTED STABILITY FOR RELIABILITY
ASUS ProArt Z490-CREATOR 10G was engineered and rigorously tested to ensure that it empowers creativity by offering superior quality, stability and compatibility.
FOR WORK AND PLAY
ASUS ProArt Z490-CREATOR 10G motherboard enables productivity while also providing flawless audio for entertainment and the freedom to enjoy Aura Sync RGB lighting.
SPECIFICATIONS:
| Model |
ProArt Z490-CREATOR 10G
|
| CPU | Intel? Socket 1200 for 10th Gen Intel? Core?? Pentium? Gold and Celeron? Processors * Supports Intel? 14 nm CPU Supports Intel? Turbo Boost Technology 2.0 and Intel? Turbo Boost Max Technology 3.0** **Intel? Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset |
Intel? Z490
|
| Memory | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel? Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel? Core??9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Thunderbolt | 2 x Intel? Thunderbolt??3 ports(TypeC?? support DisplayPort and Thunderbolt??video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards’ resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support |
| Graphic | Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. |
| Multi-GPU Support |
Supports AMD 3-Way CrossFireX??Technology
|
| Expansion Slots | Intel? 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) *1 Intel? Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) *2 2 x PCIe 3.0 x1 |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel? Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel? Rapid Storage Technology supports Intel? Optane??Memory Ready |
| LAN | Intel? I225-V 2.5Gb Ethernet |
| Audio |
Realtek? ALC S1220A 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback – High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature : – Optical S/PDIF out port(s) at back panel – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors – Audio Cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
Intel? Thunderbolt??3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C?) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 2 port(s)(4 x Type-A) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C?) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s) |
| Software Features |
ASUS Exclusive Software
Armoury Crate – Aura Creator – Aura Sync AI Suite 3 5-Way Optimization with AI Overclocking – TPU – EPU – Digi+ VRM – EZ update – Fan Xpert 4 – Turbo app ProArt Creator Hub AI Charger Optimization tool specially for content creators WinRAR UEFI BIOS AI Optimization Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey – ASUS UEFI BIOS EZ Mode |
| Operating System Support |
Windows? 10 64-bit
|
| ASUS Special Features |
ASUS 5X PROTECTION III
– ASUS DIGI+ VRM (- Digital power design with Dr. MOS) – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core+ – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED – ASUS Q-Shield – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS EZ DIY – Procool – SafeSlot AURA Sync – Standard RGB headers – Addressable Gen 2 RGB header(s) – Addressable Gen 2 RGB header |
| Back I/O Ports |
2 x Thunderbolt 3 ports TypeC??lt;br>2 x DisplayPort IN ports for Thunderbolt??3
1 x HDMI 1 x LAN (2.5G) port(s) 4 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports |
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x COM port headerBIOS |
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS
|
| Manageability |
WOL by PME, PXE
|
| Operating System |
Windows? 10 64-bit
|
| Form Factor |
ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Warranty |
3 Years Manufacturer’s Warranty
|
| Country Of Origin | China |
| Manufacturer | ASUS GLOBAL PTE LTD. 15A Changi Business Park Central 1, #05-01, Eightrium, Singapore 486035 |
| Importer | Rashi Peripherals Pvt.Ltd. Rashi Complex,”A” Building, Survey 186, Dongaripada, PomanVillage, Vasai Bhiwandi Road, Dist. Thane, Maharashtra – 401208 India |
| Net Quantity | 1 |
| Note |
*1 Support PCIe bifurcation for RAID on CPU function.
*2 PCIe 3.0 x4 will be switched from Thunderbolt??3 to PCIEX16_3 if the slot is populated; by then Thunderbolt??3 will have no output. *3 When M.2_1 is operating in SATA device, SATA6G_2 will be disabled. *4 M.2_2 runs at PCIe 3.0 x2 by default and shares bandwidth with SATA6G_56. When M.2_2 runs at PCIe 3.0 x4 or is populated by H10, SATA6G_56 will be disabled. *5 Please refer to the user manual for more details about DisplayPort input and Type-C output settings ***Features, Price and Specifications are subject to change without notice. |
