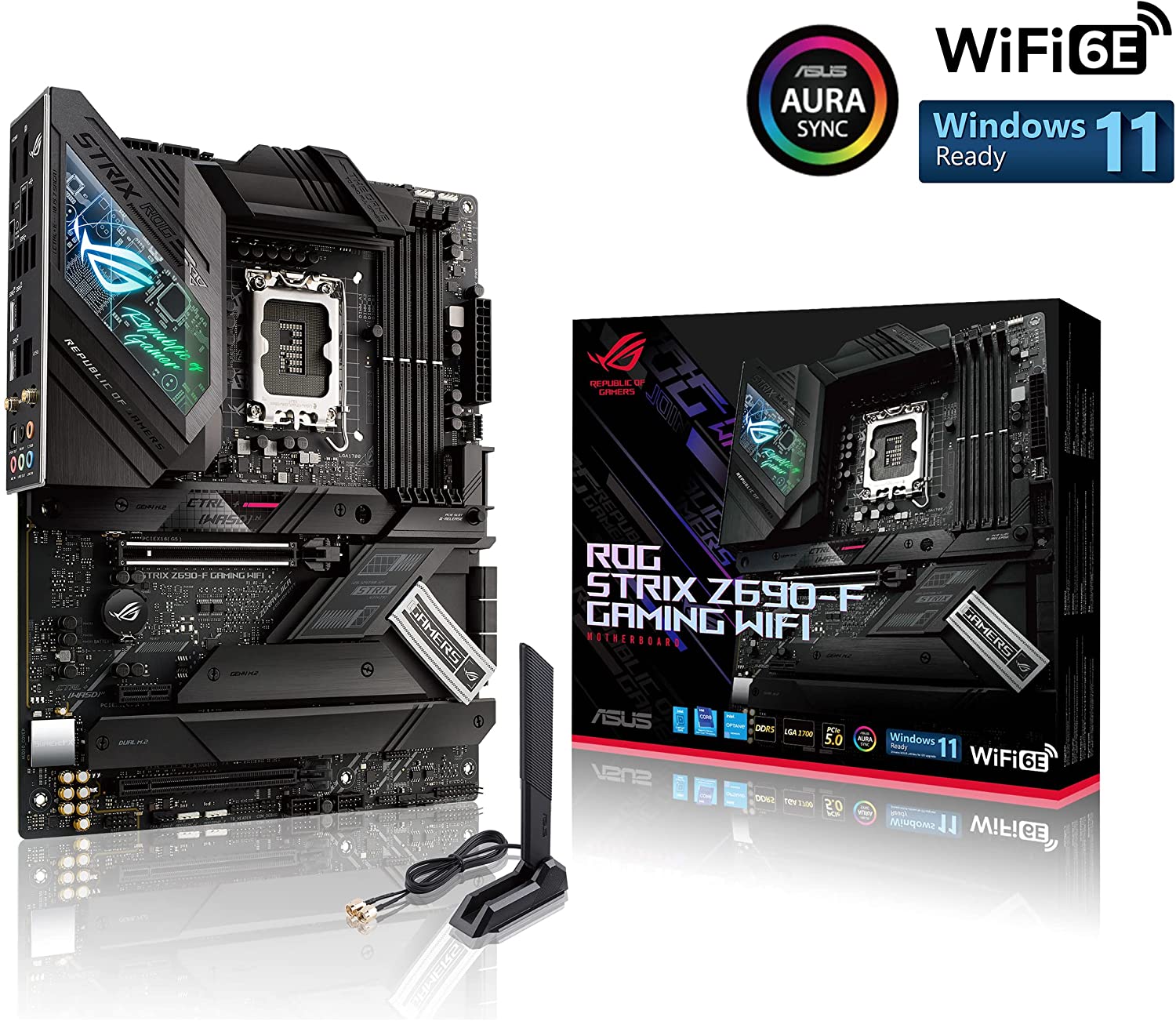

Asus ROG STRIX Z690-F GAMING WIFI Motherboard for Intel 12th Gen Processors – LGA1700 Socket
Original price was: ₹48,000.00.₹34,692.00Current price is: ₹34,692.00.
Out of stock
Additional Information
Cash on Delivery
Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.
10 Days Return
You can return the product & get a new replacement if the product is received in defective/ damaged condition.
Free Fast Delivery
We are glad to provide free shipping throughout India.
100% Secure Payment
We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.
Genuine Manufacturer Warranty
All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.
Excellent Customer Support
We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in
Reviews
Product Description

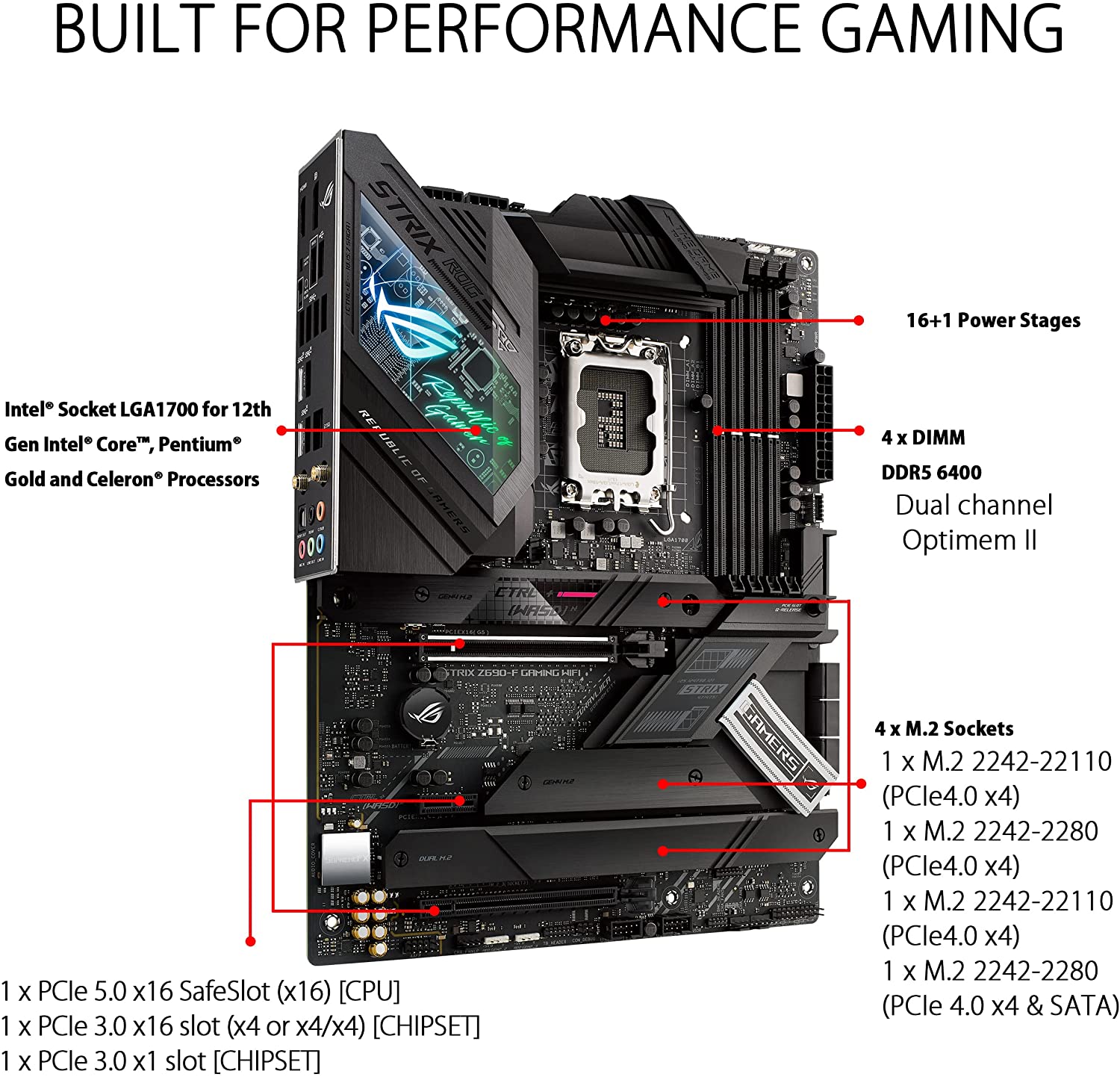

Intel?Z690 LGA 1700 ATX motherboard with PCIe?5.0, 16+1 power stages, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel?2.5 Gb Ethernet, four M.2 slots with heatsinks, PCIe 4.0 NVMe?SSD support, M.2 backplate, PCIe?Slot Q-Release, USB 3.2 Gen 2×2 Type-C?, SATA and Aura Sync RGB lighting
- Ready for 12th Gen Intel? Core?? Pentium? Gold and Celeron? processors
- Optimal Power Solution: 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

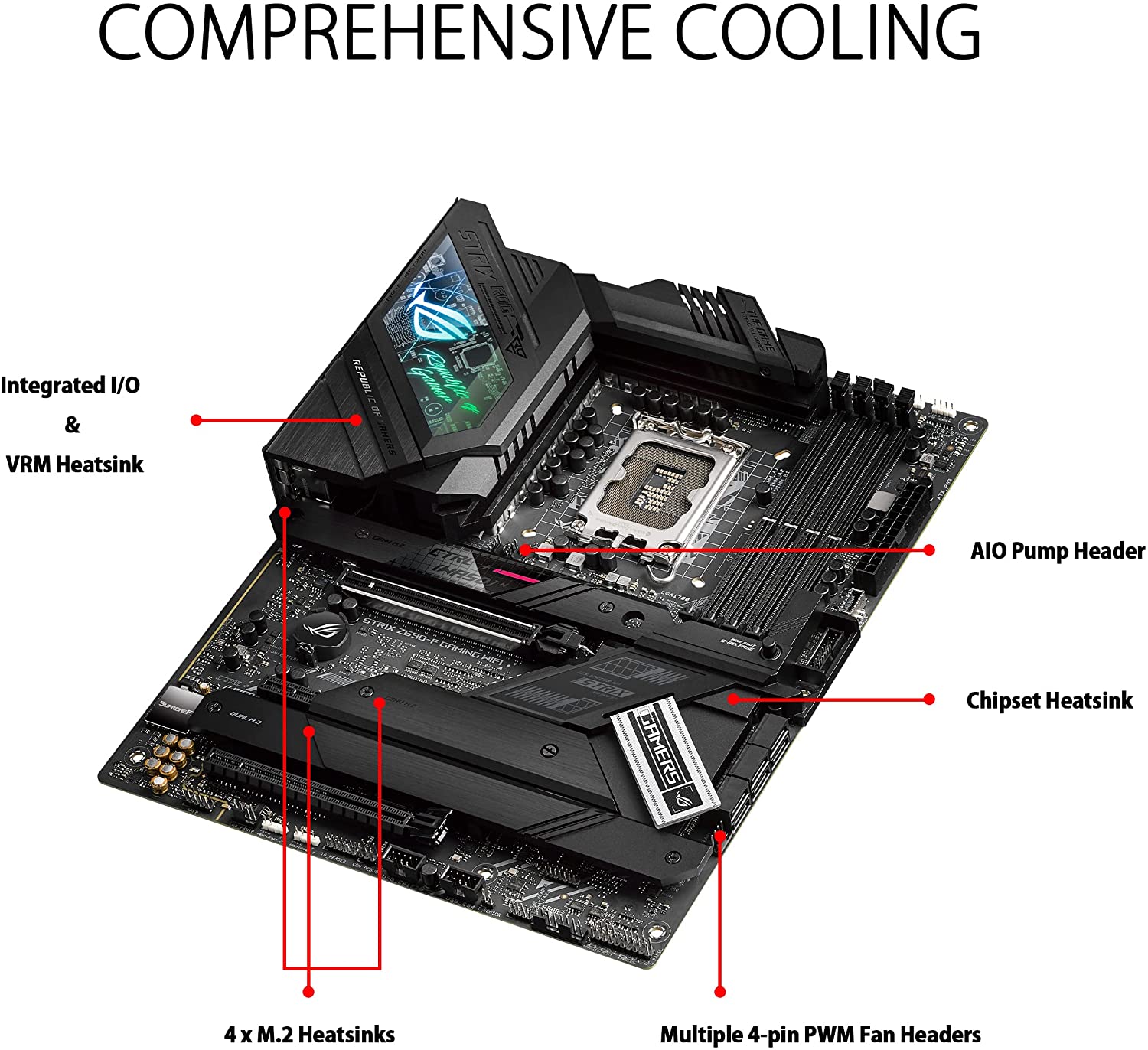

- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
- High-performance Networking: On-board Intel? WiFi 6E (802.11ax) and Intel? 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI? 2.1 and DisplayPort??1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 Type-C?
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: PCIe? Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack??button, and Clr CMOS button

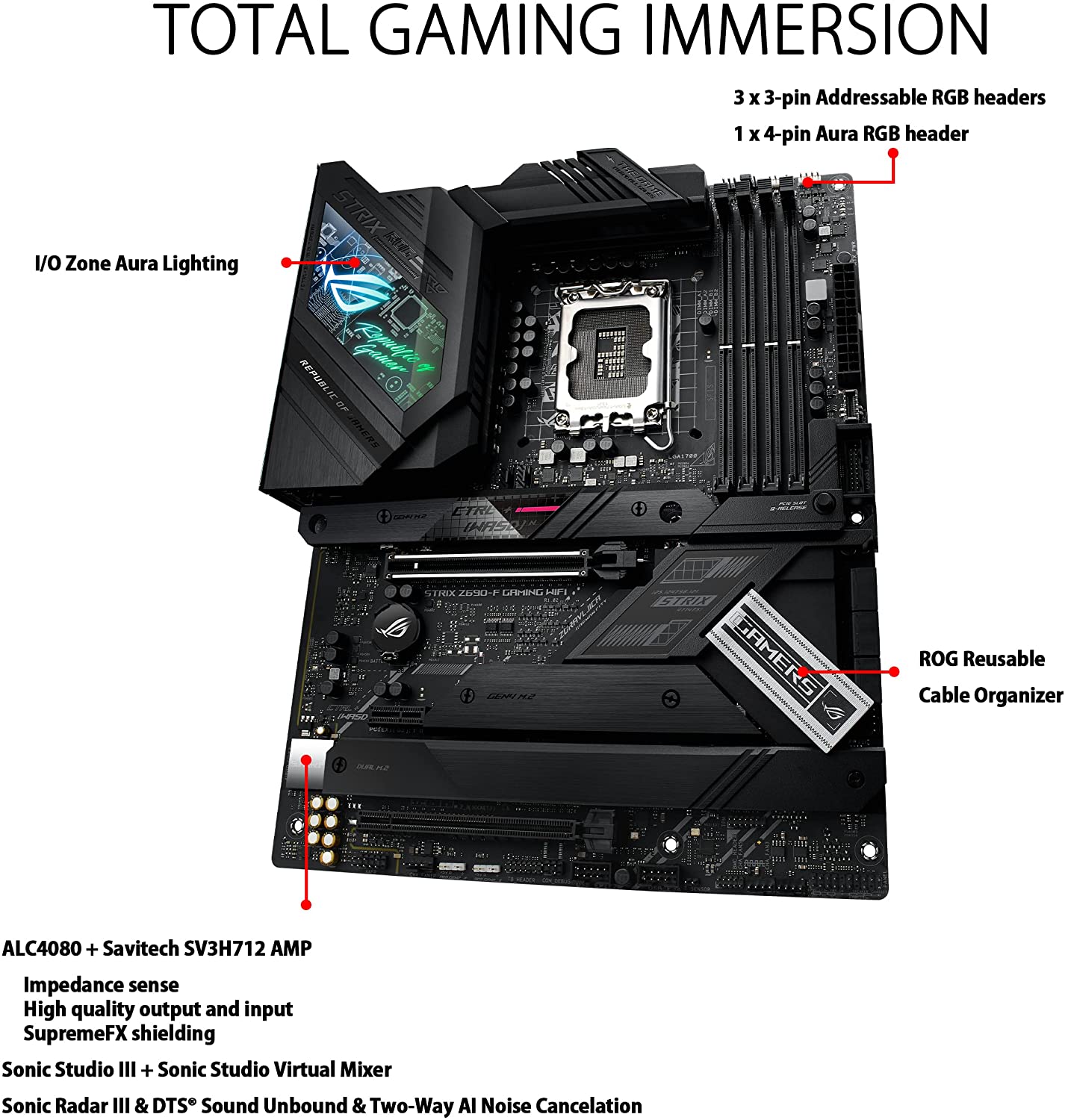

- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS? Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel? Core??processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe? 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.
SPECIFICATIONS:
| Brand | Asus |
| Model | ROG STRIX Z690-F GAMING WIFI |
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz MHz Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Graphics | 1 x DisplayPort 1.4** |
| 1 x HDMITM 2.1*** | |
| * Graphics specifications may vary between CPU types. | |
| ** Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Please refer to www.intel.com for any updates. | |
| ***Support HDMI 2.1 with max. resolution of 4K@60Hz. Please refer to www.intel.com for any updates. | |
| **** VGA resolution support depends on processors’ or graphic cards’ resolution. | |
| Expansion Slots | Intel 12th Gen Processors* |
| 1 x PCIe 5.0 x16 slot | |
| – Intel 12th support PCIe 5.0 x16 mode | |
| Intel Z690 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| * Please check PCIe bifurcation table in support site. | |
| Storage | Total supports 4 x M.2 slots and 6 x SATA 6Gb/s ports |
| Intel12th Gen Processors* | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| Intel Z690 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)*** | |
| 6 x SATA 6Gb/s ports**** | |
| * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. | |
| *** When M.2_4 is operating in SATA device, SATA6G_2 will be disabled. | |
| **** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. | |
| Ethernet | 1 x Intel I225-V 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready** * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. ** Bluetooth v5.2 function will be ready in in Windows 11 or later. |
| USB | Rear USB (Total 10 ports) |
| 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) | |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback |
| Audio Features | |
| – SupremeFX Shielding Technology | |
| – ALC4080 + Savitech SV3H712 AMP | |
| – Gold-plated audio jacks | |
| – Rear optical S/PDIF out port | |
| – Premium audio capacitors | |
| – Audio cover | |

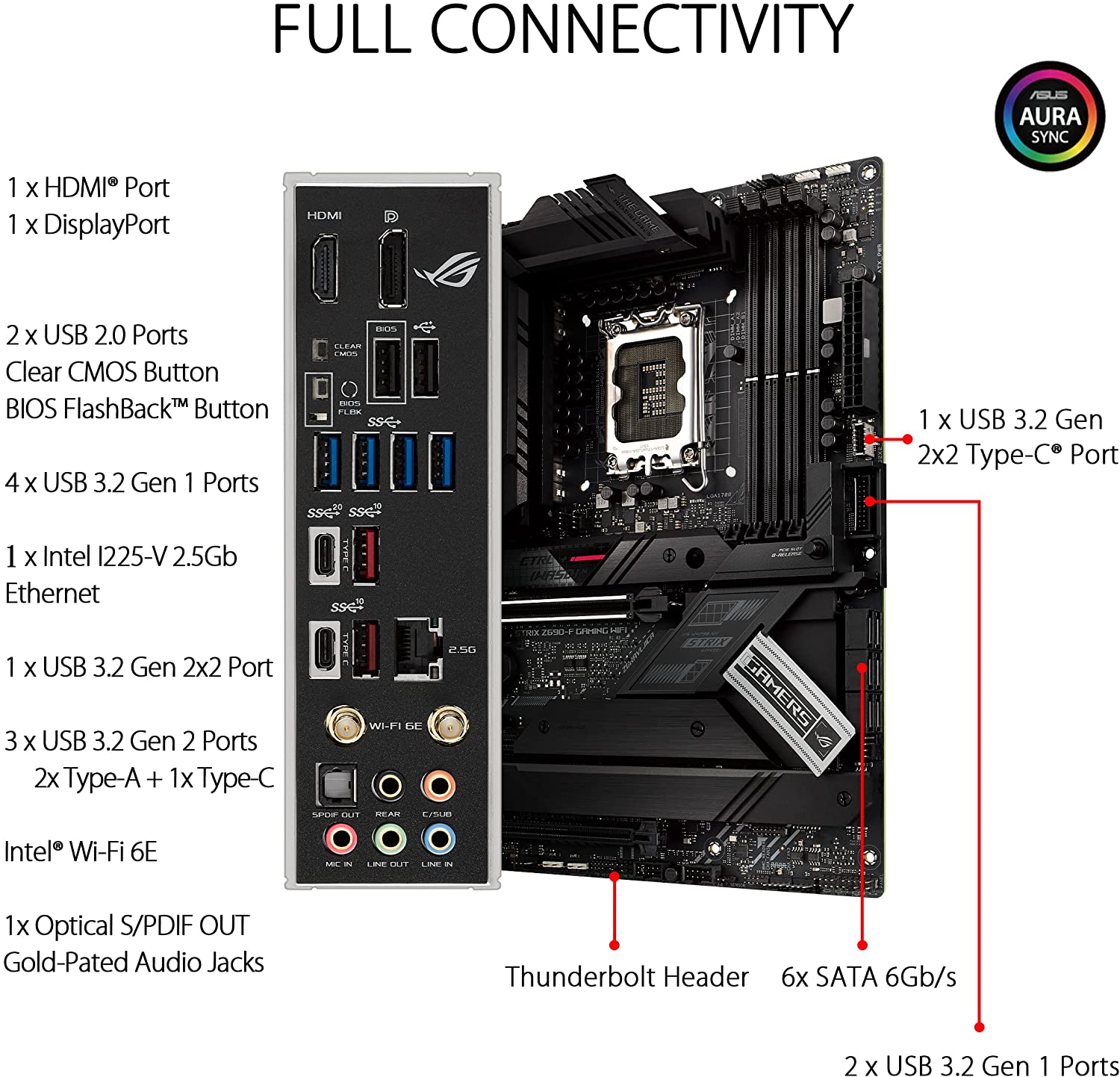

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C ) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x HDMI port | |
| 1 x DisplayPort | |
| 1 x ASUS Wi-Fi Module | |
| 1 x Intel I225-V 2.5Gb Ethernet | |
| 5 x Gold-plated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V Power connector | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x AURA Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x BMC header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt header | |
| Special Features | Extreme Engine Digi+ |
| – 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| – M.2 Q-Latch | |
| – PCIe Slot Q-Release | |
| – Q-DIMM | |
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – M.2 heatsink backplate | |
| – M.2 heatsink | |
| ASUS EZ DIY | |
| – BIOS FlashBack button | |
| – BIOS FlashBack LED | |
| – Clear CMOS button | |
| -CPU Socket lever protector | |
| – ProCool II | |
| – Pre-mounted I/O shield | |
| – SafeSlot | |
| – SafeDIMM | |
| AURA Sync | |
| – AURA RGB header | |
| – Addressable Gen 2 RGB headers | |
| ASUS HYDRANODE | |
| – 1 x Chassis fan support* (CHA_FAN1P) | |
| * Visit ASUS Website for the latest compatibility list. | |
| TPM header | |
| Software Features | ROG Exclusive Software |
| – ROG CPU-Z | |
| – GameFirst VI | |
| – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| – Sonic Radar III | |
| – DTS Sound Unbound | |
| – Anti-virus software | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| – AIDA64 Extreme (60 days free trial) | |
| – AURA Creator | |
| – AURA Sync | |
| – Fan Xpert 4 | |
| – Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| – 5-Way Optimization with AI Overclocking | |
| TPU | |
| EPU | |
| DIGI+ VRM | |
| Turbo app | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| MemTest86 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 4 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas | |
| 1 x M.2 Q-Latch package | |
| 1 x M.2 Q-Latch package for M.2 backplate | |
| 2 x M.2 Rubber Packages | |
| 1 x ROG key chain | |
| 1 x cable tie | |
| 1 x ROG STRIX stickers | |
| 1 x ROG STRIX thank you card | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User manual | |
| Operating System | Windows 10 64-bit, Windows 11 64-bit |
| Form Factor | ATX Form Factor |
| Warranty | 3 Years Manufacturer’s Warranty |
| Country Of Origin | China |
| Manufacturer | ASUS GLOBAL PTE LTD. 15A Changi Business Park Central 1, #05-01, Eightrium, Singapore 486035 |
| Importer | Rashi Peripherals Pvt.Ltd. Rashi Complex,”A” Building, Survey 186, Dongaripada, PomanVillage, Vasai Bhiwandi Road, Dist. Thane, Maharashtra – 401208 India |
| Net Quantity | 1 |
| Product Package Dimensions (LxWxH) | 27 x 34 x 7 Centimeters |
| Weight | 1800g |
| Note | *** Features, Price, Specifications are subject to change without notice. |
