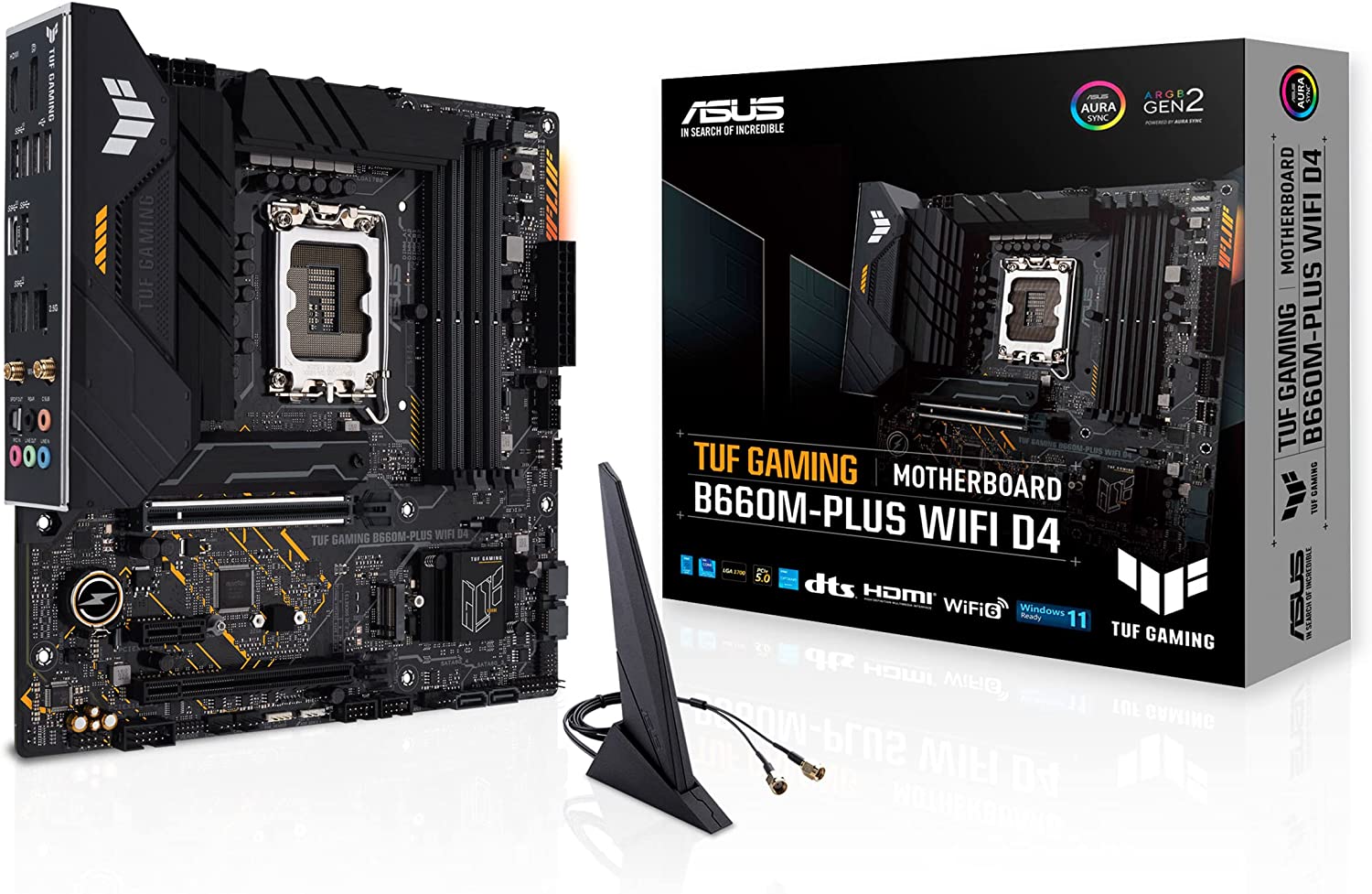

Asus TUF GAMING B660M-PLUS WIFI D4 Motherboard for Intel 12th Gen Processors – LGA1700 Socket
Original price was: ₹22,000.00.₹18,200.00Current price is: ₹18,200.00.
Out of stock
Additional Information
Cash on Delivery
Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.
10 Days Return
You can return the product & get a new replacement if the product is received in defective/ damaged condition.
Free Fast Delivery
We are glad to provide free shipping throughout India.
100% Secure Payment
We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.
Genuine Manufacturer Warranty
All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.
Excellent Customer Support
We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in
Reviews
Product Description
Intel? B660 (LGA 1700) mATX motherboard, 10+1 DrMOS Power stages , PCIe 5.0 support, DDR4 5333 (OC), Dual PCIe 4.0 M.2 Slots with Flexible Heatsink, Intel? Wi-Fi 6, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2×2 Type-C?, Front USB 3.2 Gen 1 Type-C?, Aura Sync, Two-way AI Noise Cancelation
- Intel? LGA 1700 socket: Ready for 12th Gen Intel? processors

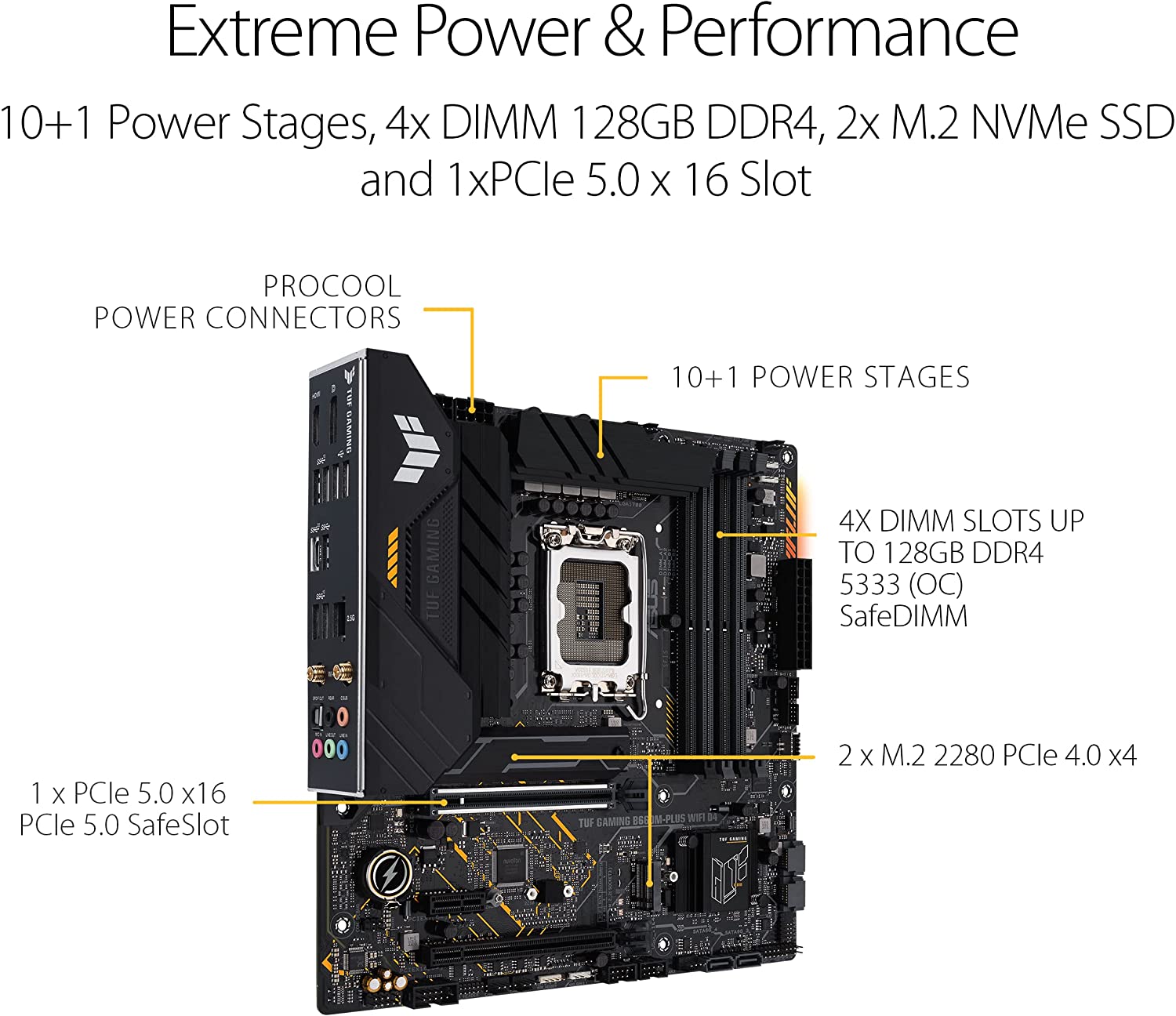

- Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability

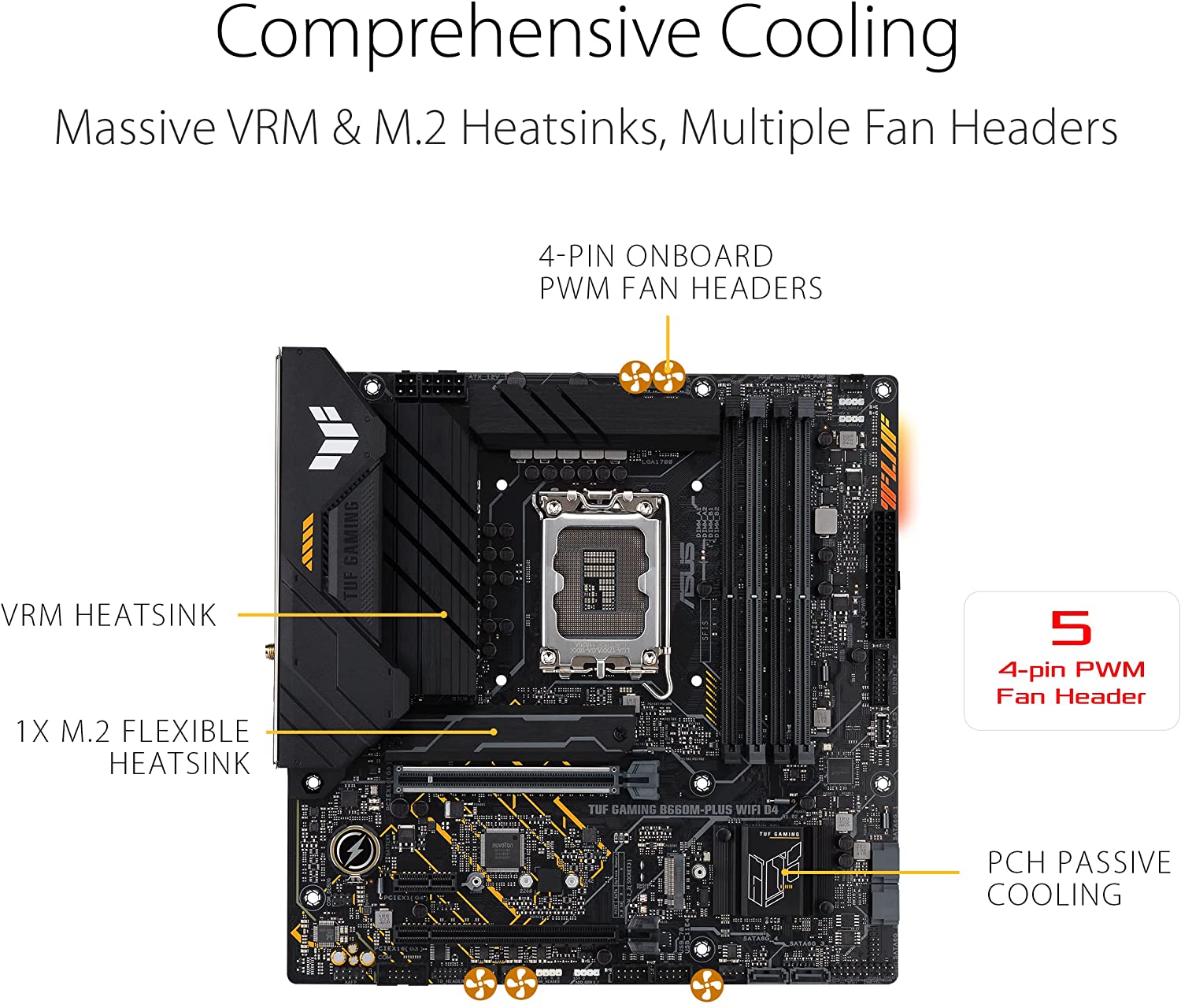

- Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

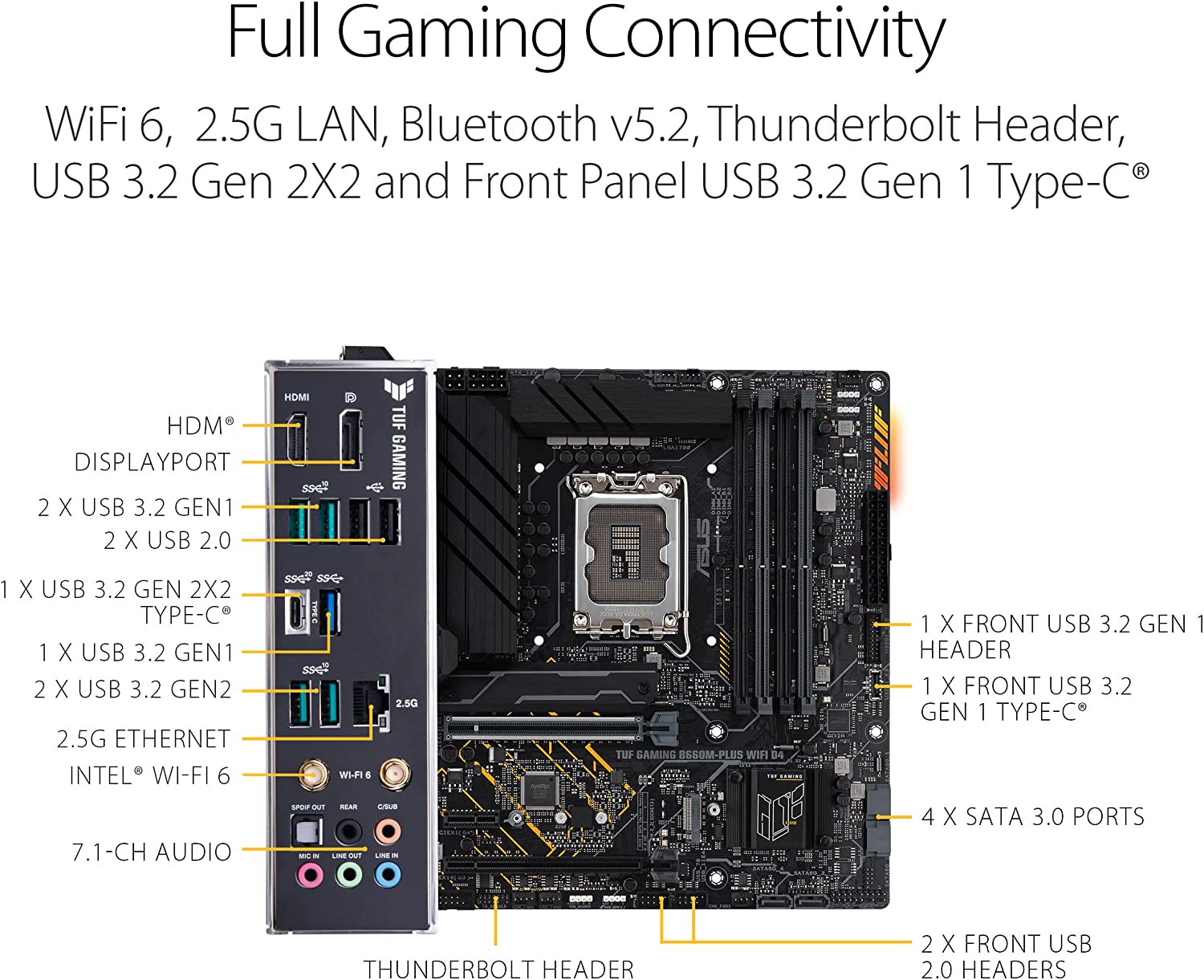

- Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C?, front panel header for USB 3.2 Gen 1 Type-C? and Thunderbolt 4??support
- Made for online gaming: Intel? WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Durable. Stable. Reliable.

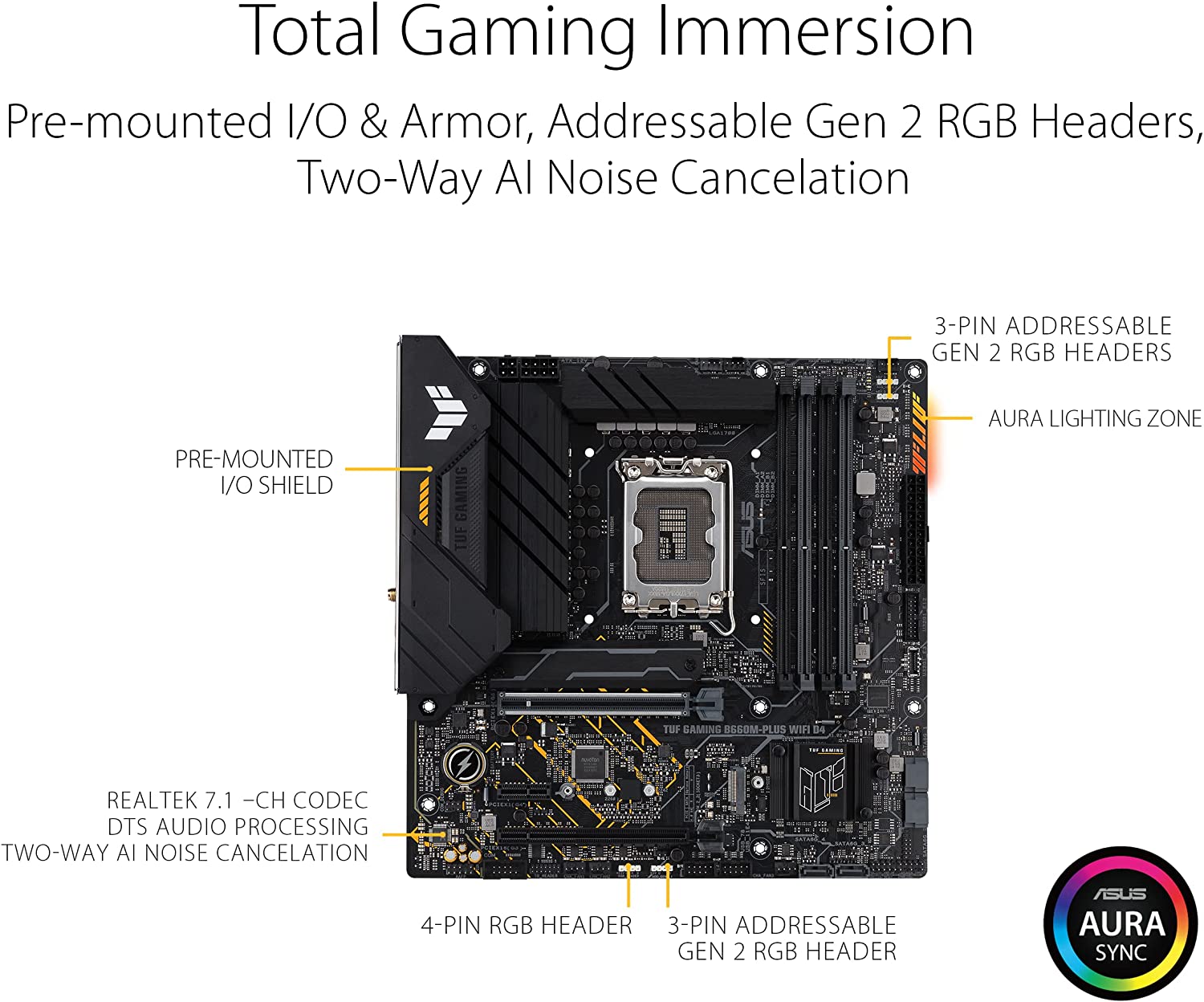

ASUS TUF GAMING B660M-PLUS WIFI D4 takes all the essential elements of the latest Intel? processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
SPECIFICATIONS:
| Brand | Asus |
| Model | TUF GAMING B660M-PLUS WIFI D4 |
| CPU | Intel? Socket LGA1700 for 12th Gen Intel? Core?? Pentium? Gold and Celeron? Processors* Supports Intel? Turbo Boost Technology 2.0 and Intel? Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel? Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel B660 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/ 3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel? Extreme Memory Profile (XMP) OptiMem II *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Graphics | 1 x DisplayPort** 1 x HDMI? port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors’ resolution. |
| Expansion Slots | Intel? 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel? B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Supports Intel? Optane Memory H Series on PCH-attached PCIe slot. |
| Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel? 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel? 12th Gen processors support PCIe 4.0 x4 mode. Intel? B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel? Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel? Rapid Storage Technology supports Intel? Optane Memory H Series on PCH attached M.2 slots. |
| Ethernet | TUF LANGuard 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Intel? Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2* *Bluetooth v5.2 function will be ready in Windows 11 or later. |
| USB |
Rear USB:Total 8 ports Rear USB (Total 8 ports)
Front USB (Total 7 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Features |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C?) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI? port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C?) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt??header |
| Special Features | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 2+ – Two-Way AI Noise Cancelation AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide |
| Form Factor | mATX Form Factor |
| Warranty | 3 Years Manufacturer’s Warranty |
| Country Of Origin | China |
| Manufacturer | ASUS GLOBAL PTE LTD. 15A Changi Business Park Central 1, #05-01, Eightrium, Singapore 486035 |
| Importer | Rashi Peripherals Pvt.Ltd. Rashi Complex,”A” Building, Survey 186, Dongaripada, PomanVillage, Vasai Bhiwandi Road, Dist. Thane, Maharashtra – 401208 India |
| Net Quantity | 1 |
| Product Package Dimensions (LxWxH) | 26.5x 27.5 x 6.5 Centimeters |
| Weight | 1500g |
| Note | ***Features, Price and Specifications are subject to change without notice. |
