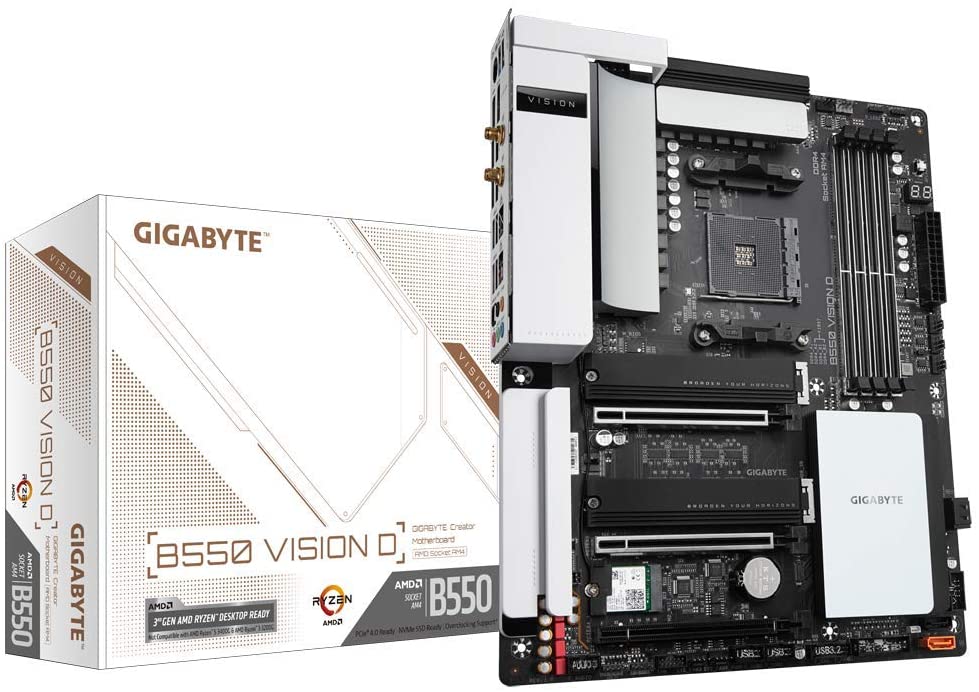

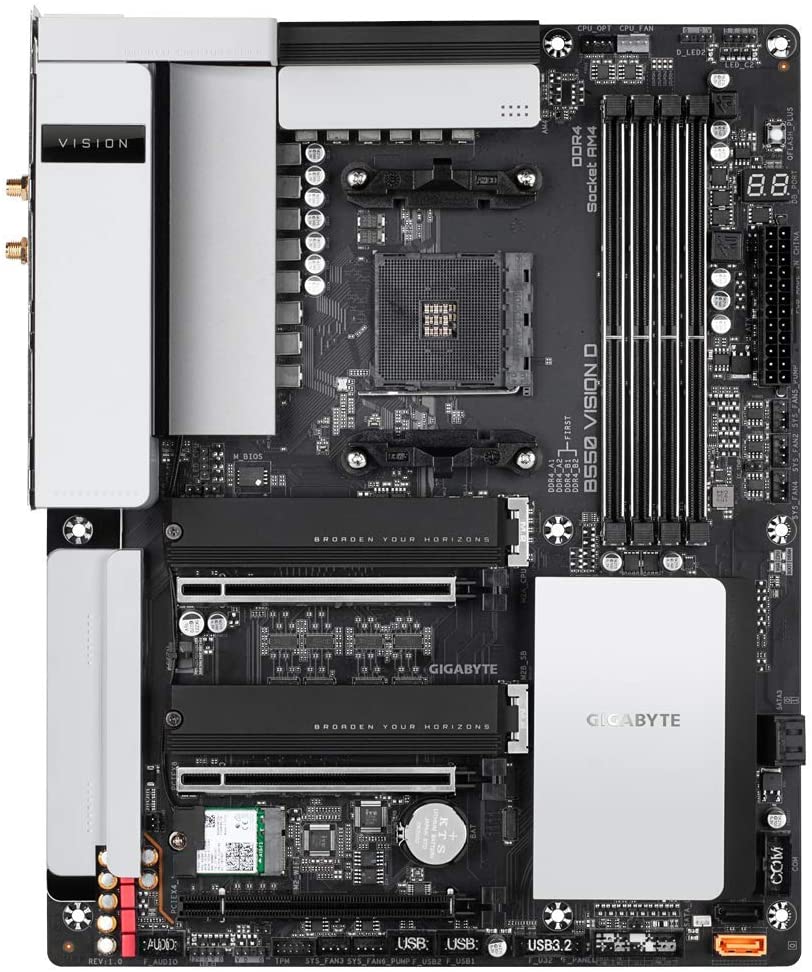

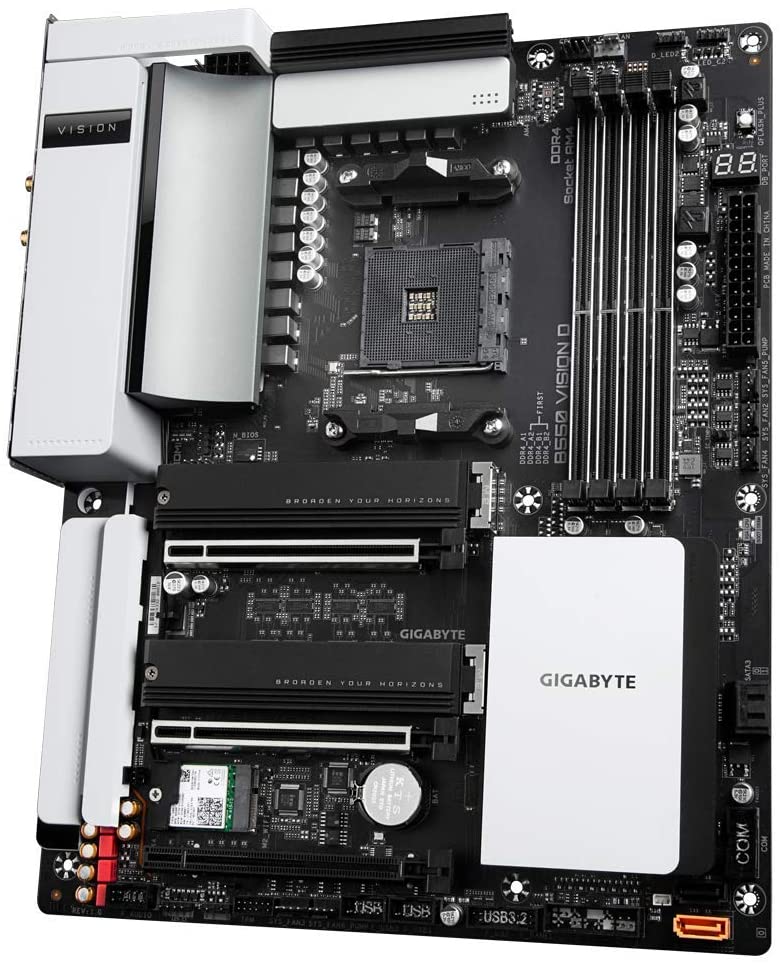

Gigabyte B550 VISION D (Wi-Fi) Motherboard for 3rd Gen Ryzen Processors - AM4 Socket (Thunderbolt 3/ 3xPCIe 4.0/3.0/ 3xM.2/ USB3.2 Gen 2 Type-C/ Intel WiFi 6/ HDMI 2.1)
Gigabyte B550 VISION D (Wi-Fi) Motherboard for 3rd Gen Ryzen Processors - AM4 Socket (Thunderbolt 3/ 3xPCIe 4.0/3.0/ 3xM.2/ USB3.2 Gen 2 Type-C/ Intel WiFi 6/ HDMI 2.1) - Image 2
Gigabyte B550 VISION D (Wi-Fi) Motherboard for 3rd Gen Ryzen Processors - AM4 Socket (Thunderbolt 3/ 3xPCIe 4.0/3.0/ 3xM.2/ USB3.2 Gen 2 Type-C/ Intel WiFi 6/ HDMI 2.1) - Image 3
Gigabyte B550 VISION D (Wi-Fi) Motherboard for 3rd Gen Ryzen Processors - AM4 Socket (Thunderbolt 3/ 3xPCIe 4.0/3.0/ 3xM.2/ USB3.2 Gen 2 Type-C/ Intel WiFi 6/ HDMI 2.1) - Image 4
Gigabyte B550 VISION D (Wi-Fi) Motherboard for 3rd Gen Ryzen Processors - AM4 Socket (Thunderbolt 3/ 3xPCIe 4.0/3.0/ 3xM.2/ USB3.2 Gen 2 Type-C/ Intel WiFi 6/ HDMI 2.1) - Image 5

Gigabyte B550 VISION D (Wi-Fi) Motherboard for 3rd Gen Ryzen Processors – AM4 Socket (Thunderbolt 3/ 3xPCIe 4.0/3.0/ 3xM.2/ USB3.2 Gen 2 Type-C/ Intel WiFi 6/ HDMI 2.1)

Original price was: ₹36,550.00.Current price is: ₹25,471.00.

Out of stock

Add to Compare
SKU: Gigabyte B550 VISION D Motherboard Category: Tags: , , , , , Brand:

Additional Information

Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.

10 Days Return

You can return the product & get a new replacement if the product is received in defective/ damaged condition.

Free Fast Delivery

We are glad to provide free shipping throughout India.

100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.

Genuine Manufacturer Warranty

All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.

Excellent Customer Support

We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in

Reviews

Product Description

AMD B550 Creators Motherboard with Intel Thunderbolt??3 certification, effective cooling solution, DDR4 ECC & Non-ECC memory, Intel? Wi-Fi 6 802.11ax and dual Intel? LAN with cFosSpeed, Triple PCIe? 4.0/3.0 x16 slots, Dual PCIe? 4.0/3.0 M.2 Connectors

  • Support 3rd Gen AMD Ryzen??Processors
  • Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
  • Multi-graphics configurations offer by dual PCIe? 4.0/3.0 x16 and one PCIe? 3.0 x16 slots
  • Fully Quadro? QVL Tested
  • The limitless connectivity by Thunderbolt??3
  • High-bandwidth and low-latency network support by dual Intel? GbE LAN with cFosSpeed
  • Intel? Wi-Fi 6 802.11ax makes latency a thing of the past
  • Effective cooling solution design for the better thermal dissipation
  • Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Ultra-Fast NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 interface M.2 connectors with Thermal Guards
  • Comprehensive connectivity with USB3.2 Gen 2 Type-C??connection
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

gigabyte-b550-vision-d-specs

VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It’s the perfect fit for DIY creators to build their own ideal machine.

SPECIFICATIONS:

Brand Gigabyte
Model B550 VISION D
CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen??processors/ New Generation AMD Ryzen??with Radeon??Graphics processors
Chipset AMD B550
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. 3rd Gen AMD Ryzen??Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  3. New Generation AMD Ryzen??with Radeon??Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated in the 3rd Generation AMD Ryzen??with Radeon??Graphics processors:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB
Audio
  1. Realtek? ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. Support for DTS:X? Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
LAN 2 x Intel? GbE LAN chips (1000 Mbit/100 Mbit)
Wireless Communication module
Intel? Wi-Fi 6 AX200

  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. 3rd Generation AMD Ryzen??processors support PCIe 4.0 x16 mode
  2. 3rd Generation AMD Ryzen??with Radeon??Graphics processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

  1. 3rd Generation AMD Ryzen??processors support PCIe 4.0 x8 mode
  2. 3rd Generation AMD Ryzen??with Radeon??Graphics processors support PCIe 3.0 x8 mode
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

  1. Supporting PCIe 3.0 x4 mode
    * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
Multi-Graphics Technology Support for AMD Quad-GPU CrossFire??and 2-Way AMD CrossFire??technologies
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  1. 3rd Generation AMD Ryzen??processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. 3rd Generation AMD Ryzen??with Radeon??Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  1. Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

  1. Support for RAID 0, RAID 1, and RAID 10
USB Integrated in the CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+Intel? Titan Ridge Controller:

  1. 2 x USB Type-C??ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

  1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  3. 1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:

  1. 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 4 x system fan headers
  6. 2 x system fan/water cooling pump headers
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 2 x M.2 Socket 3 connectors
  11. 4 x SATA 6Gb/s connectors
  12. 1 x SATA DOM power connector
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  18. 1 x serial port header
  19. 1 x Clear CMOS jumper
  20. 2 x temperature sensor headers
  21. 1 x Q-Flash Plus button

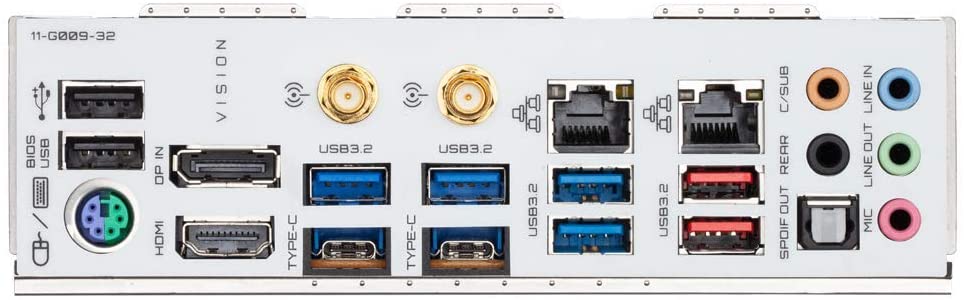

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort In port
  3. 1 x HDMI port
  4. 2 x SMA antenna connectors (2T2R)
  5. 2 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x USB Type-C??ports, with USB 3.2 Gen 2 support
  7. 4 x USB 3.2 Gen 1 ports
  8. 2 x USB 2.0/1.1 ports
  9. 2 x RJ-45 ports
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
I/O Controller iTE? I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton? Internet Security (OEM version)
  2. cFosSpeed
Operating System  Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years Manufacturer’s Warranty
Country Of Origin China
Manufacturer Gigabyte Technology (India) Private Limited
B-Wing, 807 & 808, Naman MidTown
Elphinstone Road, Mumbai 400013
Email: sales@gigabyte.in
Tel: +91 0 22 40633222
Importer WPG C&C Computers And Peripheral(I) Pvt.Ltd
Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III,
New Delhi-110020
Net Quantity 1
Product Package Dimensions (LxWxH) 29.5 x 35 x 8 Centimeters
Weight 2200g
Note ***Features, Price and Specifications are subject to change without notice.

b550-vision-d-specs
