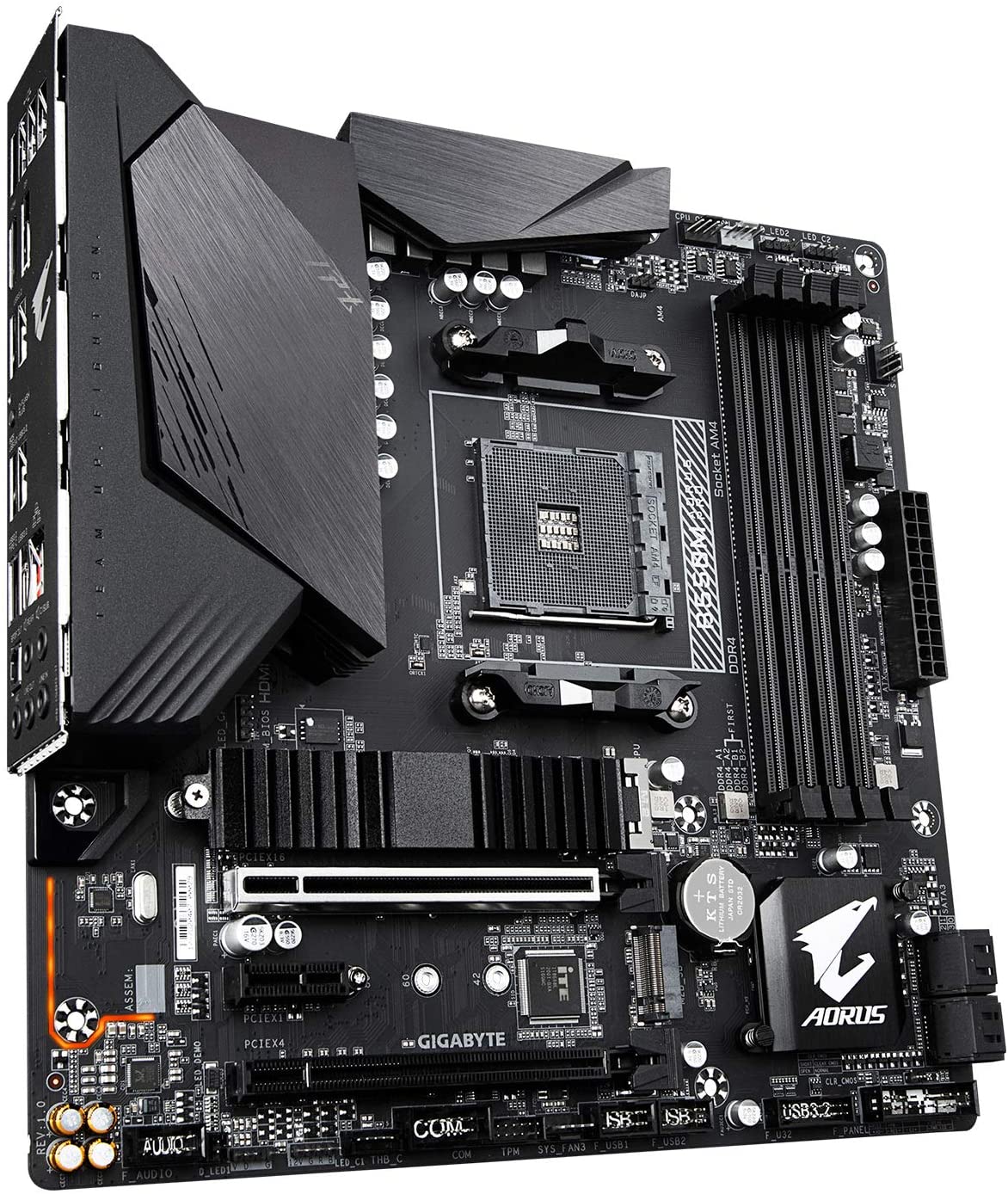

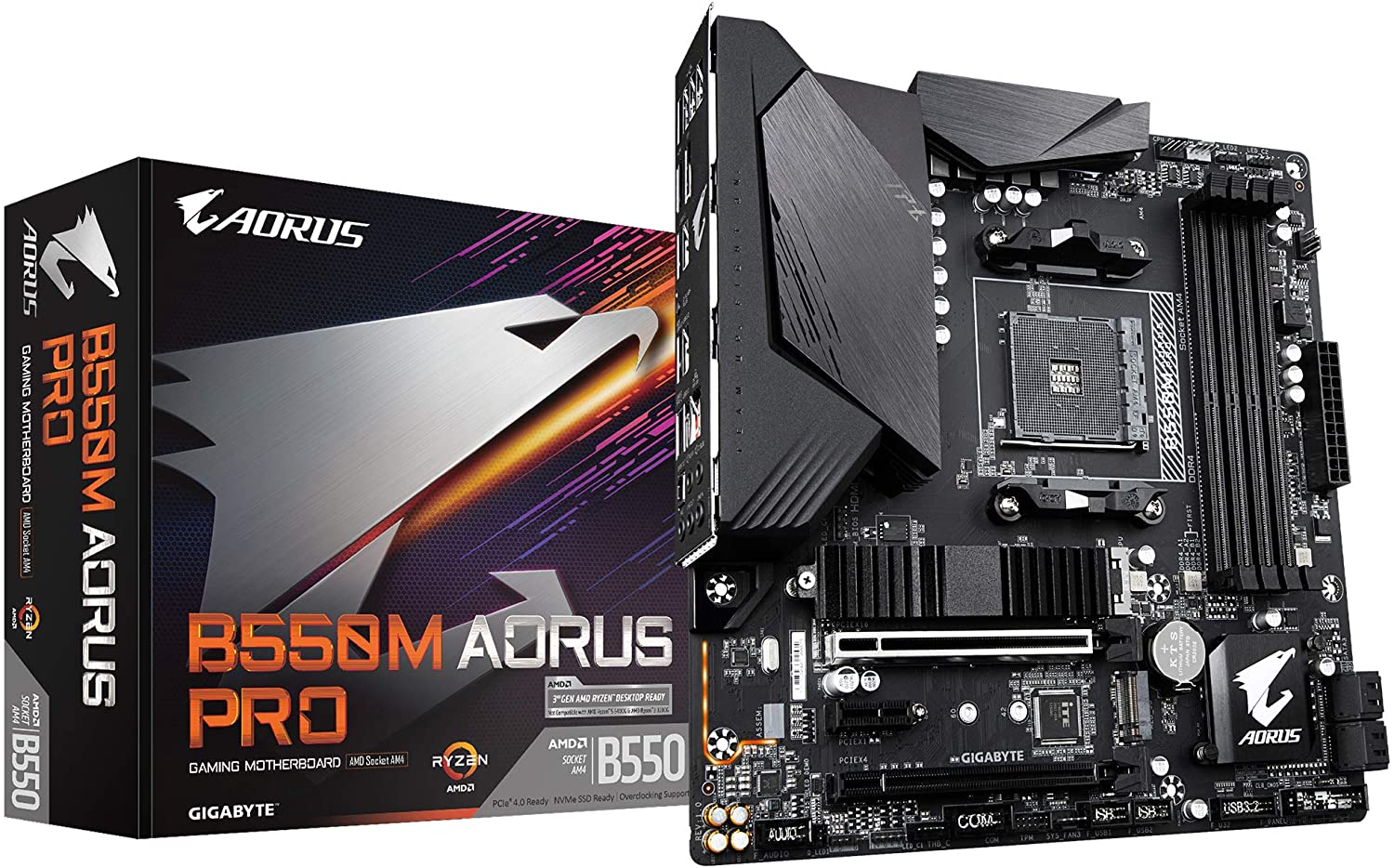

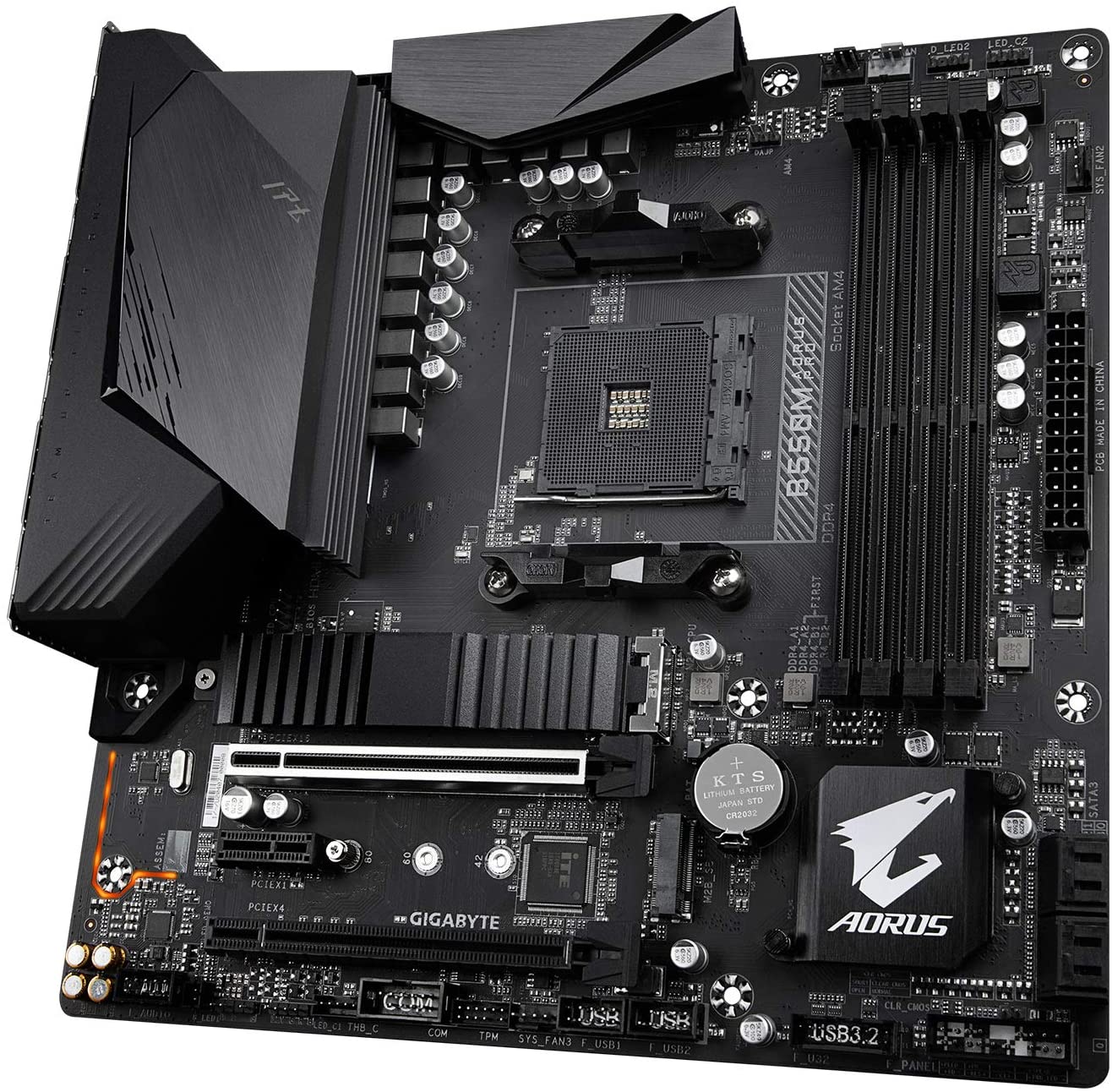

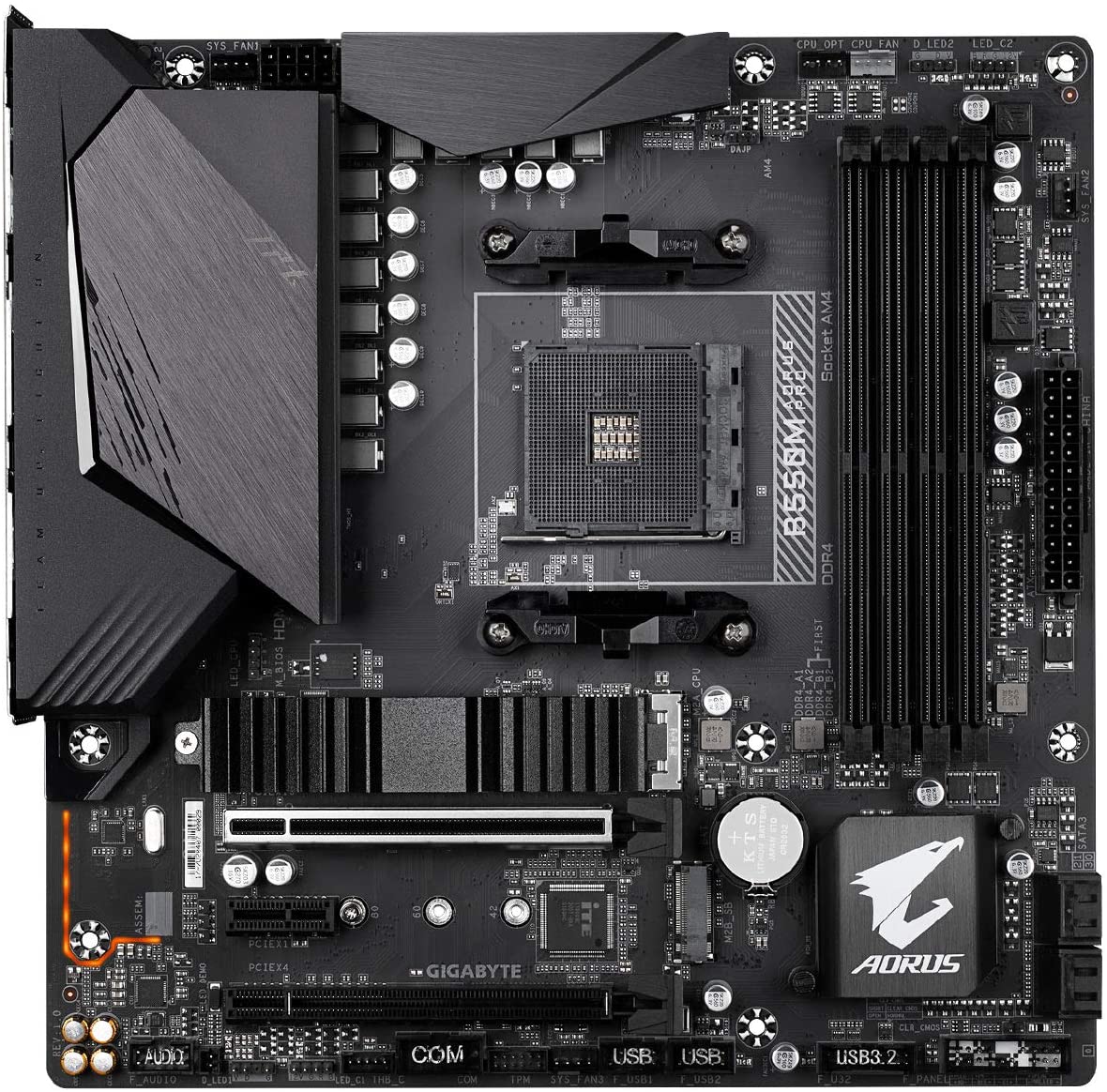

Gigabyte B550M AORUS PRO GAMING Motherboard with Thunderbolt Header for 3rd Gen Ryzen Processors - AM4 Socket
Gigabyte B550M AORUS PRO GAMING Motherboard with Thunderbolt Header for 3rd Gen Ryzen Processors - AM4 Socket - Image 2
Gigabyte B550M AORUS PRO GAMING Motherboard with Thunderbolt Header for 3rd Gen Ryzen Processors - AM4 Socket - Image 3
Gigabyte B550M AORUS PRO GAMING Motherboard with Thunderbolt Header for 3rd Gen Ryzen Processors - AM4 Socket - Image 4
Gigabyte B550M AORUS PRO GAMING Motherboard with Thunderbolt Header for 3rd Gen Ryzen Processors - AM4 Socket - Image 5

Gigabyte B550M AORUS PRO GAMING Motherboard with Thunderbolt Header for 3rd Gen Ryzen Processors – AM4 Socket

Original price was: ₹15,750.00.Current price is: ₹11,858.00.

Out of stock

Add to Compare
SKU: Gigabyte B550M AORUS PRO GAMING Motherboard Category: Tags: , , , , , Brand:

Additional Information

Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.

10 Days Return

You can return the product & get a new replacement if the product is received in defective/ damaged condition.

Free Fast Delivery

We are glad to provide free shipping throughout India.

100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.

Genuine Manufacturer Warranty

All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.

Excellent Customer Support

We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in

Reviews

Product Description

AMD B550 AORUS Motherboard with Digital VRM Solution, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guard, Gigabyte Gaming GbE LAN, RGB FUSION 2.0, Q-Flash Plus

  • Supports 3rd Gen AMD Ryzen??Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Digital 10+3 VRM Solution
  • Advanced Thermal Design with Enlarged VRM Heatsinks
  • Ultra Durable??PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • AMP-UP Audio with ALC1200 and premium capacitor
  • GIGABYTE Exclusive 8118 Gaming GbE LAN
  • Onboard DisplayPort & HDMI
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation

gigabyte-b550m-aorus-pro-specs

SPECIFICATIONS:

Model B550M AORUS PRO
CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen??processors/ New Generation AMD Ryzen??with Radeon??Graphics processors
Chipset AMD B550
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. 3rd Gen AMD Ryzen??Processors:
    Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  3. 3rd Gen AMD Ryzen??with Radeon??Graphics processors:
    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  4. Dual channel memory architecture
  5. Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated in the New Generation AMD Ryzen??with Radeon??Graphics processors:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  2. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB
Audio
  1. Realtek? ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN Realtek? GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. 3rd Generation AMD Ryzen??processors support PCIe 4.0 x16 mode
  2. New Generation AMD Ryzen??with Radeon??Graphics processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

  1. Supporting PCIe 3.0 x4 mode

3 x PCI Express x1 slots (PCIEX1), integrated in the Chipset:

  1. Supporting PCIe 3.0 x1 mode
Storage Interface 1??x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  1. 3rd Generation AMD Ryzen??processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. New Generation AMD Ryzen??with Radeon??Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

  1. Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

  1. Support for RAID 0, RAID 1, and RAID 10
USB CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

  1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  2. 3 x USB 3.2 Gen 1 ports on the back panel

Chipset:

  1. 1 x USB Type-C??port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  4. 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+1 USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 1 x CPU cooler LED strip/RGB LED strip header
  9. 2 x M.2 Socket 3 connectors
  10. 4 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 1 x serial port header
  16. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  17. 1 x Clear CMOS jumper
  18. 1 x Thunderbolt header

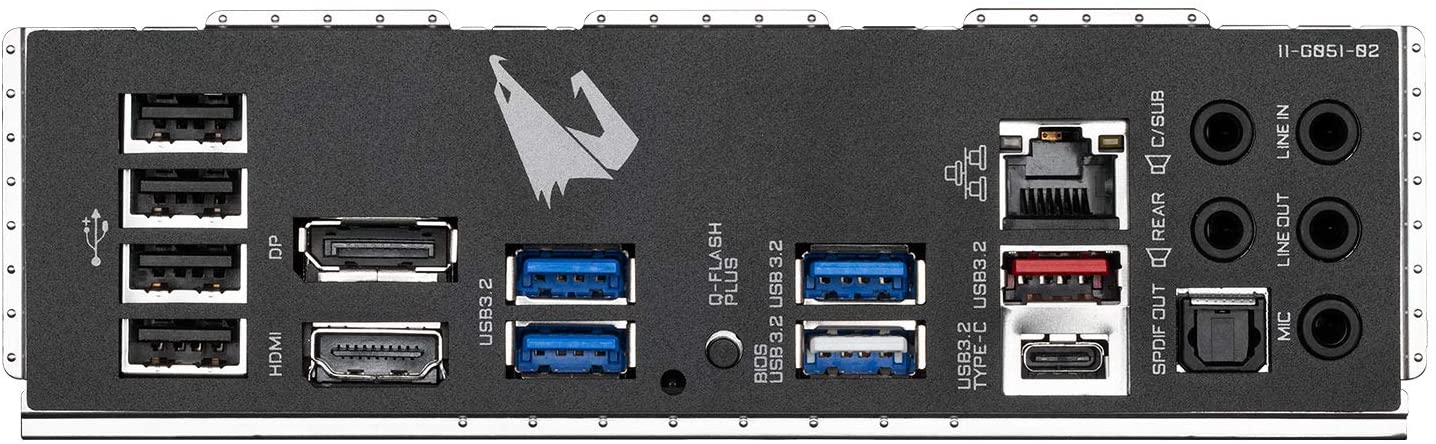

Back Panel Connectors
  1. 4 x USB 2.0/1.1 ports
  2. 1 x DisplayPortt
  3. 1 x HDMI port
  4. 3 x USB 3.2 Gen 1 ports
  5. 1 x USB 3.2 Gen 2 Type-A port (red)
  6. 1 x USB Type-C??port, with USB 3.2 Gen 2 support
  8. 1 x Q-Flash Plus button
  9. 1 x RJ-45 port
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
I/O Controller
  1. iTE? I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton? Internet Security (OEM version)
  2. Realtek? 8118 Gaming LAN Bandwidth Control Utility
Operating System  Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Country Of Origin China
Note ***Features, Price and Specifications are subject to change without notice.
