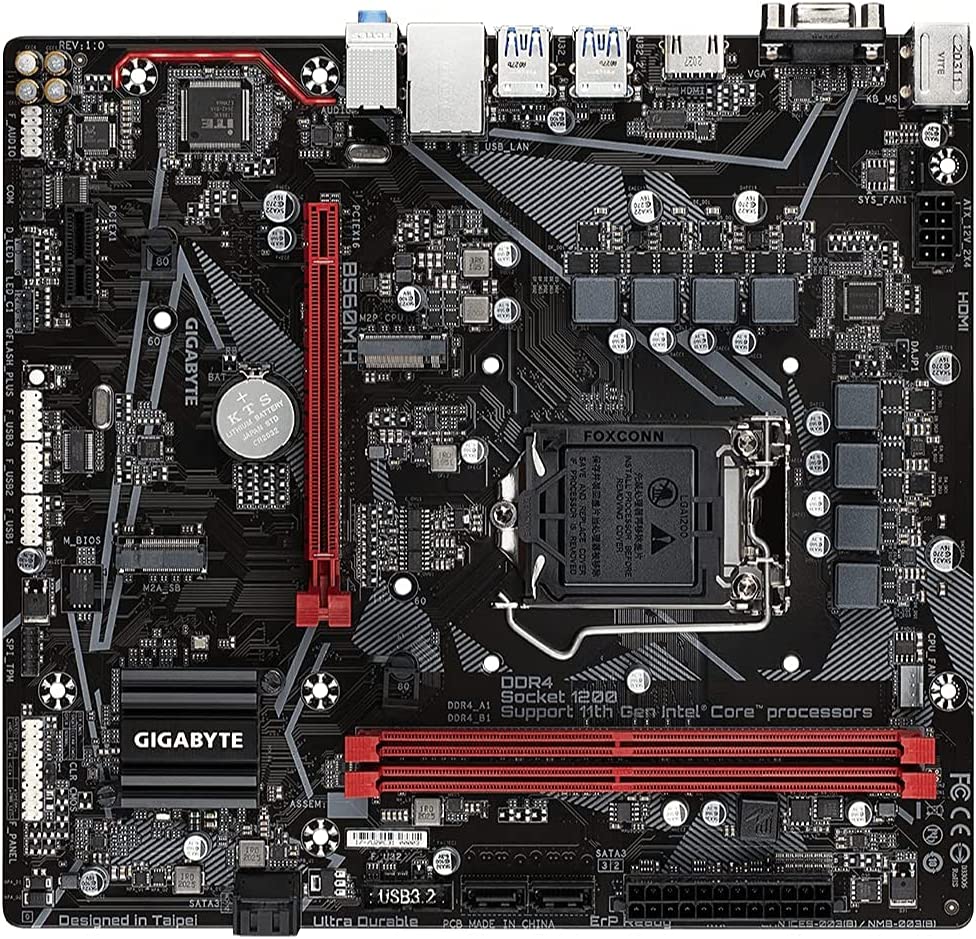

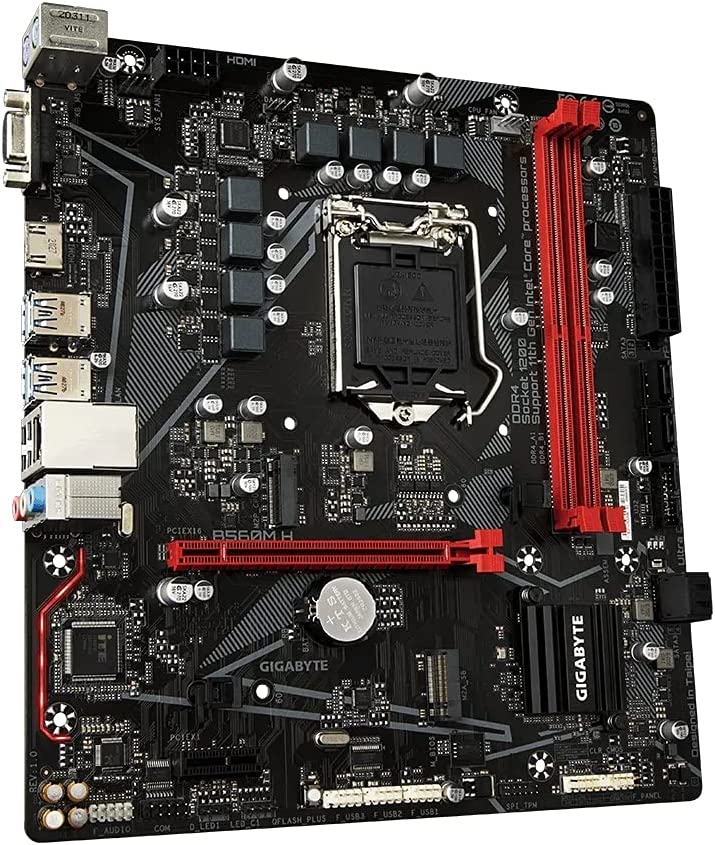

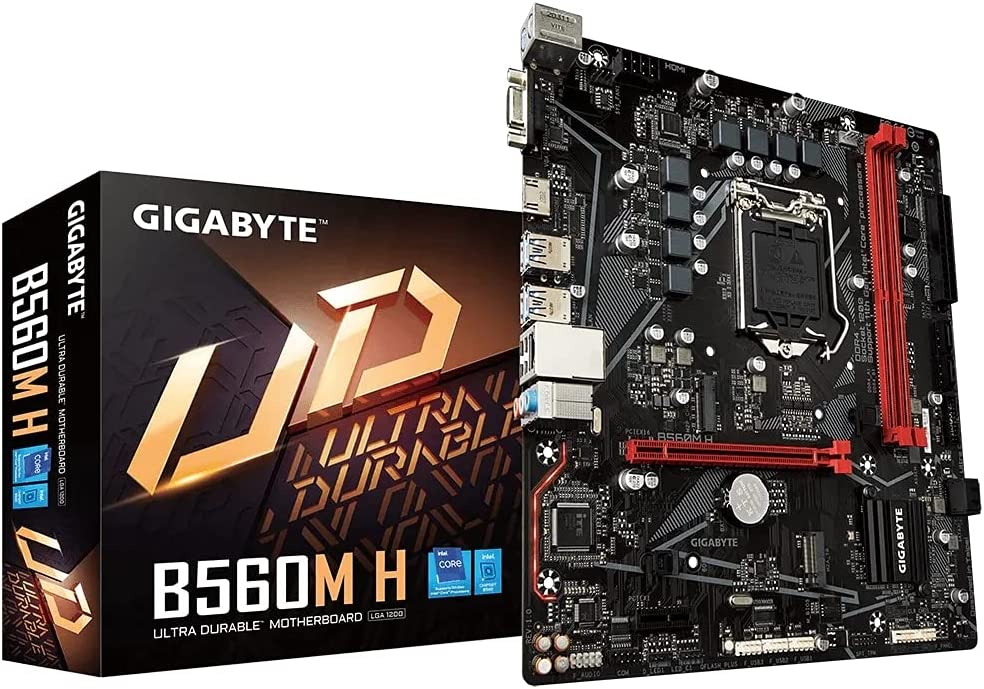

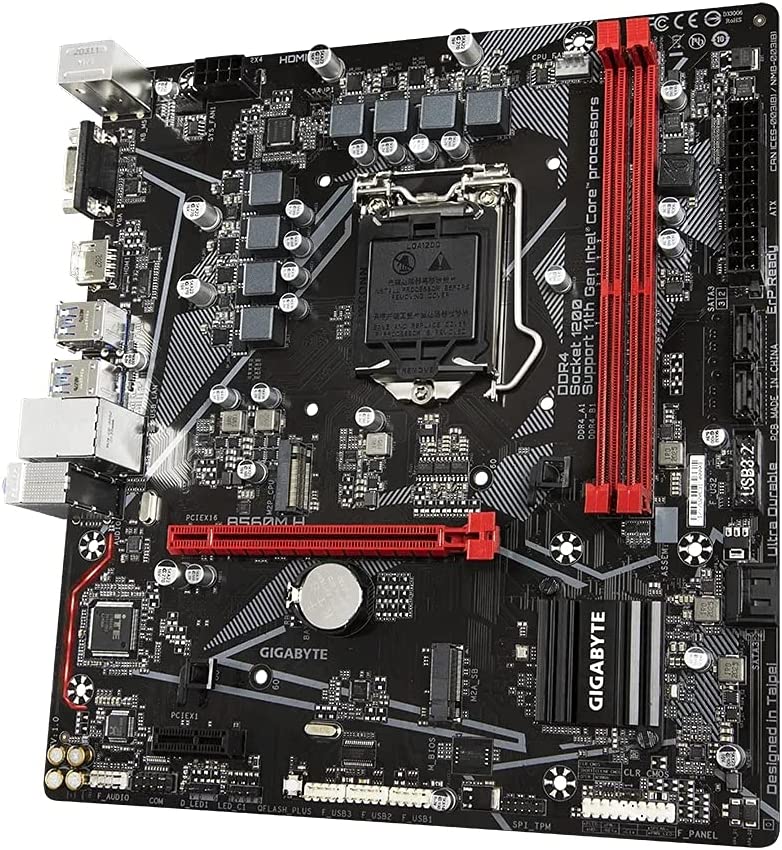

Gigabyte B560M H Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors - LGA1200 Socket
Gigabyte B560M H Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors - LGA1200 Socket - Image 2
Gigabyte B560M H Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors - LGA1200 Socket - Image 3
Gigabyte B560M H Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors - LGA1200 Socket - Image 4
Gigabyte B560M H Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors - LGA1200 Socket - Image 5

Gigabyte B560M H Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors – LGA1200 Socket

Original price was: ₹11,800.00.Current price is: ₹7,200.00.

Out of stock

Add to Compare
SKU: Gigabyte B560M H Micro-ATX Motherboard Category: Tags: , , , , , , , , , Brand:

Additional Information

Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.

10 Days Return

You can return the product & get a new replacement if the product is received in defective/ damaged condition.

Free Fast Delivery

We are glad to provide free shipping throughout India.

100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.

Genuine Manufacturer Warranty

All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.

Excellent Customer Support

We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in

Reviews

Product Description

Intel? B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, Dual PCIe x4 M.2, GIGABYTE 8118 Gaming LAN, RGB FUSION 2.0, Q-Flash Plus

  • Supports 11th and 10th Gen Intel? Core??Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
    * Actual support may vary by CPU.

SPECIFICATIONS:

Brand Gigabyte
Model B560M H
CPU LGA1200 package:

  1. 11th Generation Intel? Core??i9 processors / Intel? Core??i7 processors / Intel? Core??i5 processors
  2. 10th Generation Intel? Core??i9 processors / Intel? Core??i7 processors / Intel? Core??i5 processors / Intel? Core??i3 processors/ Intel? Pentium? processors / Intel? Celeron? processors*
    * Limited to processors with 4 MB Intel? Smart Cache, Intel? Celeron? G5xx5 family.
  3. L3 cache varies with CPU

(Please refer to “CPU Support List” for more information.)
Chipset Intel? B560 Express Chipset
Memory
  1. 11th Generation Intel? Core??i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 10th Generation Intel? Core??i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel? Core??i5/i3/Pentium?/Celeron? processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.)
Onboard Graphics

Integrated Graphics Processor-Intel? HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek? Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channe
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN Realtek? GbE LAN chip (1 Gbit/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
  2. 1 x PCI Express x1 slot (PCIEX1)
    (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Storage Interface CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)

Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
  2. 4 x SATA 6Gb/s connectors

Intel? Optane??Memory Ready
* System acceleration with Intel? Optane??Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel? processor installed.
USB

Chipset:

  1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

  1. 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 2 x M.2 Socket 3 connectors
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 3 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  14. 1 x serial port header
  15. 1 x Clear CMOS jumper
  16. 1 x Q-Flash Plus button

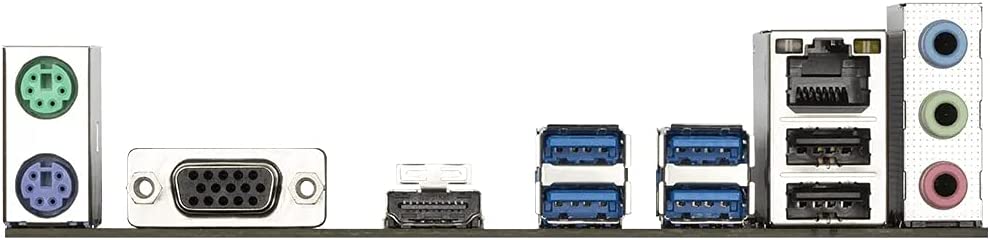

Back Panel Connectors
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 Keyboard port
  3. 1 x D-Sub port
  4. 1 x HDMI port
  5. 4 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    *Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton? Internet Security (OEM version)
  2. Realtek? 8118 Gaming LAN bandwidth Control Utility
Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Warranty 3 Years Manufacturer’s Warranty
Note

* Supported by 11th Generation processors only

***Features, Price and Specifications are subject to change without notice.
