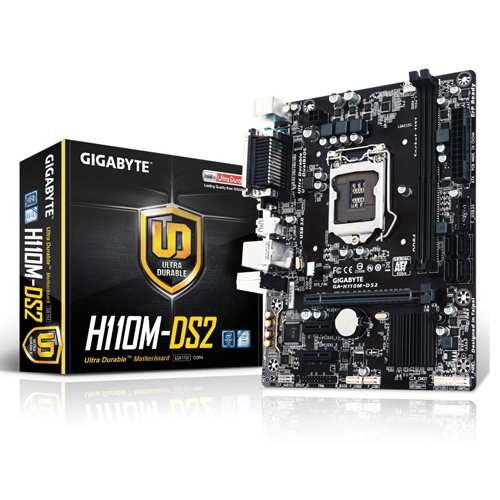

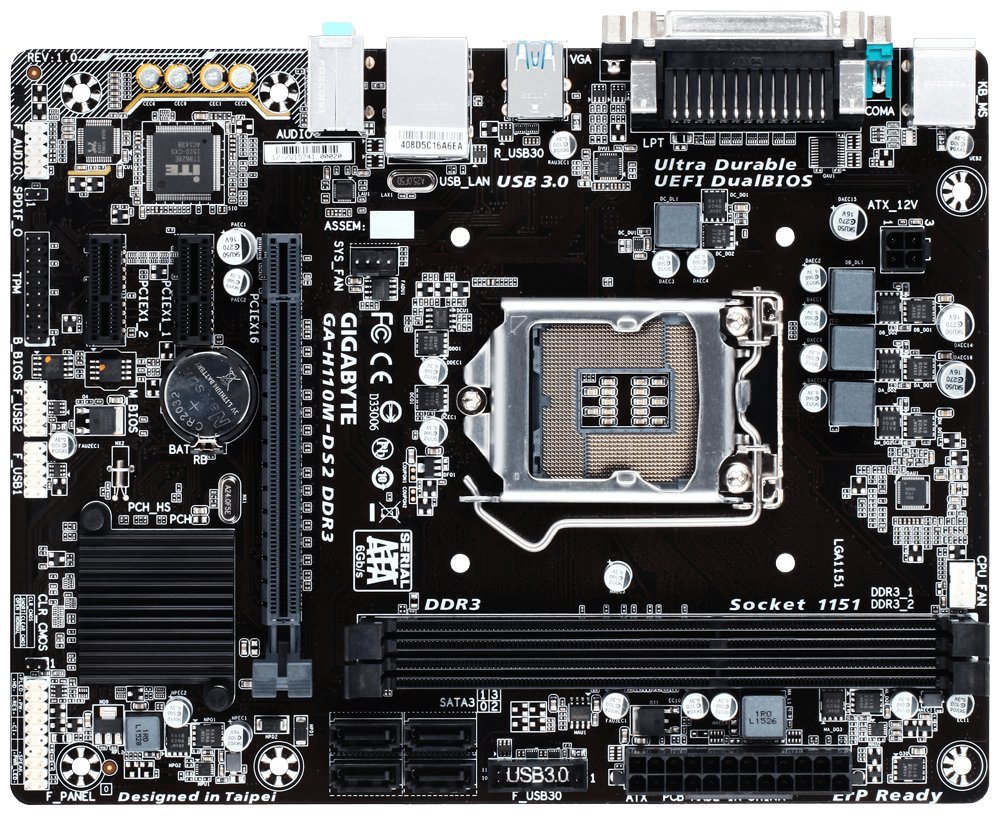

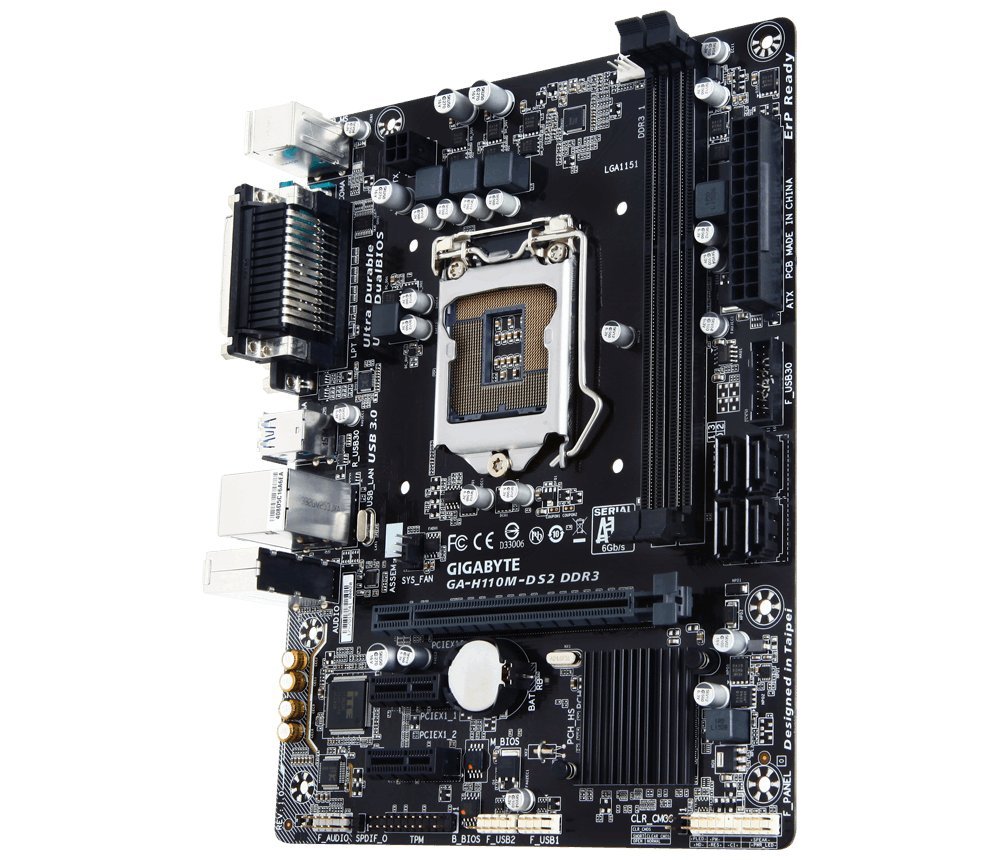

Gigabyte GA-H110M-DS2 Motherboard for Intel 6th and 7th Gen Processors – LGA1151 Socket (DDR4/ VGA/ Parallel Port/ Serial Port/ USB 3.0)

1. Support for 7th/6th Generation Intel? Core??i7 processors/Intel? Core??i5 processors/Intel? Core??i3 processors/Intel? Pentium? processors/Intel? Celeron? processors in the LGA1151 package
   * For 7th Generation Intel? Core??processors support need to update the latest BIOS.
2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

1. Intel? H110 Express Chipset

1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 2400/2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

(Please refer “Memory Support List” for more information.)

1. Integrated Graphics Processor – Intel? HD Graphics support:
   1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. Maximum shared memory of 1024 MB

1. Realtek? Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out

1. Realtek? GbE LAN chip (1000/100 Mbit)

1. 1 x PCI Express x16 slot, running at x16
   (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2. 2 x PCI Express x1 slots
   (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

1. 4 x SATA 6Gb/s connectors

1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x S/PDIF Out header
9. 1 x USB 3.0/2.0 header
10. 2 x USB 2.0/1.1 headers
11. 1 x Trusted Platform Module (TPM) header
12. 1 x Clear CMOS jumper

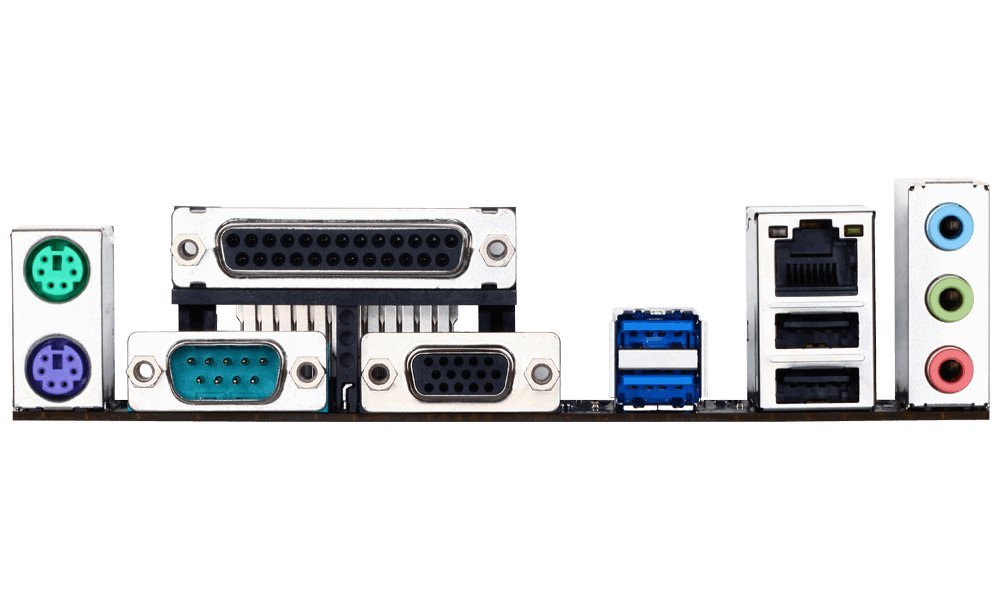

1. 1 x PS/2 mouse port
2. 1 x PS/2 Keyboard port
3. 1 x parallel port
4. 1 x serial port
5. 1 x D-Sub port
6. 2 x USB 3.0/2.0 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks (Line In, Line Out, Mic In)

1. iTE? I/O Controller Chip

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS??lt;/li>
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   @BIOS
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install

1. Norton? Internet Security (OEM version)
2. cFosSpeed

1. Windows? 10 64-bit (for 7th Generation Intel? Processors)
2. Windows? 10 64-bit / Windows? 8.1 64-bit / Windows? 7 32-bit / 64-bits (for 6th Generation Intel? Processors)
   * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.

1. Micro ATX Form Factor; 22.6cm x 17.4cm
