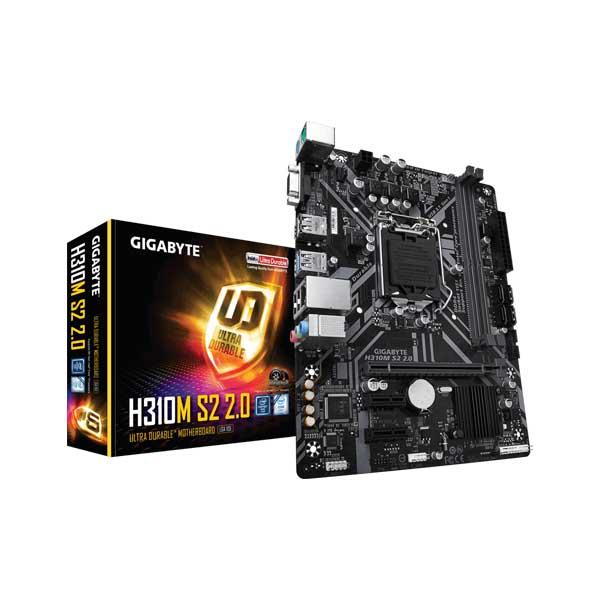

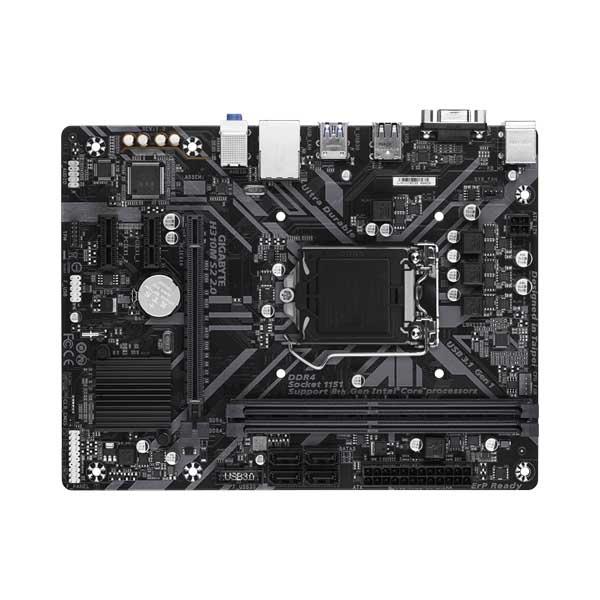

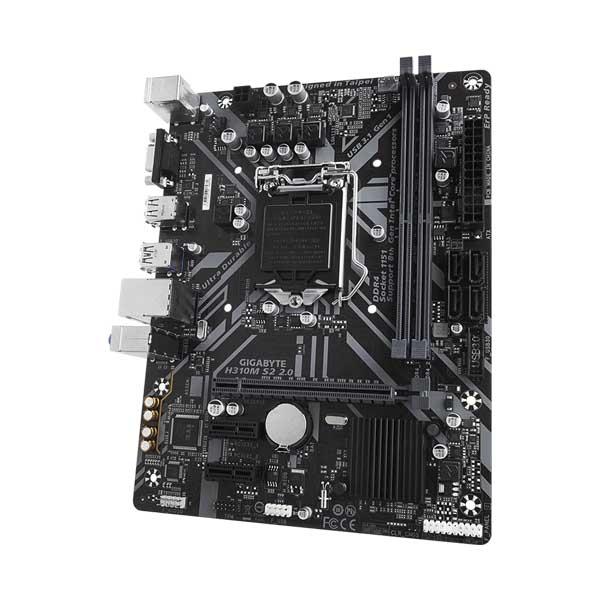

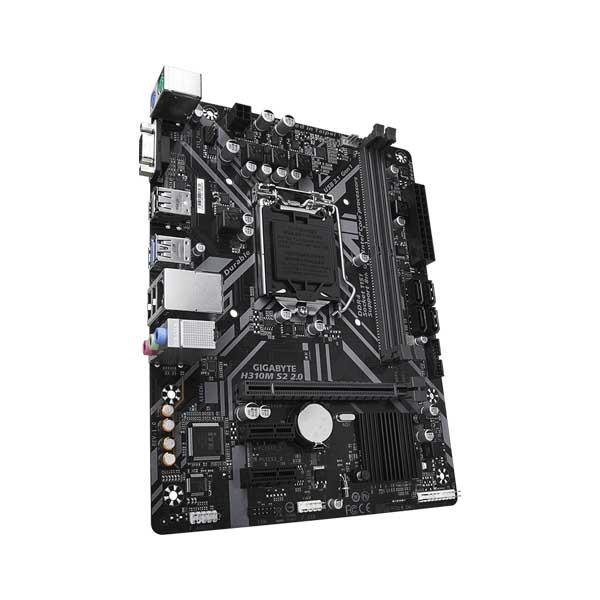

Gigabyte H310M S2 2.0 Ultra Durable Motherboard for Intel 8th and 9th Gen Processors – LGA1151 Socket

1. Support for 9th and 8th Generation Intel^?  Core??i9 processors/Intel^? Core??i7 processors/Intel^? Core??i5 processors/Intel^? Core??i3 processors/Intel^?Pentium^? processors/ Intel^? Celeron^? processors in the LGA1151 package
2. L3 cache varies with CPU

1. Intel^? H310 Express Chipset

1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2666/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
   * To support 2666 MHz or XMP memory, you must install an 8^th Generation Intel^? Core??i7/i5 processor.

1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

Maximum shared memory of 1 GB

1. Realtek^? ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

1. Realtek^? GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16
   (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2. 1 x PCI Express x1 slot
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)

1. 4 x SATA 6Gb/s connectors

1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x USB 3.1 Gen 1 header
9. 1 x USB 2.0/1.1 headers
10. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
11. 1 x Clear CMOS jumper

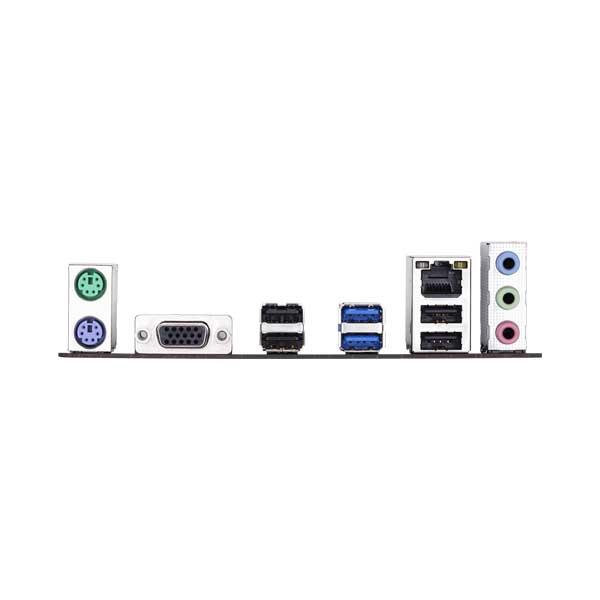

1. 1 x PS/2 Keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 4 x USB 3.1 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

1. iTE^? I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune Fast Boot
   Game Boost
   ON/OFF Charge
   Platform Power Management
   Smart Backup
   Smart Keyboard
   Smart TimeLock
   Smart HUD
   System Information Viewer
   USB Blocker
   V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install

1. Norton^? Internet Security (OEM version)
2. Realtek 8118 Gaming LAN bandwidth Control Utility

1. Support for Windows 10 64-bit
