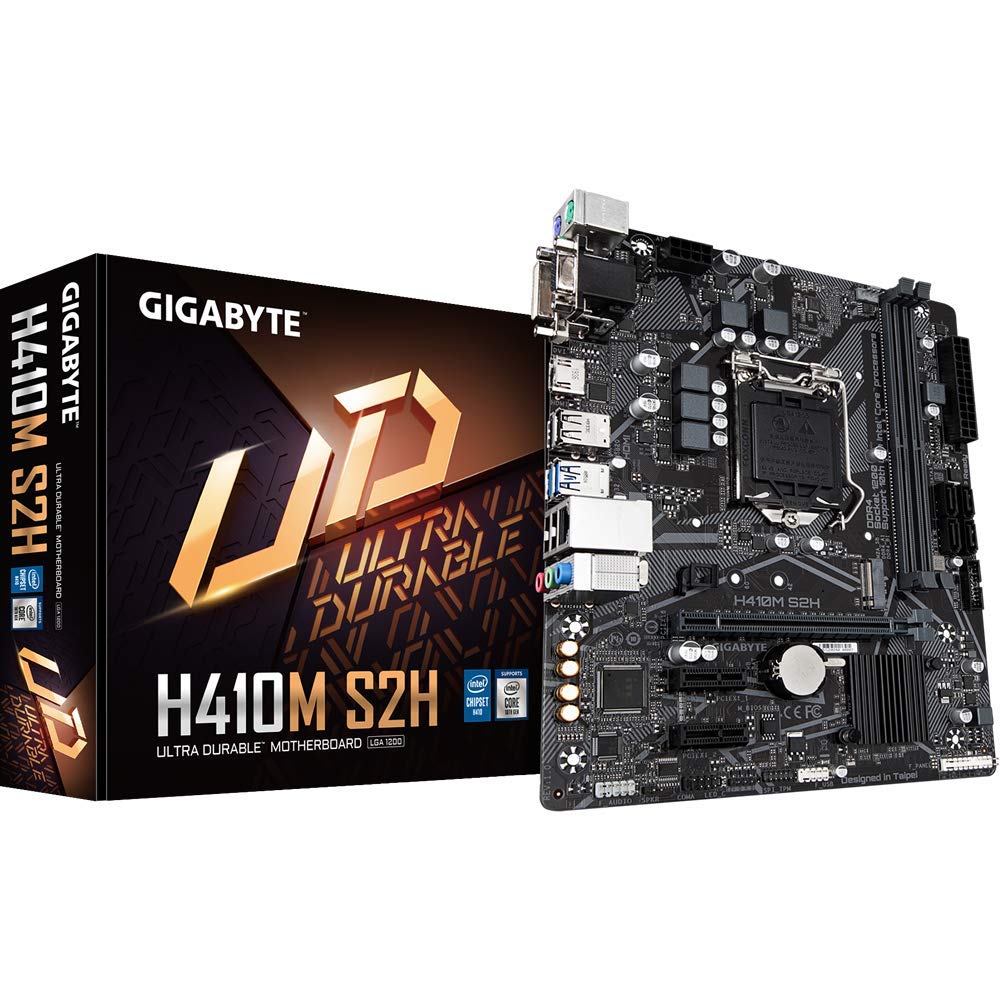

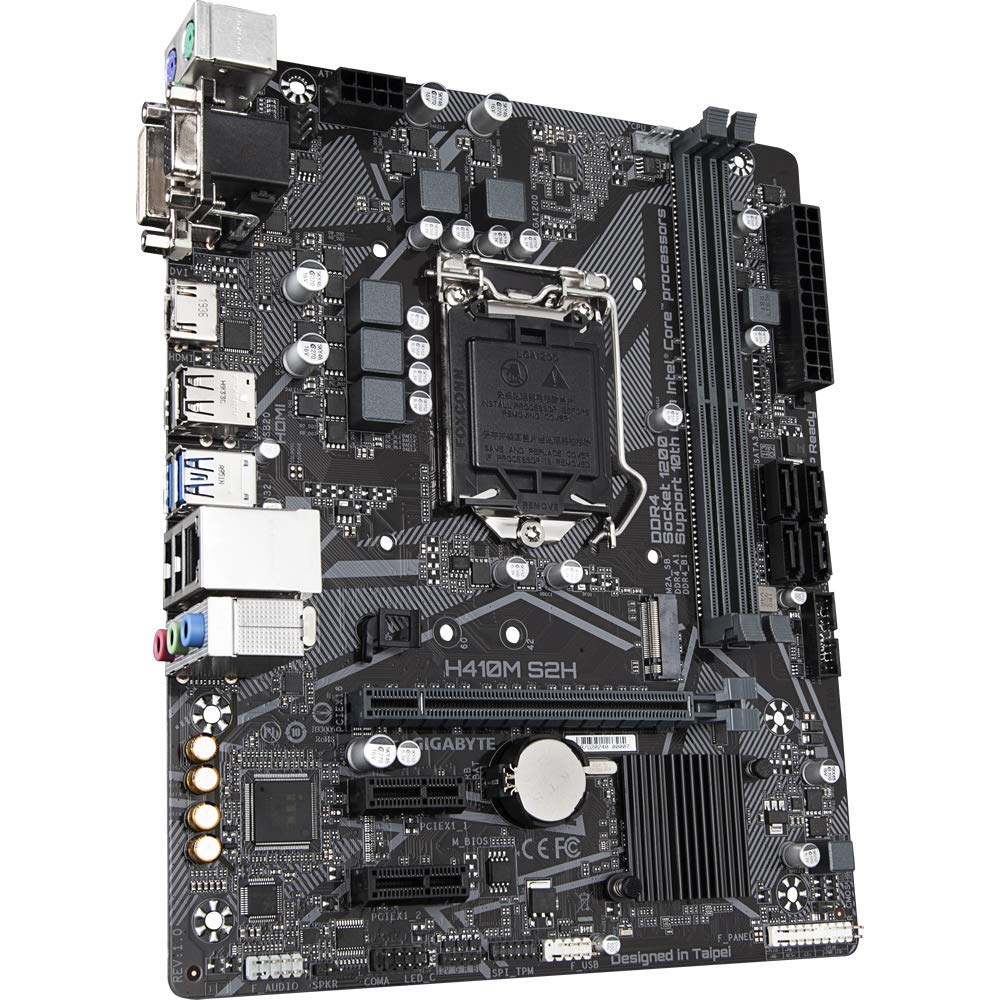

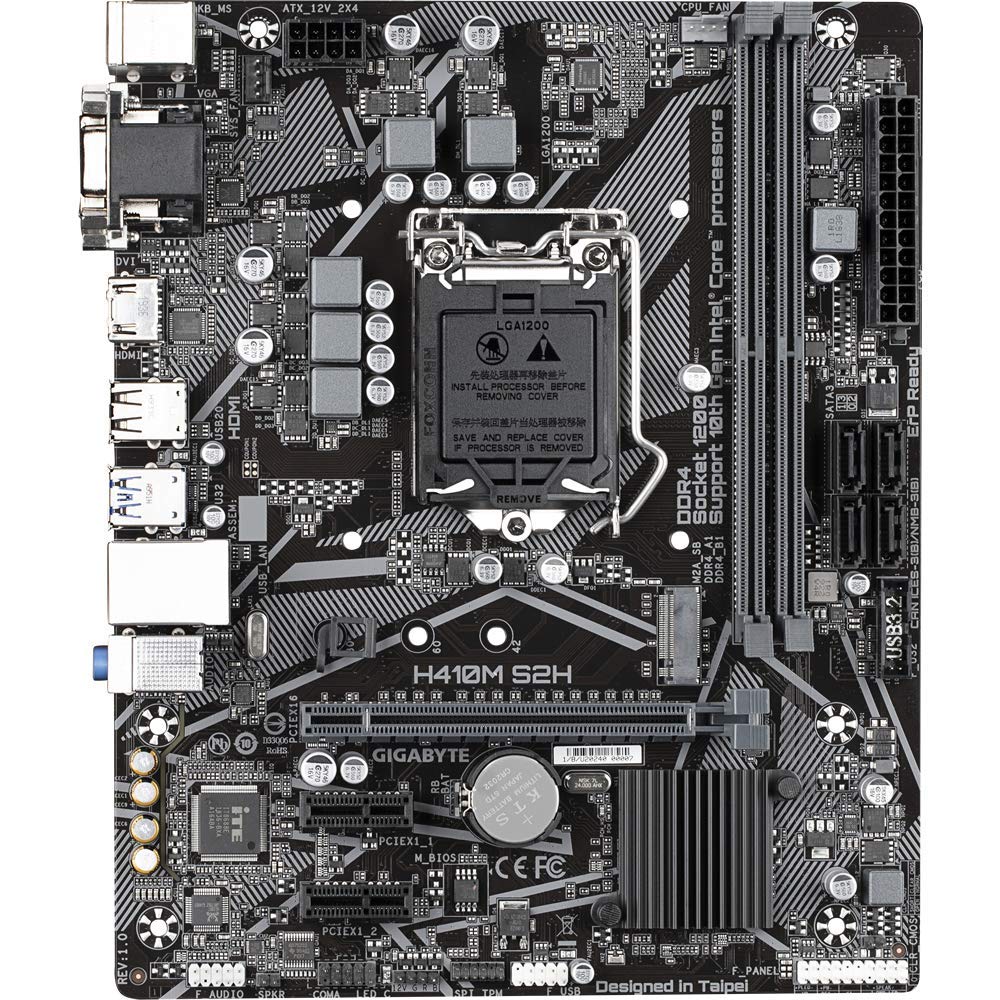

Gigabyte H410M S2H Ultra Durable Motherboard with M.2, HDMI/ DVI-D/ D-Sub Ports for Intel 10th Gen Processors – LGA1200 Socket

1. Support for 10th Generation Intel^? Core??i9 processors/Intel^? Core??i7 processors/Intel^? Core??i5 processors/Intel^? Core??i3 processors/Intel^? Pentium^? processors/Intel^? Celeron^? processors in the LGA1200 package
2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

1. Intel^? Core??i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
2. Intel^? Core??i5/i3/Pentium^?/Celeron^? processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.

Support for up to dual-display at the same time

Maximum shared memory of 512 MB

1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slot
   (The PCI Express slots conform to PCI Express 3.0 standard.)

Supports up to ASPM L1.2 power management protocols.

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
2. 4 x SATA 6Gb/s connectors
   * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x RGB LED strip header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x speaker header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper

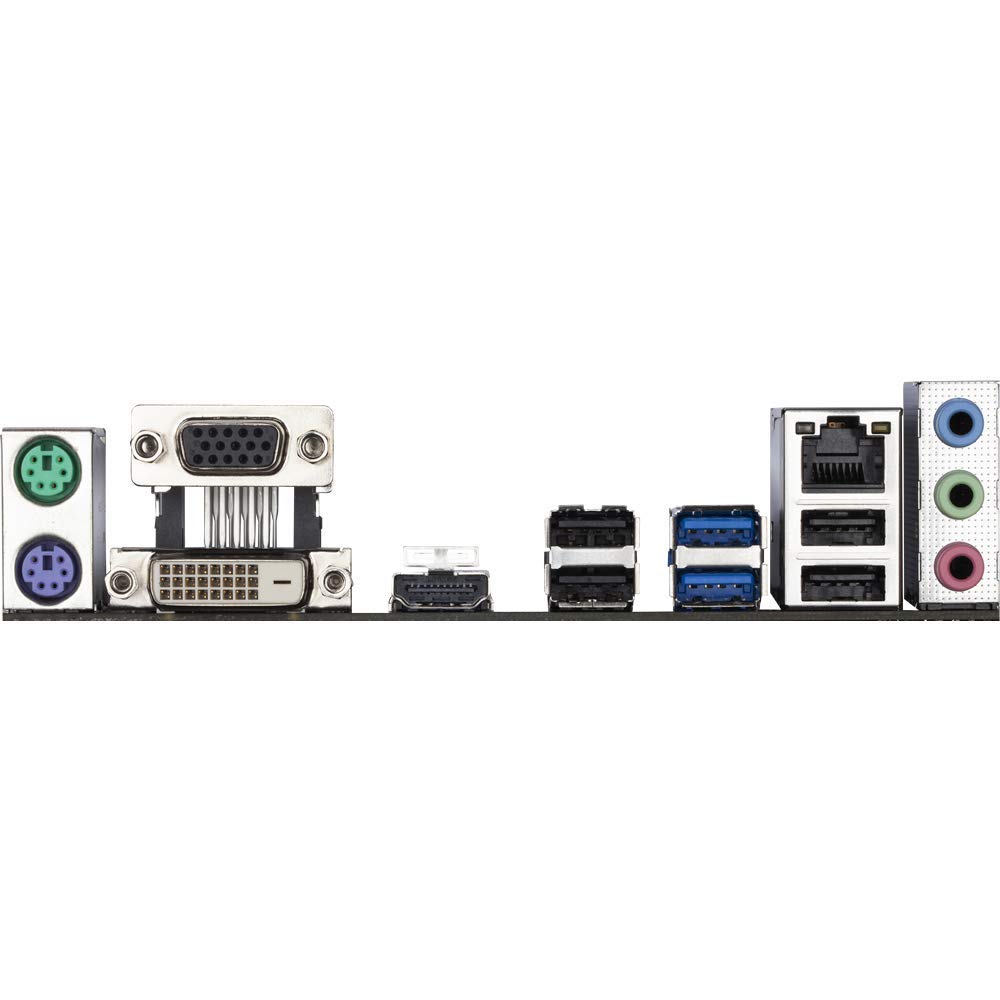

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 1 x HDMI port
6. 2 x USB 3.2 Gen 1 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. Norton^? Internet Security (OEM version)
2. Realtek^? 8118 Gaming LAN Bandwidth Control Utility
