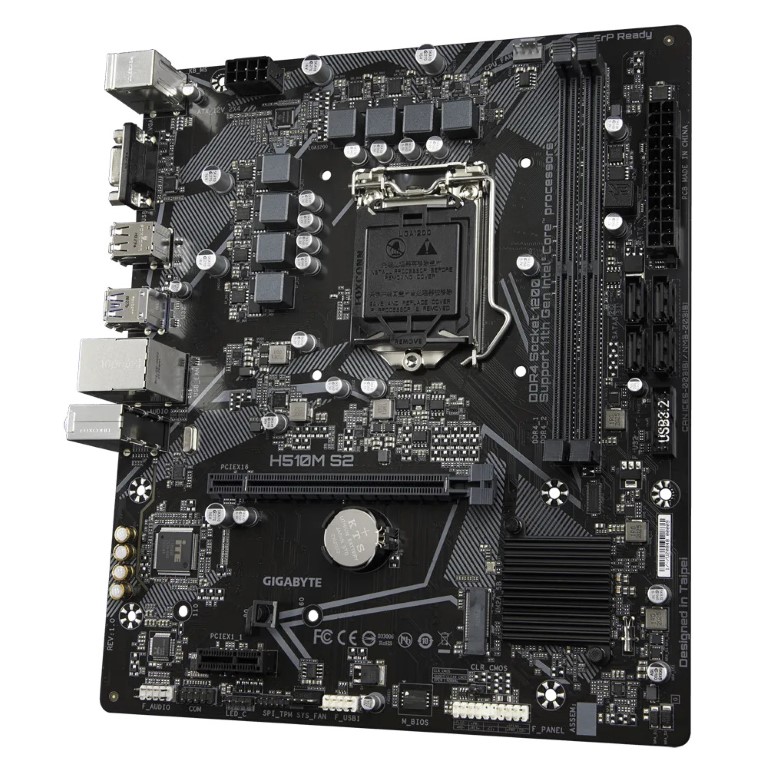

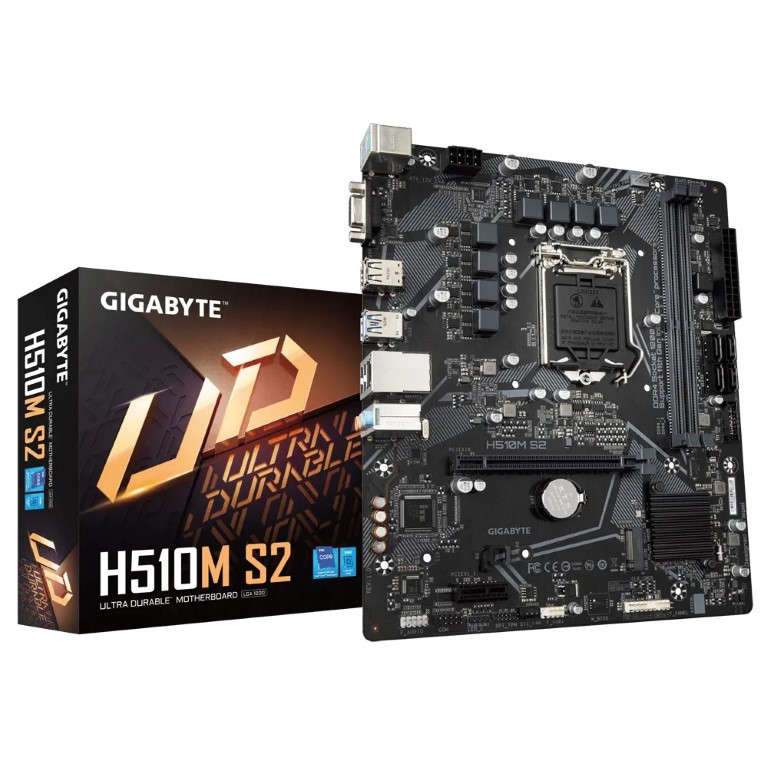

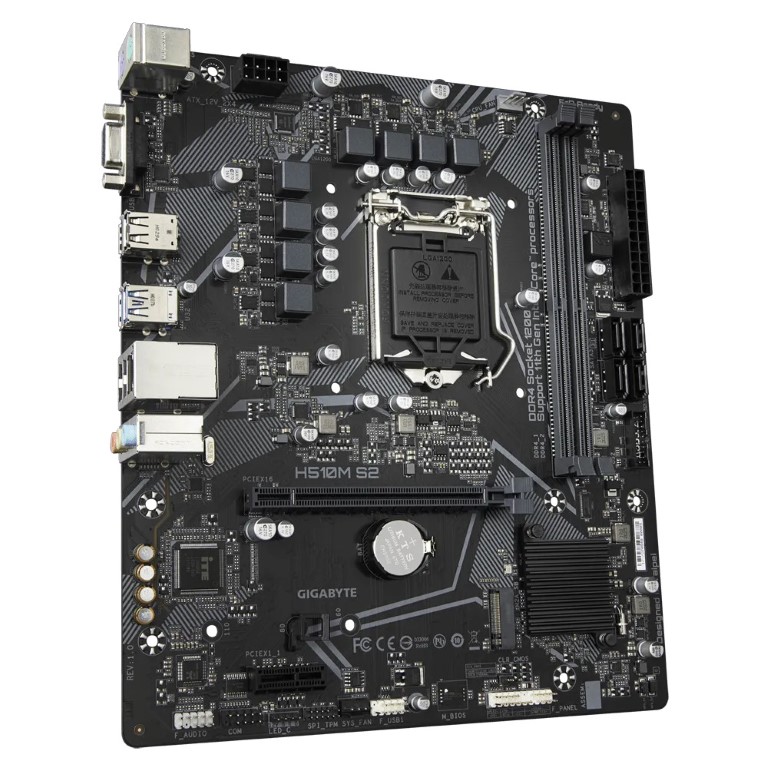

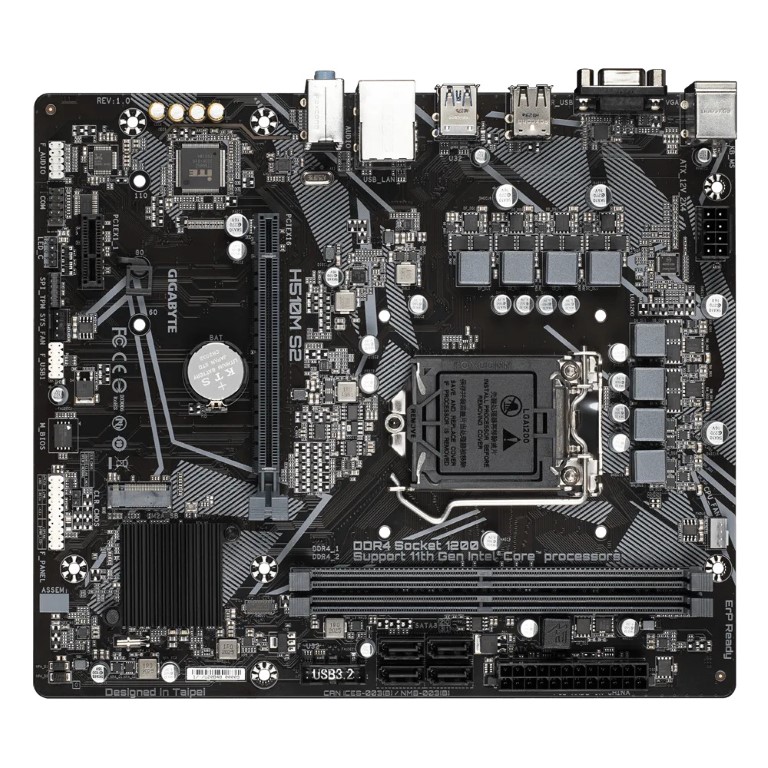

Gigabyte H510M-S2 Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors - LGA1200 Socket
Gigabyte H510M-S2 Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors - LGA1200 Socket - Image 2
Gigabyte H510M-S2 Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors - LGA1200 Socket - Image 3
Gigabyte H510M-S2 Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors - LGA1200 Socket - Image 4
Gigabyte H510M-S2 Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors - LGA1200 Socket - Image 5

Gigabyte H510M-S2 Micro-ATX Motherboard for Intel 10th/ 11th Gen Processors – LGA1200 Socket

Original price was: ₹10,080.00.Current price is: ₹5,733.00.

Out of stock

Add to Compare
SKU: Gigabyte H510M-S2 Micro-ATX Motherboard Category: Tags: , , , , , Brand:

Additional Information

Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.

10 Days Return

You can return the product & get a new replacement if the product is received in defective/ damaged condition.

Free Fast Delivery

We are glad to provide free shipping throughout India.

100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.

Genuine Manufacturer Warranty

All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.

Excellent Customer Support

We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in

Reviews

Product Description

Intel H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek 8118 Gaming LAN, Anti-Sulfur Resistor,  Smart Fan 6

  • Supports 11th and 10th Gen Intel?  Core??Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • High Quality Audio Capacitors and Audio Noise
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

* Actual support may vary by CPU.

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

6+2 Phases Low RDS(on) MOSFETs

Solid capacitors to improve transient response and minimize oscillation.

8-pin Solid Pin CPU Power Connector.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users’ specified temperature point

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x4 22110 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system?? potential.

Solid Pin Power Connectors

H510 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

Larger contact area for electricity

More metal quantity to sustain higher power and generated heat

Ultra durable and longer lifespan

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

SPECIFICATIONS:

Brand Gigabyte
Model H510M-S2
CPU LGA1200 package:

  1. 11th Generation Intel? Core??i9 processors / Intel? Core??i7 processors / Intel? Core??i5 processors
  2. 10th Generation Intel? Core??i9 processors / Intel? Core??i7 processors / Intel? Core??i5 processors / Intel? Core??i3 processors/ Intel? Pentium? processors / Intel? Celeron? processors*
    * Limited to processors with 4 MB Intel? Smart Cache, Intel? Celeron? G5xx5 family.
  3. L3 cache varies with CPU

(Please refer to “CPU Support List” for more information.)
Chipset
  1. Intel? H510 Express Chipset
Memory
  • 11th Generation Intel? Core??i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  • 10th Generation Intel? Core??i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  • 10th Generation Intel? Core??i5/i3/Pentium?/Celeron? processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel? HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

(Graphics specifications may vary depending on CPU support.)
Audio
  • Realtek? Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN
  1. Realtek? GbE LAN chip(1000/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
    * Supported by 11th Generation processors only.
  2. 1 x PCI Express x1 slot
    (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Storage Interface Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
    * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
USB Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x RGB LED strip header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.2 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  12. 1 x serial port header
  13. 1 x Clear CMOS jumper

??ll fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 1 x D-Sub port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller
  1. iTE? I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  • Norton? Internet Security (OEM version)
  • Realtek? 8118 Gaming LAN Bandwidth Control Utility
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 21.0cm
Warranty 3 Years Manufacturer’s Warranty
Country Of Origin China
Manufacturer Gigabyte Technology (India) Private Limited
B-Wing, 807 & 808, Naman MidTown
Elphinstone Road, Mumbai 400013
Email: sales@gigabyte.in
Tel: +91 0 22 40633222
Importer WPG C&C Computers And Peripheral(I) Pvt.Ltd
Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III,
New Delhi-110020
Net Quantity 1
Product Package Dimensions (LxWxH) 22.7 x 15.2 x 3.4 Centimeters
Weight 700g
Note *** Featurers, Price, Specifications are subject to change without notice.
