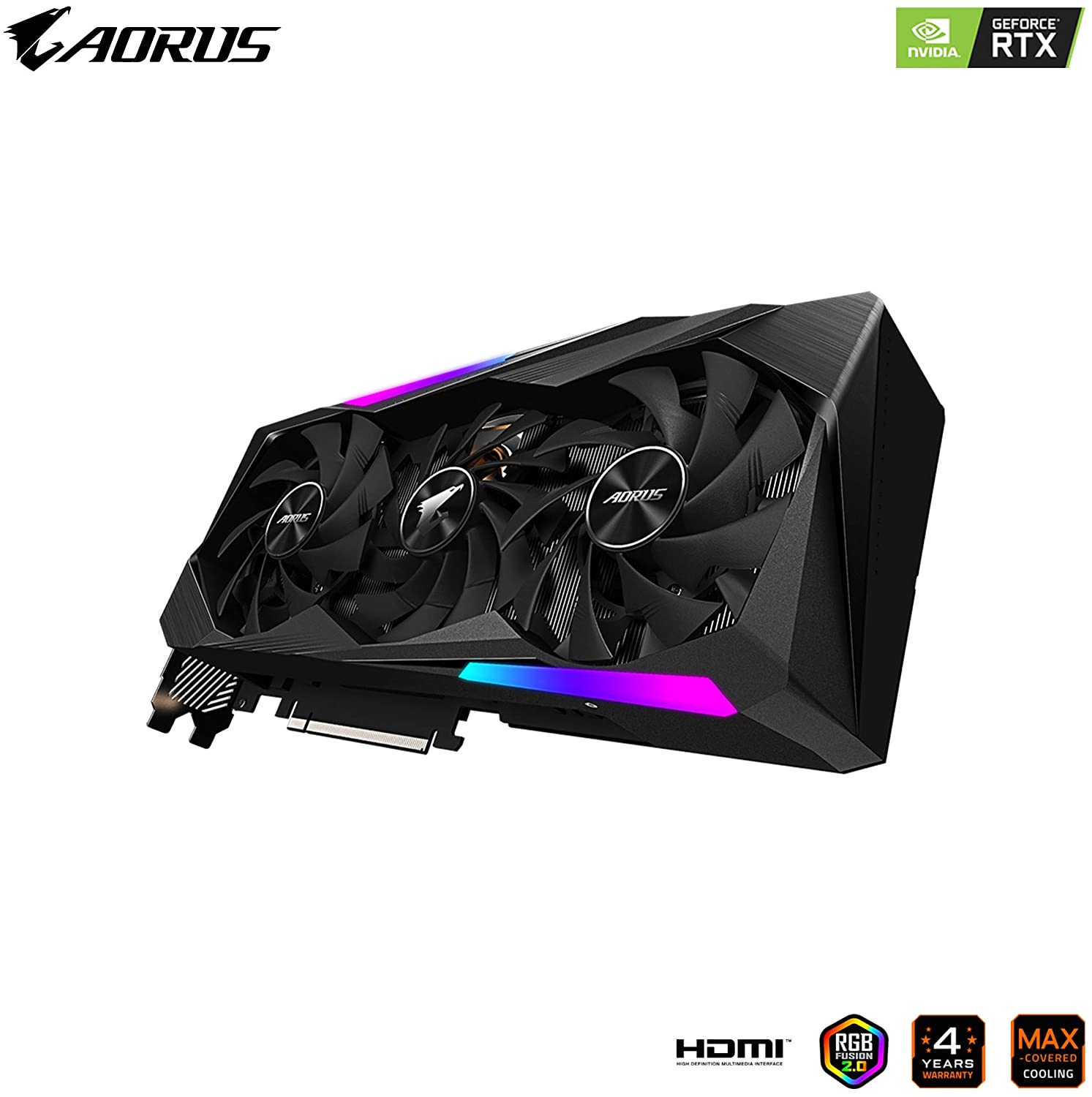

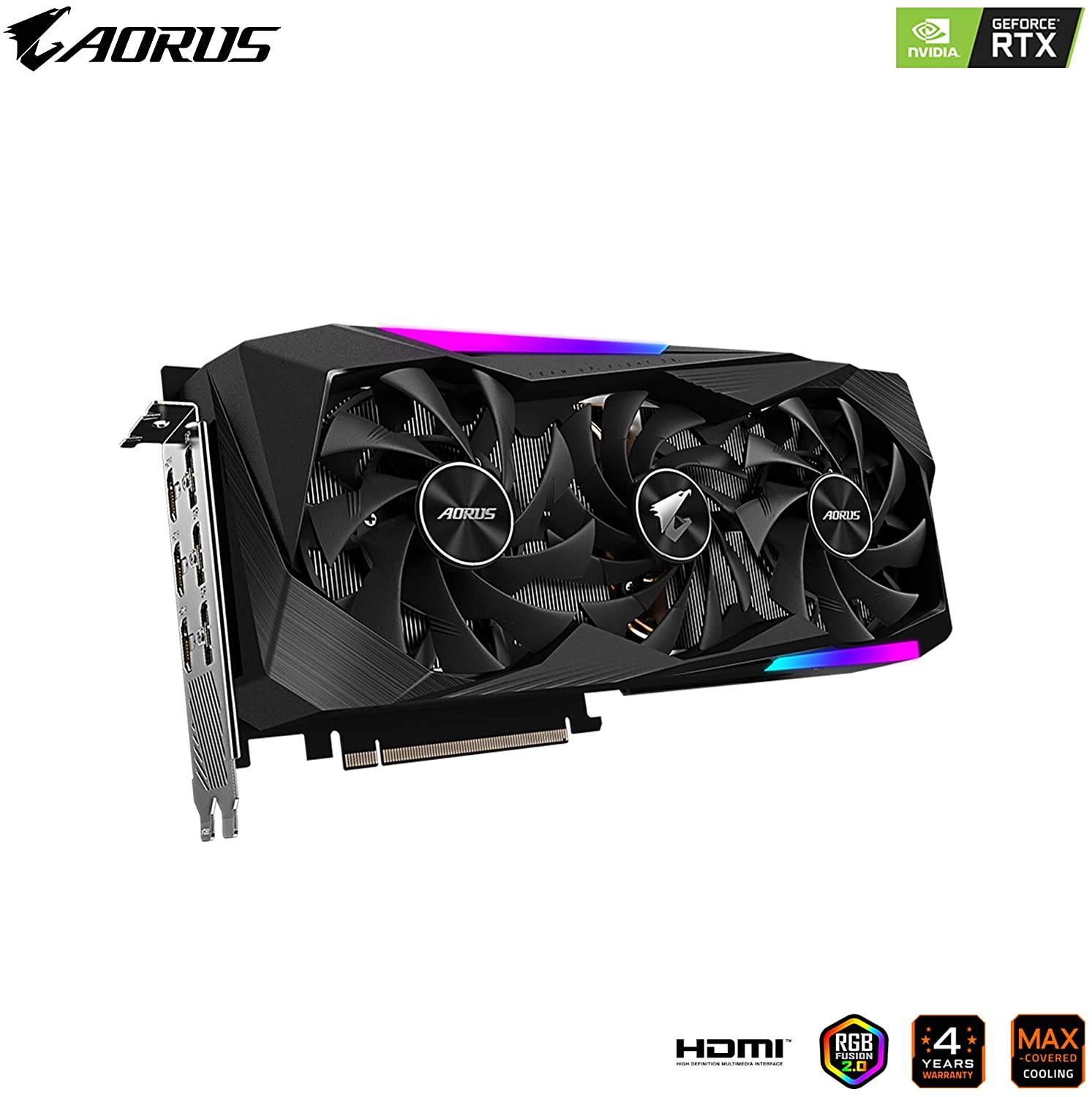

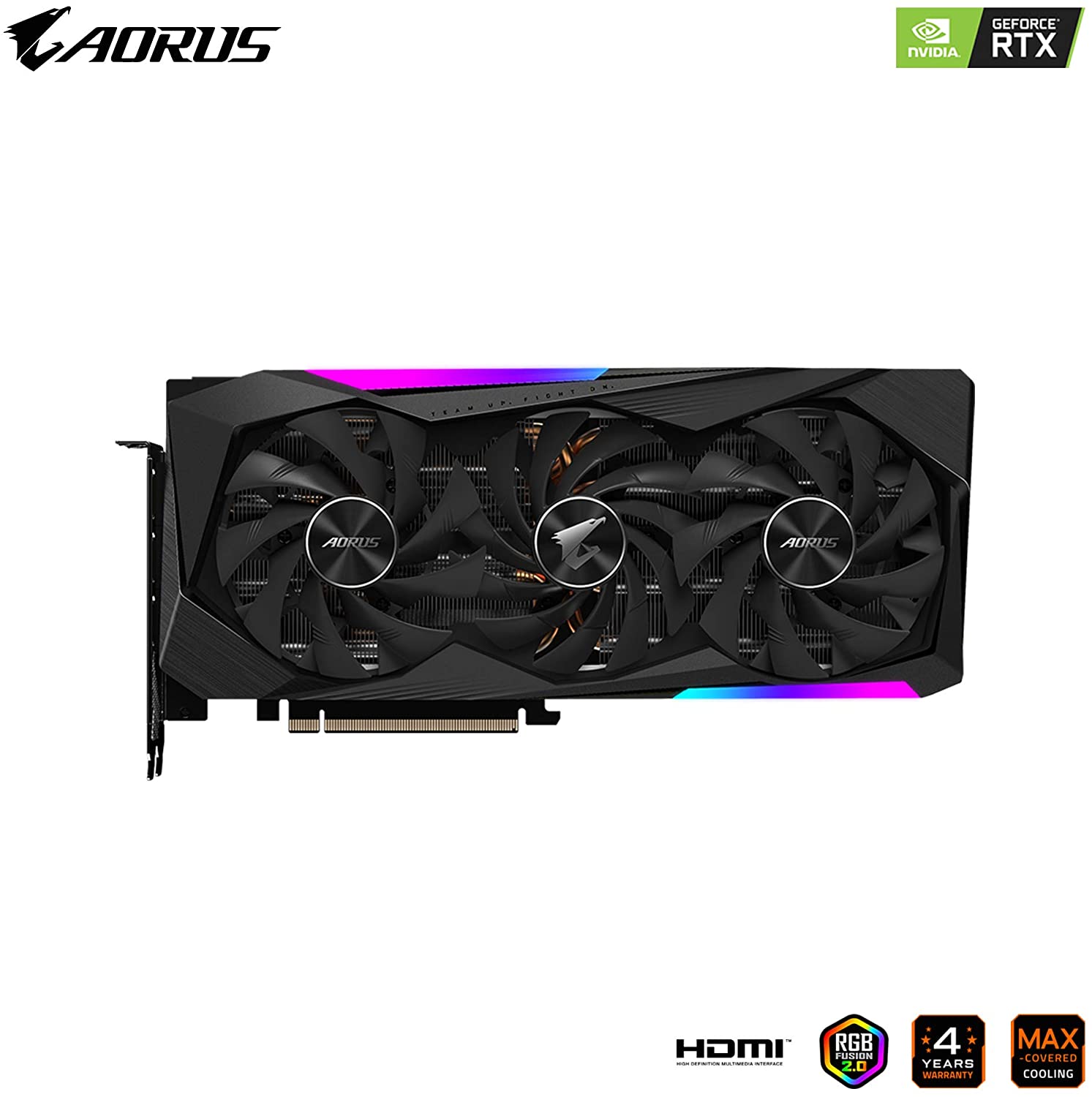

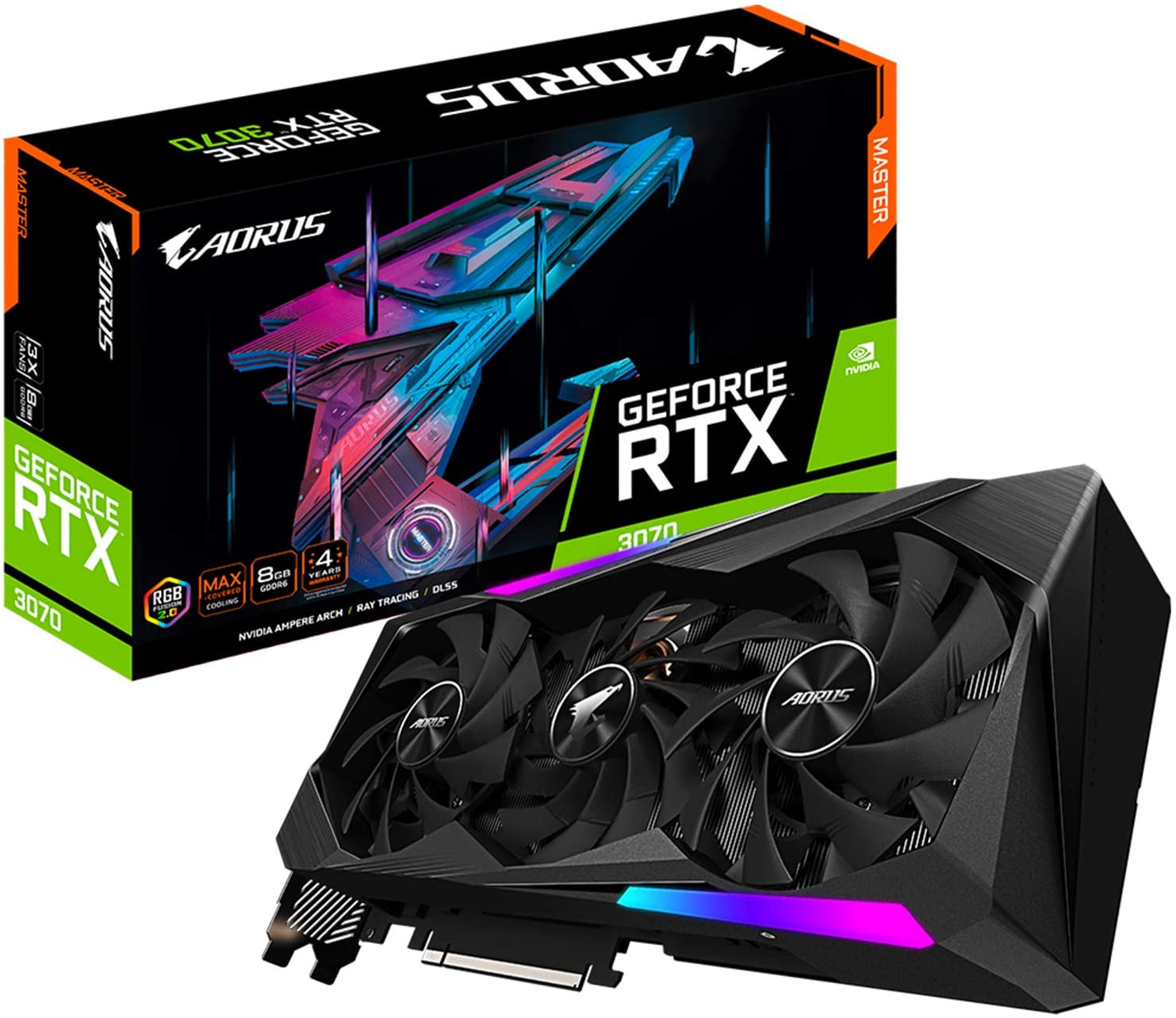

Gigabyte NVIDIA AORUS GeForce RTX 3070 MASTER 8G 8GB GDDR6 256-Bit Triple Fan Graphics Card (GV-N3070AORUS M-8GD)

FEATURES:

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX??3070
• Integrated with 8GB GDDR6 256-bit memory interface
• MAX-COVERED cooling
• LCD Edge View
• RGB Fusion 2.0
• 6 video outputs
• Protection metal back plate
• 4 years warranty (Online registration required)
• CORE CLOCK: 1845 MHz (Reference Card: 1725 MHz)

DESIGN CONCEPT

In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.

Welcome to the Digital Code Era.

MAX-COVERED COOLING

The Max-Covered cooling features 3x 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink

UNIQUE BLADE STACK FANS

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

WIND CLAW DESIGN

Reinforce and channel the airflow to completely cover the heat sink.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase air pressure.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

LARGE COPPER PLATE & HEAT PIPE

With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

LCD EDGE VIEW

The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.

ENTHUSIAST

Various GPU and VRAM status such as temperature, clock, usage and fan speed can be selected for real-time monitoring.

CUSTOM TEXT

Users can easily customize texts and fonts.

CUSTOM IMAGE

Support jpg, bmp and png file types. You can crop the image to fit.

CUSTOM GIF

Users can upload a favorite GIF video.

CHIBI TIME

TEAM UP. FIGHT ON.

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

PERFORMANCE

GeForce RTX??3060 Ti with 8G memory and 448 GB/s memory bandwidth has 4864 CUDA? Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.

METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

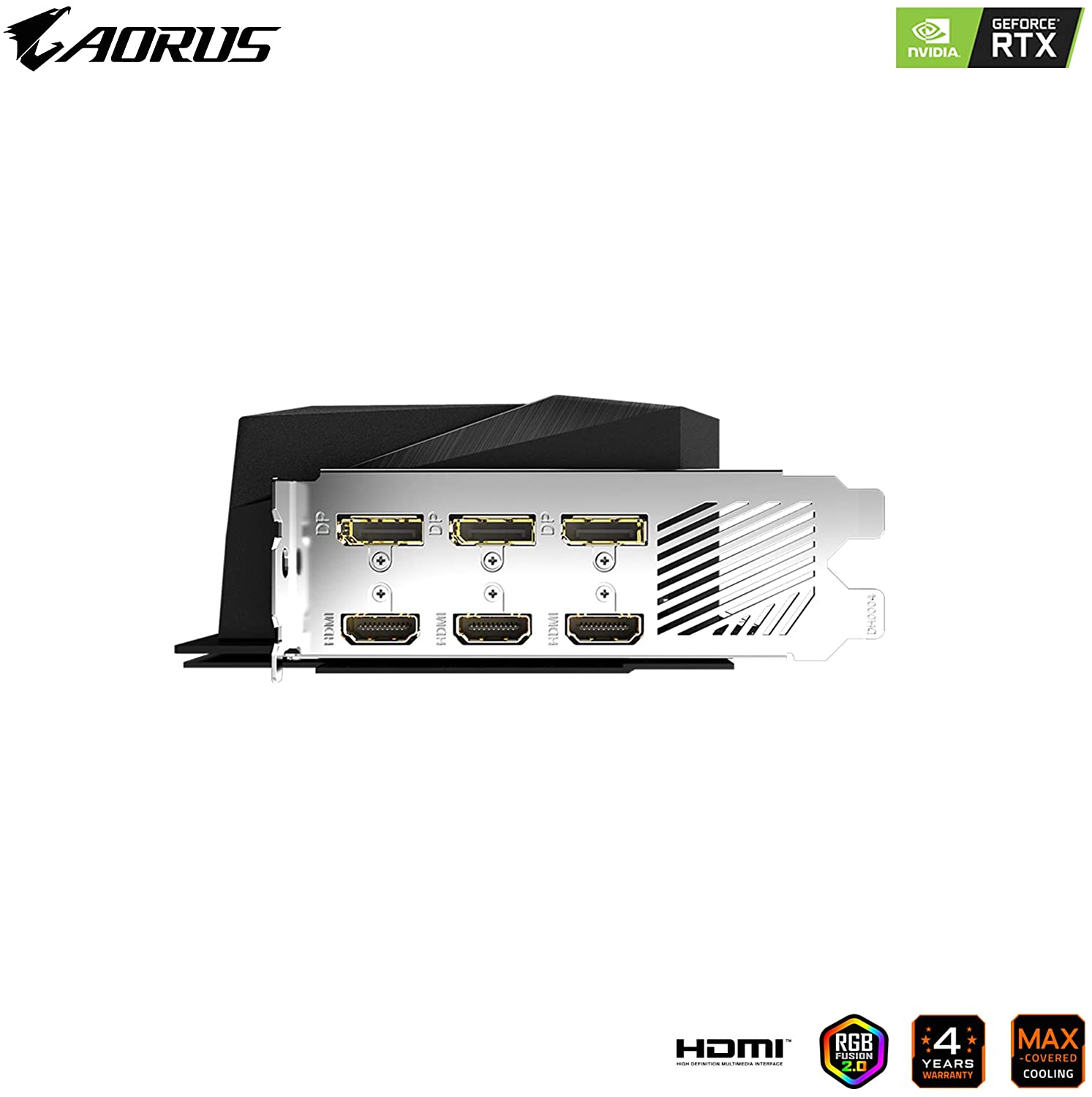

OUTPUTS

You can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)

POWER INDICATORS

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

EXCELLENCE

Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.

EXTREME OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.

ULTRA DURABILITY

The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

PCB COATING

Dust resistant – shields from dust, insects, dropped screws, drill shavings, and abrasion.

Moisture resistant – prevents unwanted conduction paths and board damage.

Corrosion resistant – protects from salt spray, humidity, and corrosion.

FRIENDLY PCB

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

AORUS ENGINE

Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.

4 YEARS WARRANTY

We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.

SPECIFICATIONS
Brand	Gigabyte
Model	GV-N3070AORUS M-8GD
Chipset	NVIDIA
GPU	GEFORCE RTX 3070
GPU Series	NVIDIA GeForce RTX 30 Series
Interface	PCI Express 4.0 x16
Core Clock	1845 MHz (Reference Card: 1725 MHz)
CUDA Cores	5888
Memory Clock	14000 MHz
Memory Size	8 GB
Memory Type	GDDR6
Memory Interface	256-Bit
Memory Bandwidth (GB/sec)	448 GB/s
Max Resolution	7680 x 4320 @ 60Hz
Multi-view	4
Card size	L=290 W=131 H=60 mm
PCB Form	ATX
OpenGL	OpenGL 4.6
SLI Support	No
DirectX	12 Ultimate
Recommended PSU	650W
Power Connectors	8 pin*1
Output	DisplayPort 1.4a *3 HDMI 2.1 *2 HDMI 2.0*1(The middle HDMI output supports up to HDMI 2.0)
Accessories	1. Quick guide 2. 4-year warranty 3. Metal sticker
Warranty	4 Years Manufacturer’s Warranty
Country Of Origin	China
Manufacturer	Gigabyte Technology (India) Private Limited B-Wing, 807 & 808, Naman MidTown Elphinstone Road, Mumbai 400013 Email: sales@gigabyte.in Tel: +91 0 22 40633222
Importer	WPG C&C Computers And Peripheral(I) Pvt.Ltd Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III, New Delhi-110020
Net Quantity	1
