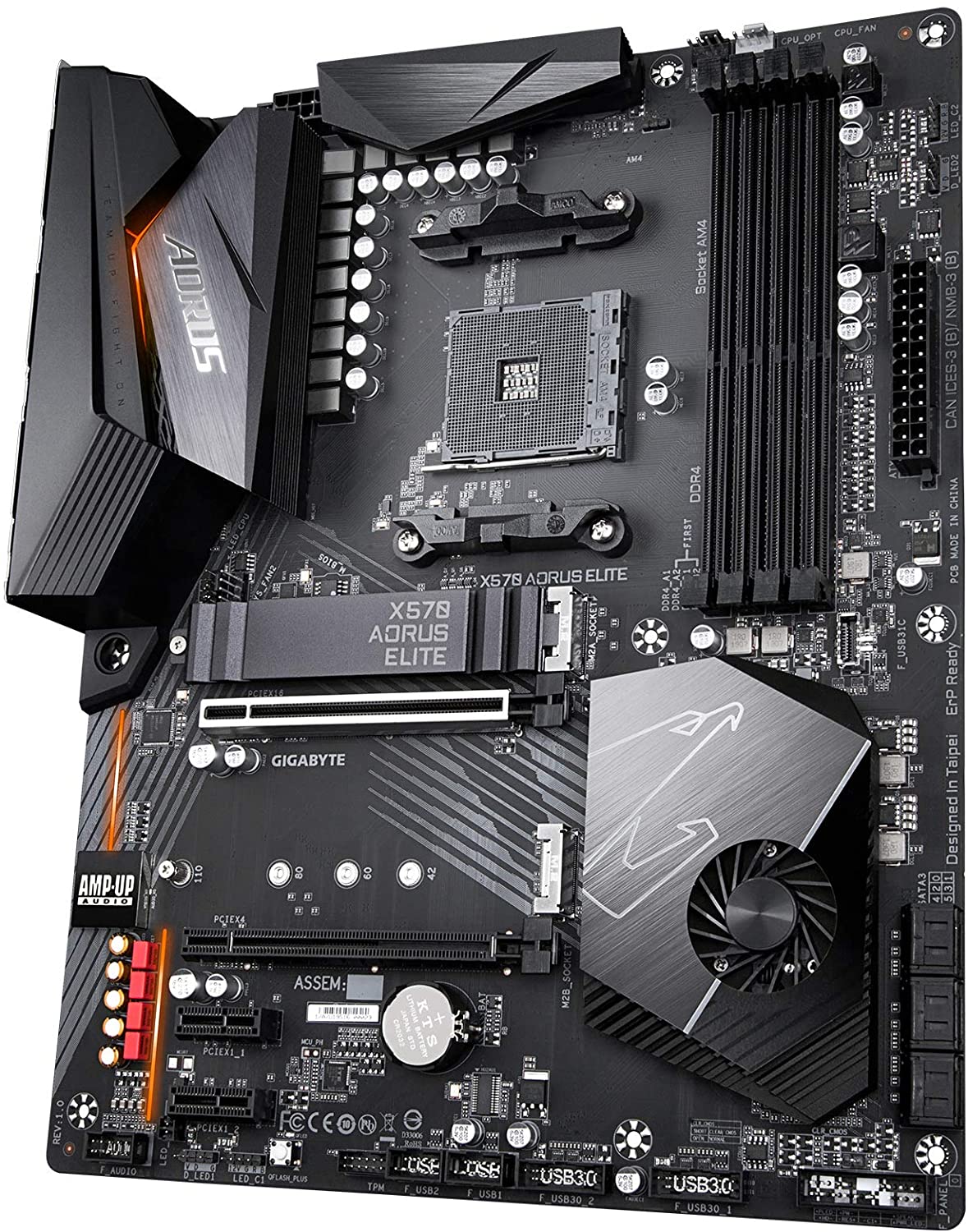

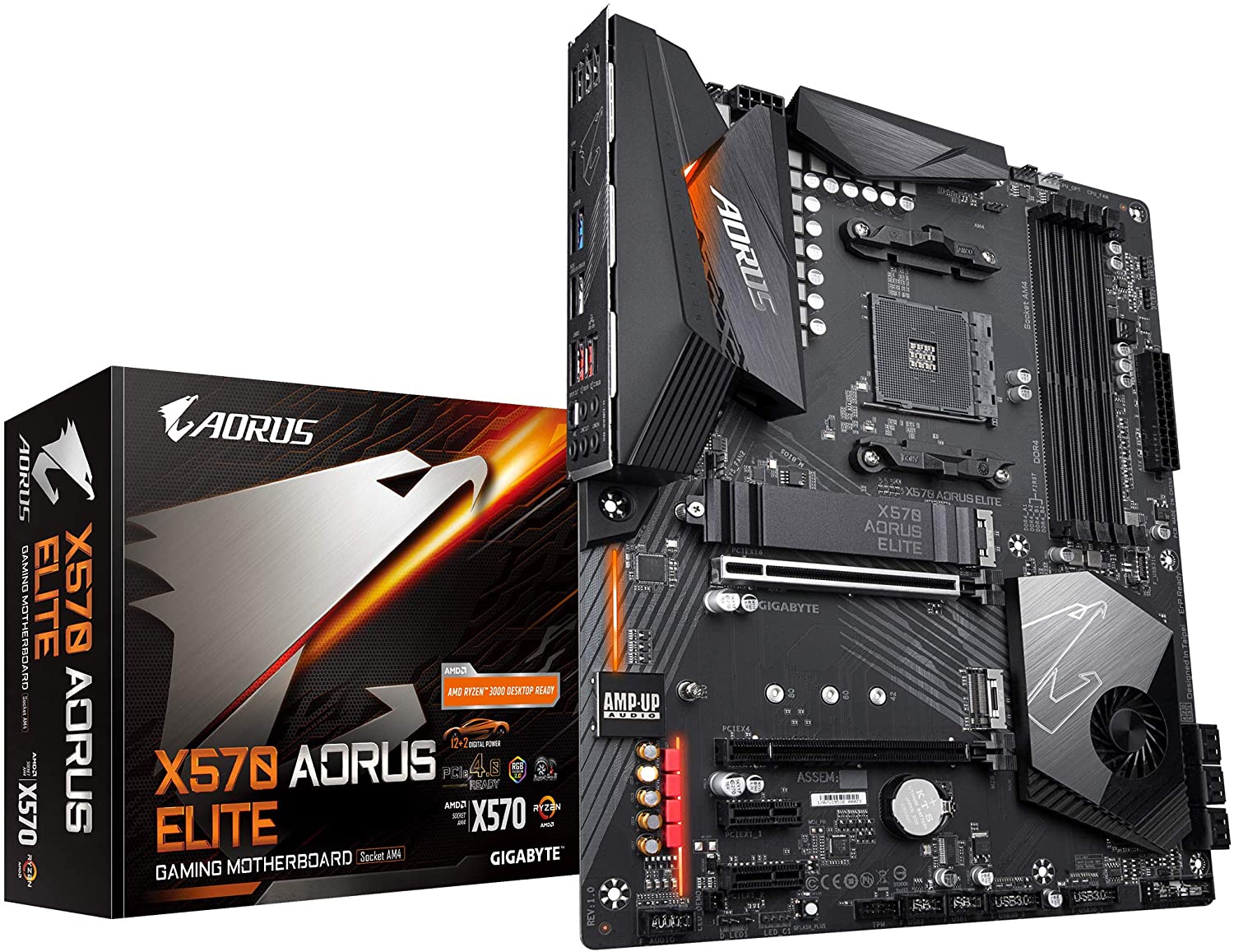

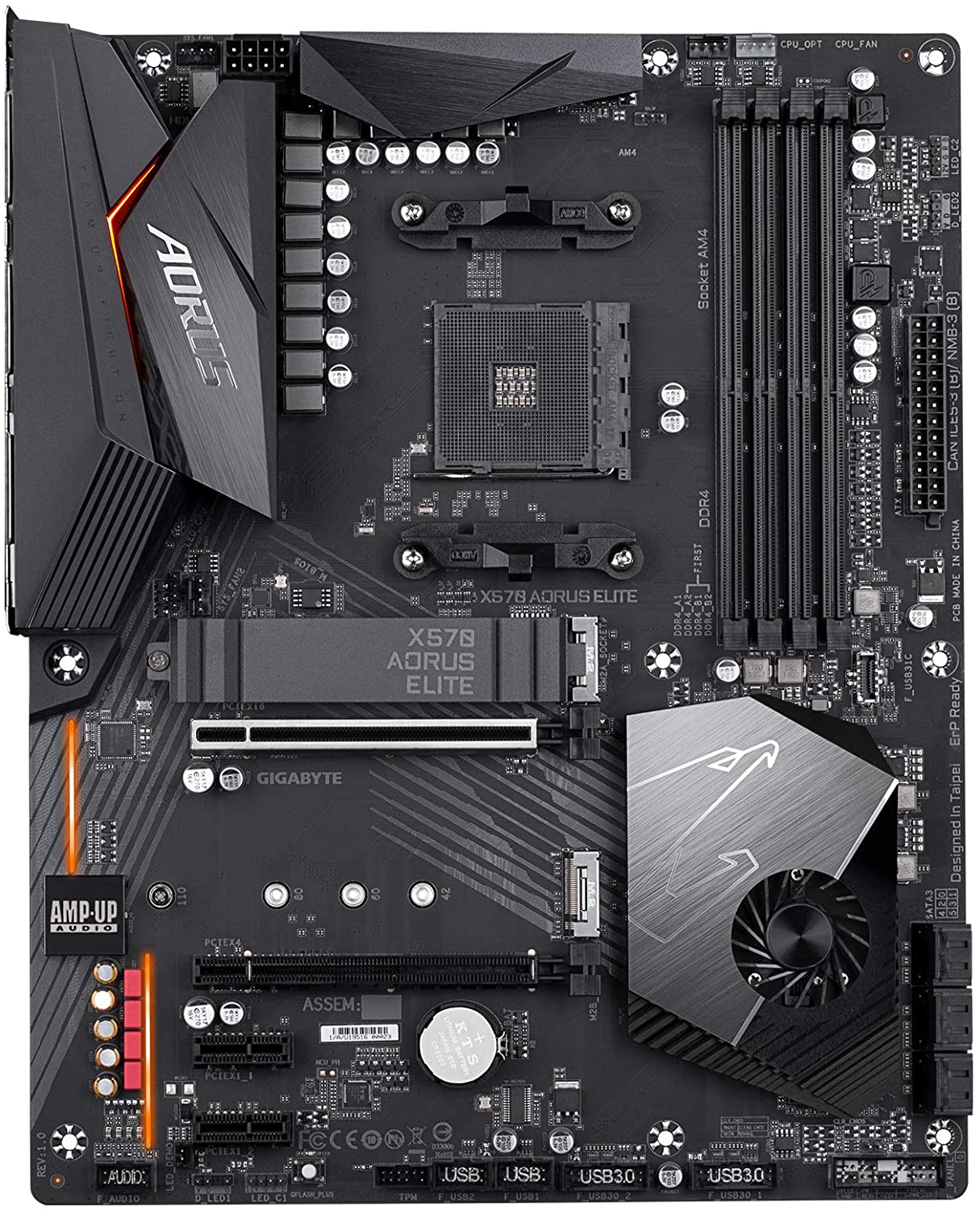

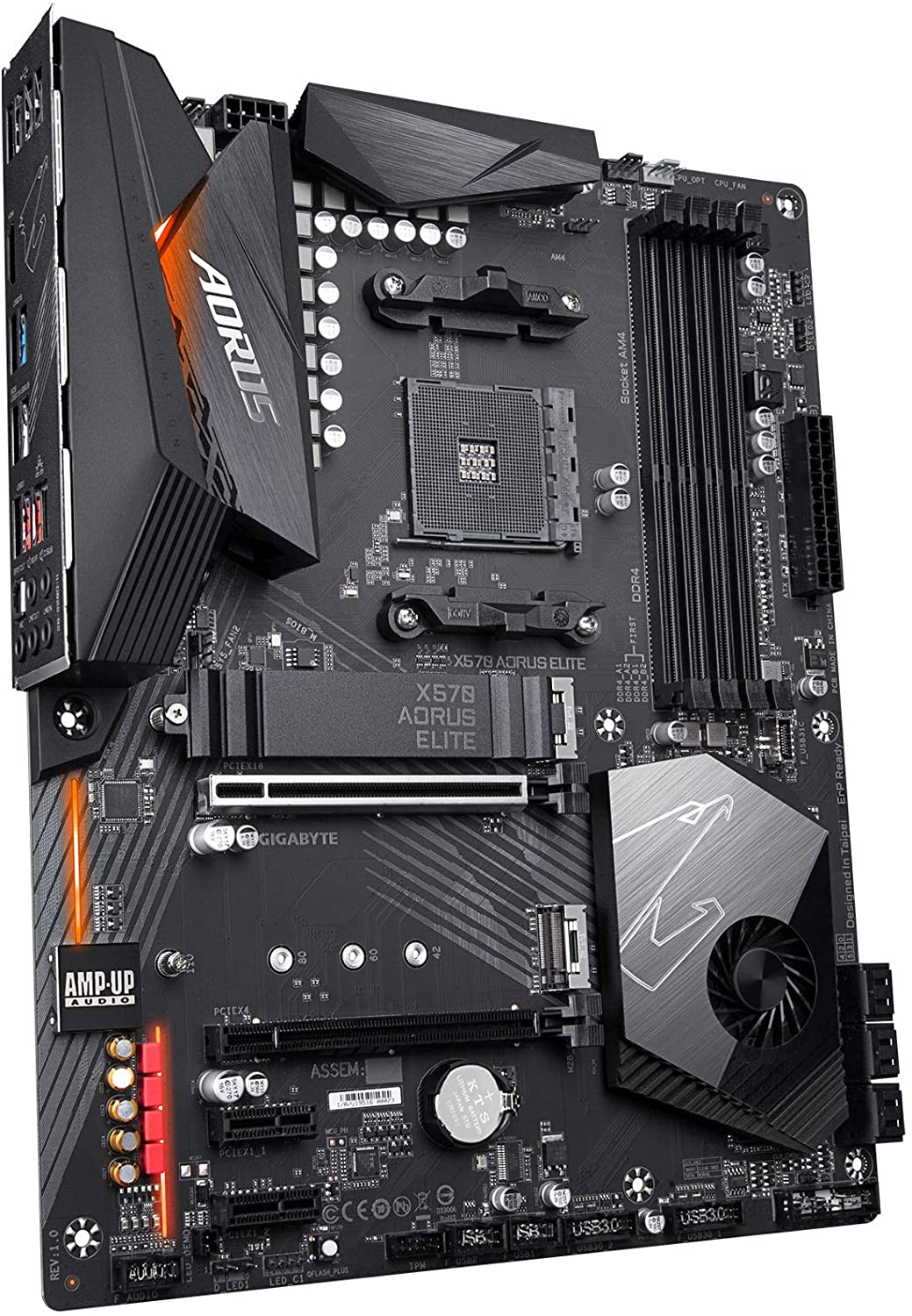

Gigabyte X570 AORUS ELITE WIFI GAMING Motherboard for 2nd/ 3rd Gen Ryzen Processors - AM4 Socket
Gigabyte X570 AORUS ELITE WIFI GAMING Motherboard for 2nd/ 3rd Gen Ryzen Processors - AM4 Socket - Image 2
Gigabyte X570 AORUS ELITE WIFI GAMING Motherboard for 2nd/ 3rd Gen Ryzen Processors - AM4 Socket - Image 3
Gigabyte X570 AORUS ELITE WIFI GAMING Motherboard for 2nd/ 3rd Gen Ryzen Processors - AM4 Socket - Image 4
Gigabyte X570 AORUS ELITE WIFI GAMING Motherboard for 2nd/ 3rd Gen Ryzen Processors - AM4 Socket - Image 5

Gigabyte X570 AORUS ELITE WIFI GAMING Motherboard for 2nd/ 3rd Gen Ryzen Processors – AM4 Socket

Original price was: ₹21,500.00.Current price is: ₹19,983.00.

Out of stock

Add to Compare
SKU: Gigabyte X570 AORUS ELITE WIFI GAMING Motherboard Category: Tags: , , , , , , Brand:

Additional Information

Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.

10 Days Return

You can return the product & get a new replacement if the product is received in defective/ damaged condition.

Free Fast Delivery

We are glad to provide free shipping throughout India.

100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.

Genuine Manufacturer Warranty

All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.

Excellent Customer Support

We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in

Reviews

Product Description

gigabyte-x570-aorus-elite-wifi-specs

AMD X570 AORUS Motherboard with 12+2 Phase Digital VRM with DrMOS, Advanced Thermal Design with Enlarge Heatsink, Dual PCIe 4.0 M.2 with Single Therma Guard, Intel? GbE LAN with cFosSpeed, Intel? Dual Band 802.11ac Wireless, Front USB Type-C, RGB Fusion 2.0

  • Supports AMD 3rd Gen Ryzen?? 2nd Gen Ryzen?? 2nd Gen Ryzen??with Radeon??Vega Graphics/ Ryzen??with Radeon??Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12+2 Phases Digital VRM Solution with DrMOS
  • Advanced Heatsink Design with Enlarge Heatsink
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guards
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Intel? Gigabit LAN with cFosSpeed Internet Accelerator
  • Intel? Dual Band 802.11ac WIFI & BT 4.2
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen2 Type-C??Header & HDMI 2.0 support
  • Integrated I/O Shield Armor
  • Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card

SPECIFICATIONS:

Model X570 AORUS ELITE WIFI
CPU
  1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen??processors/ 2nd Generation AMD Ryzen??processors/ 2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/ AMD Ryzen??with Radeon??Vega Graphics processors

(Please refer “CPU Support List” for more information.)
Chipset AMD X570
Memory

  1. 3rd Generation AMD Ryzen??processors:
    Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  2. 2nd Generation AMD Ryzen??processors/AMD Ryzen??with Radeon??Vega Graphics processors:
    Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    * ECC mode supported by 3rd Gen AMD Ryzen?? 2nd Gen AMD Ryzen??and only PRO sku of 2nd Gen AMD Ryzen??with Radeon??Vega Graphics processors/ AMD Ryzen??with Radeon??Vega Graphics processors.
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB

Note: For 2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors only.
Audio
  1. Realtek? ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1-channel
  4. Support for S/PDIF Out
LAN Intel? GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
  1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 4.2
  3. Support for 11ac wireless standard and up to 433 Mbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots Integrated in the CPU (PCIEX16):
? 3rd Generation AMD Ryzen??processors:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

? 2nd Generation AMD Ryzen??processors:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

? 2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8

Integrated in the Chipset (PCIEX4/PCIEX1):

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
    * For 3rd Generation AMD Ryzen??processors only.
  2. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
    * For 3rd Generation AMD Ryzen??processors only.
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire??and 2-Way AMD CrossFire??technologies

Note: For 3rd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??processors only.
Storage Interface
Integrated in the CPU (M2A_SOCKET):
? 3rd Generation AMD Ryzen??processors:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

? 2nd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET):

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
    * For 3rd Generation AMD Ryzen??processors only.
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, and RAID 10
USB
Integrated in the CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

Integrated in the Chipset:

  1. 1 x USB Type-C??port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 2 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 1 x CPU cooler LED strip/RGB LED strip header
  9. 2 x M.2 Socket 3 connectors
  10. 6 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C??port, with USB 3.2 Gen 2 support
  14. 2 x USB 3.2 Gen 1 headers
  15. 2 x USB 2.0/1.1 headers
  16. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  17. 1 x Clear CMOS jumper
  18. 1 x Q-Flash Plus button

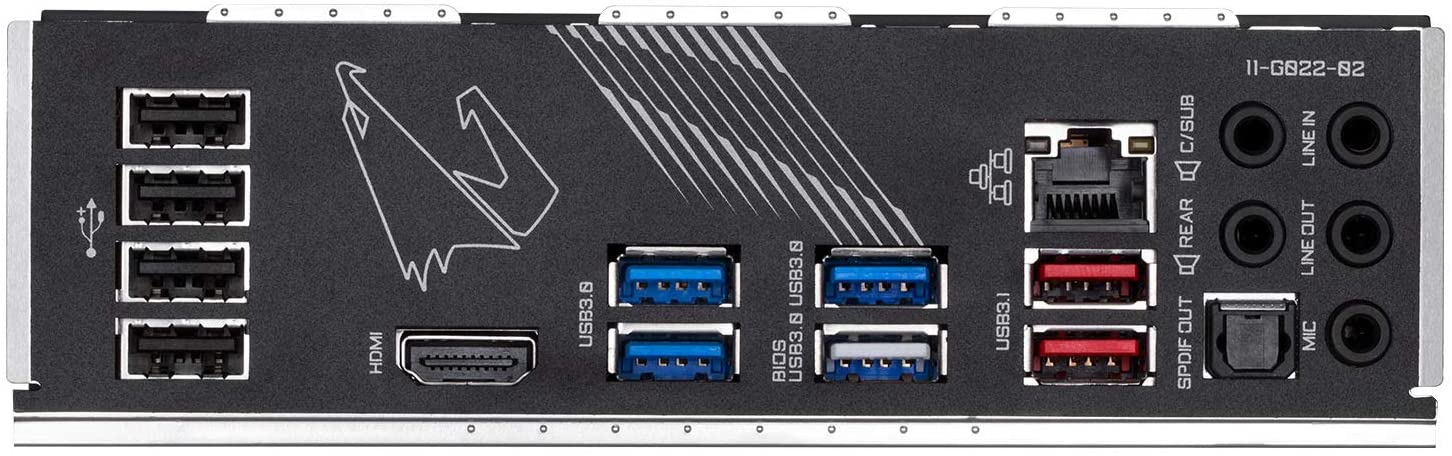

Back Panel Connectors
  1. 4 x USB 2.0/1.1 ports
  2. 2 x SMA antenna connectors (1T1R)
  3. 1 x HDMI port
  4. 4 x USB 3.2 Gen 1 ports
  5. 2 x USB 3.2 Gen 2 Type-A ports (red)
  6. 1 x RJ-45 port
  7. 1 x optical S/PDIF Out connector
  8. 5 x audio jacks
I/O Controller
 iTE? I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart Survey
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton? Internet Security (OEM version)
  2. cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Country Of Origin China
Manufacturer Gigabyte Technology (India) Private Limited
B-Wing, 807 & 808, Naman MidTown
Elphinstone Road, Mumbai 400013
Email: sales@gigabyte.in
Tel: +91 0 22 40633222
Importer WPG C&C Computers And Peripheral(I) Pvt.Ltd
Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III,
New Delhi-110020
Net Quantity 1
Product Package Dimensions (LxWxH) 22.7 x 15.2 x 3.4 Centimeters
Weight 700g
Note ***Features, Price and Specifications are subject to change without notice.
