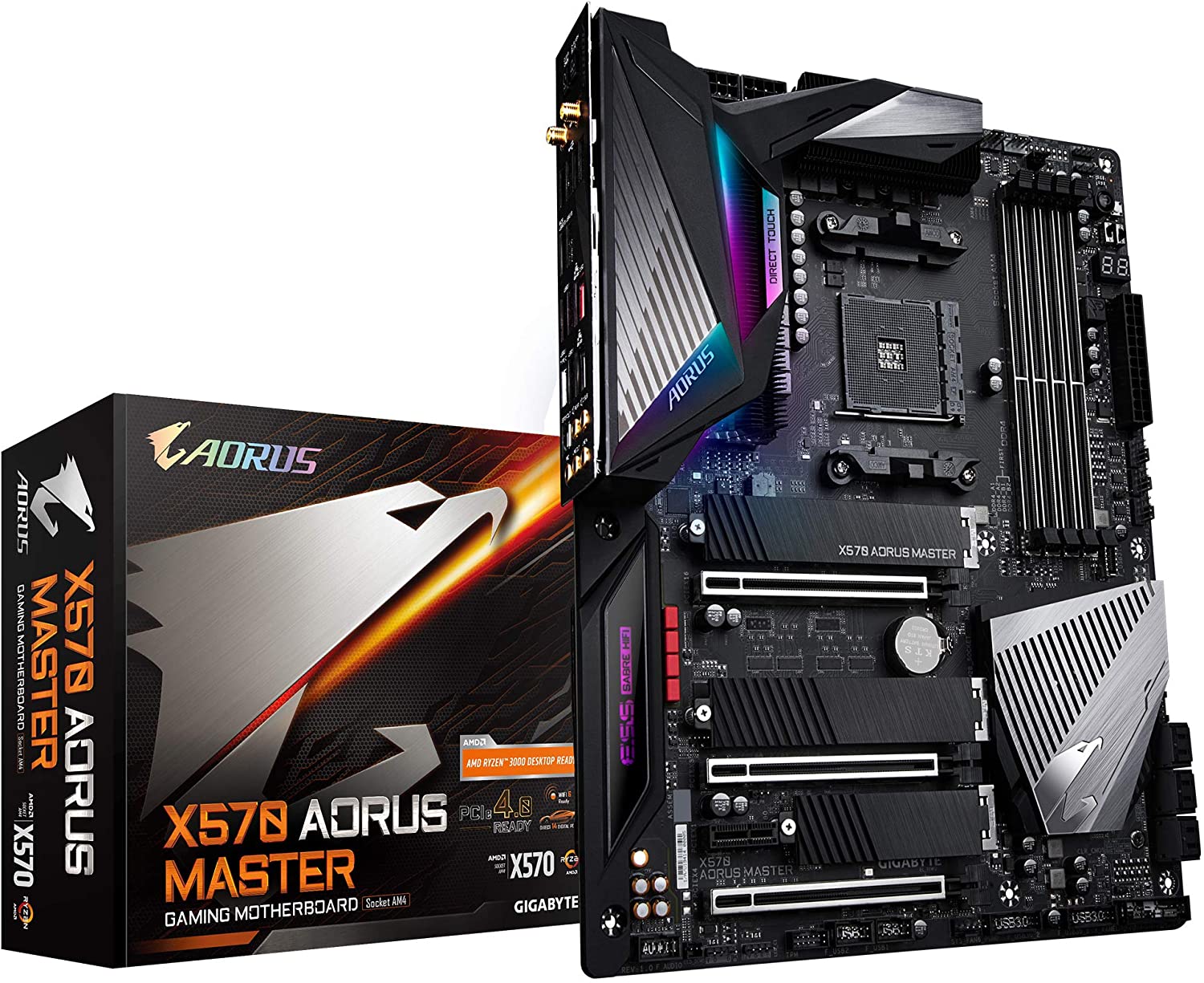

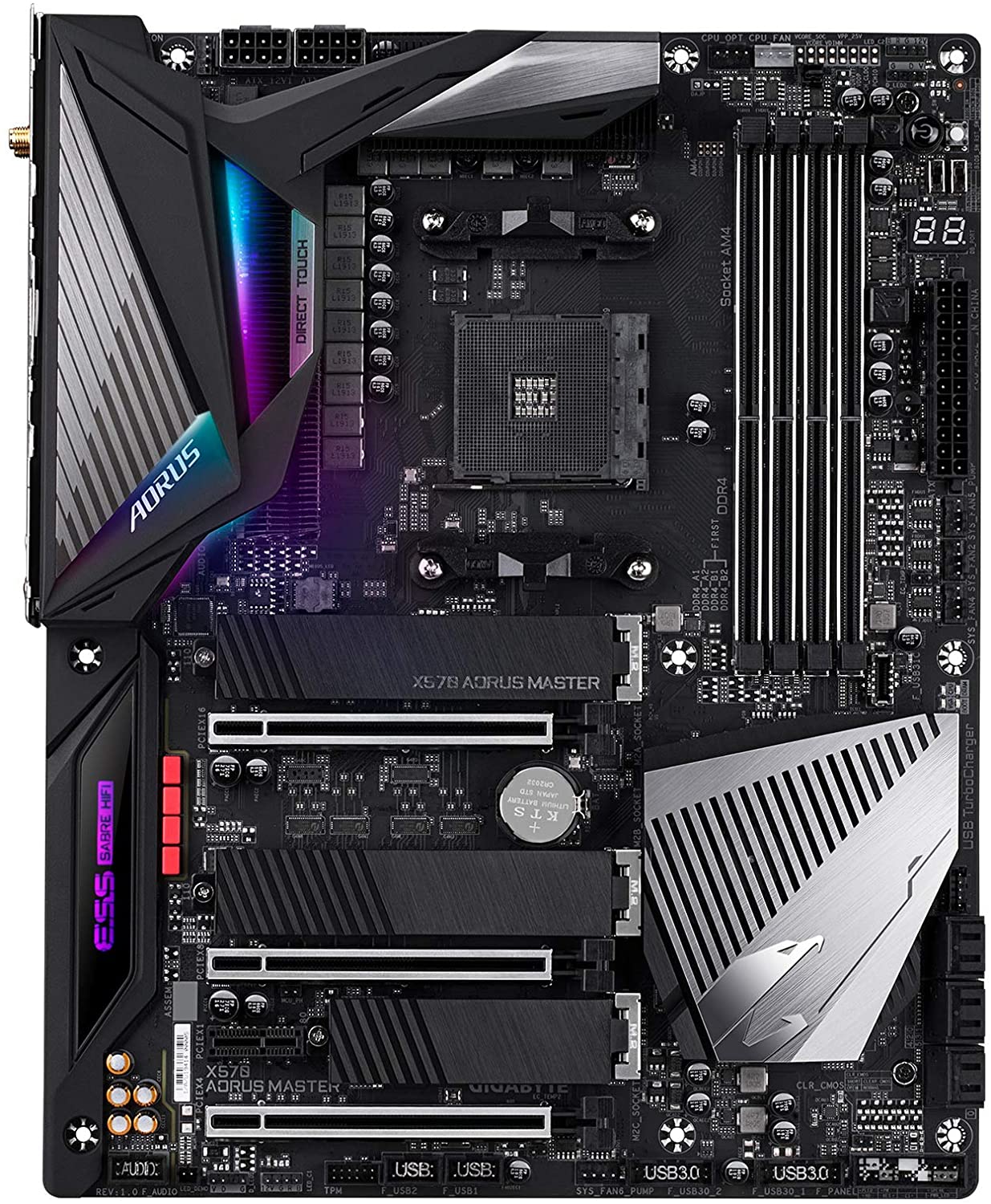

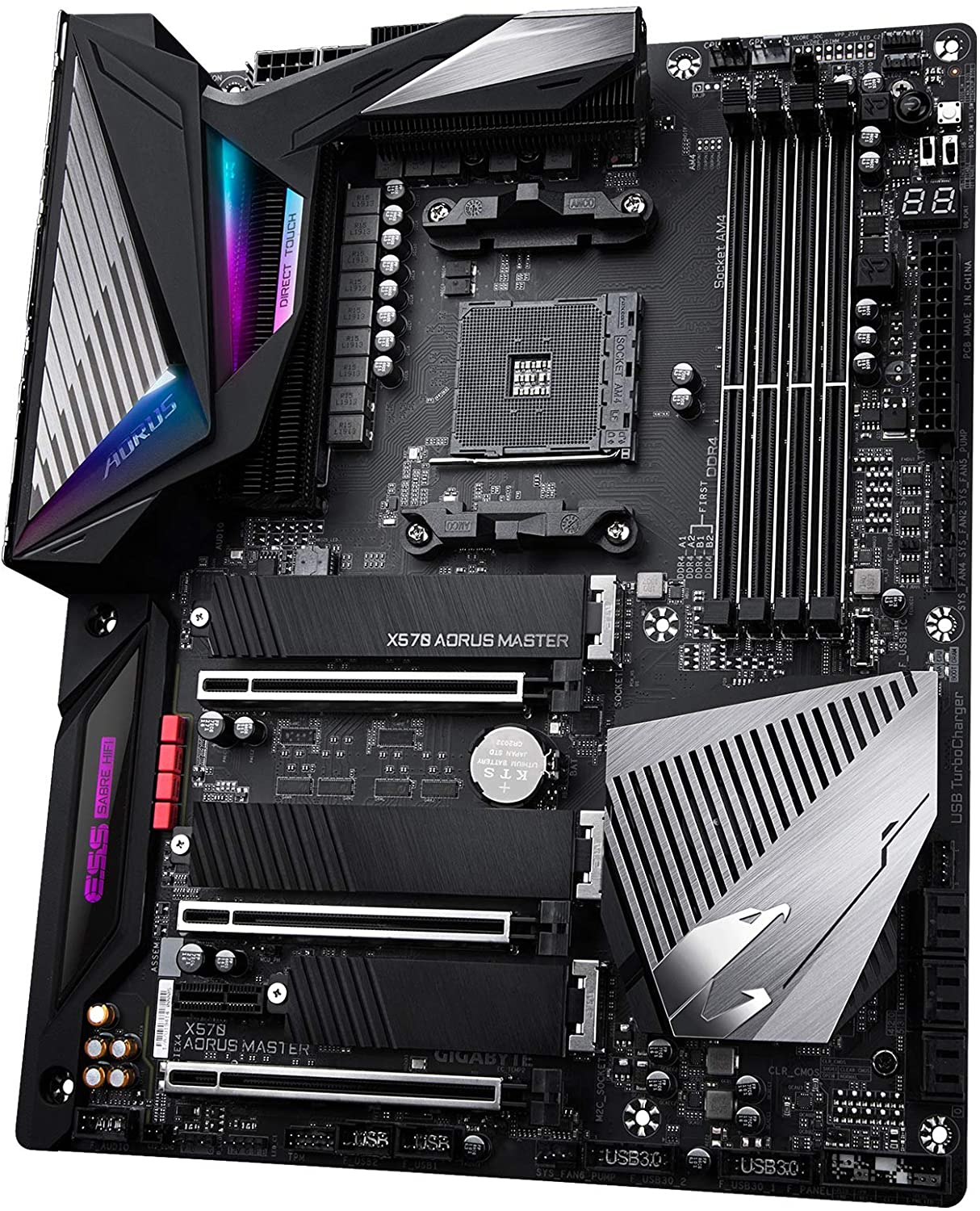

Gigabyte X570 AORUS MASTER GAMING Motherboard for 2nd/ 3rd Gen Ryzen Processors – AM4 Socket

• 3rd Generation AMD Ryzen??processors:
  Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• 2nd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors:
  Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

1. Realtek^? ALC1220-VB codec
   * The front panel line out jack supports DSD audio.
2. ESS SABRE9118 DAC chip
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

1. 1 x Intel^? GbE LAN chip (10/100/1000 Mbit) (LAN1)
2. 1 x Realtek^? 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2)

1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.0
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

1. 3rd Generation AMD Ryzen??processors:
   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
2. 2nd Generation AMD Ryzen??processors:
   1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
   1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??processors, the PCIEX16 slot operates at up to x8 mode.
3. 2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors:
   1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)

Integrated in the Chipset (PCIEX4/PCIEX1):

1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
   * For 3rd Generation AMD Ryzen??processors only.
2. 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0
   * For 3rd Generation AMD Ryzen??processors only.

1. Support for NVIDIA^? Quad-GPU SLI??and 2-Way NVIDIA^? SLI??technologies

Support for AMD Quad-GPU CrossFire??and 2-Way AMD CrossFire??technologies

For 3rd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??processors only.

1. 3rd Generation AMD Ryzen??processors:
   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
2. 2nd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors:
   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
   * For 3rd Generation AMD Ryzen??processors only.
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
   * For 3rd Generation AMD Ryzen??processors only.
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, and RAID 10
   * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

1. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel
   * For 3rd Generation AMD Ryzen??processors only.
2. 2 x USB 3.2 Gen 1 ports on the back panel

Integrated in the Chipset:

1. 1 x USB Type-C??port with USB 3.2 Gen 2 support, available through the internal USB header
2. 1 x USB Type-C??port on the back panel, with USB 3.2 Gen 2 support
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 2 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 3 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C??port, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
• 2 x temperature sensor headers
• 1 x power button
• 1 x reset button
• 2 x BIOS switches
• 1 x Clear CMOS jumper
• Voltage Measurement Points

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 1 x USB Type-C??port, with USB 3.2 Gen 2 support
5. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)
   * For 3rd Generation AMD Ryzen??processors only.
6. 1 x USB 3.2 Gen 2 Type-A port (red)
7. 2 x USB 3.2 Gen 1 ports
8. 4 x USB 2.0/1.1 ports
9. 2 x RJ-45 ports
10. 1 x optical S/PDIF Out connector
11. 5 x audio jacks

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
8. Noise detection

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS??lt;/li>
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker USB TurboCharger
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install

1. Norton^? Internet Security (OEM version)
2. cFosSpeed
3. XSplit Gamecaster + Broadcaster (12 months license)
