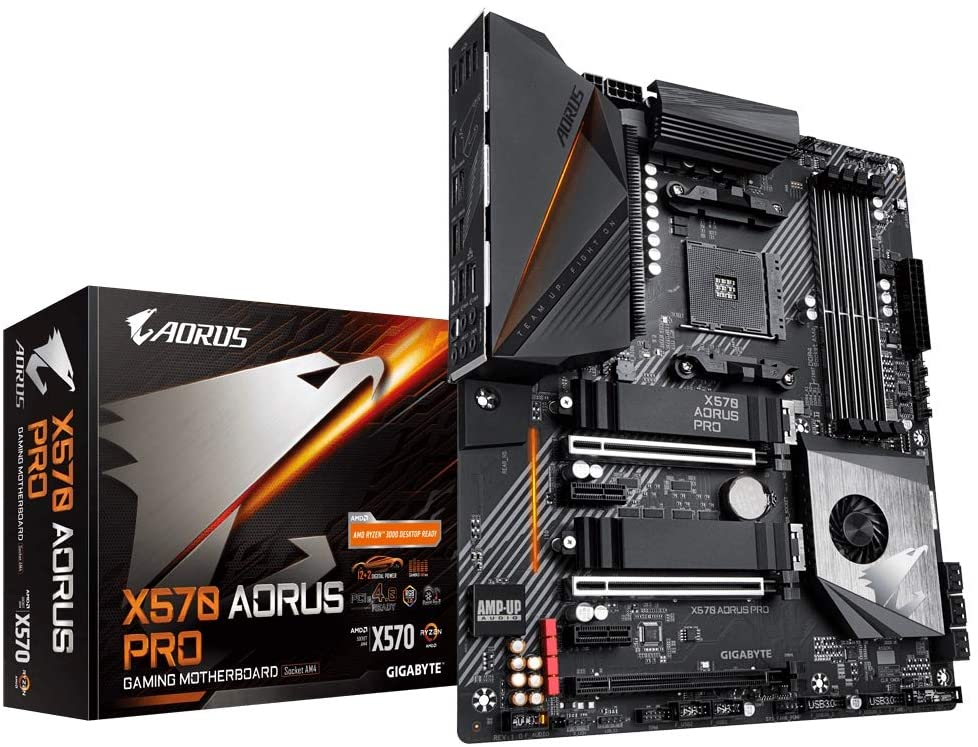

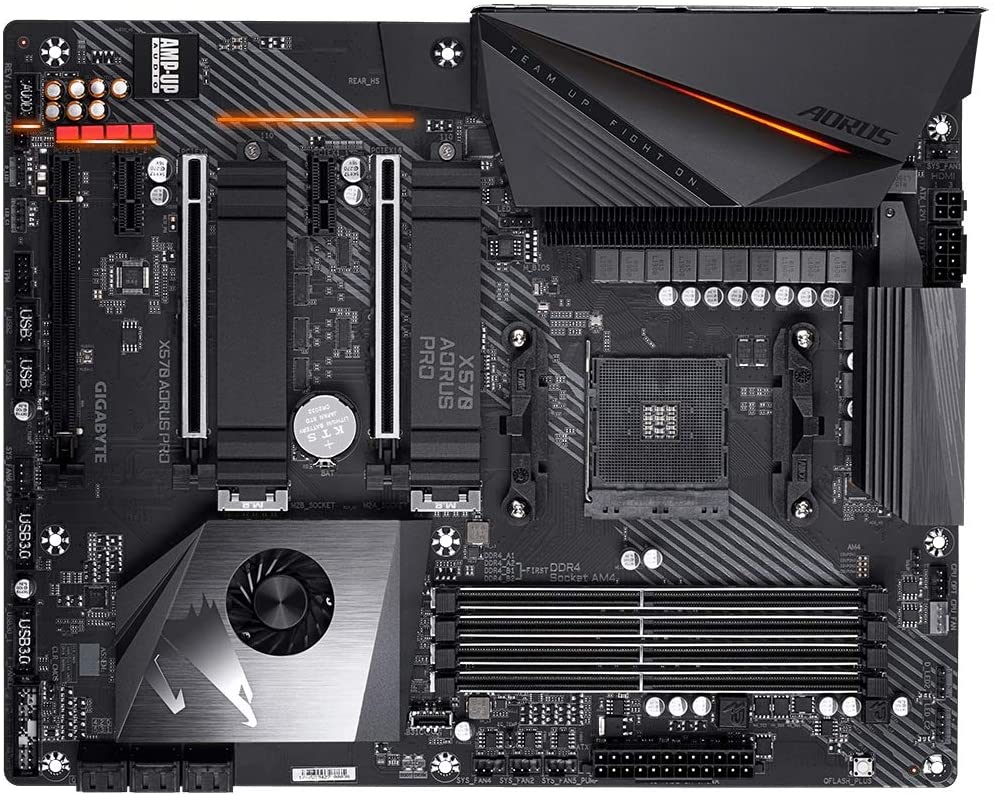

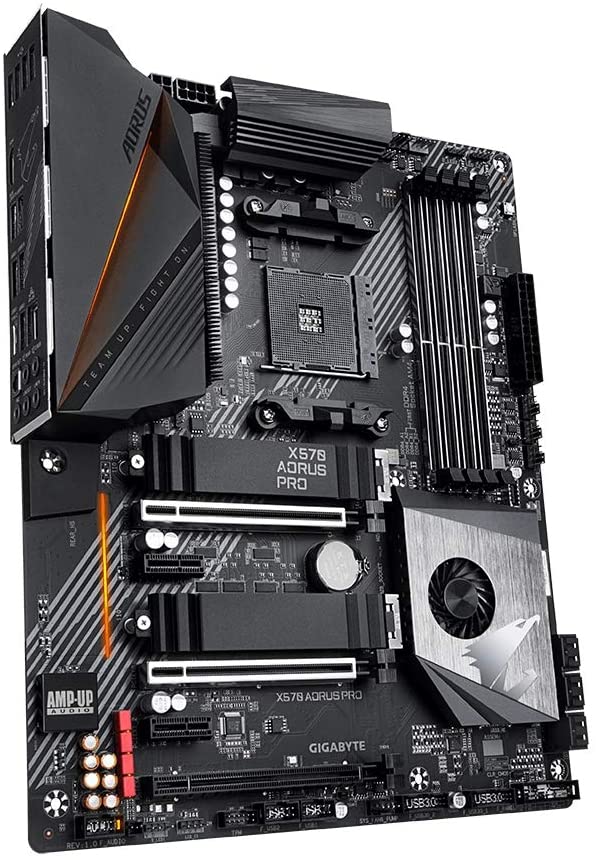

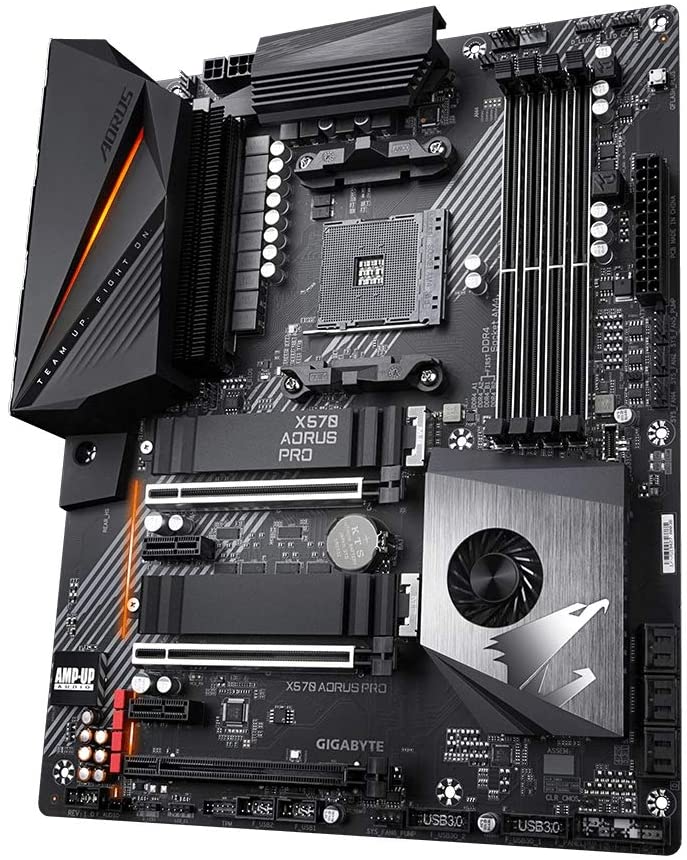

Gigabyte X570 AORUS PRO GAMING Motherboard for 2nd/ 3rd Gen Ryzen Processors – AM4 Socket

• 3rd Generation AMD Ryzen??processors:
  Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• 2nd Generation AMD Ryzen??processors/AMD Ryzen??with Radeon??Vega Graphics processors:
  Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB

Note: For 2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors only.

• Realtek^? ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)

? 2nd Generation AMD Ryzen??processors:

• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??processors, the PCIEX16 slot operates at up to x8 mode.

? 2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors:

• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)

Integrated in the Chipset (PCIEX4/PCIEX1):

• 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
  * For 3rd Generation AMD Ryzen??processors only.
• 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
  * For 3rd Generation AMD Ryzen??processors only.

• Support for NVIDIA^? Quad-GPU SLI??and 2-Way NVIDIA^? SLI??technologies
• Support for AMD Quad-GPU CrossFire??and 2-Way AMD CrossFire??technologies

Note: For 3rd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??processors only.

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

? 2nd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors:

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET):

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
  * For 3rd Generation AMD Ryzen??processors only.
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, and RAID 10

• 3 x USB 3.2 Gen 1 ports on the back panel
• 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel
  * For 3rd Generation AMD Ryzen??processors only.

Chipset:

• 1 x USB Type-C??port with USB 3.2 Gen 2 support, available through the internal USB header
• 1 x USB Type-C??port on the back panel, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hubs:

• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 2 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C??port, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers
• 1 x Q-Flash Plus button

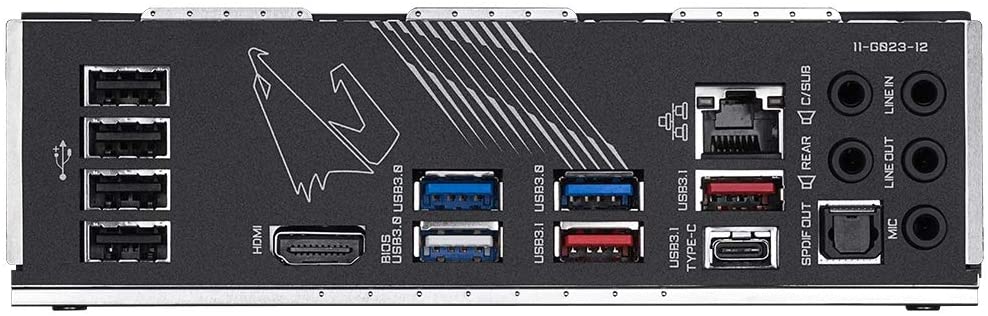

• 1 x HDMI port
• 1 x USB Type-C??port, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red)
  * For 3rd Generation AMD Ryzen??processors only.
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS??lt;/li>
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

• Norton^? Internet Security (OEM version)
• cFosSpeed
• XSplit Gamecaster + Broadcaster (12 months license)
