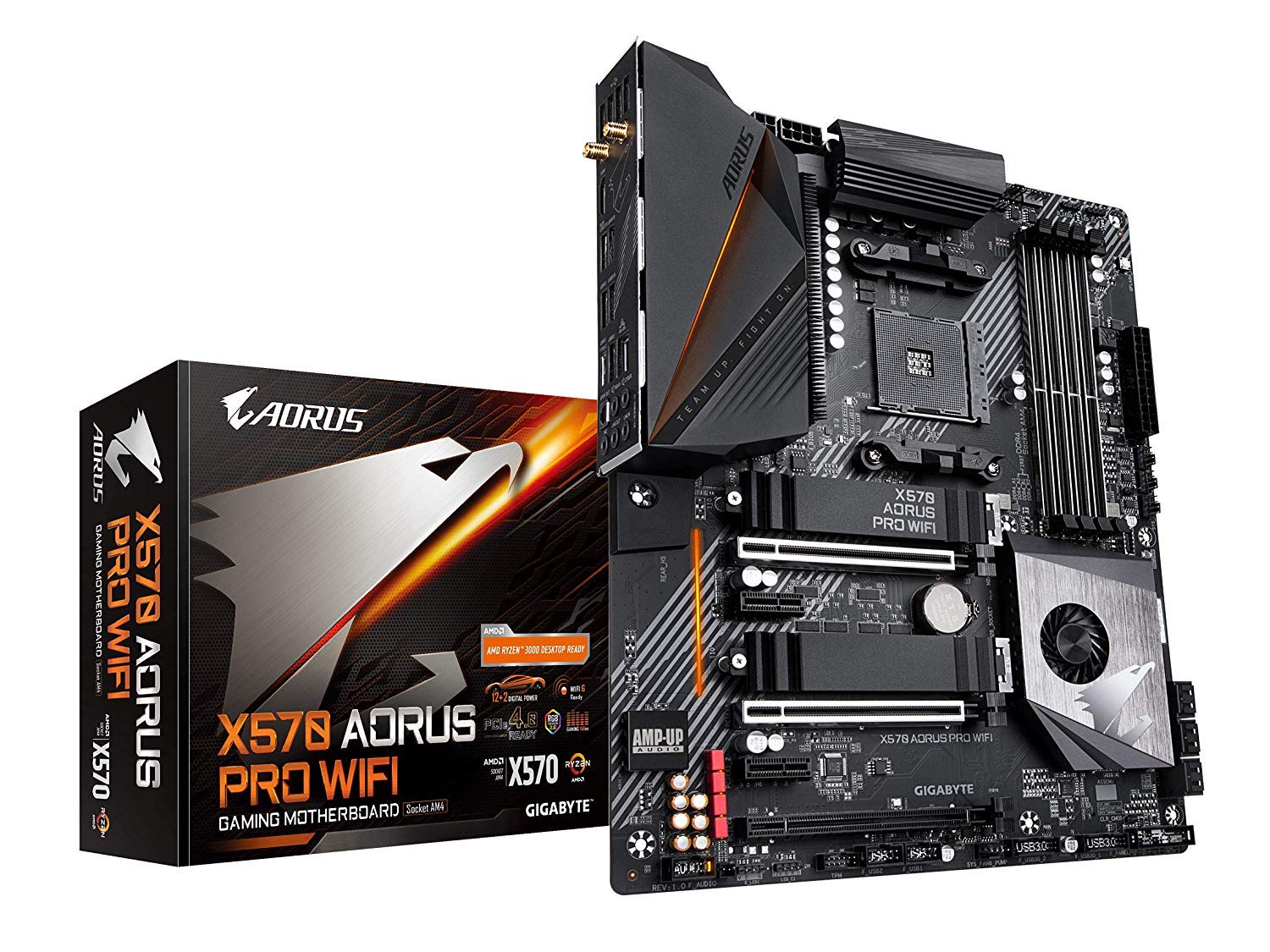

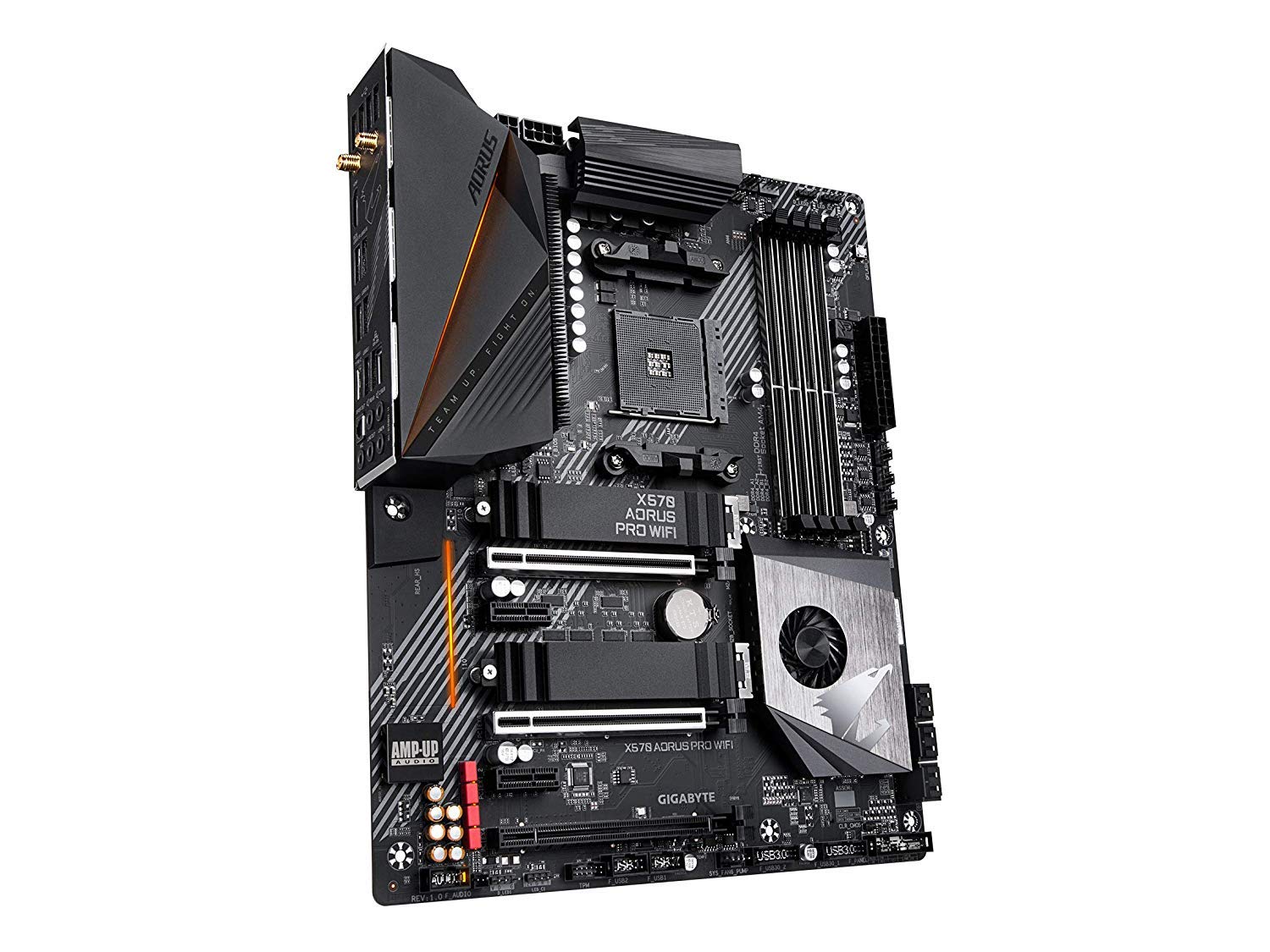

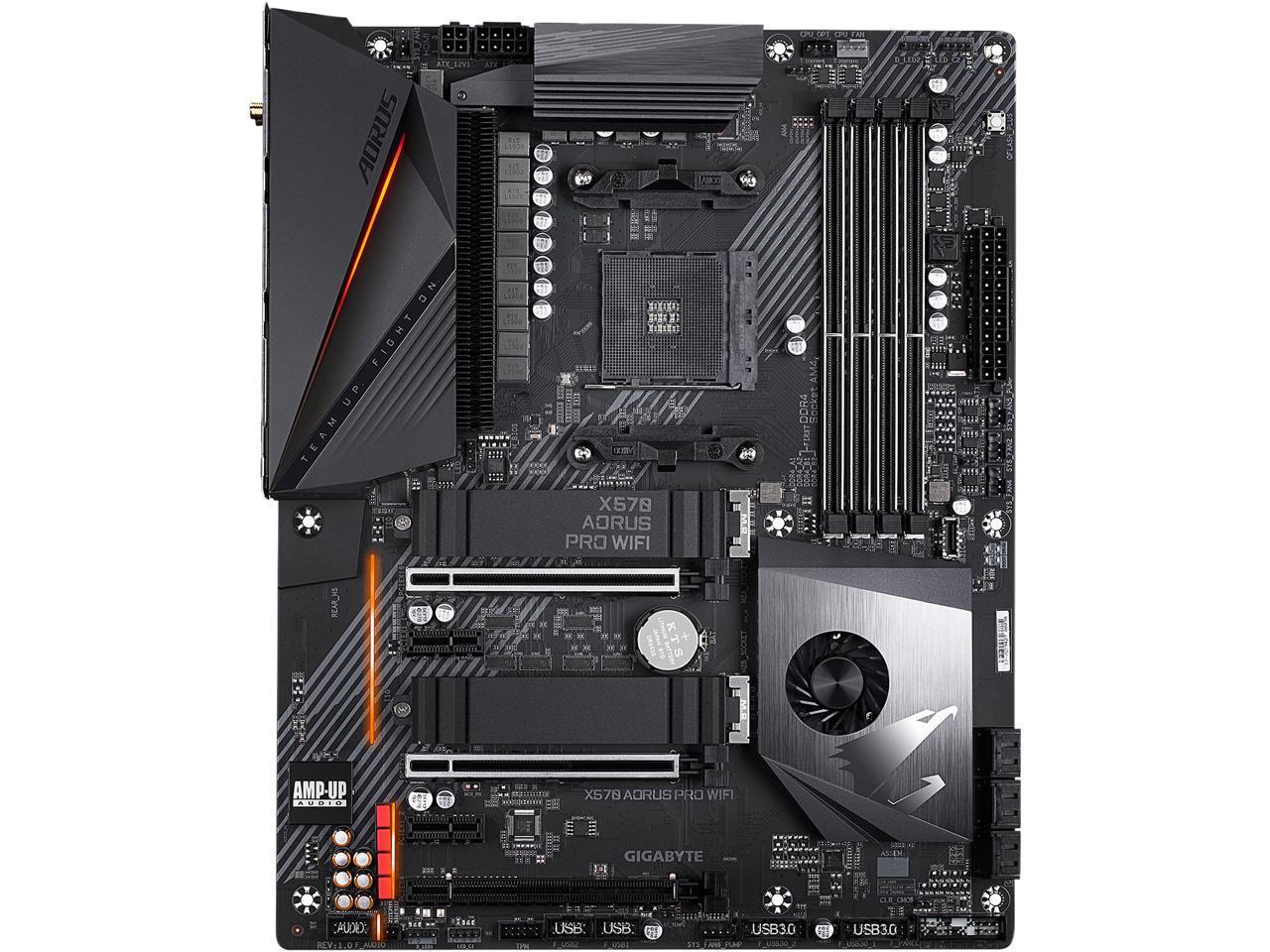

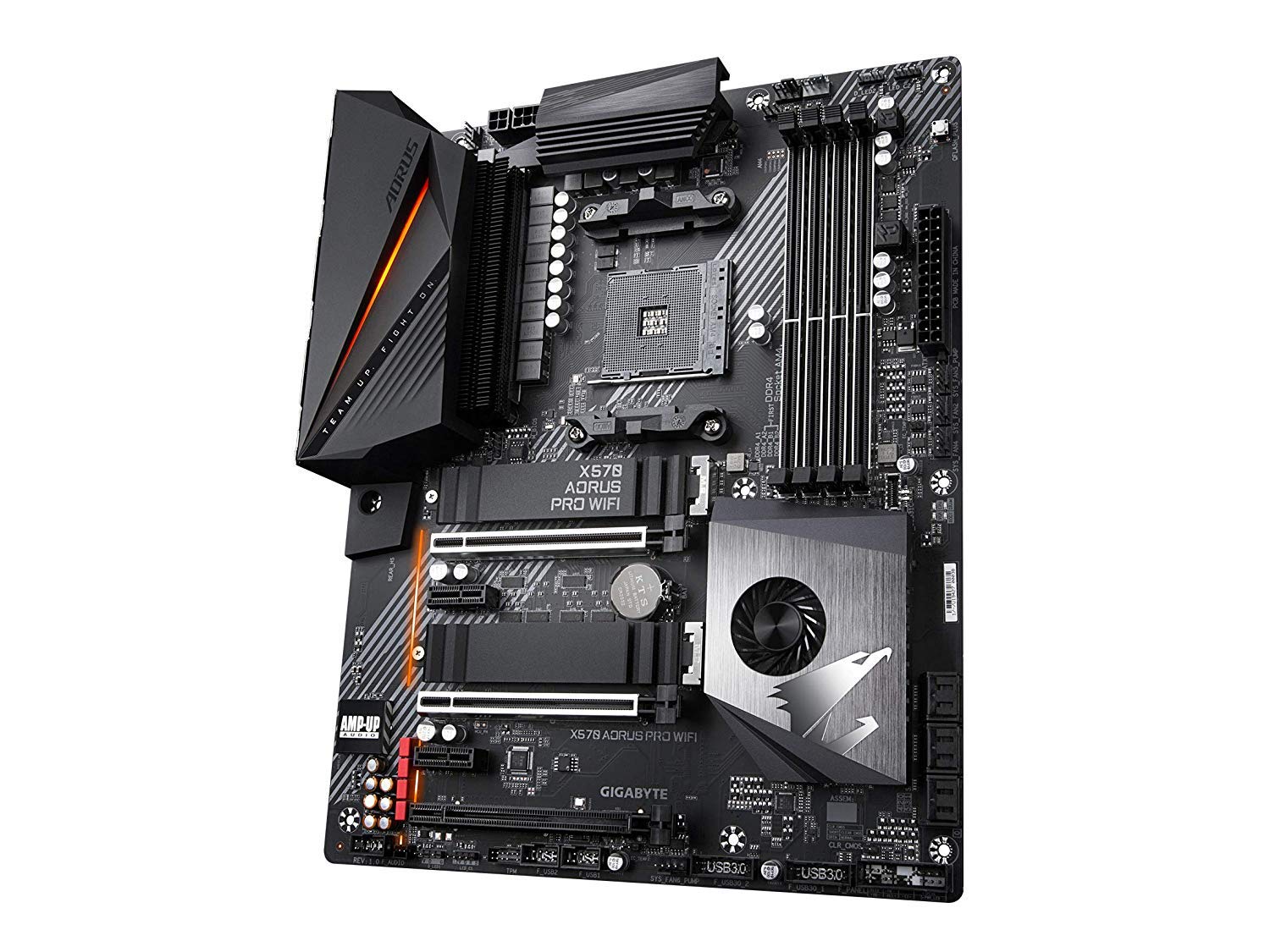

Gigabyte X570 AORUS PRO WIFI GAMING Motherboard for 2nd/ 3rd Gen Ryzen Processors – AM4 Socket

1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen??processors/ 2nd Generation AMD Ryzen??processors/ 2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/ AMD Ryzen??with Radeon??Vega Graphics processors

(Please refer “CPU Support List” for more information.)

1. 3rd Generation AMD Ryzen??processors:
   Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2. 2nd Generation AMD Ryzen??processors/AMD Ryzen??with Radeon??Vega Graphics processors:
   Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
   * ECC mode supported by 3rd Gen AMD Ryzen?? 2nd Gen AMD Ryzen??and only PRO sku of 2nd Gen AMD Ryzen??with Radeon??Vega Graphics processors/ AMD Ryzen??with Radeon??Vega Graphics processors.
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
   * Support for HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB

Note: For 2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors only.

1. Realtek? ALC1220-VB codec
   * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

Wireless Communication module

1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.0
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

Integrated in the CPU (PCIEX16/PCIEX8):
? 3rd Generation AMD Ryzen??processors:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
2. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)

? 2nd Generation AMD Ryzen??processors:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??processors, the PCIEX16 slot operates at up to x8 mode.

? 2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)

Integrated in the Chipset (PCIEX4/PCIEX1):

1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
   * For 3rd Generation AMD Ryzen??processors only.
2. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
   * For 3rd Generation AMD Ryzen??processors only.

1. Support for NVIDIA? Quad-GPU SLI??and 2-Way NVIDIA? SLI??technologies
2. Support for AMD Quad-GPU CrossFire??and 2-Way AMD CrossFire??technologies

Note: For 3rd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??processors only.

Integrated in the CPU (M2A_SOCKET):
? 3rd Generation AMD Ryzen??processors:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

? 2nd Generation AMD Ryzen??processors/2nd Generation AMD Ryzen??with Radeon??Vega Graphics processors/AMD Ryzen??with Radeon??Vega Graphics processors:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET):

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
   * For 3rd Generation AMD Ryzen??processors only.
2. 6 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10

Integrated in the CPU:

1. 3 x USB 3.2 Gen 1 ports on the back panel
2. 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel
   * For 3rd Generation AMD Ryzen??processors only.

Chipset:

1. 1 x USB Type-C??port with USB 3.2 Gen 2 support, available through the internal USB header
2. 1 x USB Type-C??port on the back panel, with USB 3.2 Gen 2 support
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hubs:

1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 3 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 2 x M.2 Socket 3 connectors
12. 6 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB Type-C??port, with USB 3.2 Gen 2 support
16. 2 x USB 3.2 Gen 1 headers
17. 2 x USB 2.0/1.1 headers
18. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
19. 1 x Clear CMOS jumper
20. 2 x temperature sensor headers
21. 1 x Q-Flash Plus button

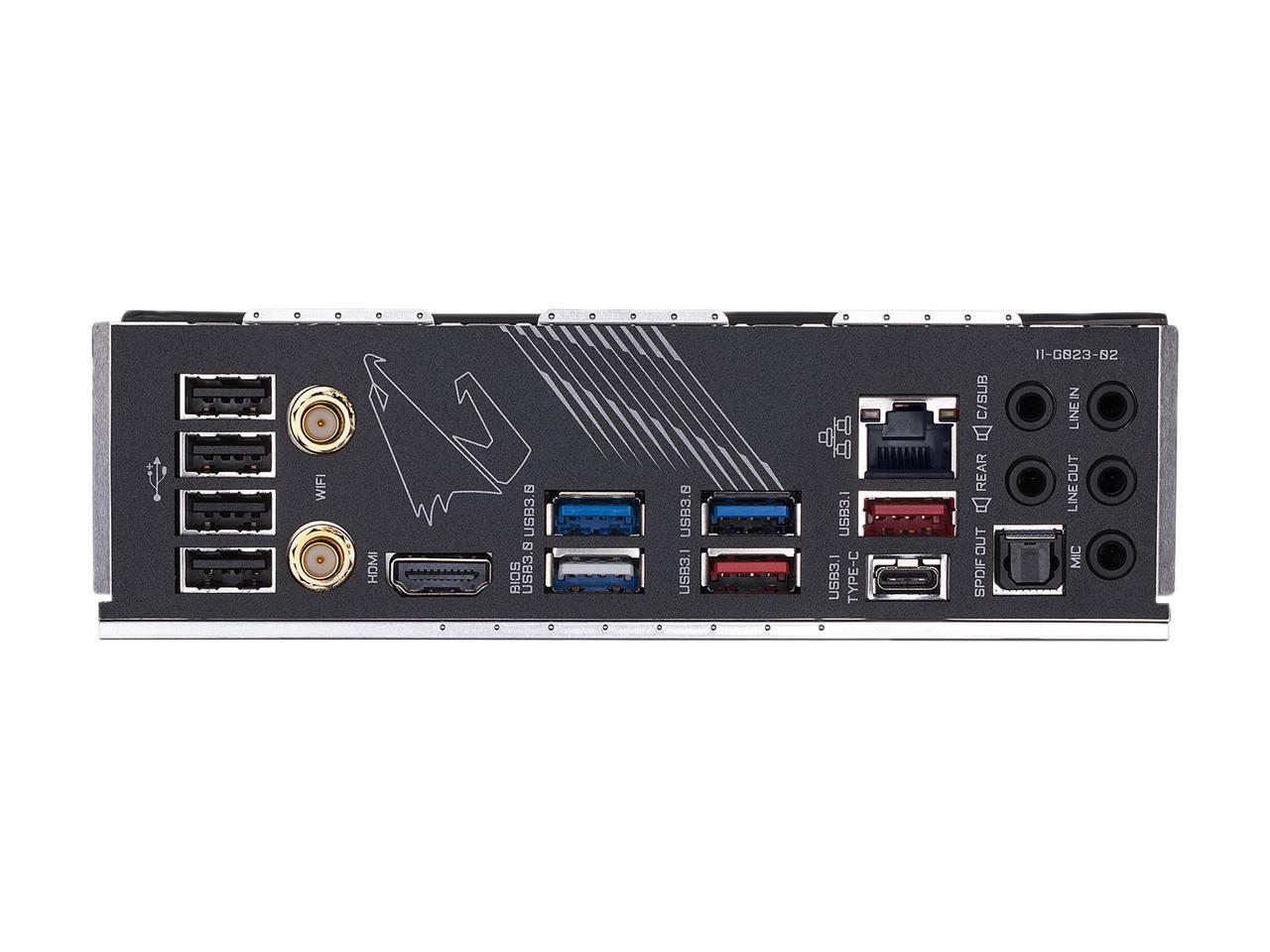

1. 2 x SMA antenna connectors (2T2R)
2. 1 x HDMI port
3. 1 x USB Type-C??port, with USB 3.2 Gen 2 support
4. 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red)
   * For 3rd Generation AMD Ryzen??processors only.
5. 1 x USB 3.2 Gen 2 Type-A port (red)
6. 3 x USB 3.2 Gen 1 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks

iTE? I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS??lt;/li>
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart Survey
   System Information Viewer
   USB Blocker
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install

Bundle Software

1. Norton? Internet Security (OEM version)
2. cFosSpeed
3. XSplit Gamecaster + Broadcaster (12 months license)

Support for Windows 10 64-bit

ATX Form Factor; 30.5cm x 24.4cm

3 Years

***Features, Price and Specifications are subject to change without notice.
