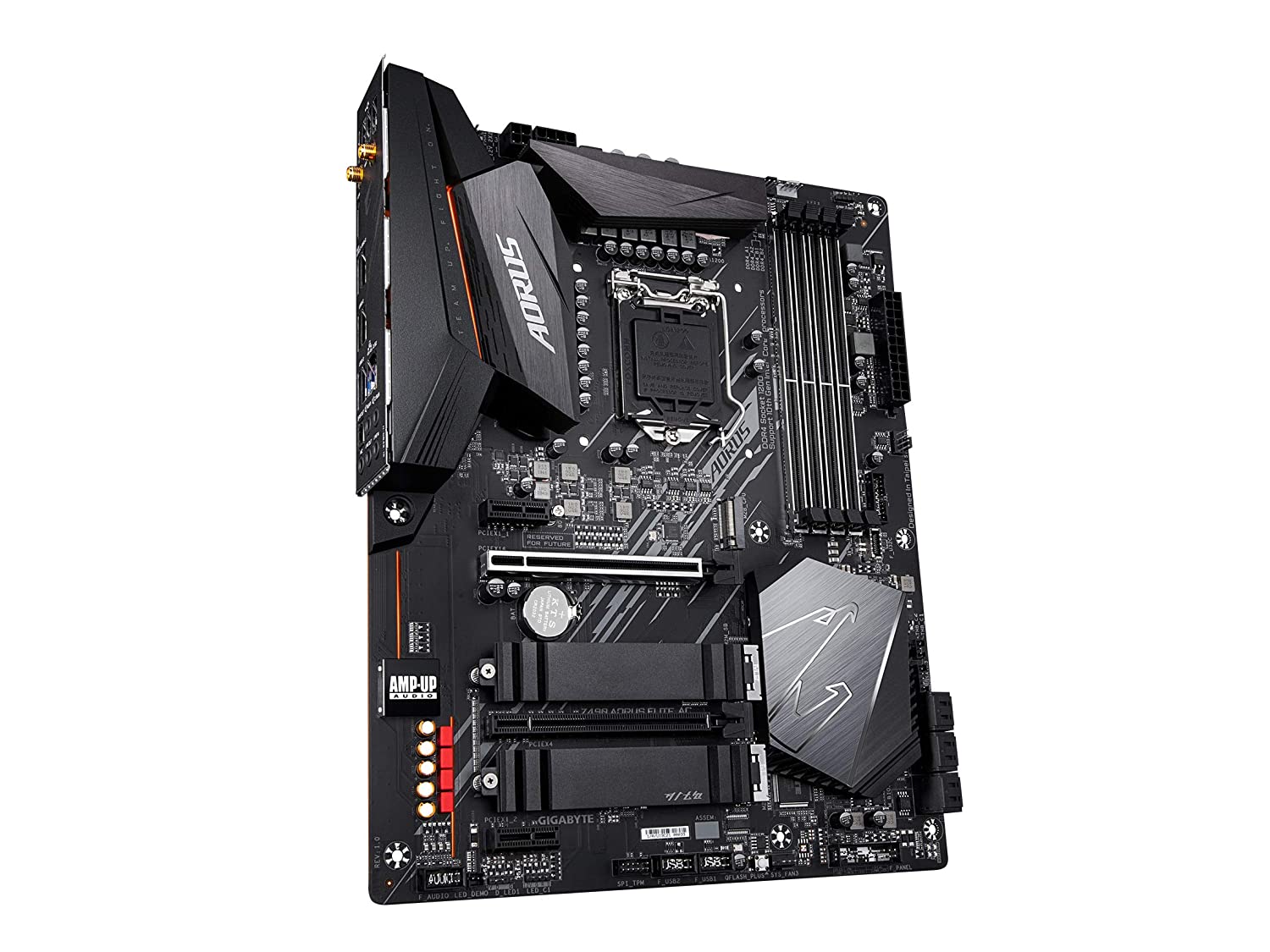

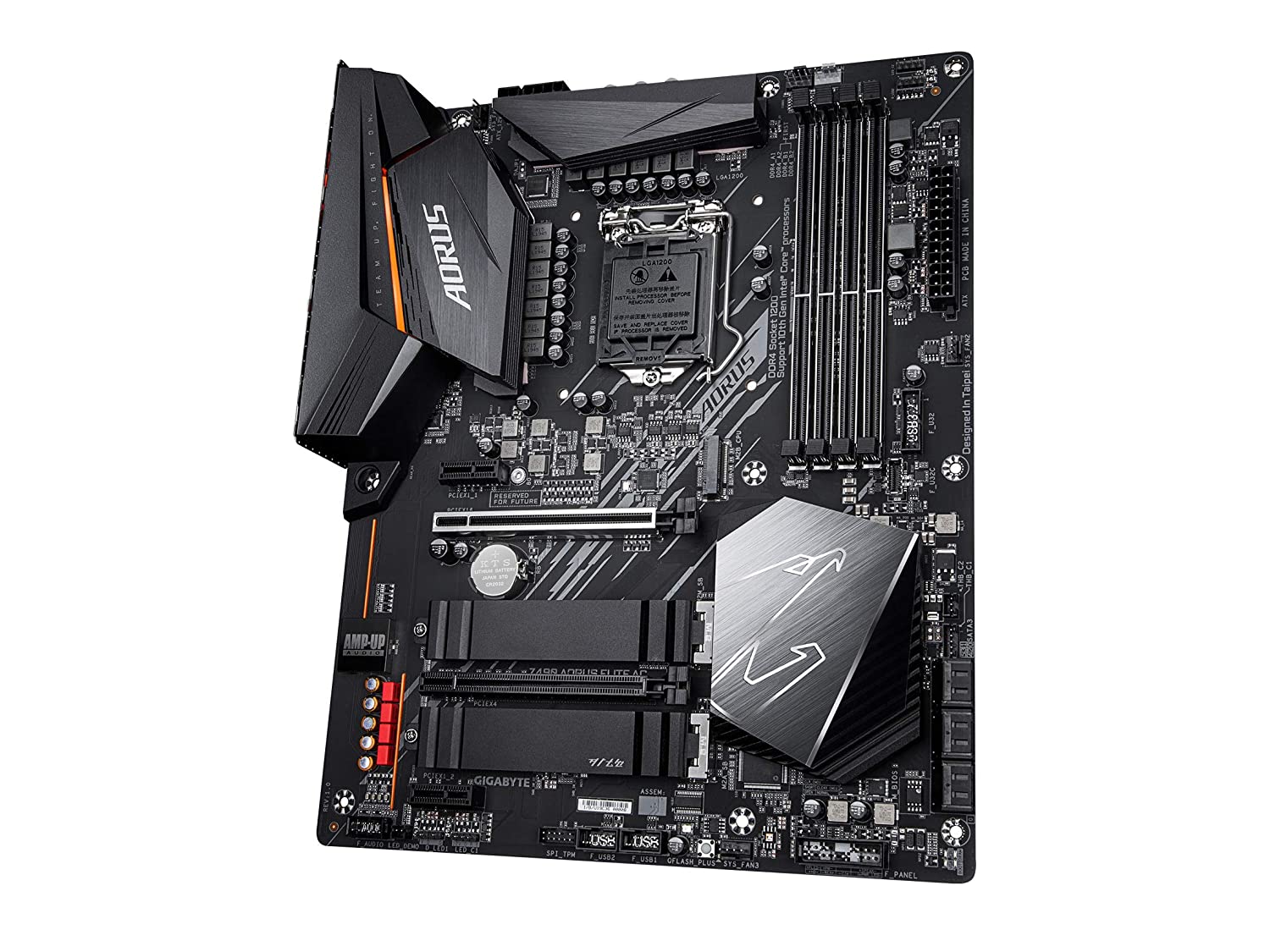

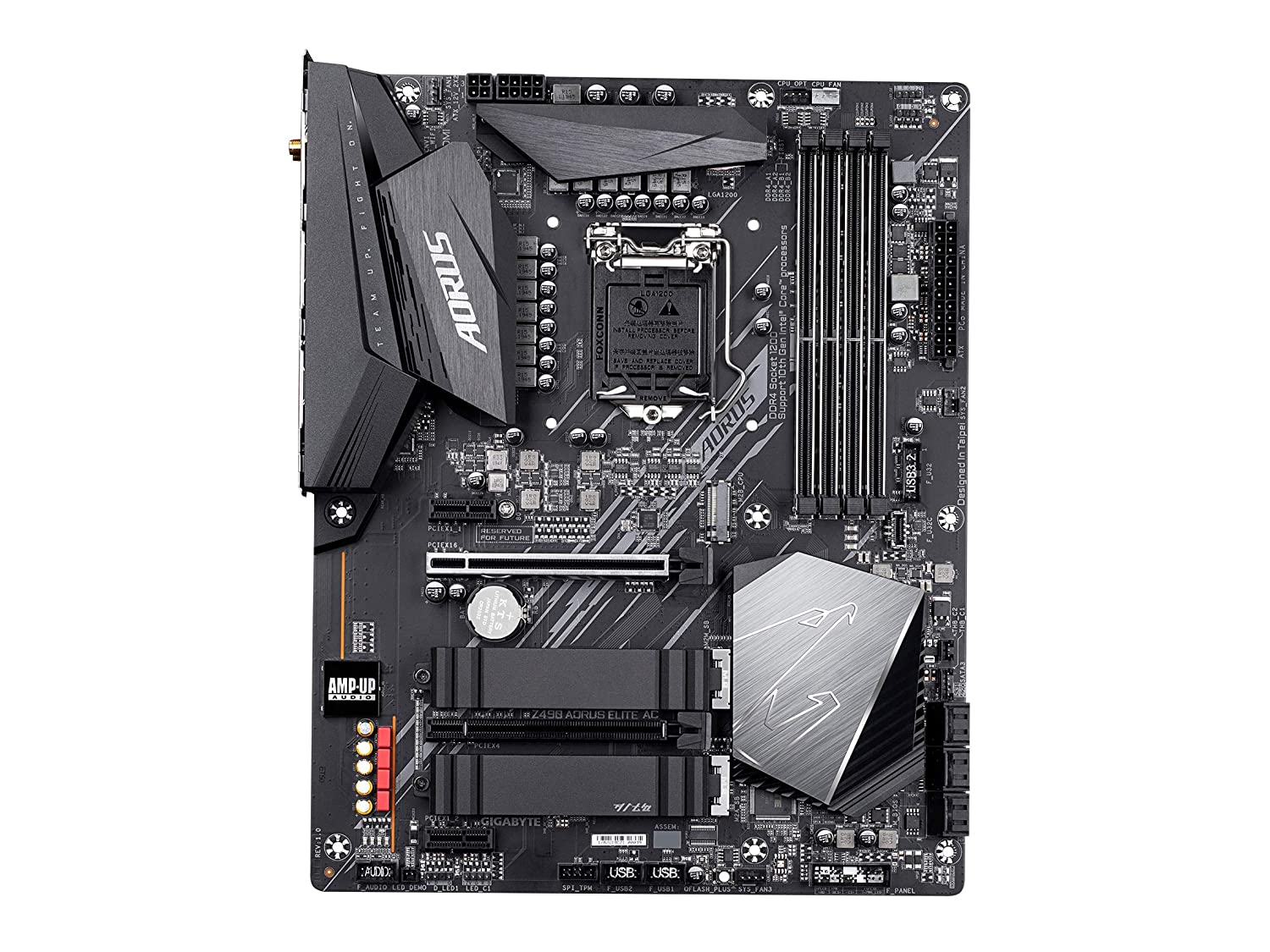

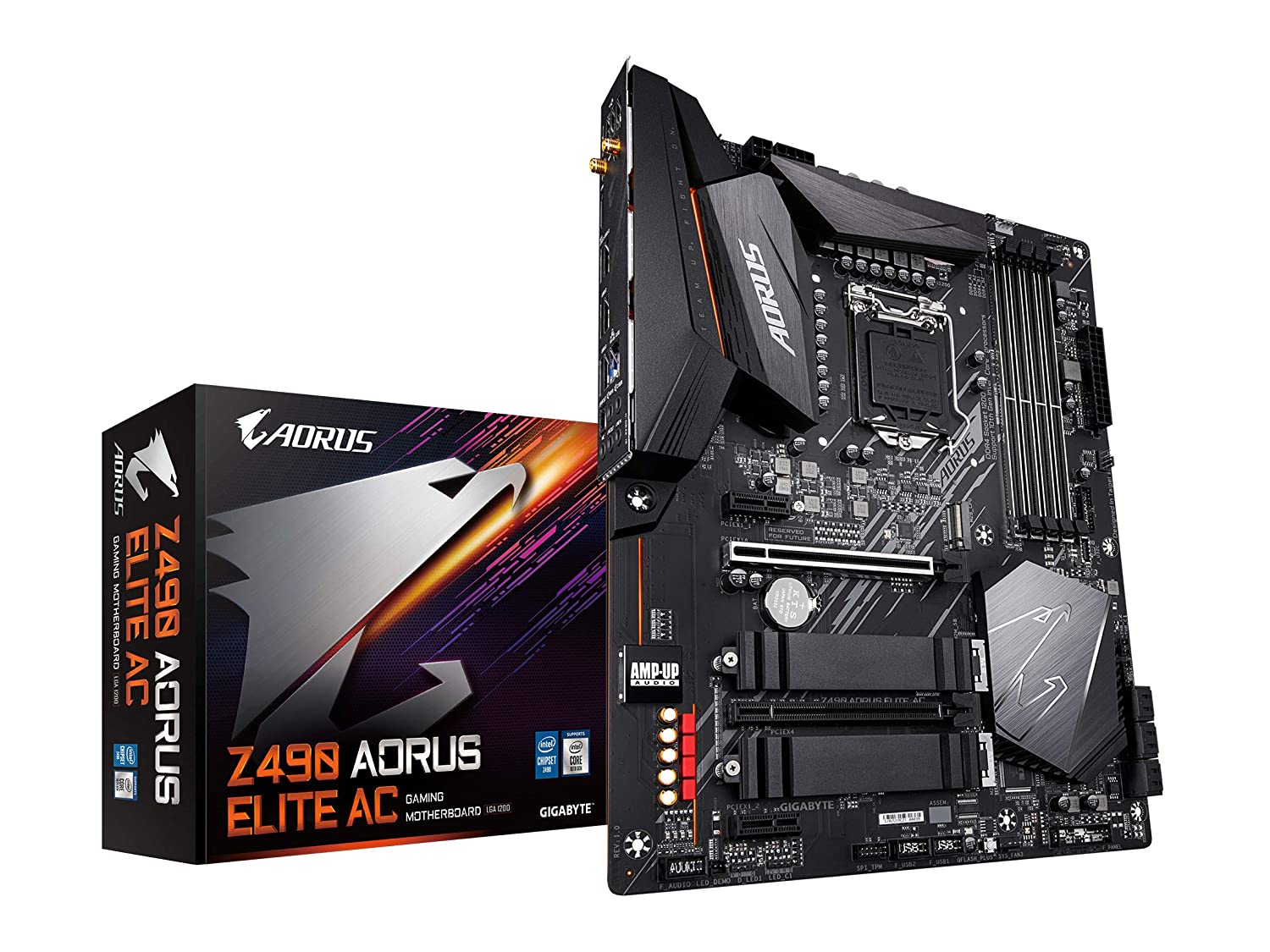

Gigabyte Z490 AORUS ELITE AC (WiFi) Motherboard for Intel 10th Gen Processors - LGA1200 Socket
Gigabyte Z490 AORUS ELITE AC (WiFi) Motherboard for Intel 10th Gen Processors - LGA1200 Socket - Image 2
Gigabyte Z490 AORUS ELITE AC (WiFi) Motherboard for Intel 10th Gen Processors - LGA1200 Socket - Image 3
Gigabyte Z490 AORUS ELITE AC (WiFi) Motherboard for Intel 10th Gen Processors - LGA1200 Socket - Image 4
Gigabyte Z490 AORUS ELITE AC (WiFi) Motherboard for Intel 10th Gen Processors - LGA1200 Socket - Image 5

Gigabyte Z490 AORUS ELITE AC (WiFi) Motherboard for Intel 10th Gen Processors – LGA1200 Socket

Original price was: ₹32,000.00.Current price is: ₹22,531.00.

Out of stock

Add to Compare
SKU: Gigabyte Z490 AORUS ELITE AC (WiFi) Motherboard Category: Tags: , , , , , , , Brand:

Additional Information

Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.

10 Days Return

You can return the product & get a new replacement if the product is received in defective/ damaged condition.

Free Fast Delivery

We are glad to provide free shipping throughout India.

100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.

Genuine Manufacturer Warranty

All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.

Excellent Customer Support

We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in

Reviews

Product Description

gigabyte-z490-aorus-elite-ac-specs

Intel? Z490 AORUS Motherboard with Direct 12+1 Phases Digital VRM Design, Comprehensive Thermal Solution with Enlarged Surface Heatsink, Intel? Dual Band 802.11ac WIFI, 2.5GbE LAN, RGB FUSION 2.0

  • Supports 10th Gen Intel? Core??Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel? Optane??Memory Ready
  • Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Advanced Thermal Design with Enlarged Surface Heatsink
  • Onboard Intel? Dual Band 802.11ac WIFI & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1200 and WIMA Audio Capacitors
  • Fast 2.5GbE LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
  • Pre-installed IO Shield for Easy and Quick Installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS:

Model Z490 AORUS ELITE AC
CPU
  1. Support for 10th Generation Intel? Core??i9 processors/Intel? Core??i7 processors/Intel? Core??i5 processors/Intel? Core??i3 processors/Intel? Pentium? processors/Intel? Celeron? processors in the LGA1200 package
  2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)
Chipset Intel? Z490 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    * To support 3200 MHz, you must use XMP memory.
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)
Onboard Graphics
 Integrated Graphics Processor-Intel? HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB
Audio
  1. Realtek? ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Outc
LAN
  1. Realtek? 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
 Intel? Wi-Fi AC 9462:

  1. Intel? CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 1×1 11ac wireless standard and up to 433 Mbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire??and 2-Way AMD CrossFire??technologies
Storage Interface
  1. 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB/M2A_SB)
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
  4. Intel? Optane??Memory Ready
USB Chipset:

  1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  2. 1 x USB Type-C??port with USB 3.2 Gen 1 support, available through the internal USB header
  3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 2 x M.2 Socket 3 connectors
  5. 6 x SATA 6Gb/s connectors
  6. 1 x CPU fan header
  7. 1 x water cooling CPU fan header
  8. 3 x system fan headers
  9. 2 x addressable LED strip headers
  10. 2 x RGB LED strip headers
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C??port, with USB 3.2 Gen 1 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  17. 2 x Thunderbolt??add-in card connectors
  18. 1 x Clear CMOS jumper
  19. 1 x Q-Flash Plus button

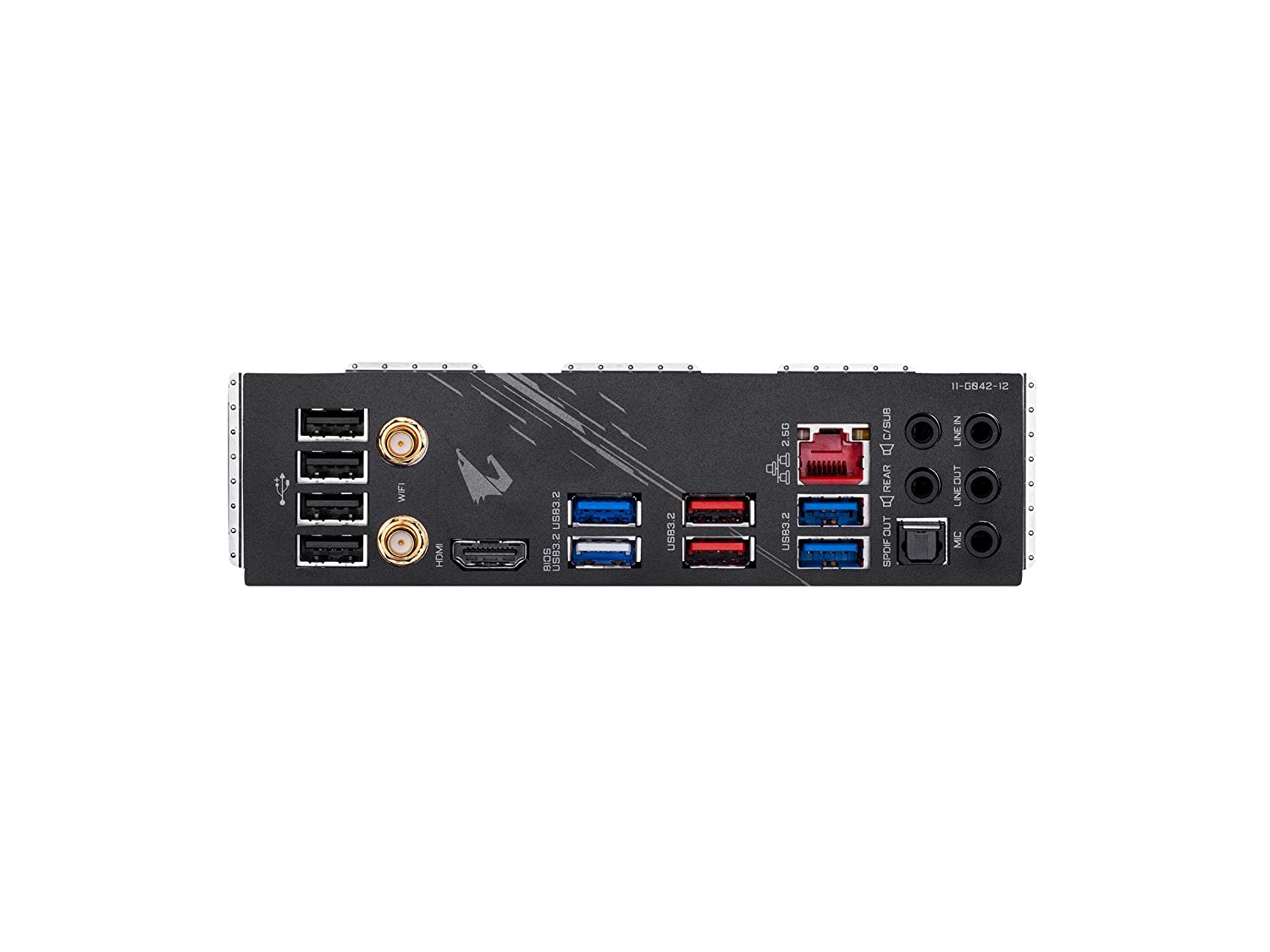

Back Panel Connectors
  1. 2 x USB 3.2 Gen 2 Type-A ports (red)
  2. 4 x USB 3.2 Gen 1 ports
  3. 4 x USB 2.0/1.1 ports
  4. 2 x SMA antenna connectors (1T1R)
  5. 1 x HDMI port
  6. 1 x RJ-45 port
  7. 1 x optical S/PDIF Out connector
  8. 5 x audio jacks
I/O Controller
 iTE? I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton? Internet Security (OEM version)
  2. Realtek? 8125 Gaming LAN Bandwidth Control Utility
Operating System
 Support for Windows 10 64-bit
Form Factor

ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Country Of Origin China
Manufacturer Gigabyte Technology (India) Private Limited
B-Wing, 807 & 808, Naman MidTown
Elphinstone Road, Mumbai 400013
Email: sales@gigabyte.in
Tel: +91 0 22 40633222
Importer WPG C&C Computers And Peripheral(I) Pvt.Ltd
Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III,
New Delhi-110020
Net Quantity 1
Product Package Dimensions (LxWxH) 22.7 x 15.2 x 3.4 Centimeters
Weight 700g
Note ***Features, Price and Specifications are subject to change without notice.
