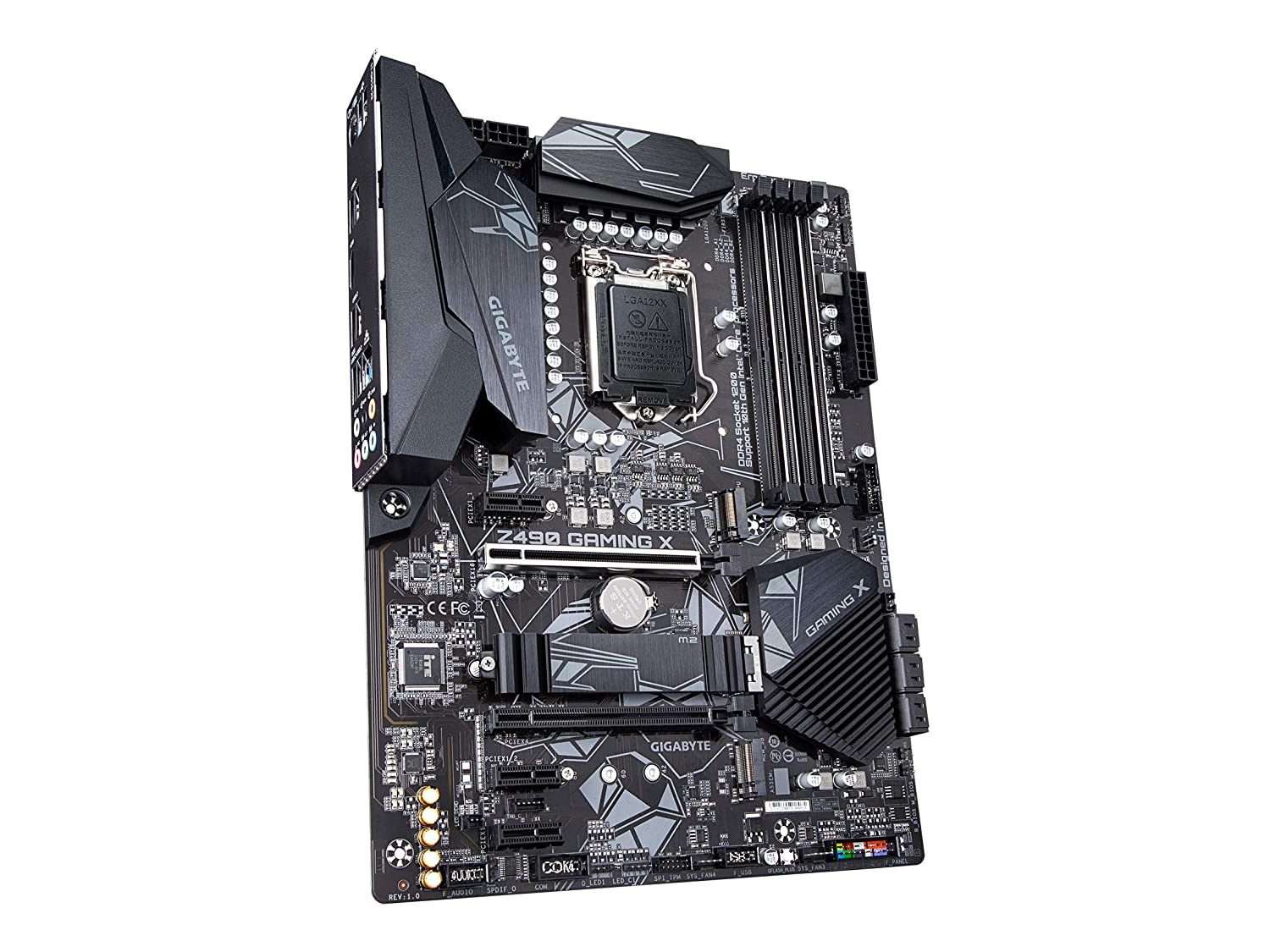

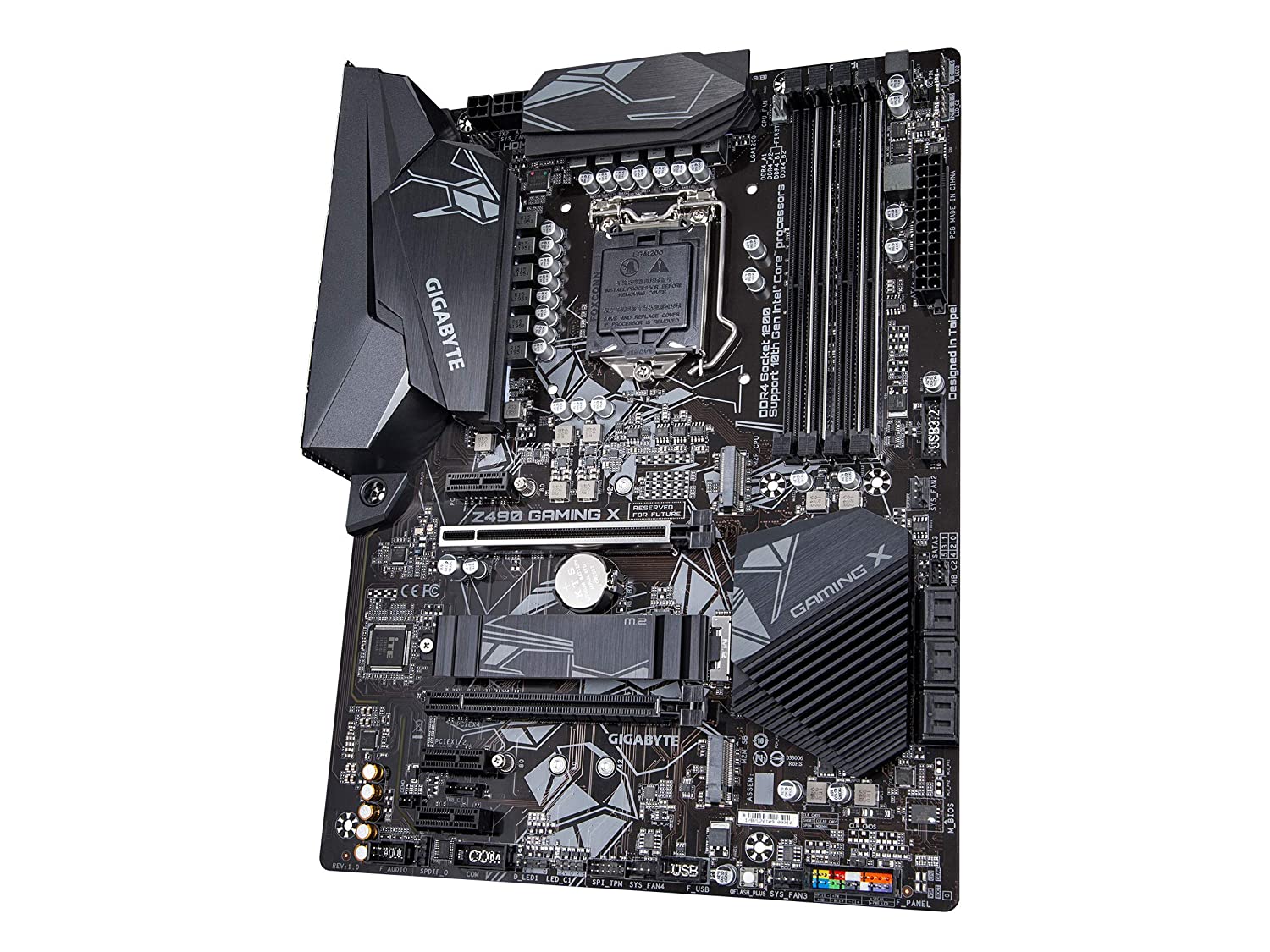

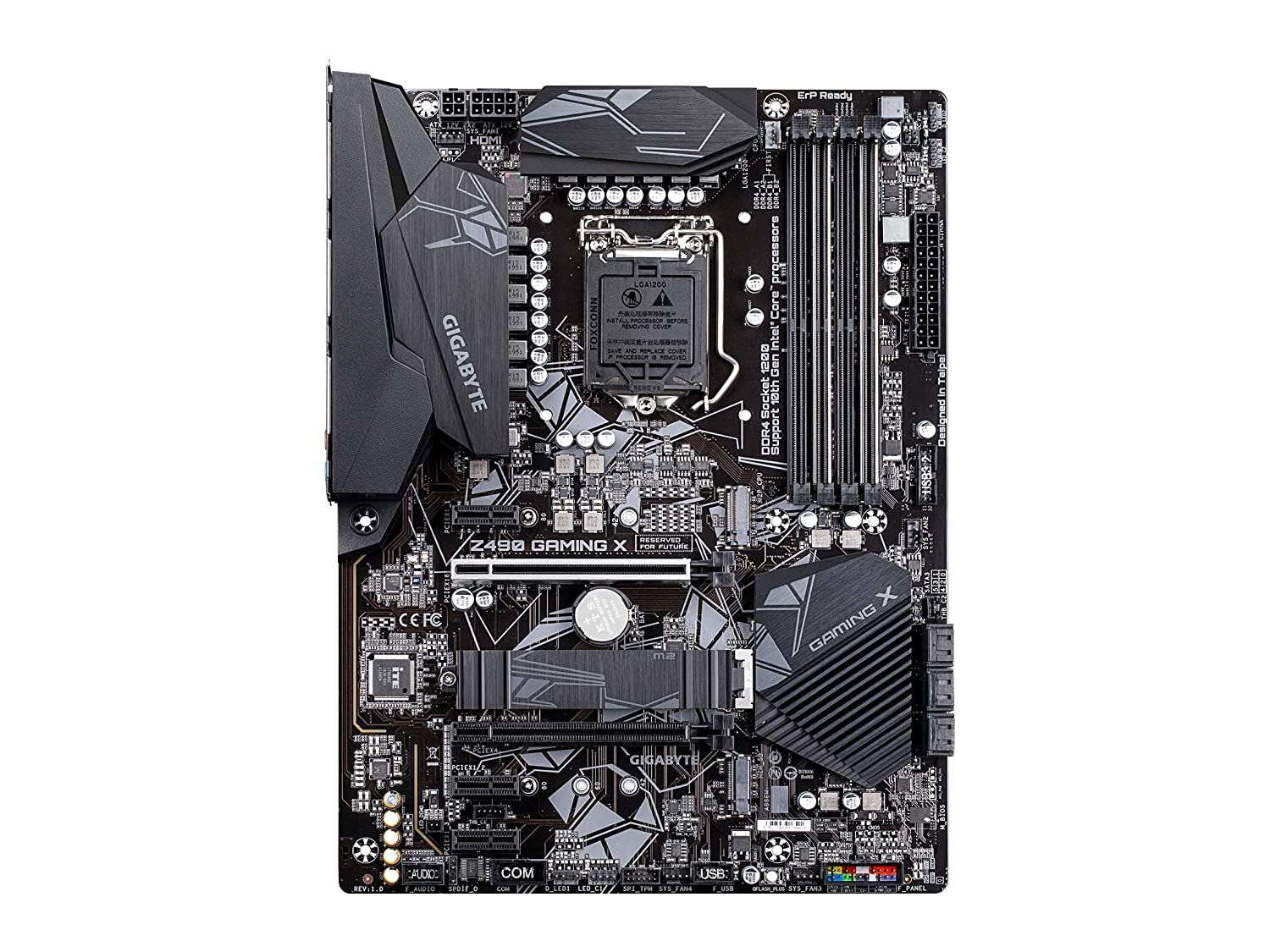

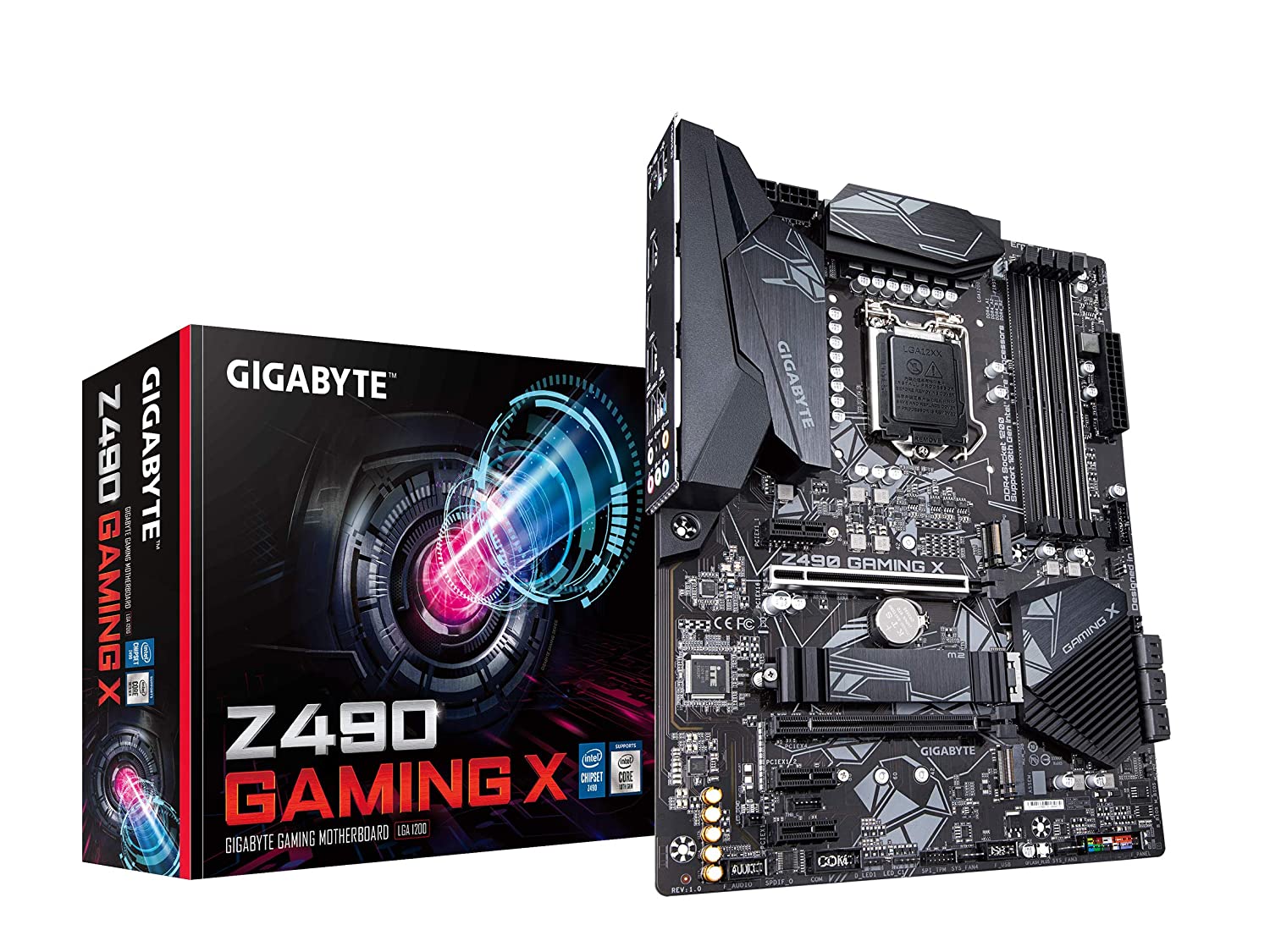

Gigabyte Z490 GAMING X Motherboard for Intel 10th Gen Processors – LGA1200 Socket

1. Support for 10th Generation Intel^? Core??i9 processors/Intel^? Core??i7 processors/Intel^? Core??i5 processors/Intel^? Core??i3 processors/Intel^? Pentium^? processors/Intel^? Celeron^? processors in the LGA1200 package
2. L3 cache varies with CPU

1. Intel^? Core??i9/i7 processors:
   DDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
2. Intel^? Core??i5/i3/Pentium^?/Celeron^? processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

1. Realtek^? ALC1200 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

1. Intel^? GbE LAN chip (1000 Mbit/100 Mbit)

1. Support for AMD Quad-GPU CrossFire??and 2-Way AMD CrossFire??technologies

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
5. Intel^? Optane??Memory Ready

1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2. 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x 8-pin ATX 12V power connector
4. 1 x CPU fan header
5. 4 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 6 x SATA 6Gb/s connectors
9. 2 x M.2 Socket 3 connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x S/PDIF Out header
13. 1 x USB 3.2 Gen 1 header
14. 1 x USB 2.0/1.1 header
15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
16. 2 x Thunderbolt??add-in card connectors
17. 1 x serial port header
18. 1 x Clear CMOS jumper
19. 1 x Q-Flash Plus button

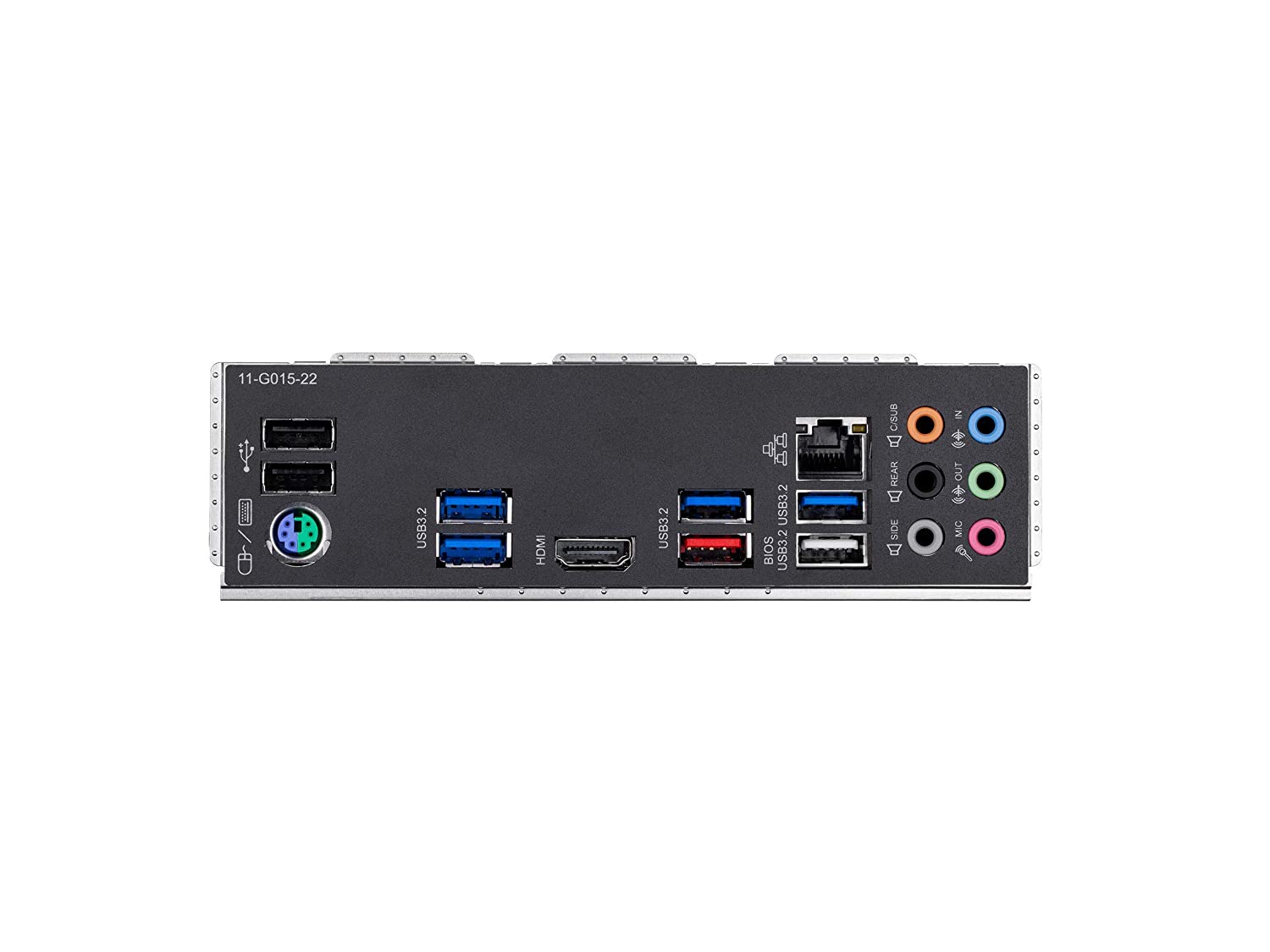

1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 1 x USB 3.2 Gen 2 Type-A port (red)
4. 5 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 6 x audio jacks

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install

1. Norton^? Internet Security (OEM version)
2. cFosSpeed

1. Support for Windows 10 64-bit
