Gigabyte Z490 UD AC (Wi-Fi) Ultra Durable Motherboard for Intel 10th Gen Processors - LGA1200 Socket
Gigabyte Z490 UD AC (Wi-Fi) Ultra Durable Motherboard for Intel 10th Gen Processors - LGA1200 Socket - Image 2
Gigabyte Z490 UD AC (Wi-Fi) Ultra Durable Motherboard for Intel 10th Gen Processors - LGA1200 Socket - Image 3
Gigabyte Z490 UD AC (Wi-Fi) Ultra Durable Motherboard for Intel 10th Gen Processors - LGA1200 Socket - Image 4
Gigabyte Z490 UD AC (Wi-Fi) Ultra Durable Motherboard for Intel 10th Gen Processors - LGA1200 Socket - Image 5

Gigabyte Z490 UD AC (Wi-Fi) Ultra Durable Motherboard for Intel 10th Gen Processors – LGA1200 Socket

Original price was: ₹23,000.00.Current price is: ₹16,945.00.

Out of stock

Add to Compare
SKU: Gigabyte Z490 UD AC (Wi-Fi) Ultra Durable Motherboard Category: Tags: , , , , , , Brand:

Additional Information

Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.

10 Days Return

You can return the product & get a new replacement if the product is received in defective/ damaged condition.

Free Fast Delivery

We are glad to provide free shipping throughout India.

100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.

Genuine Manufacturer Warranty

All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.

Excellent Customer Support

We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in

Reviews

Product Description

Intel? Z490 Ultra Durable Motherboard with Direct 11+1 Phases Digital VRM, Extended MOS Heatsink, Dual NVMe PCIe 3.0 x4 M.2, GbE Gaming LAN, Integrated I/O Shield, Q-Flash PLUS, RGB FUSION 2.0

  • Supports 10th Gen Intel? Core??Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel? Optane??Memory Ready
  • Direct 11+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Enlarged VRM Heatsink with Increased Surface Contact Air-Flow Grooving
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Multi-Way Graphics Support with PCIe Armor and Ultra Durable??Design
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 & One Supports SATA Protocol
  • Intel? Native USB 3.2 Gen2 Type-A with Speed Up To 10Gbps
  • RGB FUSION 2.0 Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
  • Rear IO Armor with Pre-Installed I/O Shield
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Lightning-Fast Intel? Thunderbolt??3 AIC Support

SPECIFICATIONS:

Model Z490 UD AC
CPU
  1. Support for 10th Generation Intel? Core??i9 processors/Intel? Core??i7 processors/Intel? Core??i5 processors/Intel? Core??i3 processors/Intel? Pentium? processors/Intel? Celeron? processors in the LGA1200 package
  2. L3 cache varies with CPU
Chipset Intel? Z490 Express Chipset
Memory
  1. Intel? Core??i9/i7 processors:
    Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. Intel? Core??i5/i3/Pentium?/Celeron? processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
  1. Integrated Graphics Processor-Intel? HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  2. Maximum shared memory of 512 MB
Audio
  1. Realtek? ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  4. Support for S/PDIF Out
LAN
  1. Realtek? GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication module Intel? Wi-Fi AC 9462:

  1. Intel? CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 1×1 11ac wireless standard and up to 433 Mbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire??and 2-Way AMD CrossFire??technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
  5. Intel? Optane??Memory Ready
USB Chipset:

  1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  2. 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x 8-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 4 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 1 x Q-Flash Plus button
  9. 6 x SATA 6Gb/s connectors
  10. 2 x M.2 Socket 3 connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x S/PDIF Out header
  14. 1 x USB 3.2 Gen 1 header
  15. 1 x USB 2.0/1.1 header
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  17. 2 x Thunderbolt??add-in card connectors
  18. 1 x serial port header
  19. 1 x Clear CMOS jumper

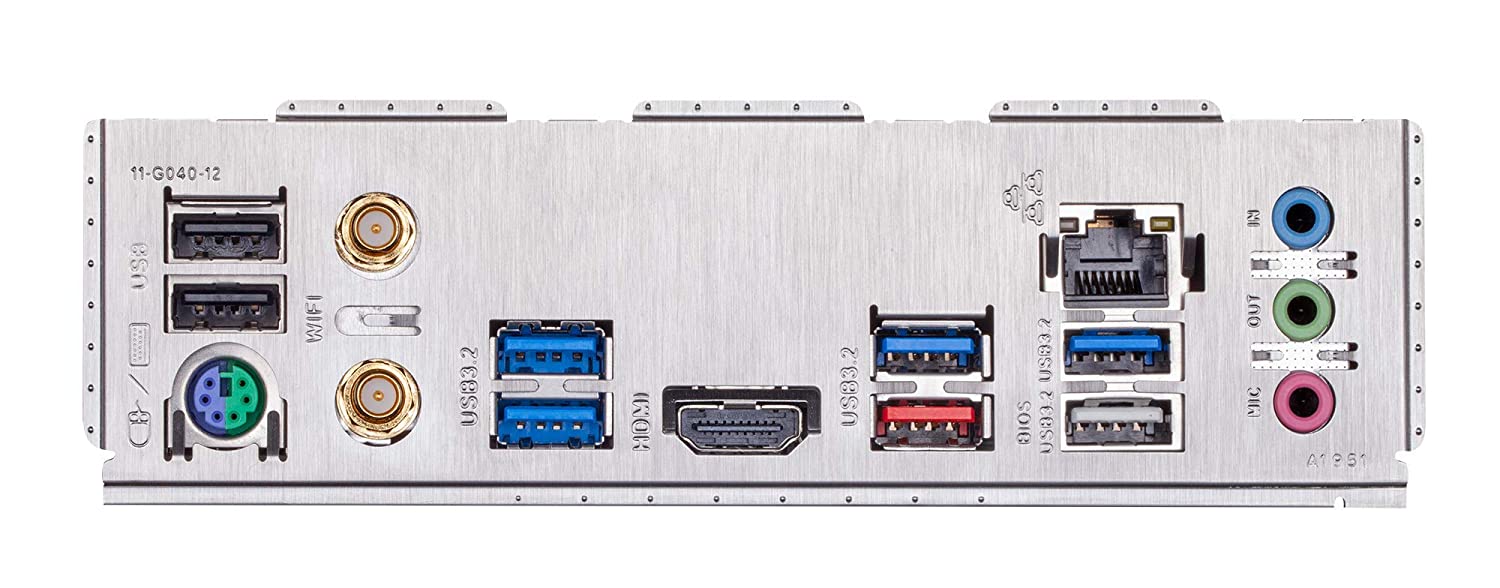

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x SMA antenna connectors (1T1R)
  3. 1 x HDMI port
  4. 1 x USB 3.2 Gen 2 Type-A port (red)
  5. 5 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks
I/O Controller iTE? I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton? Internet Security (OEM version)
  2. Realtek? 8118 Gaming LAN Bandwidth Control Utility
Operating System
  1. Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Country Of Origin China
Manufacturer Gigabyte Technology (India) Private Limited
B-Wing, 807 & 808, Naman MidTown
Elphinstone Road, Mumbai 400013
Email: sales@gigabyte.in
Tel: +91 0 22 40633222
Importer WPG C&C Computers And Peripheral(I) Pvt.Ltd
Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III,
New Delhi-110020
Net Quantity 1
Product Package Dimensions (LxWxH) 22.7 x 15.2 x 3.4 Centimeters
Weight 700g
Note
***Features, Price and Specifications are subject to change without notice.
