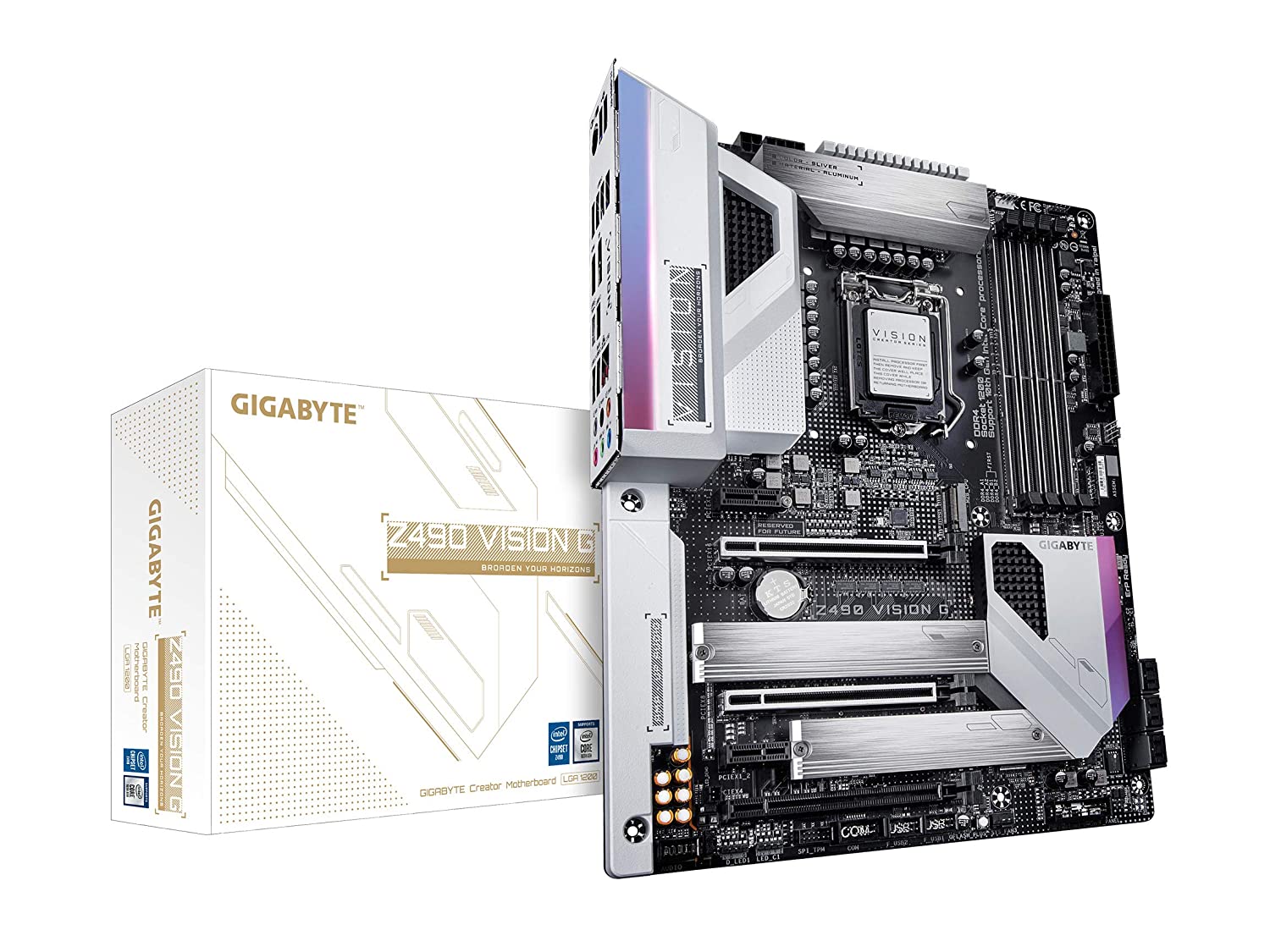

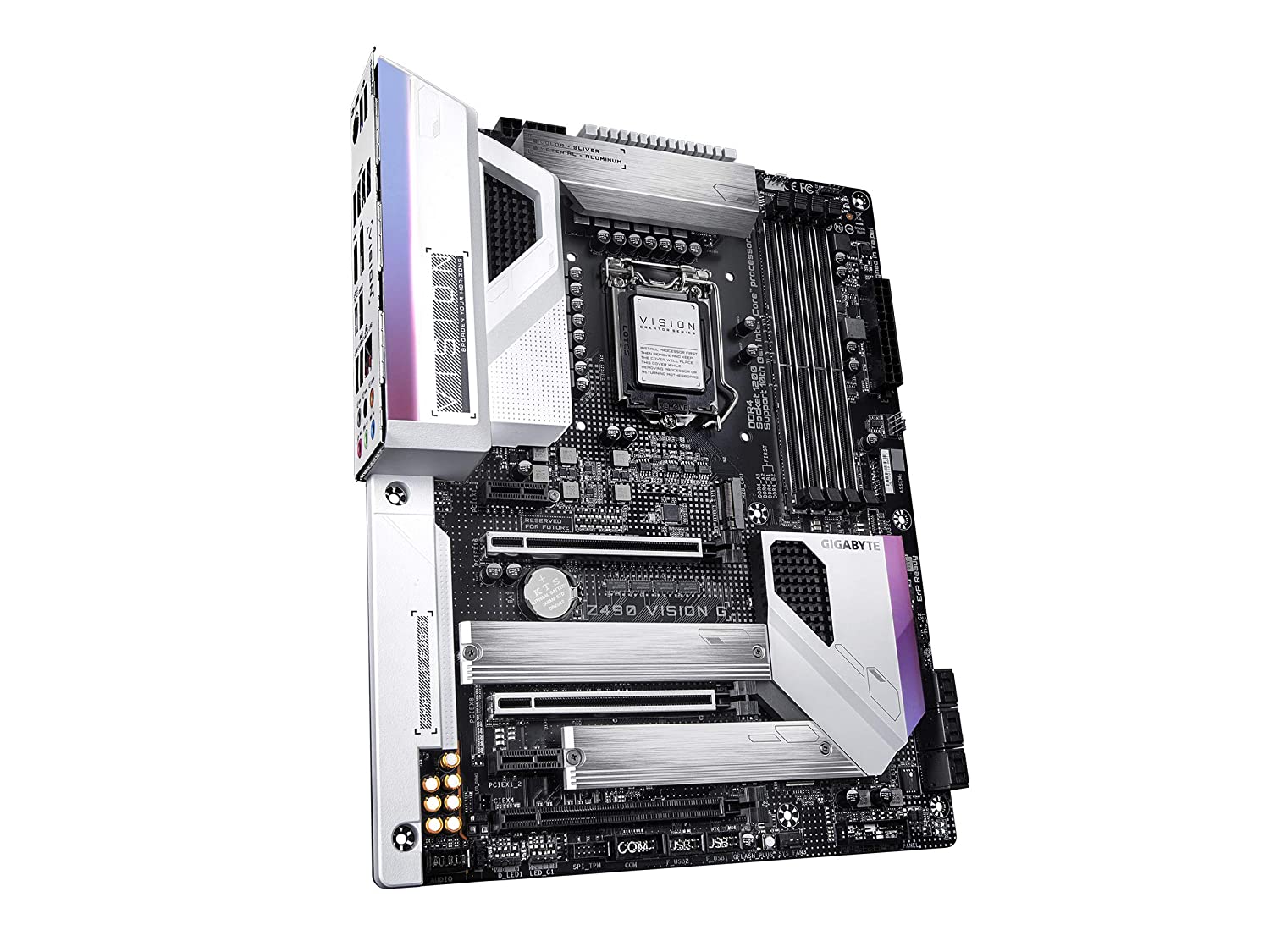

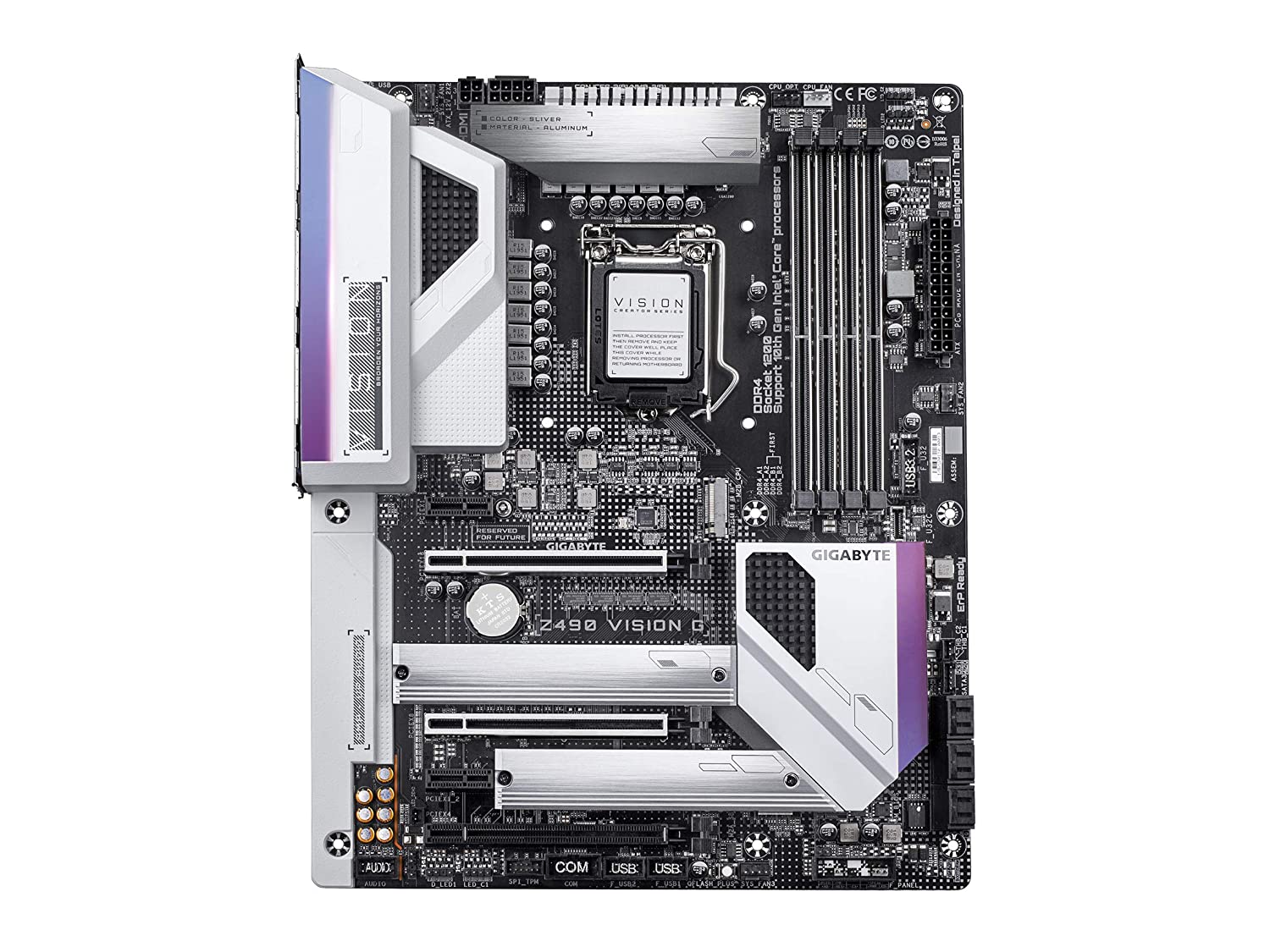

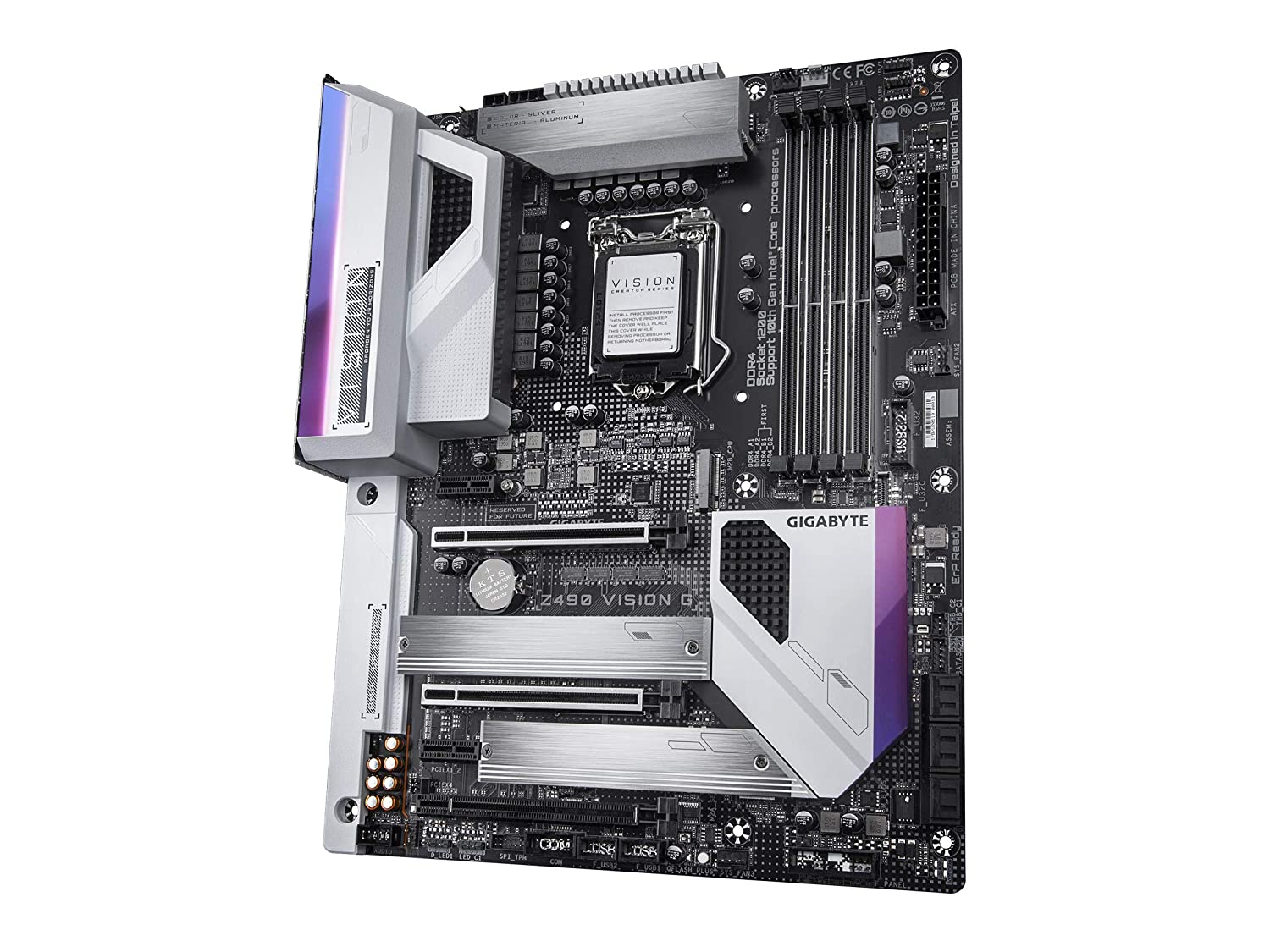

Gigabyte Z490 VISION G Motherboard with Thunderbolt 3 AIC Support, 3 USB 3.2 Gen 2, Type-C Ports – LGA1200 Socket

1. Support for 10th Generation Intel^? Core??i9 processors/Intel^? Core??i7 processors/Intel^? Core??i5 processors/Intel^? Core??i3 processors/Intel^? Pentium^? processors/Intel^? Celeron^? processors in the LGA1200 package
2. L3 cache varies with CPU

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture
3. Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
   * To support 3200 MHz, you must use XMP memory.
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.
2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
   * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Maximum shared memory of 512 MB

1. Realtek^? ALC1220-VB codec
   * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

1. 1. Intel^? 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit)

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
4. 2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

1. Support for NVIDIA^? Quad-GPU SLI??and 2-Way NVIDIA^? SLI??technologies
2. Support for AMD Quad-GPU CrossFire??and 2-Way AMD CrossFire??technologies

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
5. Intel^? Optane??Memory Ready

1. 3 x USB 3.2 Gen 2 ports on the back panel
2. 2 x USB Type-C??ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4. 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 3 x system fan headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 6 x SATA 6Gb/s connectors
10. 2 x M.2 Socket 3 connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x S/PDIF Out header
14. 1 x USB Type-C??port, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
18. 2 x Thunderbolt??add-in card connectors
19. 1 x serial port header
20. 1 x Clear CMOS jumper

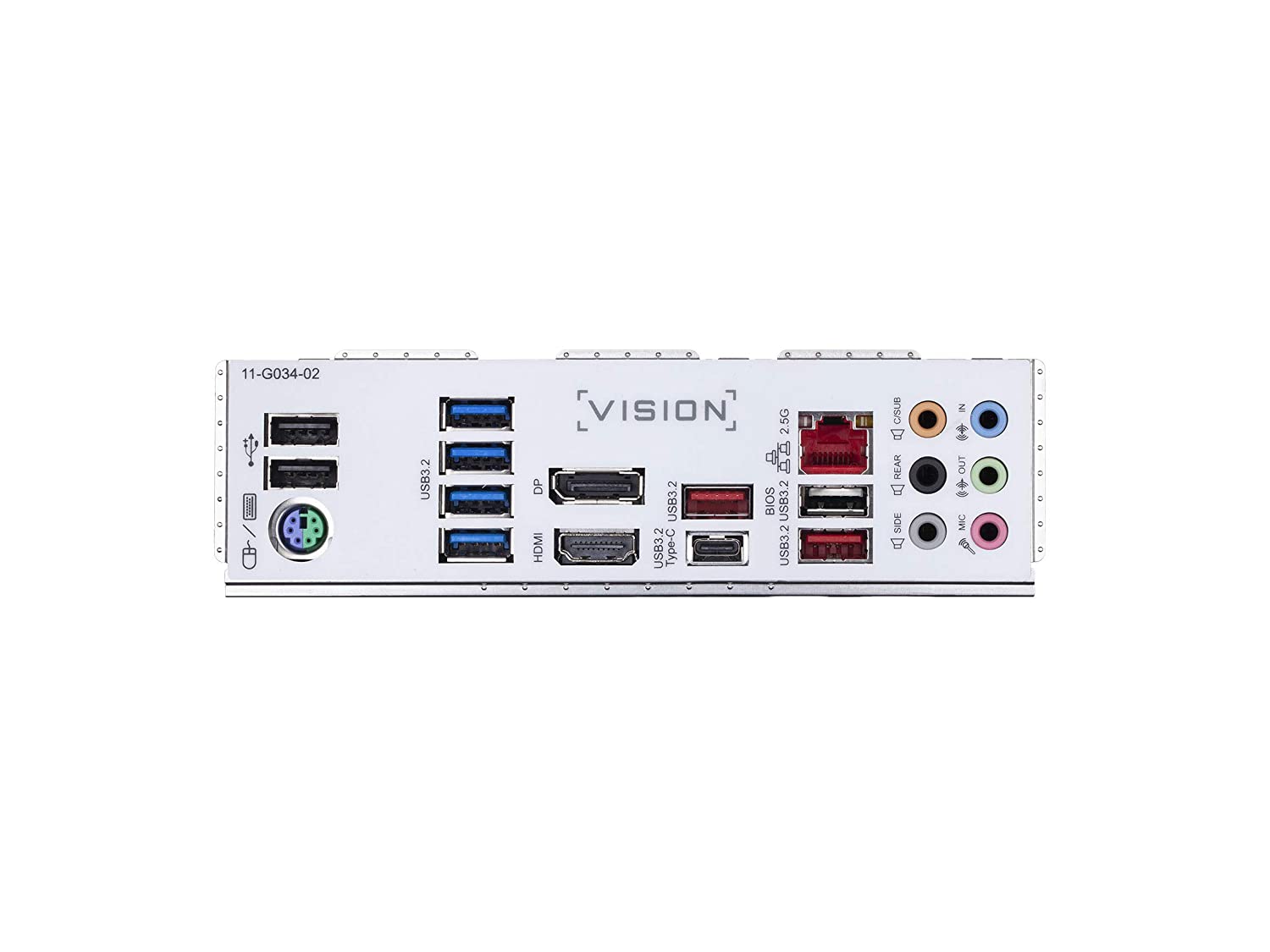

1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 4 x USB 3.2 Gen 1 ports
4. 1 x DisplayPort
5. 1 x HDMI port
6. 3 x USB 3.2 Gen 2 Type-A ports
7. 1 x USB Type-C??port, with USB 3.2 Gen 2 support
8. 1 x RJ-45 port
9. 6 x audio jacks

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install

1. Norton^? Internet Security (OEM version)
2. cFosSpeed
