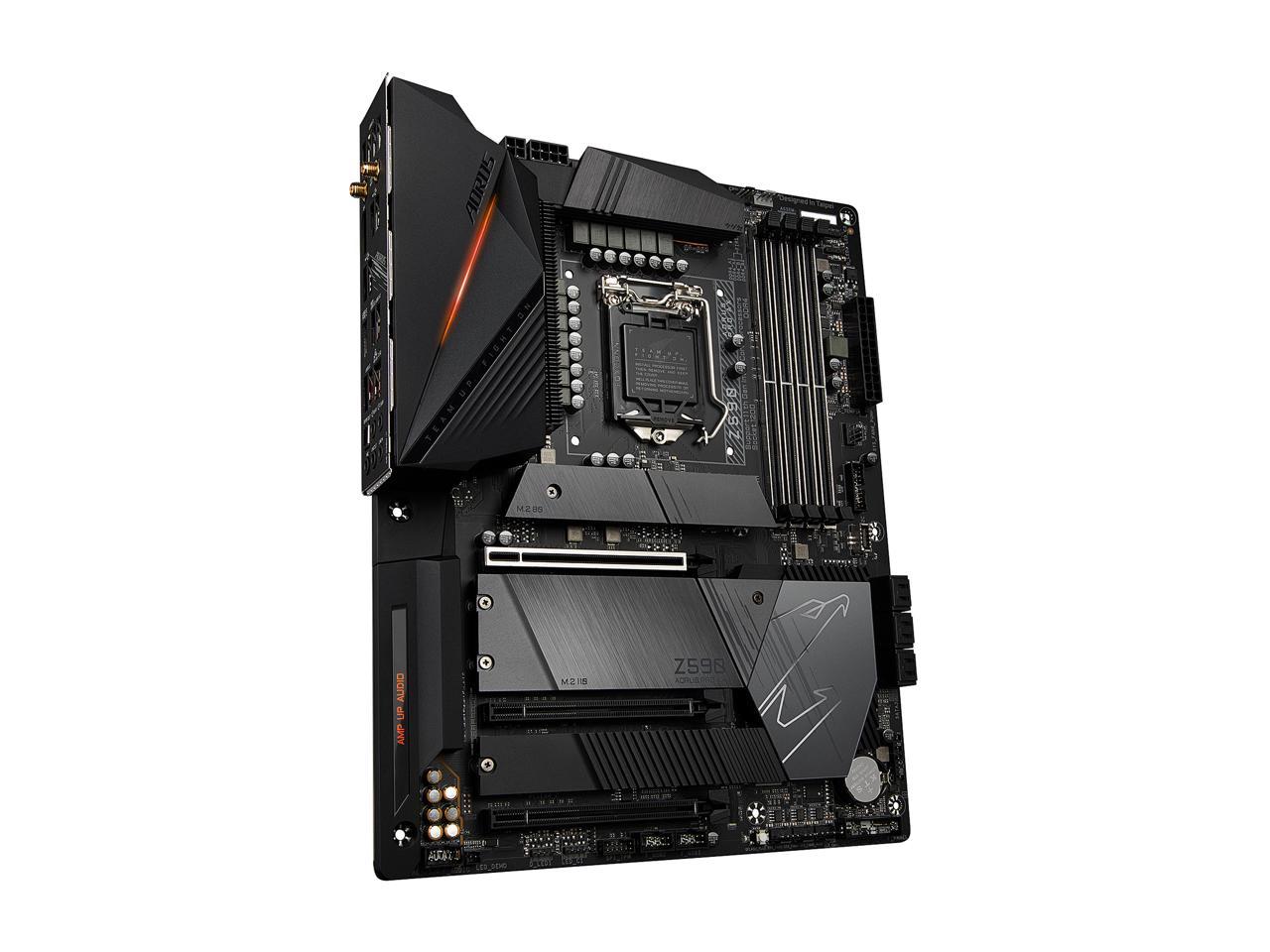

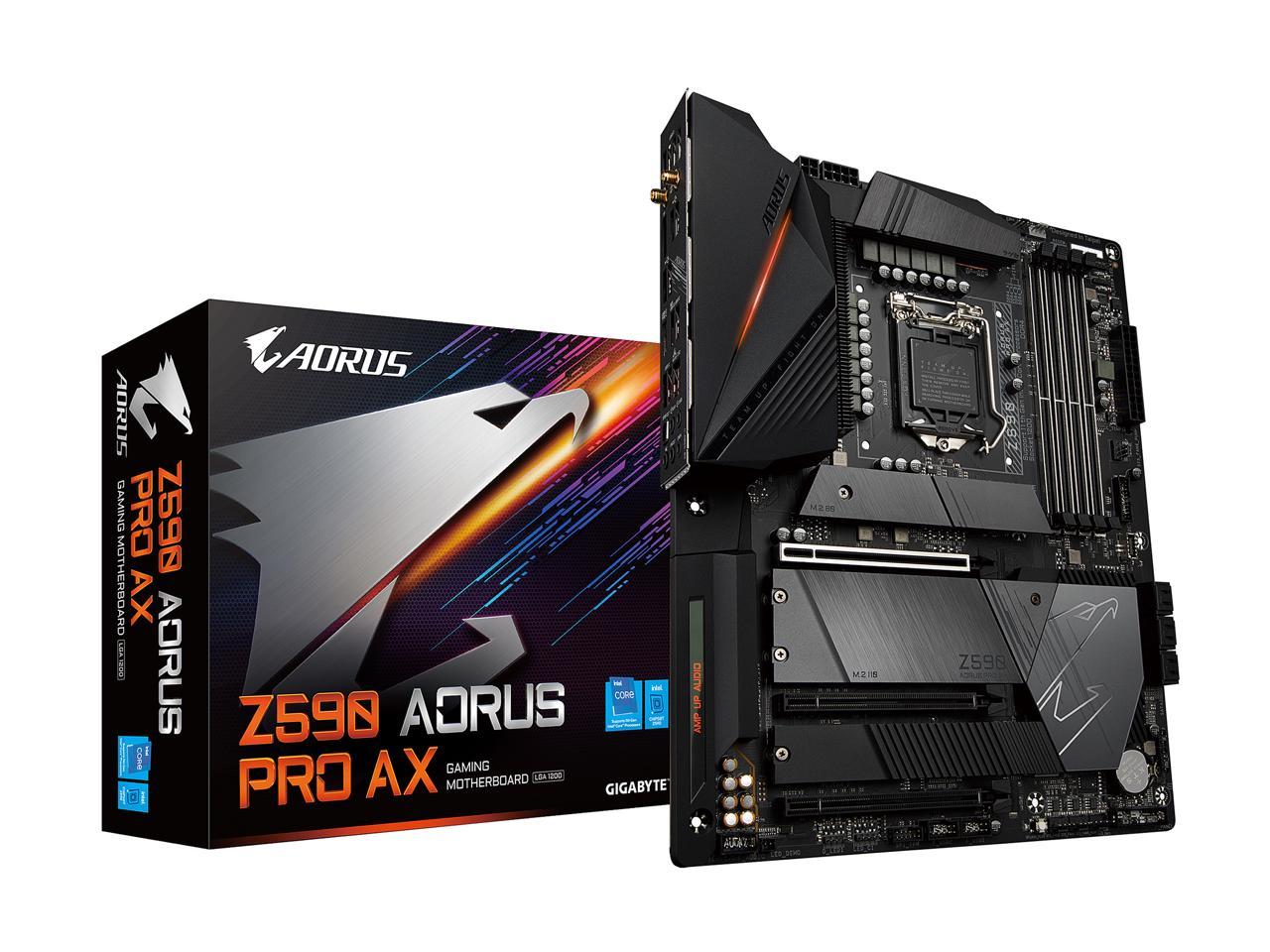

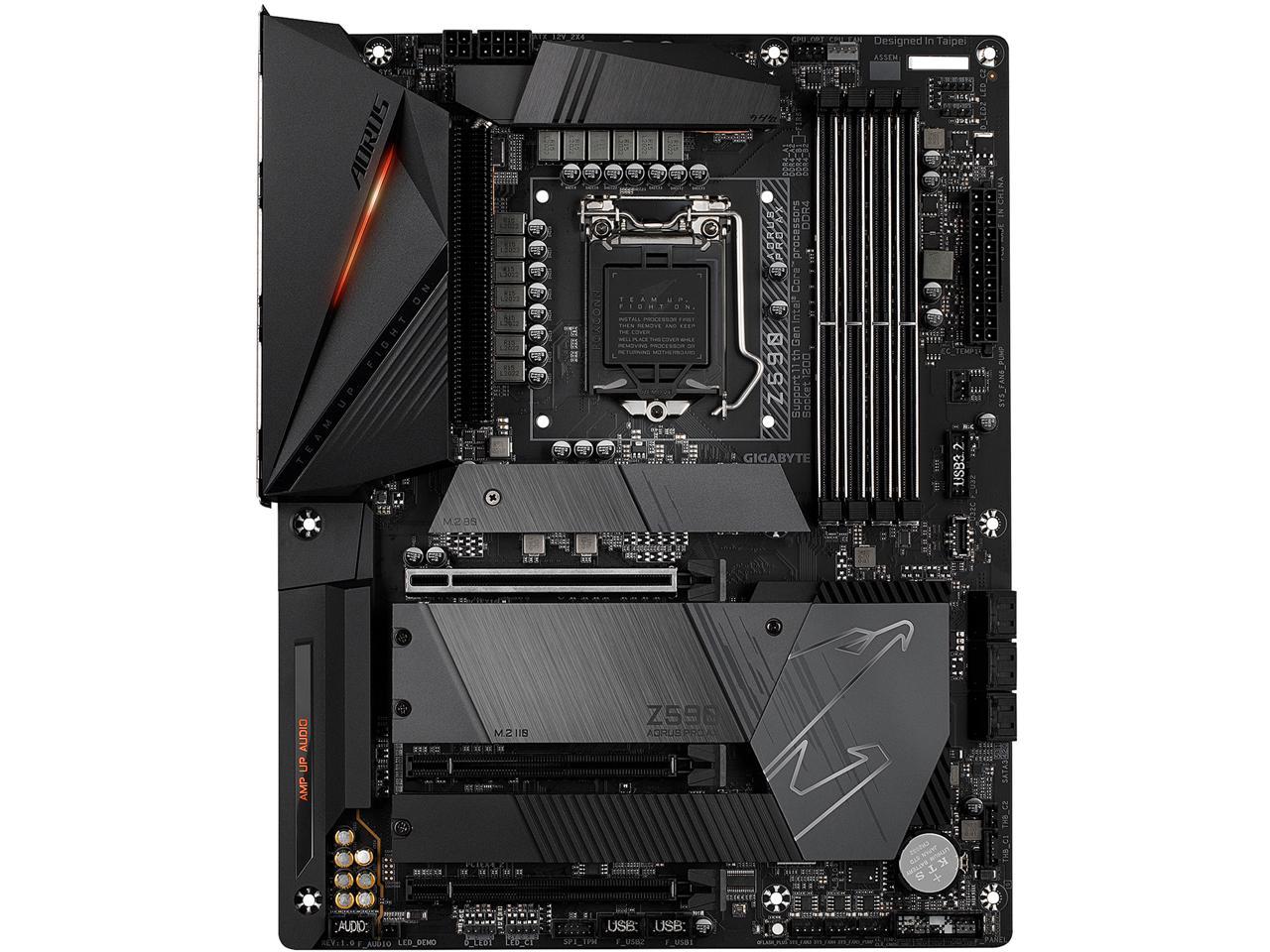

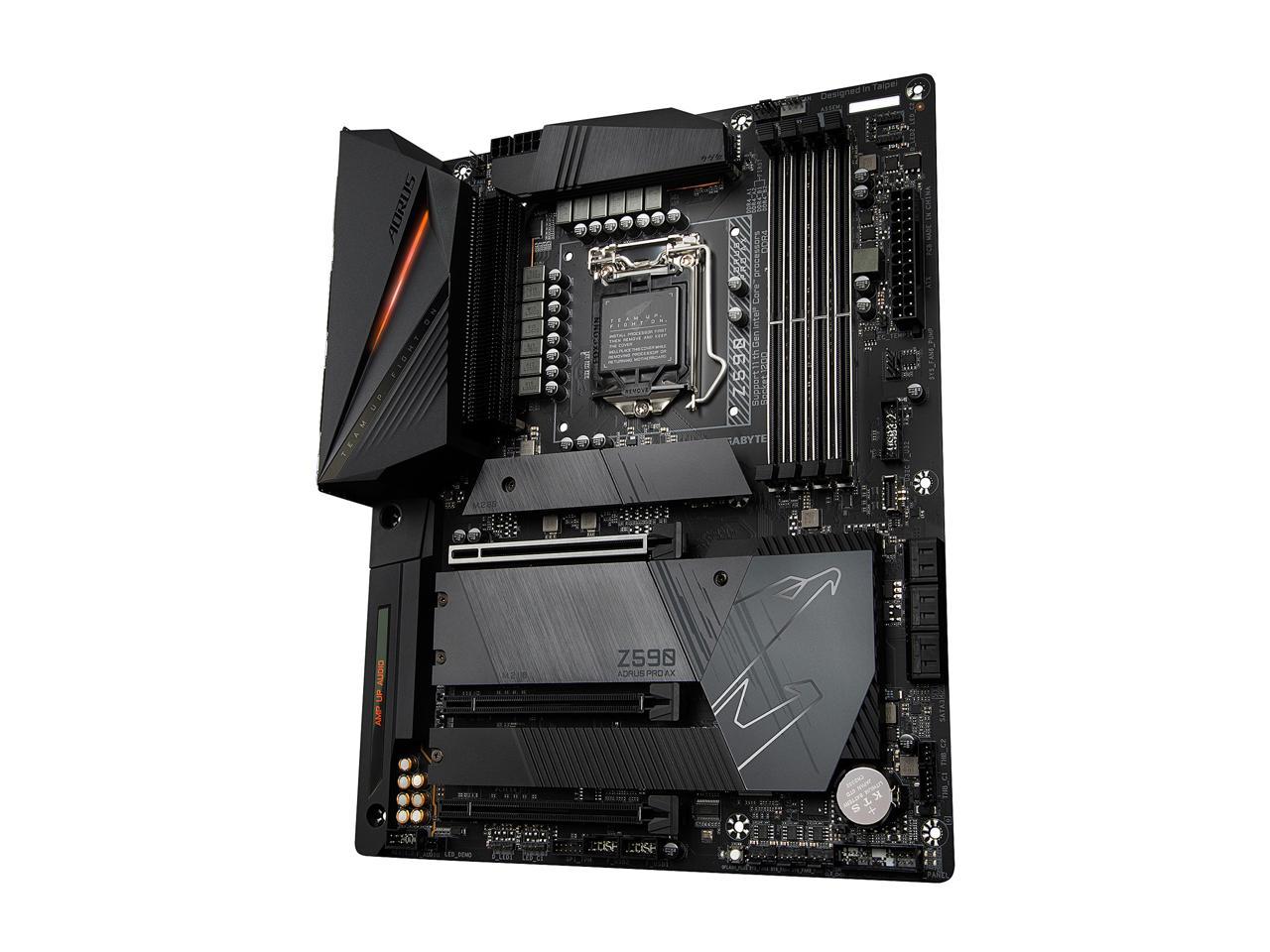

Gigabyte Z590 AORUS PRO AX (WiFi) Motherboard for Intel 10th/ 11th Gen Processors – LGA1200 Socket
Original price was: ₹45,000.00.₹29,490.00Current price is: ₹29,490.00.
Out of stock
Additional Information
Cash on Delivery
Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.
10 Days Return
You can return the product & get a new replacement if the product is received in defective/ damaged condition.
Free Fast Delivery
We are glad to provide free shipping throughout India.
100% Secure Payment
We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.
Genuine Manufacturer Warranty
All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.
Excellent Customer Support
We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in
Reviews
Product Description
Z590 AORUS PRO AX motherboard comes with upgraded power solution, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level.
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel Optane Memory Ready
- Direct 12+1 Phases Digital VRM Solution with 90A Smart Power Stage
- Shielded Memory Routing to avoid Interference
- Advanced Thermal Solution with Fins-Array II Heatsink
- Direct Touch Heatpipe II and Thermal Guard II
- Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNR
- Blazing Fast Intel 2.5GbE LAN with cFosSpeed
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
- Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors
- Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU
| SPECIFICATIONS | |
|---|---|
| Brand | Gigabyte |
| Model | Z590 AORUS PRO AX |
| CPU | LGA1200 package:
11th Generation Intel? Core??i9 processors / Intel? Core??i7 processors / Intel? Core??i5 processors (Please refer to “CPU Support List” for more information.) |
| Chipset | Intel? Z590 Express Chipset |
| Memory | 11th Generation Intel? Core??i9/i7/i5 processors: Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel? Core??i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel? Core??i5/i3 /Pentium?/Celeron? processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) |
| Audio | Realtek? ALC4080 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Intel? 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Wireless Communication module | Intel? Wi-Fi 6 AX200
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. * The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) (PCIEX4_1 and PCIEX4_2 slots conform to PCI Express 3.0 standard.) |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire??and 2-Way AMD CrossFire??technologies |
| Storage Interface | Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| USB | Chipset+USB 3.2 Gen1 Hubs:
4 x USB 3.2 Gen1 ports on the back panel Chipset+2 USB 2.0 Hubs: |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C? header, with USB 3.2 Gen2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt??add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button ??ll fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |

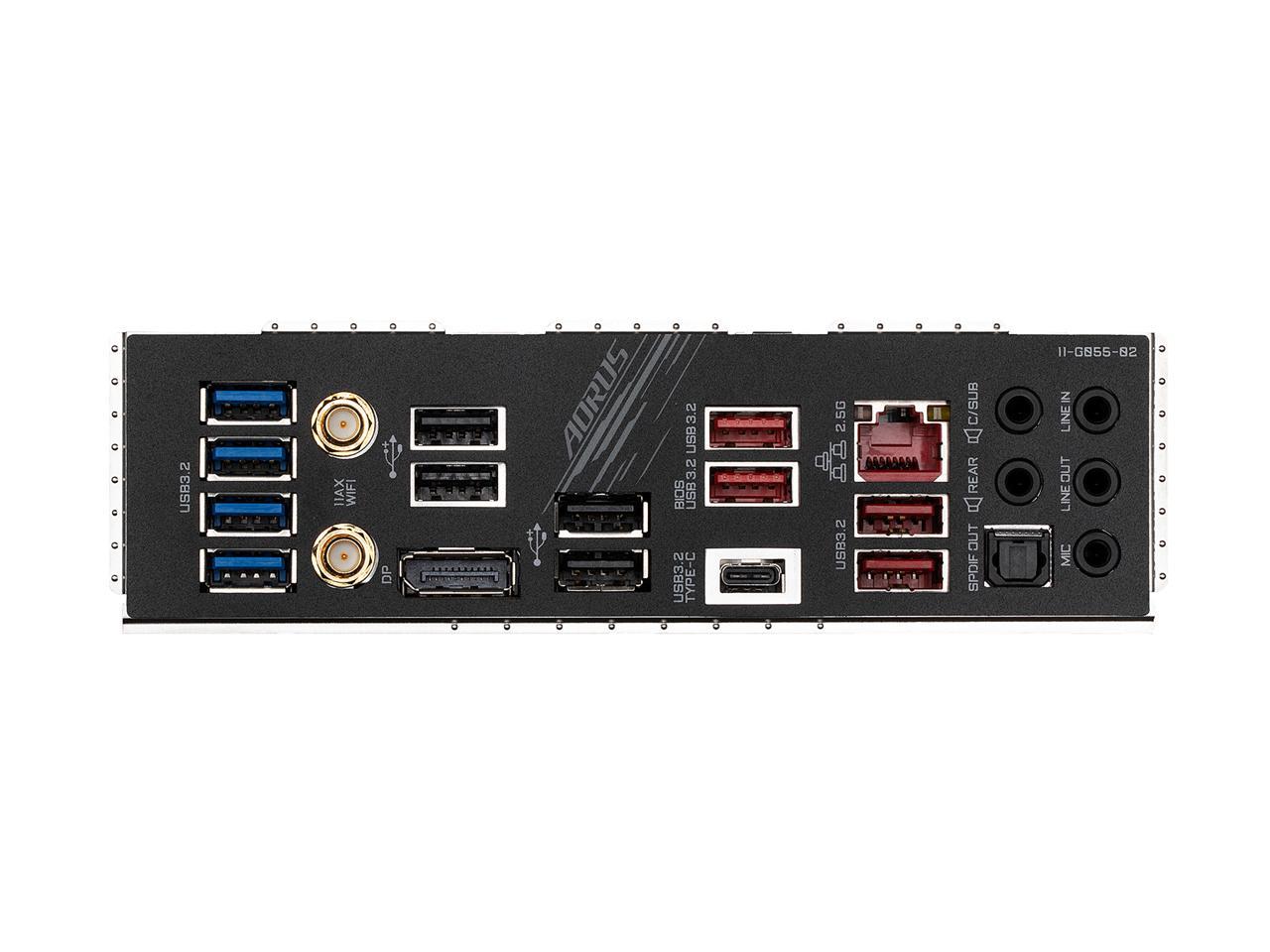

| Back Panel Connectors | 1 x USB Type-C? port, with USB 3.2 Gen 2×2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| I/O Controller | iTE? I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton? Internet Security (OEM version) cFosSpeed |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Year Manufacturer’s Warranty |
| Country Of Origin | China |
| Manufacturer | Gigabyte Technology (India) Private Limited B-Wing, 807 & 808, Naman MidTown Elphinstone Road, Mumbai 400013 Email: sales@gigabyte.in Tel: +91 0 22 40633222 |
| Importer | WPG C&C Computers And Peripheral(I) Pvt.Ltd Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III, New Delhi-110020 |
| Net Quantity | 1 |
| Product Package Dimensions (LxWxH) | 27 x 34 x 8 Centimeters |
| Weight | 2000g |
