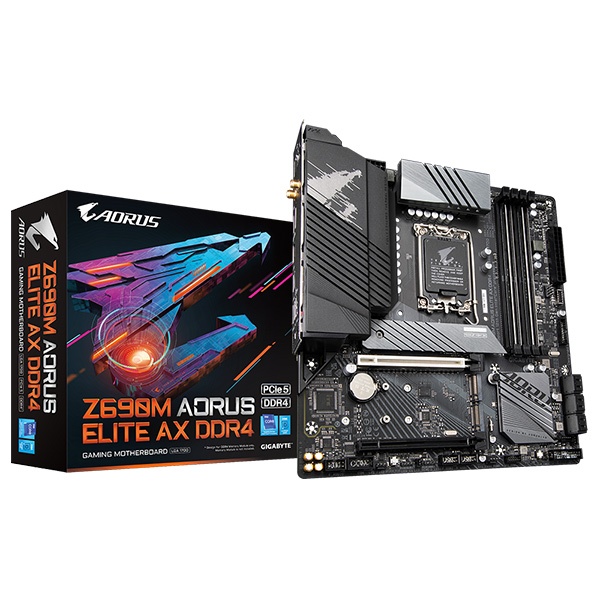

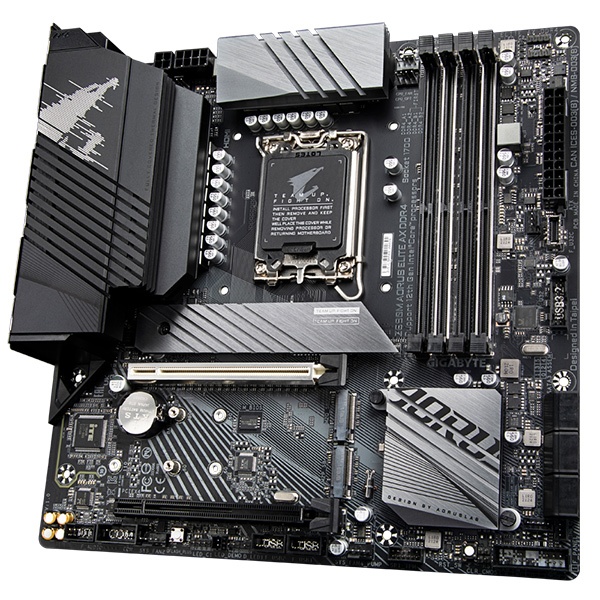

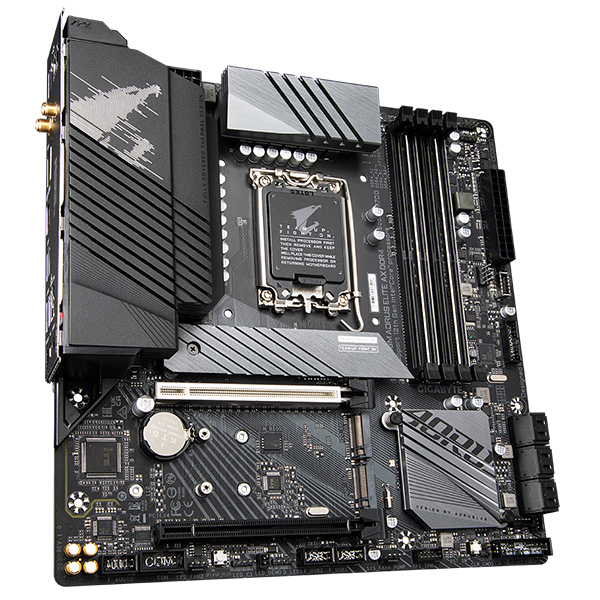

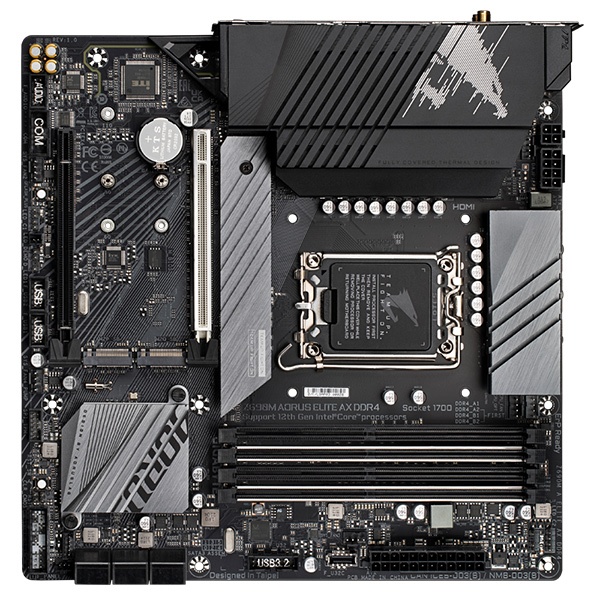

Gigabyte Z690M AORUS ELITE AX DDR4 Motherboard for 13th and 12th Gen Series Processors - LGA1700 Socket
Gigabyte Z690M AORUS ELITE AX DDR4 Motherboard for 13th and 12th Gen Series Processors - LGA1700 Socket - Image 2
Gigabyte Z690M AORUS ELITE AX DDR4 Motherboard for 13th and 12th Gen Series Processors - LGA1700 Socket - Image 3
Gigabyte Z690M AORUS ELITE AX DDR4 Motherboard for 13th and 12th Gen Series Processors - LGA1700 Socket - Image 4
Gigabyte Z690M AORUS ELITE AX DDR4 Motherboard for 13th and 12th Gen Series Processors - LGA1700 Socket - Image 5

Gigabyte Z690M AORUS ELITE AX DDR4 Motherboard for 13th and 12th Gen Series Processors – LGA1700 Socket

Original price was: ₹30,500.00.Current price is: ₹19,698.00.

Out of stock

Add to Compare
SKU: Gigabyte Z690M AORUS ELITE AX DDR4 Motherboard Category: Tags: , , , , Brand:

Additional Information

Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.

10 Days Return

You can return the product & get a new replacement if the product is received in defective/ damaged condition.

Free Fast Delivery

We are glad to provide free shipping throughout India.

100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.

Genuine Manufacturer Warranty

All products sold through our website comes with a manufacturer’s warranty & We provide GST invoice for every order. To know the warranty period, Please check in the product specification.

Excellent Customer Support

We are available on WhatsApp/ Phone – 8122581225. and Email: hello@thevaluestore.in

Reviews

Product Description

BUILD SMART. GO ELITE.

Ever wonder why your system underperforms? You may be surprised how a motherboard could critically bottleneck the system performance, especially when it falls short on both the power and thermal design. With a limited budget, it is even more important to spend it wisely. Introducing AORUS ELITE motherboards, featuring the best-in-class digital power design, the best-in-class full-metal heatsink, and the best-in-class DDR4 XMP compatibility. It only takes a small step-up to be the best-in-class. Build Smart. Go ELITE.

Intel? Z690 AORUS Motherboard with Direct 12+1+2 Phases Digital VRM Design, PCIe 5.0 Design, Fully Covered Thermal Design , 3*PCIe 4.0 M.2 with Thermal Guard, Intel? 2.5GbE, WIFI6 802.11ax , Rear USB 3.2 Gen2x2 TYPE-C?, RGB FUSION 2.0, Q-Flash Plus

Features:

  • Supports 12th Gen Intel?  Core??Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor
  • Shielded Memory Routing to Avoid Interference
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • WIFI6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Fast Intel? 2.5GbE LAN with Bandwidth Management
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C? delivers up to 20Gb/s transfer speeds
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* Power Stage maximum current capacity is based on VCORE Phase.

SPECIFICATIONS:

Brand Gigabyte
Model Z690M AORUS ELITE AX DDR4
CPU
  1. LGA1700 socket: Support for 13th Generation Intel? Core??Processors and 12th Generation Intel? Core?? Pentium? Gold and Celeron? Processors*
  2. L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.
Chipset Intel? Z690 Express Chipset
Memory
  1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel? HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports
  2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek? Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  4. Support for S/PDIF Out
LAN Intel? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module WIFI Module

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Storage Interface CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  3. 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel? Optane??Memory Ready
* System acceleration with Intel? Optane??Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB Chipset:

  1. 1 x USB Type-C? port on the back panel, with USB 3.2 Gen 2×2 support
  2. 1 x USB Type-C? port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

  1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 3 x system fan headers
  7. 1 x system fan/water cooling pump header
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 3 x M.2 Socket 3 connectors
  11. 6 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C? header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 2 x Thunderbolt??add-in card connectors
  18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  19. 1 x serial port header
  20. 1 x reset button
  21. 1 x Q-Flash Plus button
  22. 1 x reset jumper
  23. 1 x Clear CMOS jumper

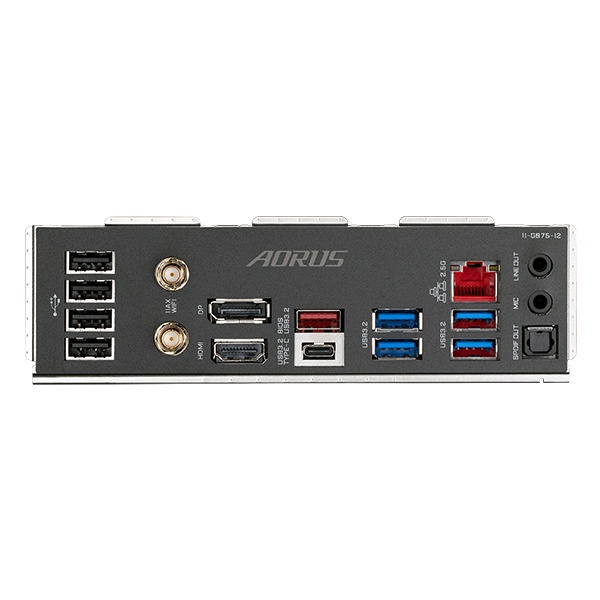

Back Panel Connectors
  1. 1 x USB Type-C? port, with USB 3.2 Gen 2×2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red)
  3. 4 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 2 x SMA antenna connectors (2T2R)
  6. 1 x HDMI port
  7. 1 x DisplayPort
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 2 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton? Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years Manufacturer’s Warranty
Country Of Origin China
Manufacturer Gigabyte Technology (India) Private Limited
B-Wing, 807 & 808, Naman MidTown
Elphinstone Road, Mumbai 400013
Email: sales@gigabyte.in
Tel: +91 0 22 40633222
Importer WPG C&C Computers And Peripheral(I) Pvt.Ltd
Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III,
New Delhi-110020
Net Quantity 1
Note *** Features, Price, Specifications are subject to change without notice.
